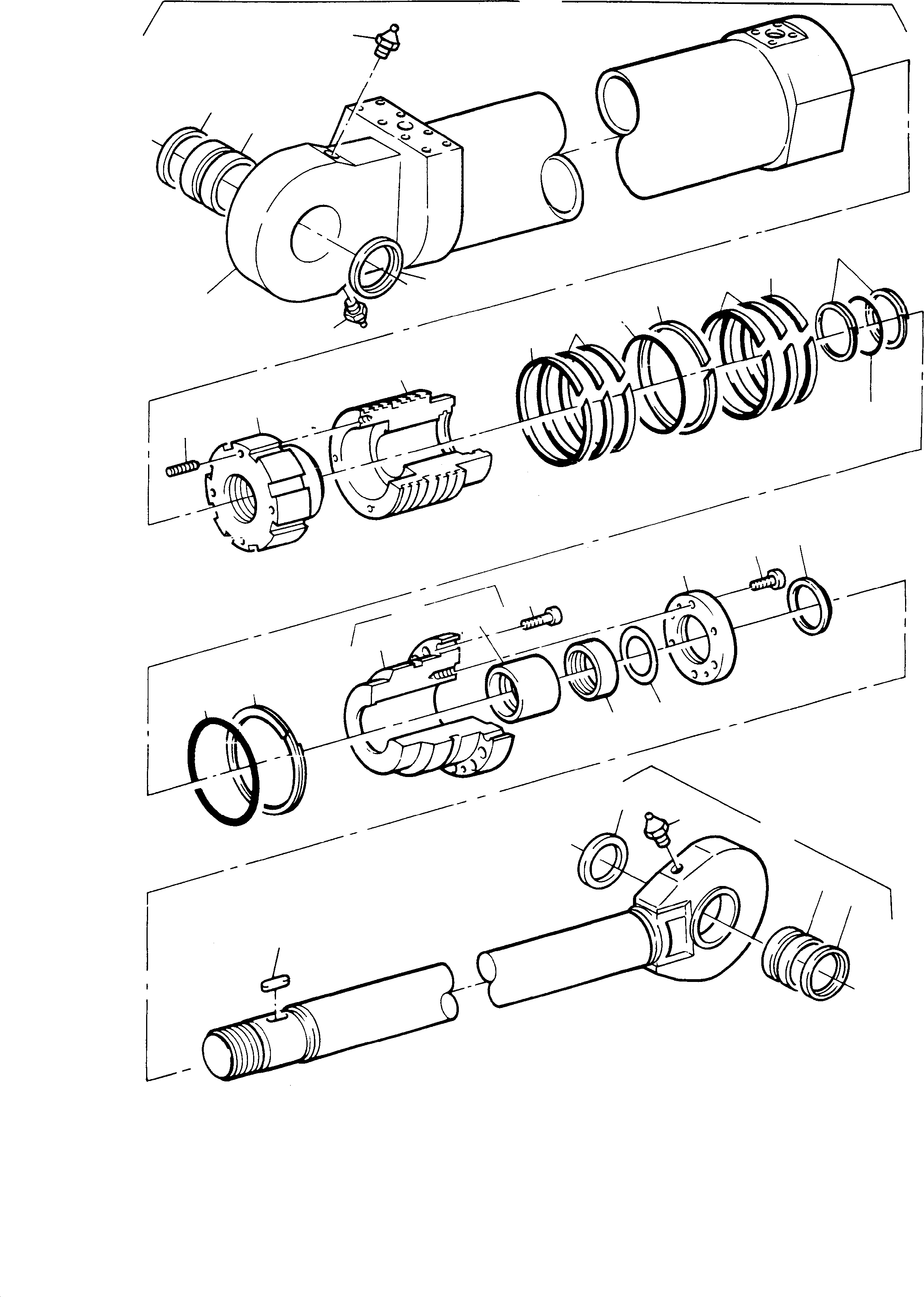

01 |
400 610 40
|
Hydr. cylinder assy. |
1 |
InternBDB: 225x140x1300 AT-Nr. 669 009 73
|
|
|
|
01 |
499 710 40
|
Hydr. cylinder assy.
cold weather design |
1 |
|
|
|
|
02 |
691 746 73
|
Piston rod assy. |
1 |
InternKon: 400 610 40 / 02
|
|
|
|
03 |
400 617 40
|
Sealing flange assy. |
1 |
InternKon: 400 610 40 / 03
|
|
|
|
04 |
290 774 40
|
Bush |
2 |
InternBDB: Ш140/120x86 | InternKon: 400 610 40 / 04
|
|
|
|
05 |
267 145 40
|
Piston |
1 |
InternBDB: Ш225 | InternKon: 400 610 40 / 05
|
|
|
|
06 |
267 146 40
|
Groove nut |
1 |
InternKon: 400 610 40 / 06
|
|
|
|
07 |
267 147 40
|
Cover |
1 |
InternKon: 400 610 40 / 07
|
|
|
|
08 |
319 341 99
|
Bolt |
14 |
InternBDB: M24x100/912 | InternKon: 400 610 40 / 08
|
|
|
|
08 |
505 784 98
|
Bolt |
14 |
InternKon: 400 610 40 / 08
|
|
|
|
09 |
319 288 99
|
Bolt |
8 |
InternBDB: M16x50/912 10.9 | InternKon: 400 610 40 / 09
|
|
|
|
09 |
500 643 98
|
Bolt |
8 |
InternKon: 400 610 40 / 09
|
|
|
|
10 |
347 403 99
|
Thread pin |
1 |
InternBDB: M12x30/915 10.9 | InternKon: 400 610 40 / 10
|
|
|
|
11 |
180 408 40
|
Stripper ring |
1 |
InternBDB: 140x156x14/6 P78 | InternKon: 400 610 40 / 11
|
|
|
|
12 |
180 405 40
|
Gasket kit |
1 |
InternBDB: 140x165x46 NBR M3 0210140 | InternKon: 400 610 40 / 12
|
|
|
|
13 |
500 669 98
|
O-ring |
1 |
InternBDB: 212x7B NB 90 | InternKon: 400 610 40 / 13
|
|
|
|
14 |
269 247 40
|
Support ring |
1 |
InternBDB: 212x7/2 auЯen dicht. | InternKon: 400 610 40 / 14
|
|
|
|
15 |
367 133 99
|
O-ring |
1 |
InternBDB: 140x5B NB 90 | InternKon: 400 610 40 / 15
|
|
|
|
16 |
269 246 40
|
Support ring |
2 |
InternBDB: TIR140x5/1,5 140x148,6x1,5 | InternKon: 400 610 40 / 16
|
|
|
|
17 |
501 901 98
|
O-ring |
1 |
InternBDB: 196,2x7B NB 70 | InternKon: 400 610 40 / 17
|
|
|
|
18 |
202 700 40
|
Turcon-glyd-ring |
1 |
InternBDB: S-55044-2250 -46 | InternKon: 400 610 40 / 18
|
|
|
|
19 |
324 903 40
|
Piston guide strap |
2 |
InternBDB: S-50704-47 | InternKon: 400 610 40 / 19
|
|
|
|
20 |
269 254 40
|
Piston guide ring |
4 |
InternBDB: BI-50706-2250 A-900 | InternKon: 400 610 40 / 20
|
|
|
|
21 |
354 354 99
|
Feather key |
1 |
InternBDB: A16x10x60 | InternKon: 400 610 40 / 21
|
|
|
|
22 |
004 860 98
|
Grease nipple |
3 |
InternBDB: AR1/4 | InternKon: 400 610 40 / 22
|
|
|
|
23 |
269 537 40
|
Stripper |
4 |
InternBDB: 120x140x7,5 | InternKon: 400 610 40 / 23
|
|
|
|
24 |
400 602 40
|
Cylinder barrel |
1 |
InternKon: 400 610 40 / 1
|
|
|
|
30 |
400 613 40
|
Flanged bush,
no field repair item |
1 |
InternKon: 400 610 40 / 1
|
|
|
|
31 |
267 154 40
|
Bearing bush,
no field repair item |
1 |
InternKon: 400 610 40 / 2
|
|
|
|
32 |
324 311 40
|
Shim 0,8 |
-2 |
InternBDB: Ш140/164,2x0,8
|
|
|
|
|$$31 |
691 743
|
Seal kit - piston rod
fig-nos: 11-14 |
-2 |
InternBDB: E-ST
|
|
|
|
|$$32 |
691 744
|
Seal kit - piston
fig-nos: 15-20 |
-2 |
InternBDB: E-ST
|
|
