01 |
425 400 40
|

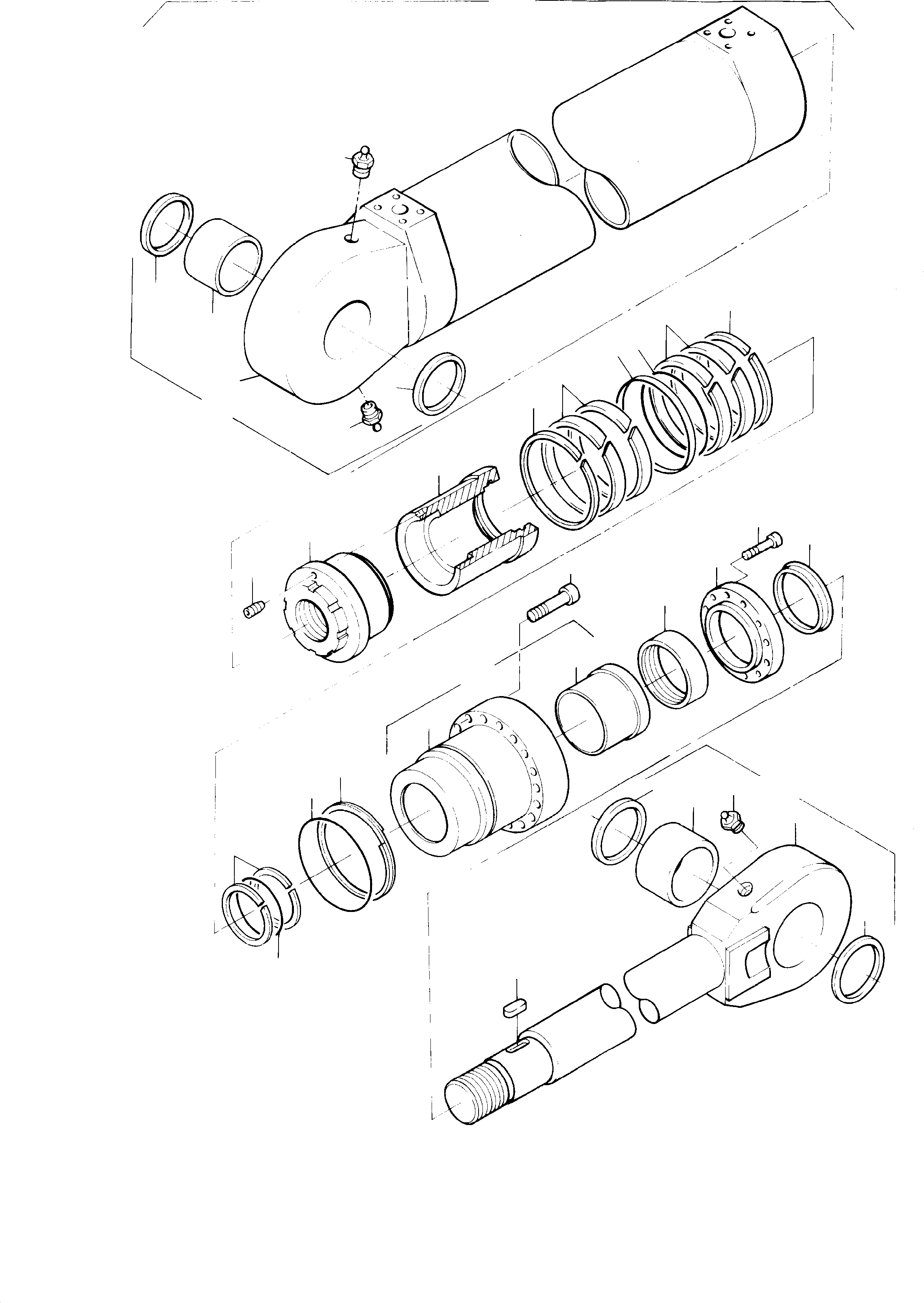

Hydraulic cylinder assy.
consist. of fig-no: 02-28 |
1 |
InternBDB: DBM 250x160x2940 Hub 1700 AT-Nr. 695 879 73 | InternKon: 425 492 40/1 / 1
|
|
|
|
02 |
695 880 73
|
Cylinder assy.
consist. of fig-no: 03-06 |
1 |
InternBDB: E-St
|
|
|
|
03 |
|
Cylinder
These parts are not sold
separately |
1 |
InternBDB: 425 445 40 | InternKon: 425 400 40 / 1
|
|
|
|
04 |
284 174 40
|
Freeze-in bush |
2 |
InternKon: 425 400 40 / 7
|
|
|
|
05 |
269 538 40
|
Stripper |
4 |
InternBDB: Prдdifa 140x162x7,5 | InternKon: 425 400 40 / 14
|
|
|
|
06 |
004 860 98
|
Nipple |
3 |
InternBDB: AR1/4" 011 207 99 | InternKon: 425 400 40 / 23
|
|
|
|
07 |
501 025 98
|
Thread pin |
1 |
InternBDB: M12x35/915 | InternKon: 425 400 40 / 22
|
|
|
|
08 |
250 857 40
|
Groove nut |
1 |
InternKon: 425 400 40 / 5
|
|
|
|
09 |
425 488 40
|
Piston |
1 |
InternKon: 425 400 40 / 4
|
|
|
|
10 |
324 952 40
|
Piston guide 761 lg. |
2 |
InternBDB: Bu.u.Lu. S-50740-47 | InternKon: 425 400 40 / 11
|
|
|
|
11 |
255 760 40
|
Piston guide |
4 |
InternBDB: Bu. u. Lu. BI-50706- 2500-A-900 | InternKon: 425 400 40 / 10
|
|
|
|
12 |
202 702 40
|
Seal |
1 |
InternBDB: Bu. u. Lu. S-55044-2500 -46N | InternKon: 425 400 40 / 8
|
|
|
|
13 |
202 703 40
|
O-ring |
1 |
InternBDB: Bu. u. Lu. 447-8307 | InternKon: 425 400 40 / 9
|
|
|
|
14 |
256 601 40
|
Spiral-Backring |
2 |
InternBDB: Prдdifa 160x5/1,5 | InternKon: 425 400 40 / 18
|
|
|
|
15 |
367 140 99
|
O-ring |
1 |
InternBDB: 160x5B NB90 | InternKon: 425 400 40 / 17
|
|
|
|
16 |
007 632 98
|
O-ring |
1 |
InternBDB: 239,3x5,7B NB 90 | InternKon: 425 400 40 / 15
|
|
|
|
17 |
226 431 40
|
Support ring |
1 |
InternBDB: Prдdifa P 240x250x 1-PTFE | InternKon: 425 400 40 / 16
|
|
|
|
18 |
505 451 98
|
Screw |
20 |
InternBDB: M24x130/912 10.9 Kaltzдh | InternKon: 425 400 40 / 20
|
|
|
|
19 |
425 489 40
|
Sealing flange
fig-nos. 20 + 21
(finish work after bush is
installed) |
1 |
InternKon: 425 400 40 / 3
|
|
|
|
20 |
425 482 40
|
Bush |
1 |
InternKon: 425 489 40 / 1
|
|
|
|
21 |
250 858 40
|
Bush |
1 |
InternKon: 425 489 40 / 2
|
|
|
|
22 |
180 561 40
|
Hydr.-seal |
1 |
InternBDB: 160x190x60 M 30210160 | InternKon: 425 400 40 / 12
|
|
|
|
23 |
425 492 40
|
Cover |
1 |
InternKon: 425 400 40 / 6
|
|
|
|
24 |
501 395 98
|
Screw |
10 |
InternBDB: M16x70/912 -10.9 Kaltzдh | InternKon: 425 400 40 / 21
|
|
|
|
25 |
180 564 40
|
Stripper |
1 |
InternBDB: Prдdifa AGR92G015 160x176x14,6 P 78 | InternKon: 425 400 40 / 13
|
|
|
|
26 |
354 389 99
|
Feather key |
1 |
InternBDB: A20x12x70/ 6885 | InternKon: 425 400 40 / 19
|
|
|
|
27 |
695 881 73
|
Piston rod assy.
fig-nos: 04-06 + 28 |
1 |
InternBDB: E-St
|
|
|
|
28 |
|
Piston rod
These parts are not sold
separately |
1 |
InternBDB: 425 455 40 | InternKon: 425 400 40 / 2
|
|
|
|
|$$29 |
324 312 40
|
Shim |
-2 |
|
|
|
|
|$$30 |
695 882 73
|
Sealing kit for piston
fig-nos: 10-15 |
-2 |
InternBDB: E-St
|
|
|
|
|$$31 |
695 883 73
|
Sealing kit for piston rod
fig-nos: 16, 17, 22 + 25 |
-2 |
InternBDB: E-St
|
|
