01 |
413 010 40
|

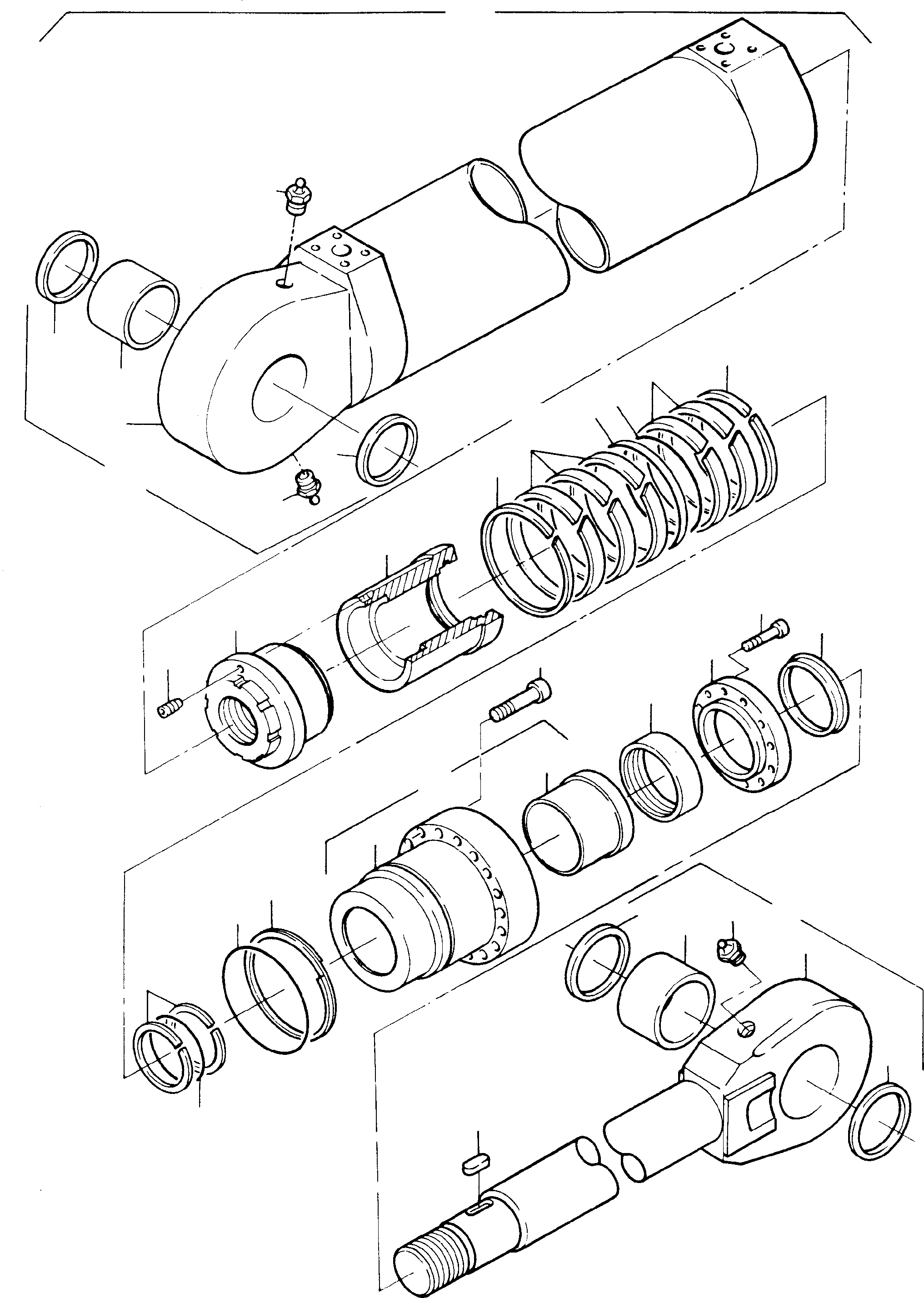

Hydraulic cylinder assy.
fig-no: 02-28 |
1 |
InternBDB: DBM 200x125x2315 Hub 1350 AT-Nr. 695 622 73 | InternKon: 65-4035/2 / 1
|
|
|
|
02 |
695 618 73
|
Cylinder assy.
fig-no: 03-06 |
1 |
InternBDB: E-St
|
|
|
|
03 |
|
Cylinder
These parts are not sold
separately |
1 |
InternBDB: 413 045 40 | InternKon: 413 010 40 / 1
|
|
|
|
04 |
290 777 40
|
Freeze-in bush |
2 |
InternKon: 413 010 40 / 7
|
|
|
|
05 |
269 536 40
|
Stripper |
4 |
InternBDB: Prдdifa 110x130x7,0 | InternKon: 413 010 40 / 14
|
|
|
|
06 |
004 860 98
|
Nipple |
3 |
InternBDB: AR1/4" 011 207 99 | InternKon: 413 010 40 / 23
|
|
|
|
07 |
501 025 98
|
Thread pin |
1 |
InternBDB: M12x35/915 | InternKon: 413 010 40 / 22
|
|
|
|
08 |
403 628 40
|
Groove nut |
1 |
InternKon: 413 010 40 / 5
|
|
|
|
09 |
413 047 40
|
Piston |
1 |
InternKon: 413 010 40 / 4
|
|
|
|
10 |
324 910 40
|
Piston guide 600 lg. |
2 |
InternBDB: Bu.u.Lu. S-50740-47 | InternKon: 413 010 40 / 11
|
|
|
|
11 |
202 730 40
|
Piston guide |
5 |
InternBDB: Bu. u. Lu. BI-50704- 2000-A-900 | InternKon: 413 010 40 / 10
|
|
|
|
12 |
200 298 40
|
Seal |
1 |
InternBDB: Bu. u. Lu. S-55044-2000 -46N | InternKon: 413 010 40 / 8
|
|
|
|
13 |
200 299 40
|
O-ring |
1 |
InternBDB: Bu. u. Lu. 441-8307 | InternKon: 413 010 40 / 9
|
|
|
|
14 |
385 211 40
|
Support ring |
2 |
InternBDB: S-11109-353 C125 | InternKon: 413 010 40 / 18
|
|
|
|
15 |
504 636 98
|
O-ring |
1 |
InternBDB: 126,37x5,33 | InternKon: 413 010 40 / 17
|
|
|
|
16 |
500 355 98
|
O-ring |
1 |
InternBDB: 189,2x5,7 | InternKon: 413 010 40 / 15
|
|
|
|
17 |
324 858 40
|
Coil ring |
1 |
InternBDB: Bu. u. Lu. SP200-190/ 0,85 | InternKon: 413 010 40 / 16
|
|
|
|
18 |
319 292 99
|
Screw |
25 |
InternBDB: M16x90/912 10.9 | InternKon: 413 010 40 / 20
|
|
|
|
19 |
413 054 40
|
Sealing flange
fig-nos. 20 and 21
(finish work after bush is
installed) |
1 |
InternKon: 413 010 40 / 3
|
|
|
|
20 |
413 051 40
|
Flanged bush no field repair
item |
1 |
InternKon: 413 054 40 / 1
|
|
|
|
21 |
181 396 40
|
Bearing bush no field repair
item |
1 |
InternKon: 413 054 40 / 2
|
|
|
|
|$$22 |
324 310 40
|
Shim 0,8 |
-2 |
InternBDB: 150/125
|
|
|
|
22 |
082 460 40
|
Seal kit |
1 |
InternBDB: Prдdifa 301 201 25 125x150x46 | InternKon: 413 054 40 / 12
|
|
|
|
23 |
403 629 40
|
Cover |
1 |
InternKon: 413 054 40 / 6
|
|
|
|
24 |
319 276 99
|
Screw |
10 |
InternBDB: M16x60/912 -10.9 | InternKon: 413 054 40 / 21
|
|
|
|
25 |
180 336 40
|
Stripper |
1 |
InternBDB: Prдdifa AGR920018 | InternKon: 413 054 40 / 13
|
|
|
|
26 |
354 427 99
|
Feather key |
1 |
InternBDB: A12x8x60/ 6885 | InternKon: 413 010 40 / 19
|
|
|
|
27 |
695 619 73
|
Piston rod assy.
fig-no: 04-06 and 28 |
1 |
InternBDB: E-St
|
|
|
|
28 |
|
Piston rod
These parts are not sold
separately |
1 |
InternBDB: 413 055 40 | InternKon: 413 010 40 / 2
|
|
|
|
|$$30 |
695 620 73
|
Sealing kit for piston rod
fig.no. 10-15 |
-2 |
InternBDB: E-St
|
|
|
|
|$$31 |
695 621 73
|
Sealing kit for piston rod
fig-no: 16, 17, 22 and 25 |
-2 |
InternBDB: E-St
|
|
