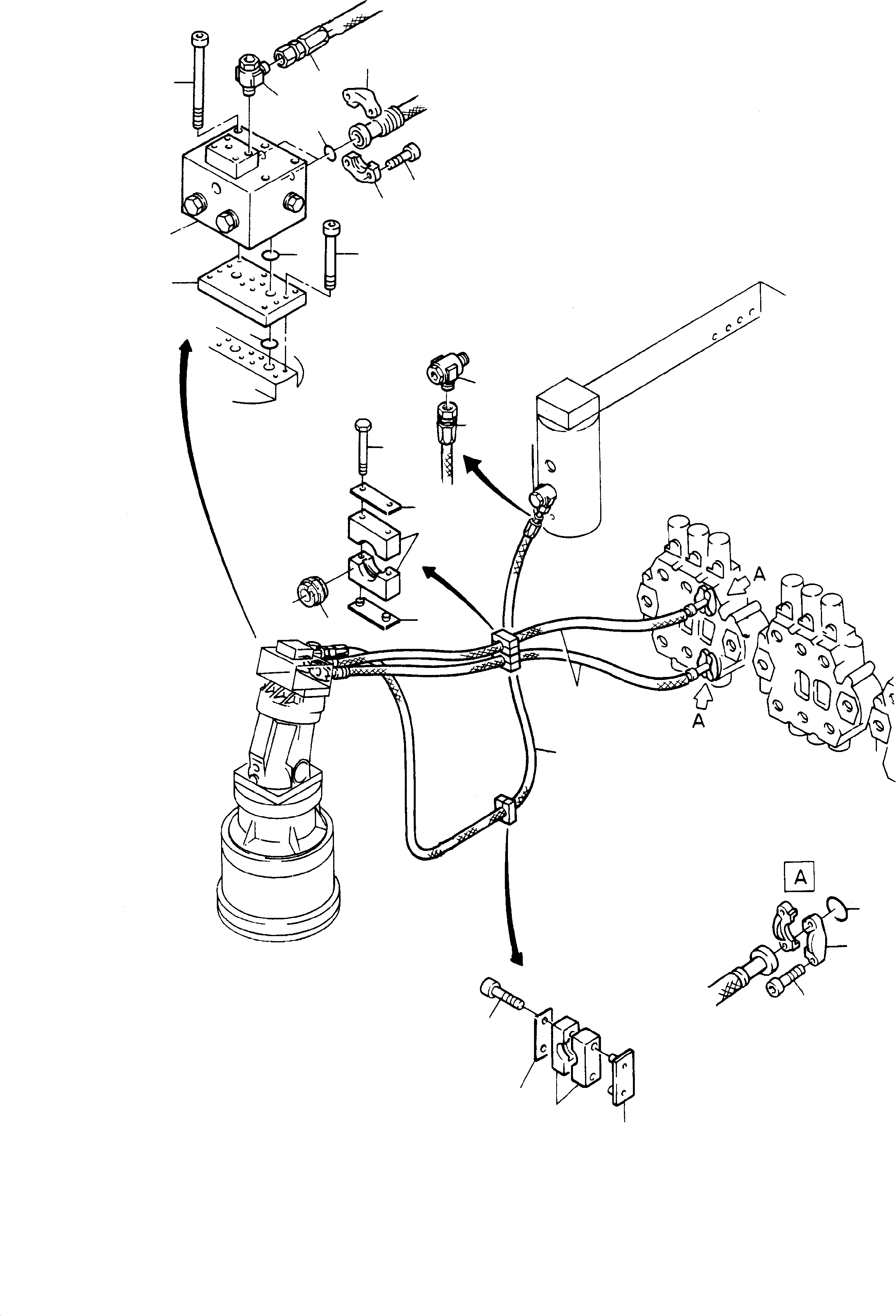

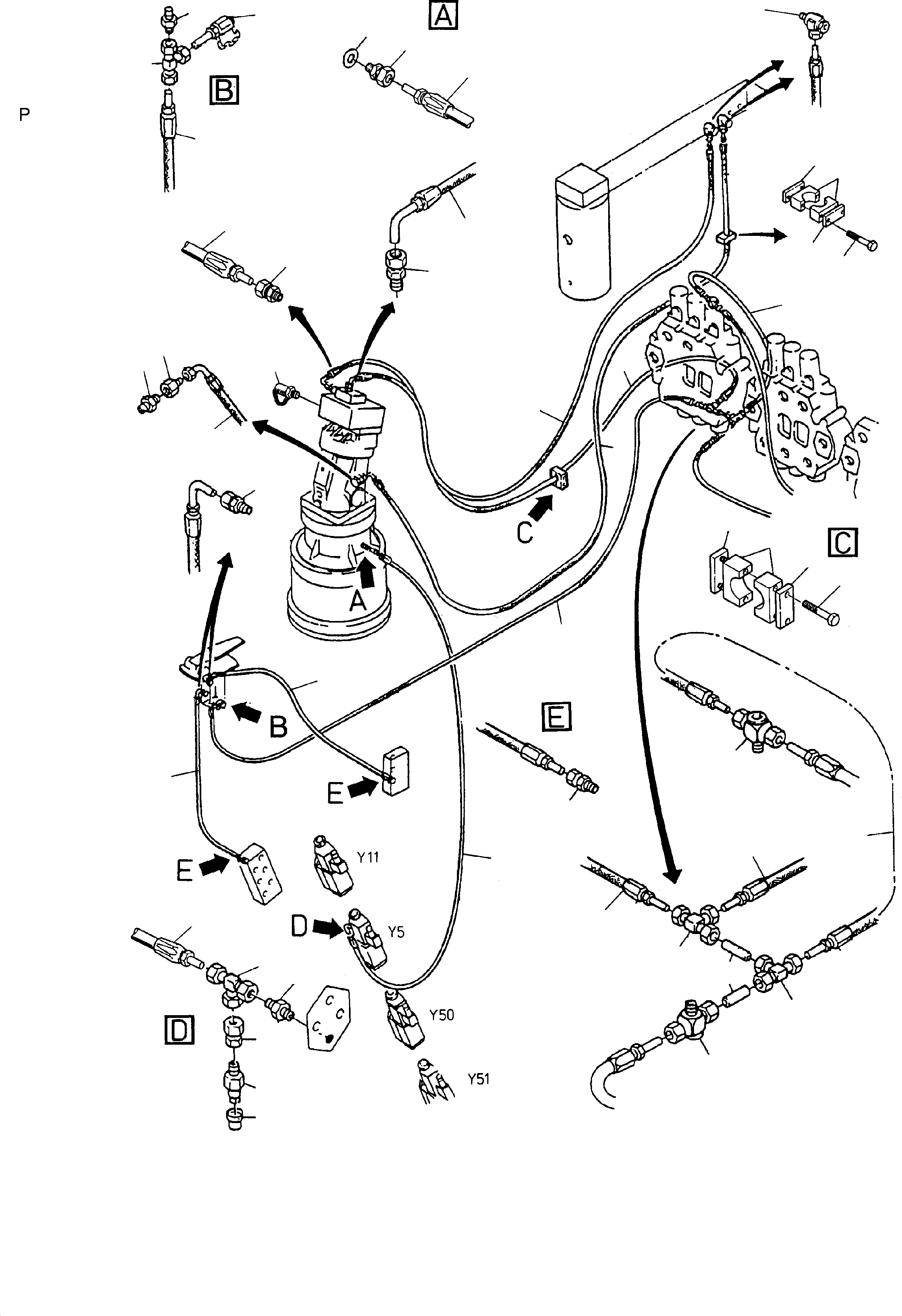

Diagram image 1 of 2

H135S S/N 61064

01 02 03 04 04 04 05 05 06 07 08 09 10 11 12 13 14 14 14 15 15 16 16 17 17 18 19 20

H135S S/N 61064

25 25 26 27 28 29 30 30 30 30 31 32 32 33 34 35 36 37 38 38 38 39 39 39 40 40 41 41 42 43 43 44 44 44 45 45 46 47 48 49 50 51 52 53 54 55 56 57

#	Part Number	Partname	Quantity	Options	Reference
\|$$1		Graphic 1	-1
01		Slew-brake valve	1	InternBDB: 551 495 40 \| InternKon: 646 800 40 / 14	090-0501a
02	490 407 40	Hose assy. NW 32x2050 lg.	2	InternBDB: Aeroquip Typ 422 SFS/SFS \| InternKon: 646 800 40 / 13
03	480 645 40	Intermediate plate	1	InternKon: 646 800 40 / 3
04	356 210 40	Seal ring	6	InternBDB: Bu. u. Lu. FR 76-5957- 2200 \| InternKon: 646 800 40 / 79
05	356 209 40	Seal ring	2	InternBDB: FR 76-5937- 2200 \| InternKon: 646 800 40 / 80
06	006 638 98	Half flange	4	InternBDB: 32 /420 \| InternKon: 646 800 40 / 73
07	006 639 98	Half flange	4	InternBDB: 40 /420 \| InternKon: 646 800 40 / 74
08	319 209 99	Bolt	8	InternBDB: M14x45 /912 10.9 \| InternKon: 646 800 40 / 84
09	319 288 99	Bolt	8	InternBDB: M16x50 /912 \| InternKon: 646 800 40 / 85
10	320 253 99	Bolt	5	InternBDB: M18x180 /912 10.9 \| InternKon: 646 800 40 / 20
11	319 484 99	Bolt	8	InternBDB: M14x40 /912 10.9 \| InternKon: 646 800 40 / 99
12	502 371 98	Clamp	2	InternBDB: S-4-E /3015 \| InternKon: 646 800 40 / 6
13	502 624 98	Insert	2	InternBDB: S-4-45,5 /3015 \| InternKon: 646 800 40 / 7
14	652 008 40	Hose assy. DN32x2800	-2	InternBDB: DOL 35 /DOL 35 WN 341 951 40 \| InternKon: 646 800 40 / 138
15	534 008 99	Plate	3	InternBDB: S-DP-A-4 /3015 \| InternKon: 646 800 40 / 5
16	534 009 99	Plate	3	InternBDB: S-AP-A-4 /3015 \| InternKon: 646 800 40 / 105
17	308 612 99	Bolt	6	InternBDB: M12x100 /931 \| InternKon: 646 800 40 / 107
18	502 640 98	Clamp	1	InternBDB: S-4-G-45 /3015 \| InternKon: 646 800 40 / 131
19	006 896 98	Union	1	InternBDB: Voss 35-LR \| InternKon: 646 800 40 / 90
20	007 136 98	Union	1	InternBDB: Voss 35-LM \| InternKon: 646 800 40 / 21
\|$$22		Graphic 2	-1
25	643 879 40	Hose DN 10x4250	-2	InternBDB: DOL 12 /DOL 12 - 90 WN 341 951 40 \| InternKon: 646 800 40 / 32
26	007 140 98	Union	2	InternBDB: Voss 12-LR \| InternKon: 646 800 40 / 60
27	372 429 99	Union	1	InternBDB: CL 18 /2353 \| InternKon: 646 800 40 / 51
28	372 903 99	Union	1	InternBDB: KOR 18/12-L \| InternKon: 646 800 40 / 67
29	372 424 99	Union	1	InternBDB: CL 10 /2353 \| InternKon: 646 800 40 / 52
30	371 452 99	Union	3	InternBDB: GE 12-PL / R 1/4
31	370 313 99	Union	1	InternBDB: DL 12 /2353 \| InternKon: 646 899 40 / 32
32	371 953 99	Union	2	InternBDB: FFL 12 /2353 \| InternKon: 646 899 40 / 37
33	371 949 99	Union	1	InternBDB: MAV-EV 12-LR \| InternKon: 646 899 40 / 36
34	592 669 40	Diaphragm-type press. switch	1	InternBDB: Suco /24 bar 0166 416 031 063 \| InternKon: 646 899 40 / 8
35	323 592 40	Protection cap	1	InternBDB: 701.00.08 \| InternKon: 646 899 40 / 9
36	643 840 40	Hose assy. DN 10x450	1	InternBDB: DOL 12 /DOL 12-90 WN 341 951 40 \| InternKon: 646 899 40 / 74
37	643 839 40	Hose assy. DN 10x750	1	InternBDB: DOL 12 /DOL 12-90 WN 341 951 40 \| InternKon: 646 899 40 / 73
38	643 836 40	Hose assy. DN 10x6300	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 646 899 40 / 70
39	643 842 40	Hose assy. DN 8x7450	1	InternBDB: DOL 10 /DOL 10 WN 341 951 40 \| InternKon: 646 899 40 / 76
40	343 873 40	Shuttle valve	2	InternBDB: 12-L 690 997-81 \| InternKon: 651 600 40 / 62
41	643 833 40	Hose assy. DN 10x1050	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 651 600 40 / 70
42	153 646 40	Test coupling	1	InternBDB: AG 1/4 - PC \| InternKon: 651 600 40 / 64
43	643 883 40	Hose assy. DN 10x4400	1	InternBDB: DOL 12 /DOL 12 - 90 WN 341 951 40 \| InternKon: 646 800 40 / 38
44	643 882 40	Hose assy. DN 10x3100	1	InternBDB: DOL 12 /DOL 12 WN 341 951 40 \| InternKon: 646 800 40 / 37
45	324 375 40	Union	2	InternBDB: DSVT 12-LR \| InternKon: 651 600 40 / 63
46	372 373 99	Union	1	InternBDB: GE 10 L \| InternKon: 646 800 40 / 22
47	339 877 99	Seal ring	1	InternBDB: A12x16 /7603 \| InternKon: 646 800 40 / 23
48	534 008 99	Plate	1	InternBDB: S-DP-A-4 /3015 \| InternKon: 646 800 40 / 5
49	502 640 98	Plate	1	InternBDB: S-4-G-45 /3015 \| InternKon: 646 800 40 / 131
50	534 009 99	Plate	1	InternBDB: S-AP-A-4 /3015 \| InternKon: 646 800 40 / 103
51	308 612 99	Bolt	2	InternBDB: M12x100 /931 \| InternKon: 646 800 40 / 107
52	511 718 98	Clamp	1	InternBDB: S-6-E /3015 \| InternKon: 646 800 40 / 118
53	511 194 98	Plate	1	InternBDB: S-AP-A-6 /3015 \| InternKon: 646 800 40 / 119
54	511 196 98	Plate	1	InternBDB: S-DP-A-6 /3015 \| InternKon: 646 800 40 / 129
55	308 679 99	Bolt	2	InternBDB: M20x190 /931 \| InternKon: 646 800 40 / 97
56	431 754 40	Pipe assy. Ш 12x1,5x100	2	InternKon: 651 600 40 / 66
57	502 752 98	Test socket	1	InternBDB: B 12-L \| InternKon: 646 898 40 / 56

Komatsu H135S S/N 61064 parts catalog PDF

CONTROL BLOCKS - SLEWGEAR (116-1825d) in H135S S/N 61064. Diagram image and parts list.
