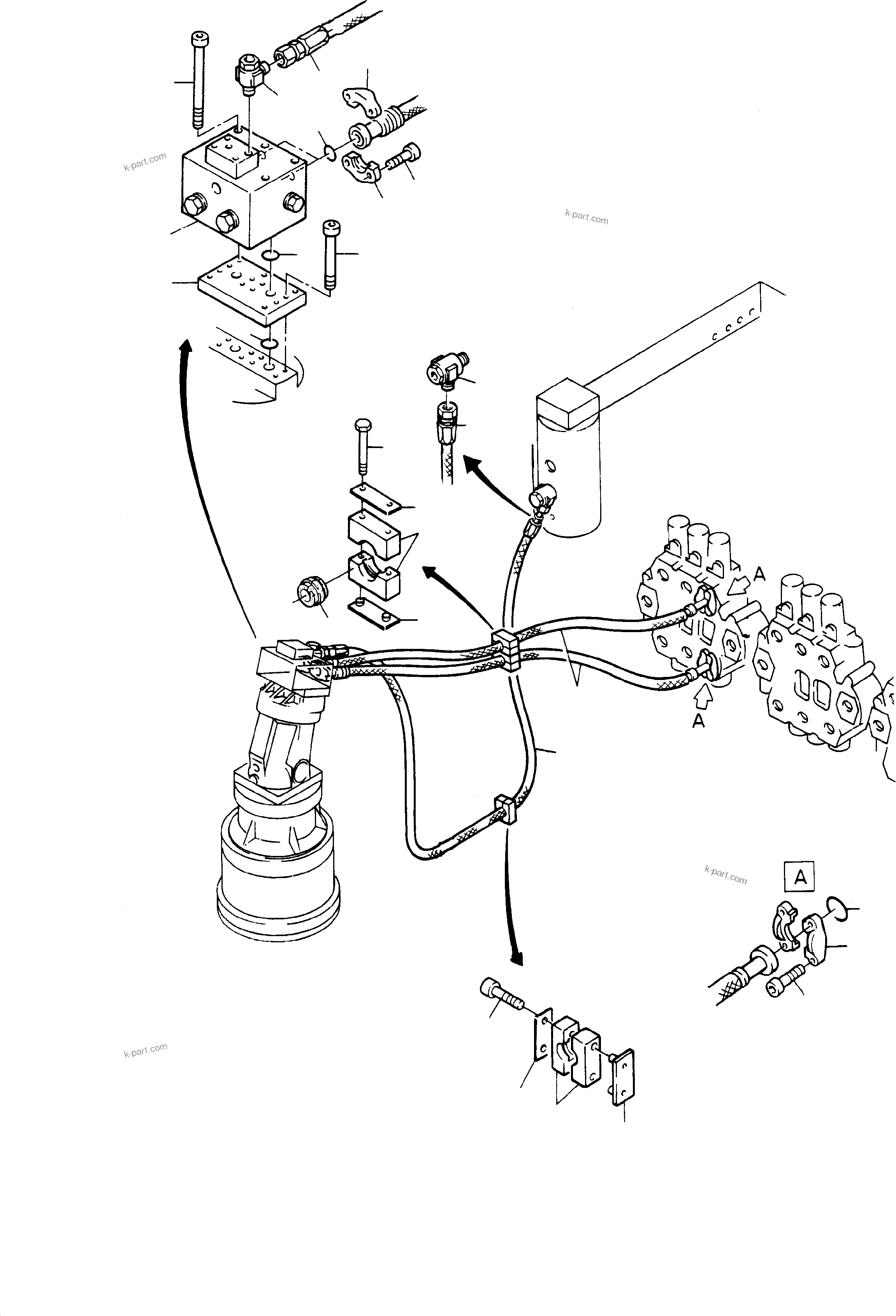

Graphic 1 |
-1 |
|
|
|
|
? |
|
Slew-brake valve |
1 |
InternBDB: 551 495 40 | InternKon: 646 800 40 / 14
|
090-0501a |
|
|
? |
490 407 40
|
Hose assy. NW 32x2050 lg. |
2 |
InternBDB: Aeroquip Typ 422 SFS/SFS | InternKon: 646 800 40 / 13
|
|
|
|
? |
480 645 40
|
Intermediate plate |
1 |
InternKon: 646 800 40 / 3
|
|
|
|
? |
356 210 40
|
Seal ring |
6 |
InternBDB: Bu. u. Lu. FR 76-5957- 2200 | InternKon: 646 800 40 / 79
|
|
|
|
? |
356 209 40
|
Seal ring |
2 |
InternBDB: FR 76-5937- 2200 | InternKon: 646 800 40 / 80
|
|
|
|
? |
006 638 98
|
Half flange |
4 |
InternBDB: 32 /420 | InternKon: 646 800 40 / 73
|
|
|
|
? |
006 639 98
|
Half flange |
4 |
InternBDB: 40 /420 | InternKon: 646 800 40 / 74
|
|
|
|
? |
319 209 99
|
Bolt |
8 |
InternBDB: M14x45 /912 10.9 | InternKon: 646 800 40 / 84
|
|
|
|
? |
319 288 99
|
Bolt |
8 |
InternBDB: M16x50 /912 | InternKon: 646 800 40 / 85
|
|
|
|
? |
320 253 99
|
Bolt |
5 |
InternBDB: M18x180 /912 10.9 | InternKon: 646 800 40 / 20
|
|
|
|
? |
319 484 99
|
Bolt |
8 |
InternBDB: M14x40 /912 10.9 | InternKon: 646 800 40 / 99
|
|
|
|
? |
502 371 98
|
Clamp |
2 |
InternBDB: S-4-E /3015 | InternKon: 646 800 40 / 6
|
|
|
|
? |
502 624 98
|
Insert |
2 |
InternBDB: S-4-45,5 /3015 | InternKon: 646 800 40 / 7
|
|
|
|
? |
652 008 40
|
Hose assy. DN32x2800 |
-2 |
InternBDB: DOL 35 /DOL 35 WN 341 951 40 | InternKon: 646 800 40 / 138
|
|
|
|
? |
534 008 99
|
Plate |
3 |
InternBDB: S-DP-A-4 /3015 | InternKon: 646 800 40 / 5
|
|
|
|
? |
534 009 99
|
Plate |
3 |
InternBDB: S-AP-A-4 /3015 | InternKon: 646 800 40 / 105
|
|
|
|
? |
308 612 99
|
Bolt |
6 |
InternBDB: M12x100 /931 | InternKon: 646 800 40 / 107
|
|
|
|
? |
502 640 98
|
Clamp |
1 |
InternBDB: S-4-G-45 /3015 | InternKon: 646 800 40 / 131
|
|
|
|
? |
006 896 98
|
Union |
1 |
InternBDB: Voss 35-LR | InternKon: 646 800 40 / 90
|
|
|
|
? |
007 136 98
|
Union |
1 |
InternBDB: Voss 35-LM | InternKon: 646 800 40 / 21
|
|
|
|
? |
|

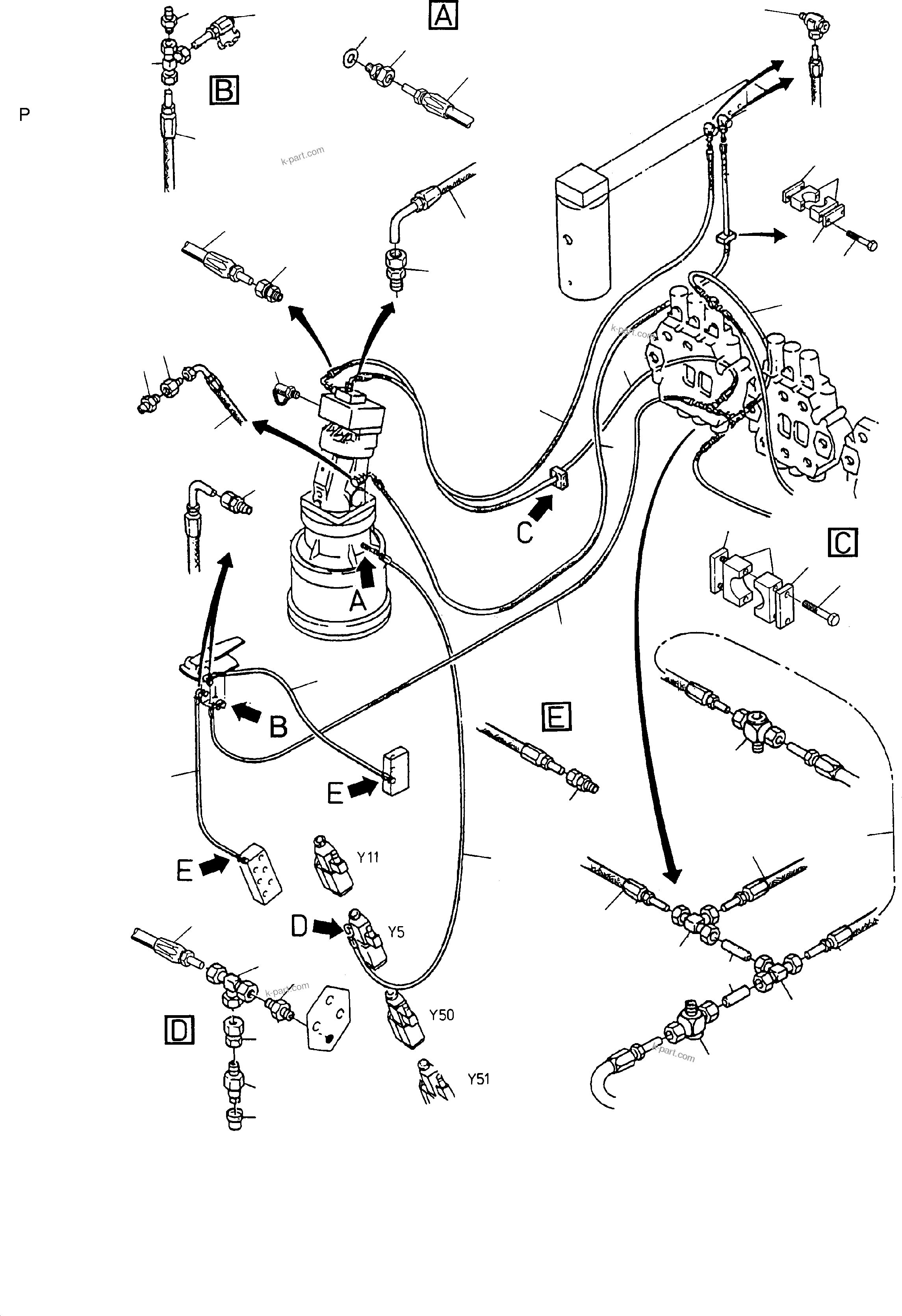

Graphic 2 |
-1 |
|
|
|
|
? |
643 879 40
|
Hose DN 10x4250 |
-2 |
InternBDB: DOL 12 /DOL 12 - 90 WN 341 951 40 | InternKon: 646 800 40 / 32
|
|
|
|
? |
007 140 98
|
Union |
2 |
InternBDB: Voss 12-LR | InternKon: 646 800 40 / 60
|
|
|
|
? |
372 429 99
|
Union |
1 |
InternBDB: CL 18 /2353 | InternKon: 646 800 40 / 51
|
|
|
|
? |
372 903 99
|
Union |
1 |
InternBDB: KOR 18/12-L | InternKon: 646 800 40 / 67
|
|
|
|
? |
372 424 99
|
Union |
1 |
InternBDB: CL 10 /2353 | InternKon: 646 800 40 / 52
|
|
|
|
? |
371 452 99
|
Union |
3 |
InternBDB: GE 12-PL / R 1/4
|
|
|
|
? |
370 313 99
|
Union |
1 |
InternBDB: DL 12 /2353 | InternKon: 646 899 40 / 32
|
|
|
|
? |
371 953 99
|
Union |
2 |
InternBDB: FFL 12 /2353 | InternKon: 646 899 40 / 37
|
|
|
|
? |
371 949 99
|
Union |
1 |
InternBDB: MAV-EV 12-LR | InternKon: 646 899 40 / 36
|
|
|
|
? |
592 669 40
|
Diaphragm-type press. switch |
1 |
InternBDB: Suco /24 bar 0166 416 031 063 | InternKon: 646 899 40 / 8
|
|
|
|
? |
323 592 40
|
Protection cap |
1 |
InternBDB: 701.00.08 | InternKon: 646 899 40 / 9
|
|
|
|
? |
643 840 40
|
Hose assy. DN 10x450 |
1 |
InternBDB: DOL 12 /DOL 12-90 WN 341 951 40 | InternKon: 646 899 40 / 74
|
|
|
|
? |
643 839 40
|
Hose assy. DN 10x750 |
1 |
InternBDB: DOL 12 /DOL 12-90 WN 341 951 40 | InternKon: 646 899 40 / 73
|
|
|
|
? |
643 836 40
|
Hose assy. DN 10x6300 |
1 |
InternBDB: DOL 12 /DOL 12 WN 341 951 40 | InternKon: 646 899 40 / 70
|
|
|
|
? |
643 842 40
|
Hose assy. DN 8x7450 |
1 |
InternBDB: DOL 10 /DOL 10 WN 341 951 40 | InternKon: 646 899 40 / 76
|
|
|
|
? |
343 873 40
|
Shuttle valve |
2 |
InternBDB: 12-L 690 997-81 | InternKon: 651 600 40 / 62
|
|
|
|
? |
643 833 40
|
Hose assy. DN 10x1050 |
1 |
InternBDB: DOL 12 /DOL 12 WN 341 951 40 | InternKon: 651 600 40 / 70
|
|
|
|
? |
153 646 40
|
Test coupling |
1 |
InternBDB: AG 1/4 - PC | InternKon: 651 600 40 / 64
|
|
|
|
? |
643 883 40
|
Hose assy. DN 10x4400 |
1 |
InternBDB: DOL 12 /DOL 12 - 90 WN 341 951 40 | InternKon: 646 800 40 / 38
|
|
|
|
? |
643 882 40
|
Hose assy. DN 10x3100 |
1 |
InternBDB: DOL 12 /DOL 12 WN 341 951 40 | InternKon: 646 800 40 / 37
|
|
|
|
? |
324 375 40
|
Union |
2 |
InternBDB: DSVT 12-LR | InternKon: 651 600 40 / 63
|
|
|
|
? |
372 373 99
|
Union |
1 |
InternBDB: GE 10 L | InternKon: 646 800 40 / 22
|
|
|
|
? |
339 877 99
|
Seal ring |
1 |
InternBDB: A12x16 /7603 | InternKon: 646 800 40 / 23
|
|
|
|
? |
534 008 99
|
Plate |
1 |
InternBDB: S-DP-A-4 /3015 | InternKon: 646 800 40 / 5
|
|
|
|
? |
502 640 98
|
Plate |
1 |
InternBDB: S-4-G-45 /3015 | InternKon: 646 800 40 / 131
|
|
|
|
? |
534 009 99
|
Plate |
1 |
InternBDB: S-AP-A-4 /3015 | InternKon: 646 800 40 / 103
|
|
|
|
? |
308 612 99
|
Bolt |
2 |
InternBDB: M12x100 /931 | InternKon: 646 800 40 / 107
|
|
|
|
? |
511 718 98
|
Clamp |
1 |
InternBDB: S-6-E /3015 | InternKon: 646 800 40 / 118
|
|
|
|
? |
511 194 98
|
Plate |
1 |
InternBDB: S-AP-A-6 /3015 | InternKon: 646 800 40 / 119
|
|
|
|
? |
511 196 98
|
Plate |
1 |
InternBDB: S-DP-A-6 /3015 | InternKon: 646 800 40 / 129
|
|
|
|
? |
308 679 99
|
Bolt |
2 |
InternBDB: M20x190 /931 | InternKon: 646 800 40 / 97
|
|
|
|
? |
431 754 40
|
Pipe assy. Ш 12x1,5x100 |
2 |
InternKon: 651 600 40 / 66
|
|
|
|
? |
502 752 98
|
Test socket |
1 |
InternBDB: B 12-L | InternKon: 646 898 40 / 56
|
|
