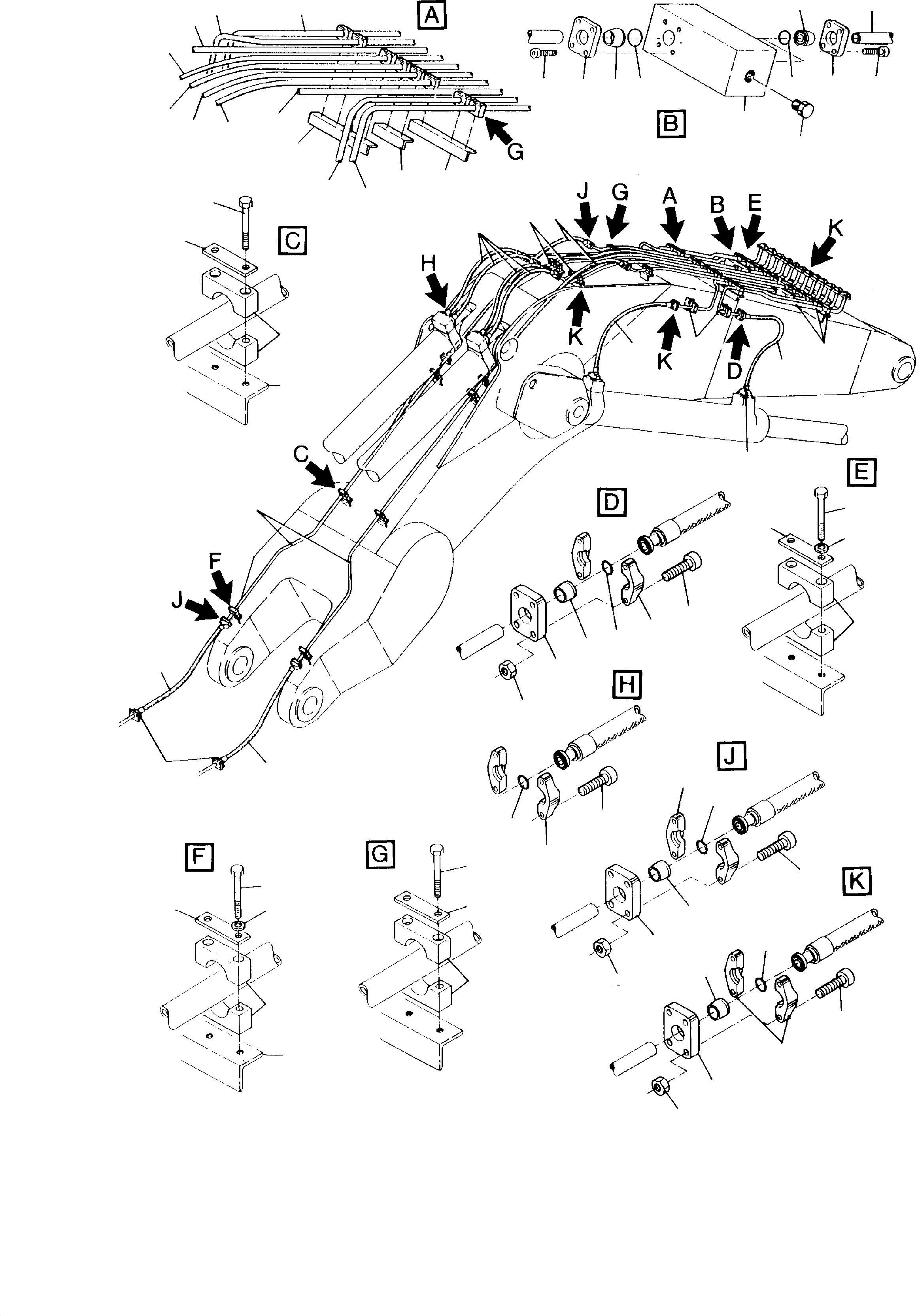

Diagram image 1 of 2

H135S S/N 61064

01 02 03 04 05 06 07 08 09 09 10 11 12 13 14 15 15 16 17 18 19 20 21 22 23 24 24 25

H135S S/N 61064

100 100 101 102 102 103 103 104 104 105 106 107 108 109 110 111 58 59 60 60 61 61 63 63 65 66 67 67 67 68 68 69 70 70 70 71 72 73 73 74 74 75 76 77 78 78 79 79 79 80 81 81 82 83 83 84 85 86 87 88 89 90 91 92 93 93 94 95 95 95 96 97 97 98 99 99

#	Part Number	Partname	Quantity	Options
01	460 220 40	Boom assy.	1	InternBDB: SK 448 737 40
02	697 639 73	Boom with bushes	1	InternBDB: E-ST
03	697 811 73	Boom with bushes and pipes assy.	1	InternBDB: E-ST
04	460 218 40	Pin with plate	1	InternKon: 460 220 40 / 3
04	550 288 40	Pin with plate (cold weather design)	1	InternKon: 460 220 40 / 3
05	460 225 40	Catch	4	InternKon: 460 220 40 / 18
06	460 224 40	Locking plate	2	InternKon: 460 220 40 / 15
07	343 006 99	Washer	4	InternBDB: 13 /93 \| InternKon: 460 220 40 / 57
08	307 805 99	Bolt	4	InternBDB: M12x35 /933 \| InternKon: 460 220 40 / 56
09	269 538 40	Scraper	4	InternBDB: Prдdifa 140x162x7 Y4 E017 ZS 071 \| InternKon: 460 220 40 / 6
10	444 065 40	Freeze-in bush	4	InternKon: 460 220 40 / 5
11	460 222 40	Pin	2	InternKon: 460 220 40 / 4
11	550 286 40	Pin (cold weather design)	2	InternKon: 460 220 40 / 4
12	467 999 40	Catch	4	InternKon: 460 220 40 / 23
13	449 729 40	Axle stirrup	2	InternKon: 460 220 40 / 24
14	449 732 40	Shackle	2	InternKon: 460 220 40 / 20
15	343 008 99	Washer	9	InternBDB: 17 /93 \| InternKon: 460 220 40 / 12
16	500 621 98	Bolt	8	InternBDB: M16x45 /933 10.9 \| InternKon: 460 220 40 / 16
17	409 329 40	Cap	1	InternKon: 460 220 40 / 13
18	332 361 99	Nut	1	InternBDB: M 30 /934 \| InternKon: 460 220 40 / 8
19	395 336 40	Cap	1	InternKon: 460 220 40 / 7
20	501 122 98	O-ring	1	InternBDB: RDR 234x10B 011 745 99 \| InternKon: 460 220 40 / 9
21	307 826 99	Bolt	1	InternBDB: M16x50 /933 \| InternKon: 460 220 40 / 11
22	460 223 40	Shackle (weld on part)	1	InternKon: 460 220 40 / 10
23	420 456 40	Lining (weld on part)	1	InternKon: 460 220 40 / 14
24	395 335 40	Catch	2	InternKon: 460 220 40 / 19
25	460 214 40	Pin assy.	1	InternKon: 460 220 40 / 2
25	550 290 40	Pin assy. (cold weather design)	1	InternKon: 460 220 40 / 2
58	697 641 73	Pipe assy. Ш 38,	1	InternBDB: 460 226 40 \| InternKon: 462 407 40 / 58
59	697 642 73	Pipe assy. Ш 38,	1	InternBDB: 460 227 40 \| InternKon: 460 220 40 / 59
60	697 643 73	Pipe assy. Ш 50,	2	InternBDB: 466 859 40 \| InternKon: 460 220 40 / 60
61	697 644 73	Pipe assy. Ш 38,	2	InternBDB: 460 229 40 \| InternKon: 462 407 40 / 61
63	697 646 73	Pipe assy. Ш 38,	2	InternBDB: 460 231 40 \| InternKon: 462 407 40 / 63
65	697 648 73	Pipe assy. Ш 50,	2	InternBDB: 466 860 40 \| InternKon: 460 220 40 / 65
66	697 649 73	Pipe assy. Ш 38,	1	InternBDB: 460 234 40 \| InternKon: 462 407 40 / 66
67	414 346 40	Angle	5	InternBDB: W 4/5 S 011 839 99 \| InternKon: 460 220 40 / 29
68	414 345 40	Angle	3	InternBDB: W 2/5 S 011 839 99 \| InternKon: 460 220 40 / 22
69	160 948 40	Hose assy. DN 32x1700 lg.	4	InternKon: 460 220 40 / 33
70	461 355 40	Hose assy. DN 40x2200 lg.	4	InternBDB: Typ 422/ SFL/SFL 1 1/2" / 1 1/2" \| InternKon: 460 220 40 / 32
71	255 076 40	Hose assy. DN 32x1400 lg.	2	InternBDB: Typ 422 B/S.SFL \| InternKon: 460 220 40 / 31
72	414 344 40	Angle	4	InternBDB: W 1/5 S 011 839 99 \| InternKon: 460 220 40 / 25
73	308 581 99	Bolt	48	InternBDB: M10x70 /931 \| InternKon: 460 220 40 / 26
74	534 004 99	Plate	24	InternBDB: DS 5 011 839 99 \| InternKon: 460 220 40 / 27
75	504 709 98	Half clamp	24	InternBDB: CS 5/38, AL 011 839 99 \| InternKon: 460 220 40 / 30
76	504 818 98	Half clamp	24	InternBDB: H-CS 5/38 011 839 99 \| InternKon: 460 220 40 / 28
77	319 486 99	Bolt	88	InternBDB: M14x70 /912 10.9 \| InternKon: 460 220 40 / 35
78	006 638 98	Half flanged	24	InternBDB: 32 /420 011 735 99 \| InternKon: 460 220 40 / 53
79	006 725 98	O-ring	30	InternBDB: RDR 37,7x 3,53 B 011 745 99 \| InternKon: 460 220 40 / 39
80	500 202 98	Collar ring	20	InternBDB: KO-3850-20 011 747 99 \| InternKon: 460 220 40 / 38
81	500 129 98	Flange	26	InternBDB: FE-3800-20/6 011 747 99 \| InternKon: 460 220 40 / 37
82	332 226 99	Nut	88	InternBDB: M 14 /934 \| InternKon: 460 220 40 / 36
83	319 209 99	Bolt	32	InternBDB: M14x45 /912 10.9 \| InternKon: 460 220 40 / 40
84	461 150 40	Hose assy. DN 32x2200 lg.	2	InternBDB: GH 506 SFL 1"-6 / SFL 1"-6 \| InternKon: 460 220 40 / 68
85	500 032 98	Flange	2	InternBDB: FE-3800-16/6 \| InternKon: 460 220 40 / 69
86	006 637 98	Half flange	4	InternBDB: 25 /420 \| InternKon: 460 220 40 / 70
87	319 161 99	Bolt	8	InternBDB: M12x65 /912 \| InternKon: 460 220 40 / 71
88	332 334 99	Nut	8	InternBDB: M 12 /934 \| InternKon: 460 220 40 / 72
89	500 273 98	Collar ring	2	InternBDB: KO-3850-16 \| InternKon: 460 220 40 / 73
90	504 600 98	O-ring	4	InternBDB: 32,9x3,5 B NB 90 \| InternKon: 460 220 40 / 74
91	319 274 99	Bolt	8	InternBDB: M12x40 /912 \| InternKon: 460 220 40 / 75
92	343 005 99	Washer	24	InternBDB: 10,5 /93 \| InternKon: 460 220 40 / 78
93	500 127 98	Flange	8	InternBDB: FE-5000-24/6 \| InternKon: 460 220 40 / 79
94	501 898 98	Collar ring	2	InternBDB: K-5060-24 \| InternKon: 460 220 40 / 80
95	006 729 98	O-ring	10	InternBDB: 47,22x3,53 N NB 90 \| InternKon: 460 220 40 / 81
96	319 289 99	Bolt	8	InternBDB: M16x60 /912 10.9 \| InternKon: 460 220 40 / 82
97	006 639 98	Half flange	8	InternBDB: 40 /420 \| InternKon: 460 220 40 / 83
98	500 203 98	Collar ring	6	InternBDB: KO-5060-24 \| InternKon: 460 220 40 / 84
99	319 292 99	Bolt	32	InternBDB: M16x90 /912 10.9 \| InternKon: 460 220 40 / 85
100	332 355 99	Nut	32	InternBDB: M 16 /934 \| InternKon: 460 220 40 / 86
101	502 976 98	Clamp	4	InternBDB: CS 6/50 \| InternKon: 460 220 40 / 87
102	534 008 99	Plate	10	InternBDB: DS 6 \| InternKon: 460 220 40 / 88
103	308 459 99	Bolt	20	InternBDB: M12x100 /931 10.9 \| InternKon: 460 220 40 / 89
104	301 894 40	Angle	4	InternBDB: LW 1 /6 S \| InternKon: 460 220 40 / 90
105	343 006 99	Washer	4	InternBDB: 13 /93 \| InternKon: 460 220 40 / 91
106	502 977 98	Clamp	16	InternBDB: H-CS 6 /50 \| InternKon: 460 220 40 / 92
107	501 871 98	Collar ring	4	InternBDB: K-3850-20 \| InternKon: 460 220 40 / 93
108	466 879 40	Manifold	2	InternKon: 460 220 40 / 94
109	697 684 73	Pipe assy. Ш 38	1	InternBDB: 466 861 40 \| InternKon: 460 220 40 / 76
110	697 685 73	Pipe assy. Ш 38	4	InternBDB: 466 862 40 \| InternKon: 460 220 40 / 77
111	173 494 40	Plug	2	InternBDB: M33x2 ED \| InternKon: 460 220 40 / 95

Komatsu H135S S/N 61064 parts catalog PDF

BOOM - BACKHOE (116-4016b) in H135S S/N 61064. Diagram image and parts list.
