H135S S/N 61064

01 02 03 05 06 07 08 09 09 10 10 11 12 13 14 15 16 17 18 19 19 20 20 21 22 22 23 24 25 25 26 27 28 28 29 34 35 38 42 45 50 51 52 53 55 56 56 57 57 58 59 60 61 62 63 66 67 68 70 73 74 75 76 87 89 97

#	Part Number	Partname	Quantity	Options
01	635 264 40	Drive gear box, assy.	1	InternBDB: E-ST / L.u.S.; GFT 330 T 32018 AT-Nr. 765 515 73
01	765 513 73	Drive gear box w/o brake	1	InternBDB: E-ST
02	765 516 73	Ring gear	1	InternBDB: 0/0334/9350/1 \| InternKon: 7/6143/2018/0 / 01
03	765 517 73	Retainer	1	InternBDB: 0/0400/9812/0 \| InternKon: 7/6143/2018/0 / 04
05	765 518 73	Sun gear shaft	1	InternBDB: 2/0252/9835/0 \| InternKon: 7/6143/2018/0 / 05
06	765 519 73	Sun gear shaft	1	InternBDB: 2/0252/9436/1 \| InternKon: 7/6143/2018/0 / 06
07	765 520 73	Planet carrier	1	InternBDB: 0/0384/9952/0 \| InternKon: 7/6143/2018/0 / 08
08	765 521 73	Planet gear	5	InternBDB: 2/0303/9310/0 \| InternKon: 7/6143/2018/0 / 11
09	765 522 73	Roller bearing	10	InternBDB: RSL 183020 /5412 411 607 \| InternKon: 7/6143/2018/0 / 20
10	765 523 73	Locating ring	10	InternBDB: F 91810 /462 513 \| InternKon: 7/6143/2018/0 / 27
11	342 678 99	Snap-ring	5	InternBDB: 140x4 /472 \| InternKon: 7/6143/2018/0 / 31
12	504 925 98	Snap-ring	5	InternBDB: 100x4 /471 \| InternKon: 7/6143/2018/0 / 33
13	765 524 73	Planet carrier	1	InternBDB: 0/0385/9129/1 \| InternKon: 7/6143/2018/0 / 07
14	765 525 73	Shaft nut	1	InternBDB: 2/0414/9049/0 \| InternKon: 7/6143/2018/0 / 14
15	765 526 73	Planet gear	3	InternBDB: 2/0303/9500/0 \| InternKon: 7/6143/2018/0 / 10
16	765 527 73	Roller bearing	3	InternBDB: RSL 182 217 /5412 411 619 \| InternKon: 7/6143/2018/0 / 21
17	765 528 73	Thrust button	1	InternBDB: 4/0409/9270/0 \| InternKon: 7/6143/2018/0 / 17
18	765 529 73	End cover	1	InternBDB: 0/0334/9626/0 \| InternKon: 7/6143/2018/0 / 18
19	765 530 73	Stop washer	6	InternBDB: F 90401 /462 515 \| InternKon: 7/6143/2018/0 / 28
20	342 677 99	Snap-ring	6	InternBDB: 135x4 /472 \| InternKon: 7/6143/2018/0 / 30
21	342 566 99	Snap-ring	3	InternBDB: 85x4 /471 \| InternKon: 7/6143/2018/0 / 32
22	765 531 73	Roller bearing	2	InternBDB: 32968 /720 412 700 \| InternKon: 7/6143/2018/0 / 22
23	765 532 73	Planet gear	3	InternBDB: 2/0303/9505/0 \| InternKon: 7/6143/2018/0 / 90
24	765 533 73	Roller bearing	3	InternBDB: RSL 182 211 /5412 411 674 \| InternKon: 7/6143/2018/0 / 91
25	765 534 73	Stop washer	6	InternBDB: F 91915 462 509 \| InternKon: 7/6143/2018/0 / 94
26	342 576 99	Snap-ring	1	InternBDB: 130x4 /471 \| InternKon: 7/6143/2018/0 / 26
27	342 466 99	Snap-ring	3	InternBDB: 55x3 /471 \| InternKon: 7/6143/2018/0 / 95
28	510 157 98	Snap-ring	6	InternBDB: 88x3 /472 \| InternKon: 7/6143/2018/0 / 96
29	342 579 99	Snap-ring	1	InternBDB: 170x4 /471 \| InternKon: 7/6143/2018/0 / 29
34	342 574 99	Snap-ring	1	InternBDB: 120x4 /471 \| InternKon: 7/6143/2018/0 / 34
35	765 535 73	Face seal	1	InternBDB: A 450x480x50 463 505 \| InternKon: 7/6143/2018/0 / 35
38	307 806 99	Bolt	24	InternBDB: M12x40 /933 \| InternKon: 7/6143/2018/0 / 38
42	765 536 73	Screw plug	2	InternBDB: G 1 1/16 - 12 UNF 444 238 \| InternKon: 7/6143/2018/0 / 42
45	765 537 73	O-ring	1	InternBDB: 595x4 NB 70 463 378 \| InternKon: 7/6143/2018/0 / 45
50	765 538 73	Spindle	1	InternBDB: 0/0309/9509/2 \| InternKon: 7/6143/2018/0 / 50
51	765 539 73	Coupler	1	InternBDB: 3/0343/9721/0 \| InternKon: 7/6143/2018/0 / 51
52	765 540 73	Shim	1	InternBDB: 4/0401/9399/0 \| InternKon: 7/6143/2018/0 / 52
53	765 541 73	Housing disk	1	InternBDB: 3/0400/9813/0 \| InternKon: 7/6143/2018/0 / 53
55	765 542 73	Piston	1	InternBDB: 2/0575/9186/0 \| InternKon: 7/6143/2018/0 / 55
56	804 020 73	Inner disk	10	InternBDB: 3/0537/9006/0 \| InternKon: 7/6143/2018/0 / 56
57	765 543 73	Outer disk	6	InternBDB: 3/0533/9004/1 \| InternKon: 7/6143/2018/0 / 57
58	765 544 73	Spring	32	InternBDB: 4/0991/9006/2 \| InternKon: 7/6143/2018/0 / 58
59	765 545 73	Spring	32	InternBDB: 4/0991/9075/1 \| InternKon: 7/6143/2018/0 / 59
60	968 527	Quadring	1	InternBDB: 4373 446 A 461 528 \| InternKon: 7/6143/2018/0 / 60
61	765 546 73	Back up ring	2	InternBDB: 232,5x242x1,4 P 461 551 \| InternKon: 7/6143/2018/0 / 61
62	968 761	Quadring	1	InternBDB: 4368-446 A 461 678 \| InternKon: 7/6143/2018/0 / 62
63	765 547 73	Back up ring	2	InternBDB: 192,6x202x1,4 P 461 566 \| InternKon: 7/6143/2018/0 / 63
66	765 548 73	O-ring	1	InternBDB: 248x5 NB 70 463 273 \| InternKon: 7/6143/2018/0 / 66
67	342 702 99	Snap-ring	1	InternBDB: 250x5 /472 \| InternKon: 7/6143/2018/0 / 67
68	342 689 99	Snap-ring	1	InternBDB: 185x4 /472 \| InternKon: 7/6143/2018/0 / 68
70	342 650 99	Snap-ring	1	InternBDB: 50x2 /472 \| InternKon: 7/6143/2018/0 / 70
73	765 549 73	Expander	1	InternBDB: MB 700-070 426 021 \| InternKon: 7/6143/2018/0 / 73
74	307 844 99	Bolt	4	InternBDB: M20x45 /933 \| InternKon: 7/6143/2018/0 / 74
75	313 395 99	Screw plug	2	InternBDB: M12x1,5 /908 \| InternKon: 7/6143/2018/0 / 80
76	339 879 99	Sealing ring	1	InternBDB: A12x18 /7603 \| InternKon: 7/6143/2018/0 / 81
87	765 550 73	Input shaft	1	InternBDB: 2/0252/9870/1 \| InternKon: 7/6143/2018/0 / 87
89	765 551 73	Planet carrier	1	InternBDB: 1/0385/9143/1 \| InternKon: 7/6143/2018/0 / 89
97	765 552 73	Shim	1	InternBDB: 4/0408/9881/0 \| InternKon: 7/6143/2018/0 / 97

Komatsu H135S S/N 61064 parts catalog PDF

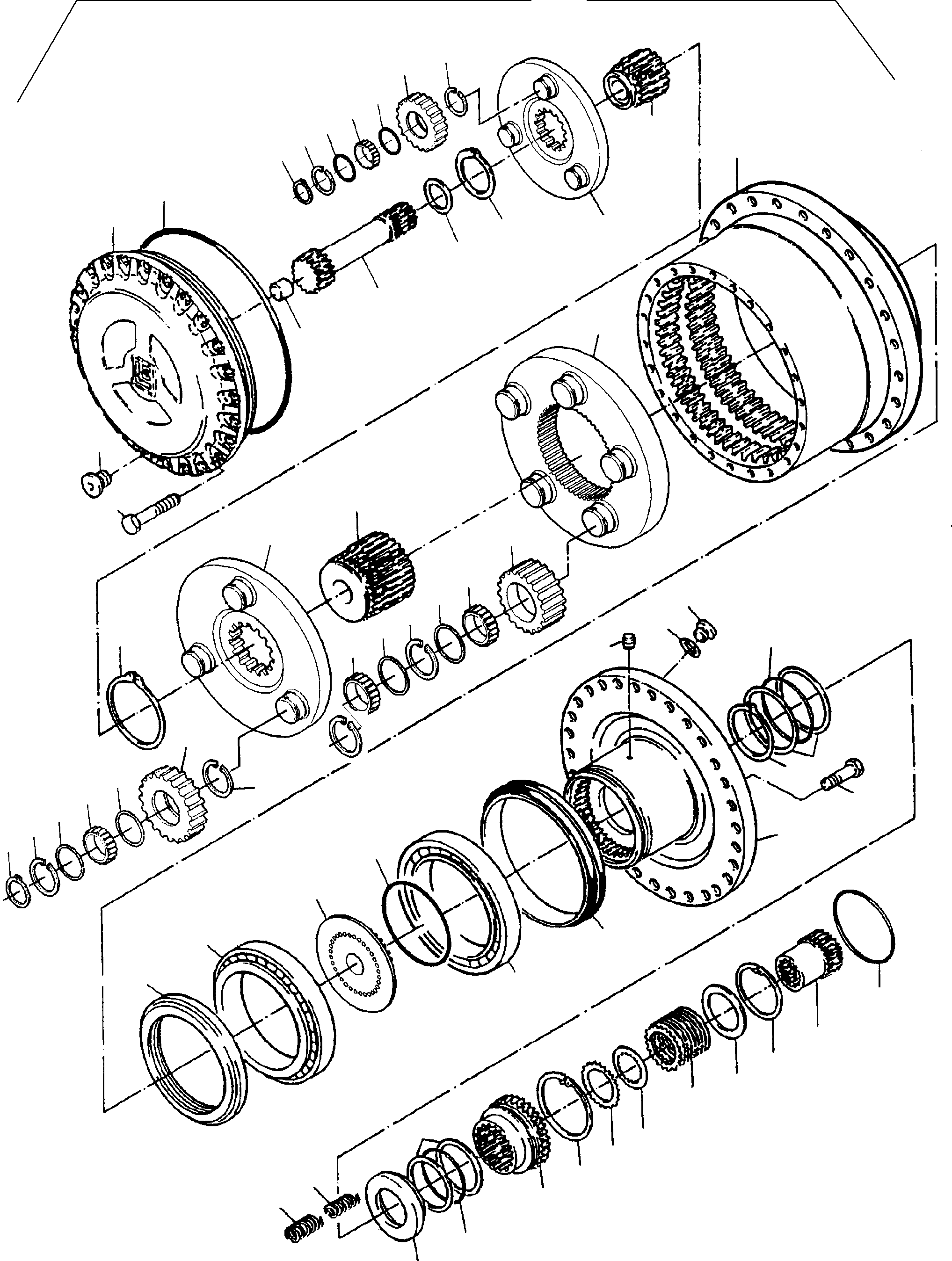

DRIVE GEAR BOX (090-3240) in H135S S/N 61064. Diagram image and parts list.
