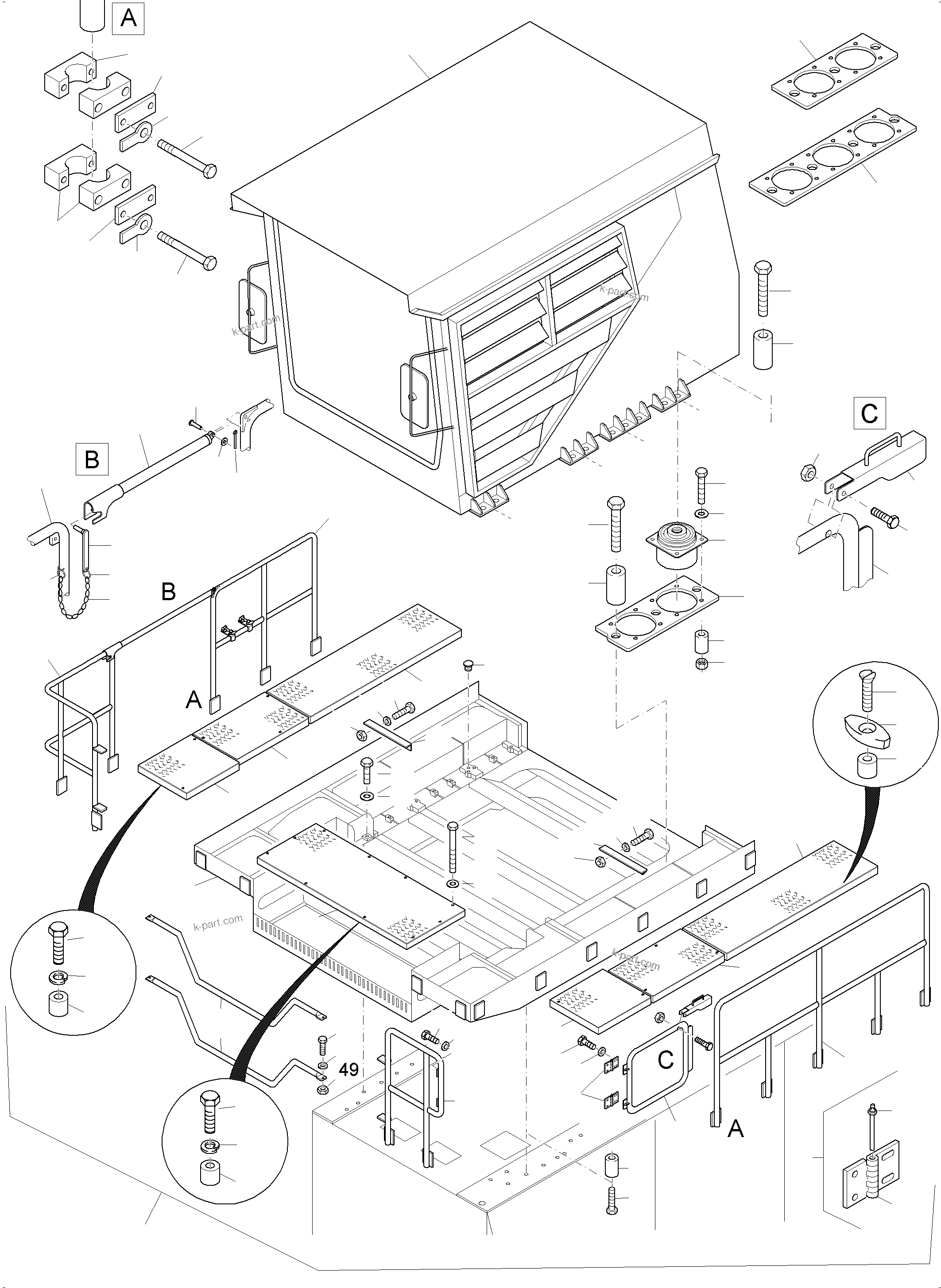

CAB MOUNTING | PC8000-11 S/N 12117 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC8000-11 S/N 12117

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?		see page operator's cab	1
?	993 246 40	Stage assy.	1
?	993 247 40	Stage MB	-2
?	945 088 40	Rail	1
?	993 258 40	Rail	1
?	993 260 40	Rail	1
?	962 043 40	Door	1
?	956 953 40	Hinge, kpl. left	2
?	957 290 40	Grating	1
?	959 520 40	Grating	1
?	901 914 40	Grating	1
?	959 530 40	Grating	1
?	901 927 40	Grating	1
?	901 905 40	Adapter plate	4
?	913 139 40	Adaptor plate	2
?	913 141 40	Adaptor plate	2
?	901 855 40	Absorber	18
?	913 142 40	Angle	2
?	913 143 40	Angle	2
?	906 021 40	Grating 2x 40x480x1590	2
?	510 728 98	Resilient sleeve	44
?	512 958 98	Resilient sleeve	72
?	501 111 98	Bolt, low temperature	44
?	516 576 98	Bolt, low temperature	72
?	332 353 99	Nut	72
?	316 216 99	Washer	72
?	972 134 40	Rail	1
?	979 311 40	Rail pipe	1
?	930 031 40	Catch	1
?	317 319 40	Threaded block	24
?	317 318 40	Wing nut, plastic	8
?	502 354 98	Screw	8
?	307 757 99	Screw	22
?	517 121 98	Lock washer	16
?	307 600 99	Bolt	2
?	340 467 99	Washer	10
?	334 599 99	Nut	12
?	972 135 40	Pipe	2
?	180 894 40	Plug	2
?	518 266 98	Clamp set	26
?	534 008 99	Cover plate	26
?	308 434 99	Bolt	52
?	517 118 98	Lock washer	52
?	517 122 98	Lock washer	8
?	307 775 99	Bolt	8
?	308 560 99	Screw	4
?	340 464 99	Washer	16
?	365 761 40	Screw	6
?	334 600 99	Nut	5
?	956 950 40	Catch	1
?	308 608 99	Bolt	1
?	307 810 99	Bolt	4
?	517 697 98	Pin	1
?	340 605 99	Washer	1
?	342 045 99	Cotter pin	1
?	098 955 40	Ring	2
?	472 688 99	Chain	-2
?	081 320 40	Hinge	2
?	081 480 40	Hinge pin	2
?	501 446 98	Bolt, low temperature	22
?	308 321 99	Bolt	22
?	510 733 98	Resilient sleeve	22
