Diagram image 1 of 4

PC8000-11 S/N 12117

01 02 04 05 05 06 06 06 100 101 102 102 103 103 104 104 107 108 108 109 11 110 110 111 111 111 112 112 112 113 114 114 114 114 115 116 117 118 119 120 121 122 123 124 125 15 15 16 17 18 80 99

PC8000-11 S/N 12117

07 07 08 10 10 105 106 12 12 13 13 13 14 19 20 21 22 23 23 24 24 24 24 24 25 25 25 25 26 26 26 27 28 29 29 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51

PC8000-11 S/N 12117

09 41 41 42 52 52 53 54 55 56 57 58 58 59 59 59 59 60 61 61 61 61 62 62 63 64 65 66 66 67 68 69 70 71 72 73 73 74 74 74 75 76 77 78 79 79 80 80 81 82 83 84 85 86 87 88 88 89 90 91 92 93 94 95 96 97 98

PC8000-11 S/N 12117

126 126 127 127 127 127 128 129 130 130 130 130 130 131 132 132 133 134 135 136 137 137 138 138 139 140 61 61 61 61 61 61 61 61 61 65 65 66 66 67

#	Part Number	Partname	Quantity	Reference
01		See parts page Operator's seat	1
02		Manipulator	2	991-1646
04		Manipulator	2	991-1647
05		Manipulator	3	991-1648
06	319 227 99	Bolt	28
07	998 670 40	Switch plate assy.	1
08	998 641 40	Socket plate assy.	1
09	998 636 40	E-Parts Controller assy.	1
10	953 097 40	Plate	1
11	998 623 40	Mounting plate assy.	1
12	998 605 40	Powerr view plate assy.	1
13	520 176 98	Bolt	40
14	783 532 42 01	C-GC-Display	1
15	989 390 40	Roxtec assy.	1
16	986 481 40	Plate	1
17	510 746 98	Resilient sleeve	4
18	308 578 99	Bolt	4
19	998 621 40	Switch plate	1
20	999 079 40	Ignition switch	1
21	799 810 73	Key	1
22	490 518 40	Alarm transmitter	1
23	440 369 40	Turn switch 3-stage	1
24	324 400 40	Turn switch	10
25	951120 40	Turn switch 1-stage	3
26	399 702 40	Turn switch	2
27	950 859 40	Toggle switch	1
28	891 033 40	Emergency switch off assy.	1
29	951 121 40	Turn switch 2-stage	1
31	655 686 40	Impact key	1
32	655 676 40	Spring element	1
33	635 115 40	Contact element	1
34	635 652 40	Contact element	1
35	951 652 40	Emergency off symbol with seal	1
36	958 947 40	Plate	1
37	941 727 40	Lead in duct	1
38	103 350 42	System cable assy.	1
39	941 728 40	Protective cap	1
40	512 181 98	Bolt	4
41	340 459 99	Washer	12
42	334 649 99	Nut	8
43	318 167 99	Bolt	18
44	340 458 99	Washer	18
45	515 588 98	Nut	18
46	951 081 40	System cable	1
47	978 002 40	Union	1
48	941 777 40	Plate	3
49	174 411 40	Cable strap	16
50	940 663 40	Seal	1
51	941 729 40	Protective cap	1
52	949 138 40	Plate	1
53	941 431 40	Contoller ICN-V	1
54	998 635 40	Harness 20K309 - 20X309	1
55	103 377 42	Plug assy. ICN-V 20K310	1
56	941 430 40	Modul ICN-D	1
57	941 412 40	Plug connector	9
58	655 518 40	Wiring channel 40x60	-2
59	270 288 40	Wiring channel 40x25	-2
60	949 183 40	Assembly rail	1
61	940 673 40	Clamp	14
62	999 599 40	Diode array	2
63	993 765 40	Resistor clamp	3
64	999 593 40	Cover Plate	1
65	951 862 40	Semiconductor relay	12
66	951 888 40	Isolationplate	4
67	999 133 40	Bridge	-2
68	998 643 40	Wiring cable	1
69	635 896 40	Tube protection	-2
70	501 670 98	Bolt	12
71	145 743 40	Washer	12
72	307 671 99	Bolt	4
73	517 183 98	Nut	7
74	518 314 98	Lock washer	11
75	307 661 99	Bolt	3
76	307 732 99	Bolt	4
77	334 506 99	Nut	4
78	507 025 98	Nut	4
79	515 331 98	Washer	8
80	518 546 98	Lock washer	12
81	307 425 99	Bolt	1
82	307 429 99	Bolt	1
83	307 431 99	Bolt	1
84	500 849 98	Nut	6
85	509 870 98	Nut	3
86	340 654 99	Washer	2
87	501 323 98	Washer	3
88	958 955 40	Can-bushing	1
89	907 641 40	Wire end ferrule	3
90	056 070 40	Wire end ferrule	130
91	907 640 40	Wire end ferrule	2
92	440 109 40	Sleeve	1
93	055 107 40	Cable lug	1
94	950 428 40	Protective cover	1
95	950 432 40	Plug	1
96	906 648 40	Wegde	1
97	950 434 40	Female contact	2
98	906 653 40	Female contact	1
99	991 399 40	Mounting plate	1
100	999 293 40	Plug	1
101	517 320 98	Cable nut	1
102	950 726 40	Plug	8
103	950 727 40	Plug	3
104	950 728 40	Plug	7
105	998 603 40	Plate	1
106	999 702 40	Powerr view	2
107	932 860 40	Key seal kit	1
108	907 223 40	Rubber clamp 40X 15X 60	4
109	906 761 40	Rubber clamp 30X 30X 60	2
110	907 104 40	Rubber clamp 20X 20X 60	4
111	906 762 40	Shim	2
112	940 847 40	Anchor plate	4
113	984 585 40	Retainer Monitor assy.	1
114	340 465 99	Washer	6
115	319 147 99	Bolt	2
116	307 727 99	Bolt	4
117	984 594 40	Retainer	1
118	984 588 40	Sheet metal	1
119	984 593 40	Retainer	1
120	984 595 40	Retainer	1
121	319 148 99	Bolt	1
122	507 037 98	Nut	2
123	340 464 99	Washer	2
124	319 139 99	Bolt	2
125	319 149 99	Bolt	1
126	519 860 98	Assembly rail	-2
127	906 612 40	Through clamp 2,5	62
128	906 769 40	Through clamp 16,0	1
129	950 185 40	Protective wire clamp 2,5	36
130	906 613 40	Cover plate	6
131	950 339 40	Protective wire clamp 16,0	1
132	906 773 40	Cover plate	2
133	941 502 40	Potencial clamp 1,5	19
134	941 503 40	Cover plate	-2
135	999 852 40	Cover plate	1
136	999 850 40	Through clamp 4,0	8
137	790 537 73	Contoll clamp 20R030-20R034	1
138	951 916 40	Semiconductor relay	2
139	941 379 40	Relay	1
140	941 467 40	Modul with Resistor	1

Komatsu PC8000-11 S/N 12117 parts catalog PDF

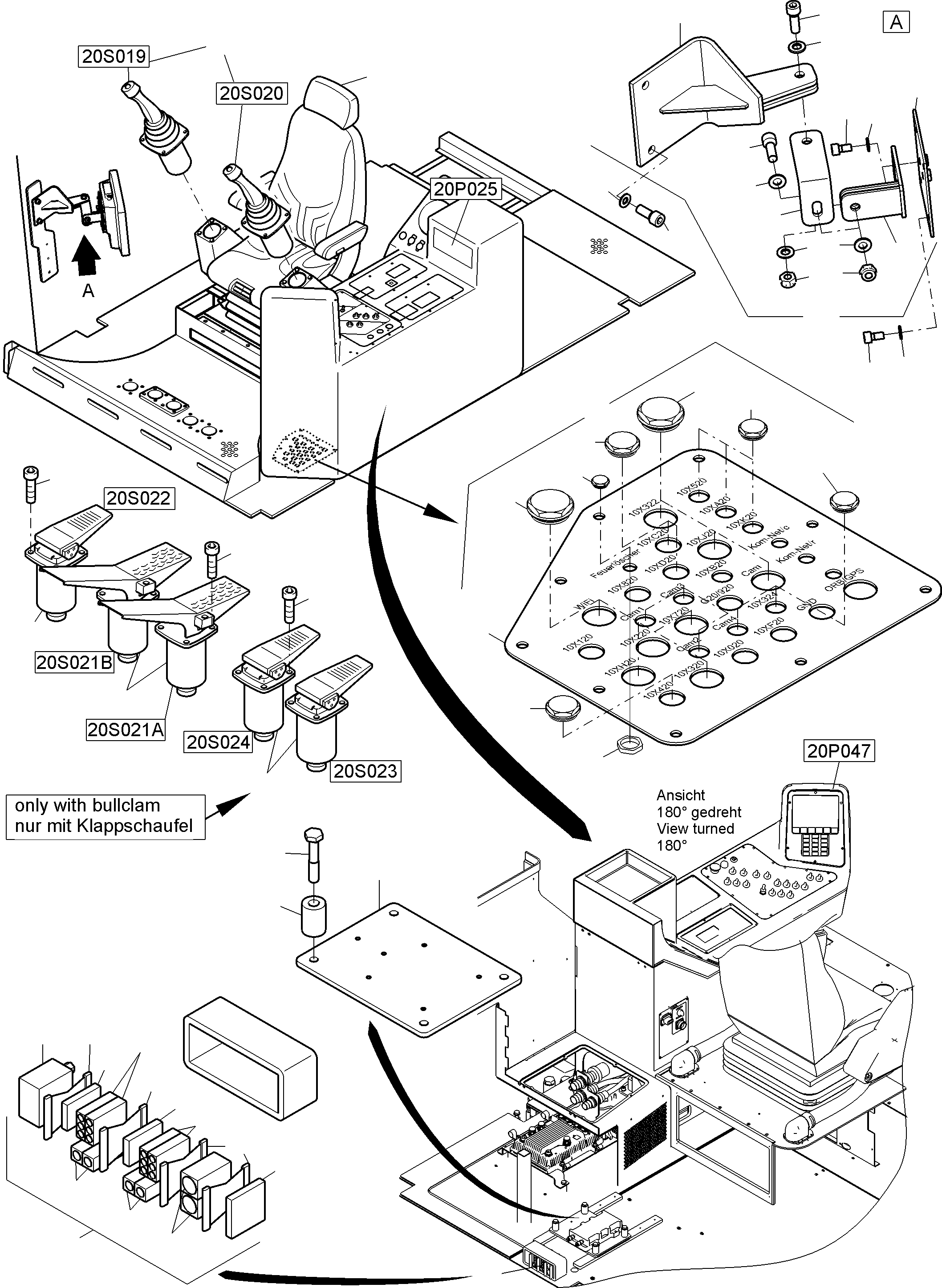

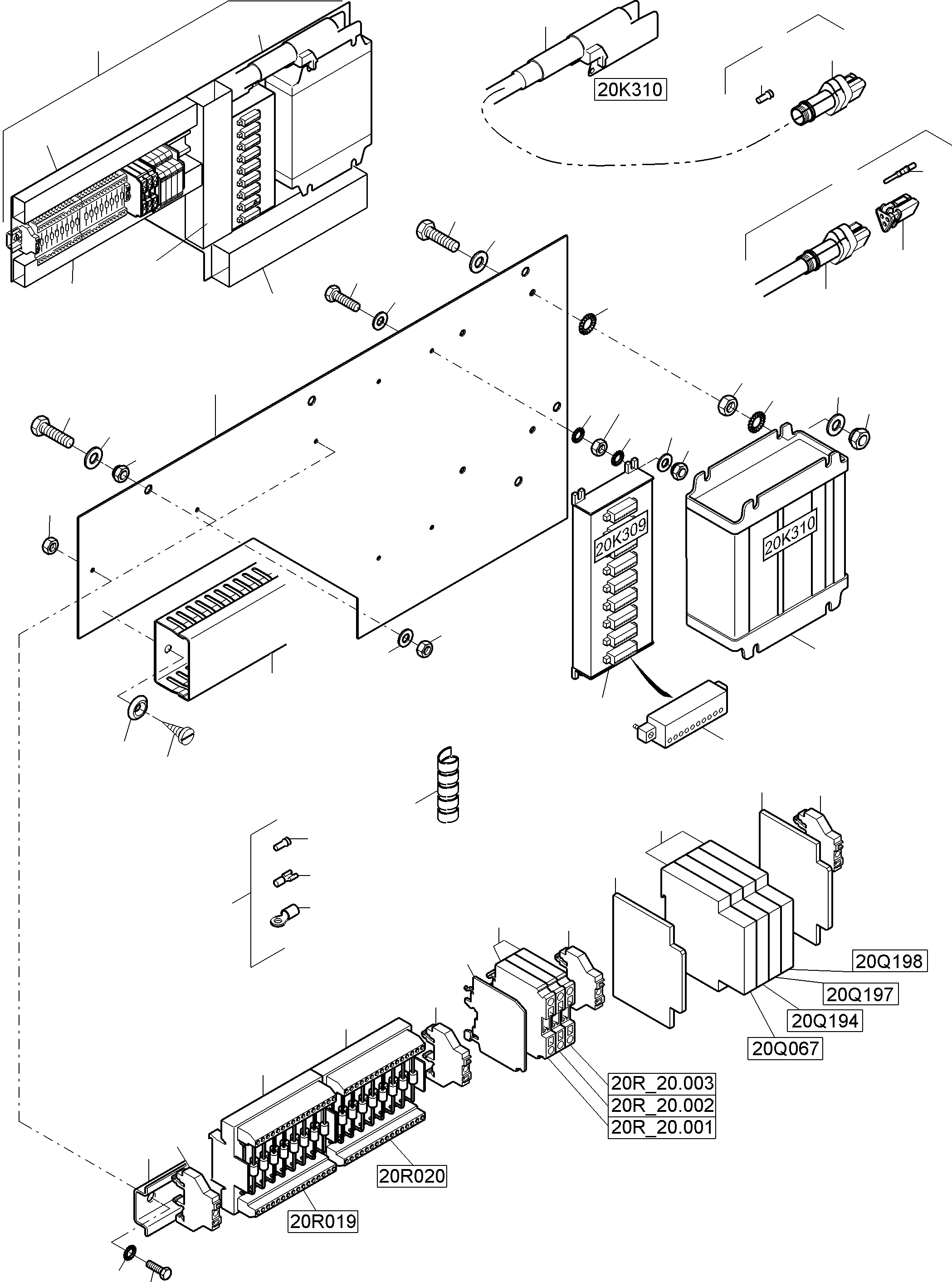

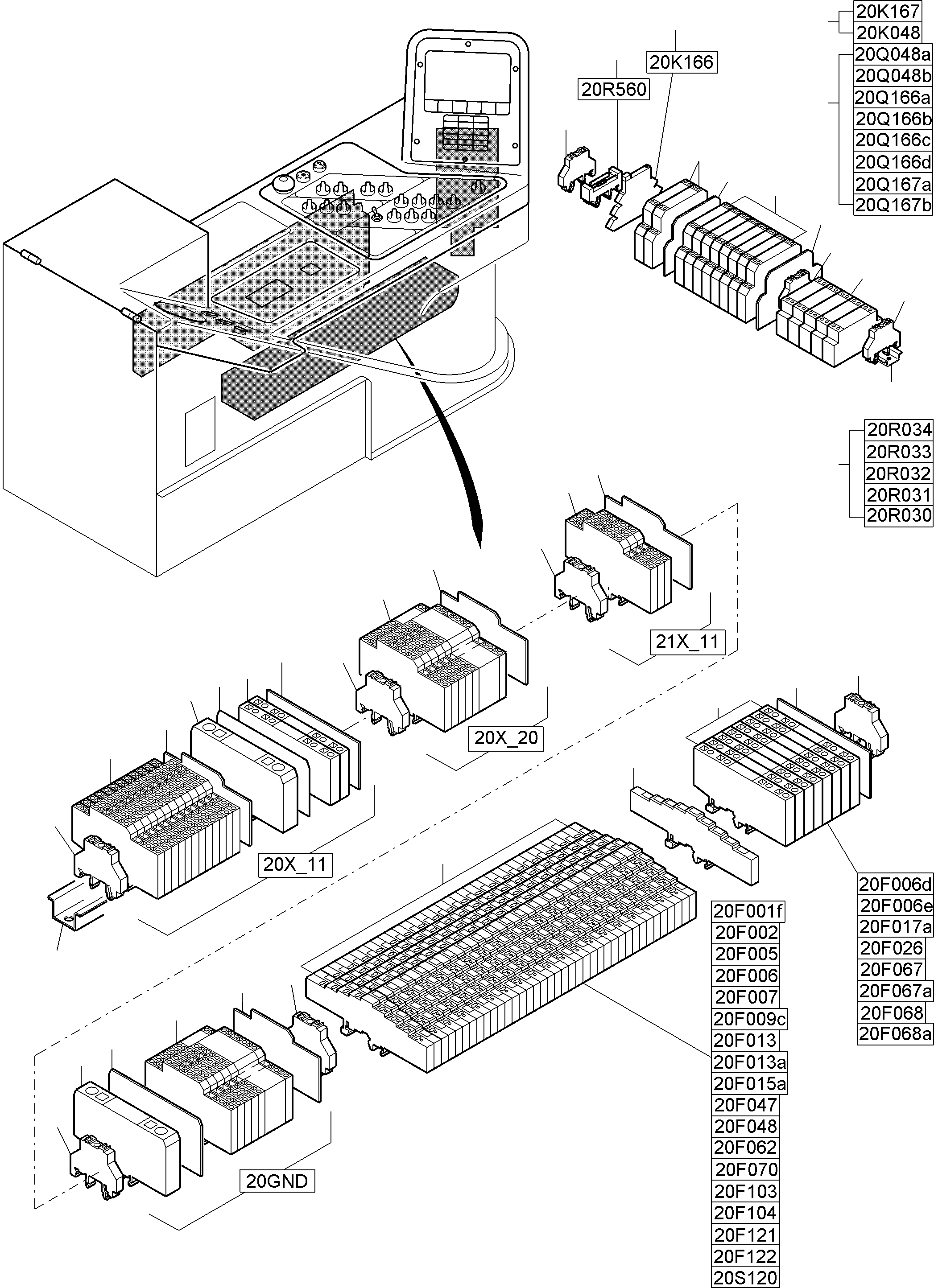

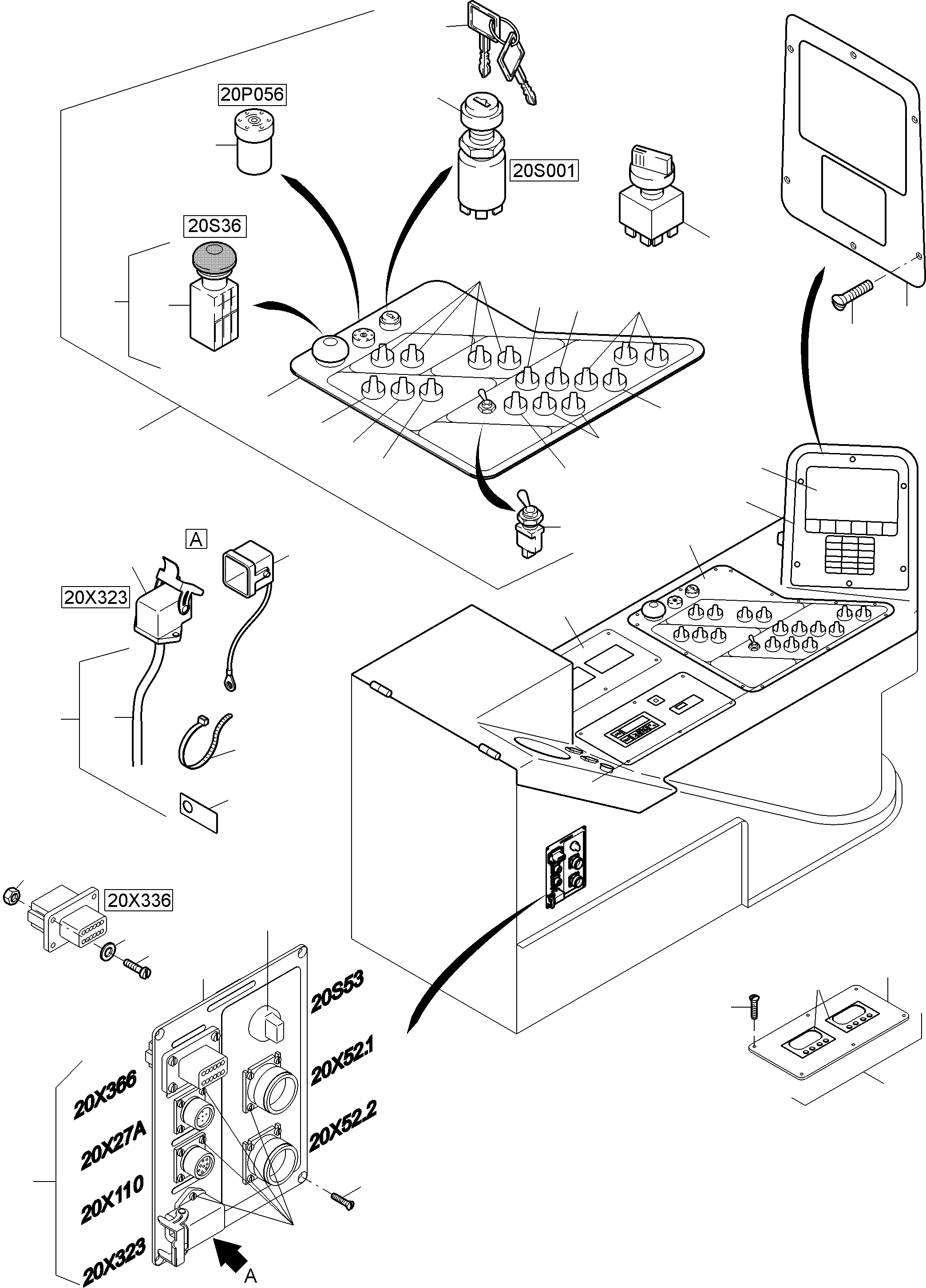

CABIN - OPERATION ELEMENTS - LOCATION 20 (213-2220) in PC8000-11 S/N 12117. Diagram image and parts list.
