Diagram image 1 of 4

PC8000-11 S/N 12117

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-11 S/N 12117

? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-11 S/N 12117

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC8000-11 S/N 12117

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	993 371 40	Switch box assy. Ort 12	1
?	999 265 40	Power switch 150A	1
?	993 380 40	Bottom plate assy. Ort 12	1
?	988 844 40	Switch box assy.	1
?	999 327 40	Breaker 40A 3-pol.	3
?	999 322 40	Breaker 10A 3-pol.	7
?	941 673 40	Breaker 100A 2-pol.	1
?	999 315 40	Breaker 20A 2-pol.	1
?	999 353 40	Breaker 13A 2-pol.	4
?	999 312 40	Breaker 6A 2-pol.	1
?	999 298 40	Breaker 6A 1-pol.	1
?	999 314 40	Breaker 16A 2-pol.	1
?	999 407 40	Distribution block	4
?	999 374 40	Undervoltage cause 24-30 V	1
?	999 267 40	Door handle coupling	1
?	999 268 40	Clamp cover	1
?	999 270 40	Frame clamp	2
?	999 275 40	Power contactor 100-250V	8
?	999 373 40	Power contactor 20-60V	3
?	993 370 40	Rail collector 3PH/18	1
?	993 369 40	Rail collector 3PH/18	1
?	940 640 40	End cap	4
?	906 745 40	Through clamp 95,0	4
?	906 612 40	Through clamp 2,5	28
?	906 768 40	Through clamp 6,0	3
?	906 770 40	Through clamp 10,0 10,0	6
?	906 796 40	Protective wire clamp 95,0 GN/GL	1
?	906 630 40	Protective wire clip 2,5	13
?	906 792 40	Protective wire clip 6,0	2
?	906 793 40	Protective wire clip 10,0	3
?	906 613 40	Cover plate	7
?	906 772 40	Cover plate	1
?	906 774 40	Cover plate	1
?	906 614 40	Bridge 2-fold	9
?	906 803 40	Marker	3
?	940 673 40	Clamp	10
?	906 747 40	Caution-Cover	4
?	906 624 40	Marker	2
?	906 687 40	Marker	7
?	906 623 40	Marking strip	1
?	518 979 98	Decal	3
?	517 425 98	Warning decal	1
?	993 372 40	Cable assy. 1 GND	1
?	993 373 40	Cable assy. 2 PE	1
?	993 374 40	Cable assy. 3 PE	1
?	343 608 99	Washer	2
?	340 654 99	Washer	2
?	509 870 98	Nut	2
?	993 379 40	Bottom plate	1
?	517 330 98	Reduction	1
?	517 328 98	Reduction	3
?	950 726 40	Plug	13
?	950 727 40	Plug	5
?	950 728 40	Plug	3
?	950 983 40	Plug	1
?	951 353 40	Plug	1
?	518 311 98	Cable nut	1
?	999 208 40	Switch box	1
?	999 209 40	Frame	1
?	906 344 40	Cable green/yellow	-2
?	517 487 98	Cable shoe	4
?	940 914 40	Warmth shrink hose	-2
?	907 501 40	Wire end ferrule	1
?	600 240 99	Cable shoe	1
?	515 213 40	Cable 1,0	-2
?	323 168 40	Cable AWG 14 SW	-2
?	323 342 40	Cable AWG 14 WS	-2
?	440 334 40	Cable AWG 14 RT	-2
?	634 953 40	Cable AWG 10 SW	-2
?	634 950 40	Cable AWG 8 SW	-2
?	907 332 40	Cable AWG 2 SW	-2
?	951 069 40	Cable AWG 1/0 SW	-2
?	951 070 40	Cable AWG 1/0 WS	-2
?	056 070 40	Cable sleeve	16
?	907 640 40	Wire end ferrule	120
?	324 484 40	Cable end sleeve	18
?	907 501 40	Wire end ferrule	18
?	635 119 40	Wire end ferrule	12
?	906 668 40	Wire end ferrule	8
?	600 261 99	Cable shoe	6
?	940 916 40	Thermal contraction tube	-2

Komatsu PC8000-11 S/N 12117 parts catalog PDF

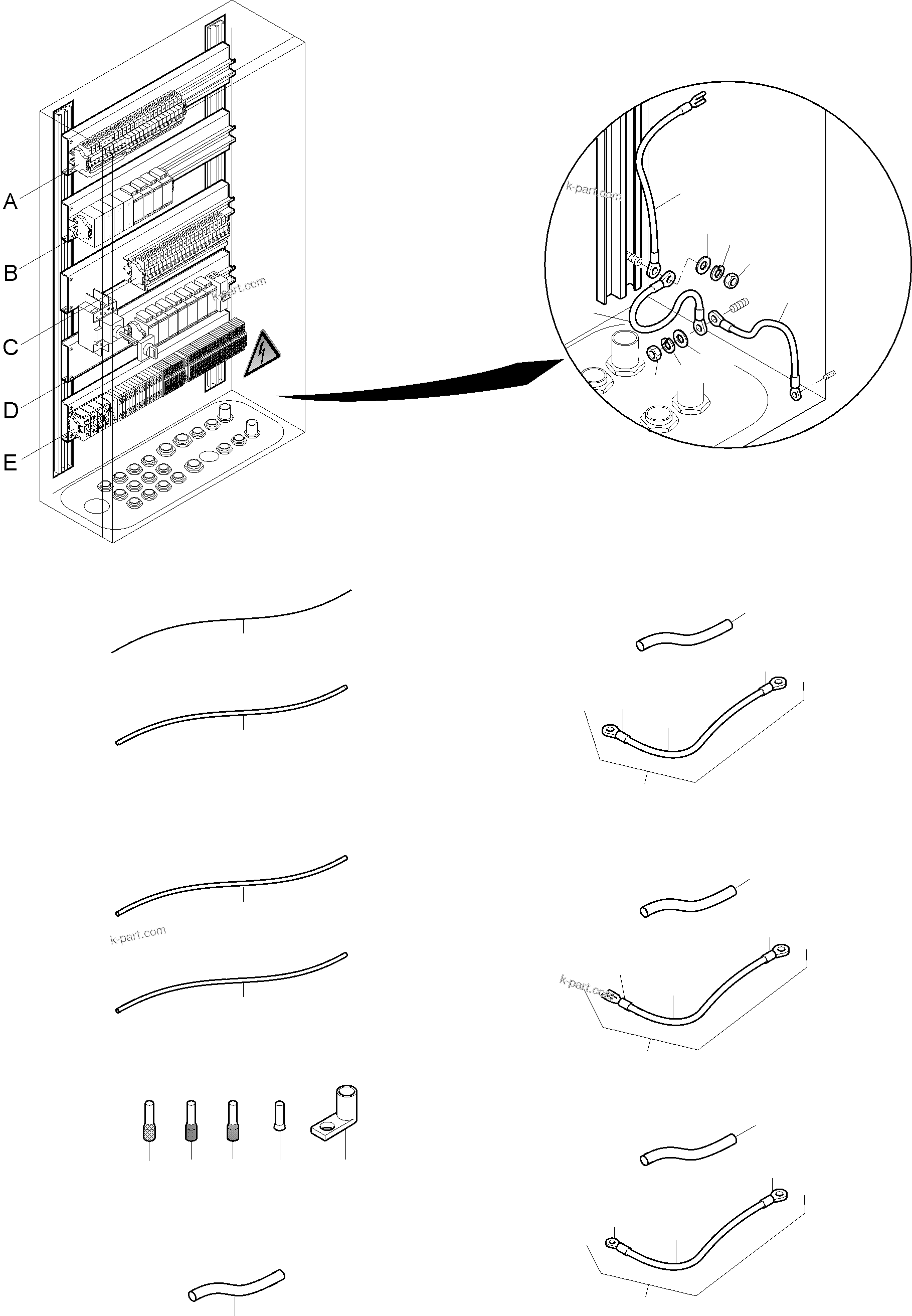

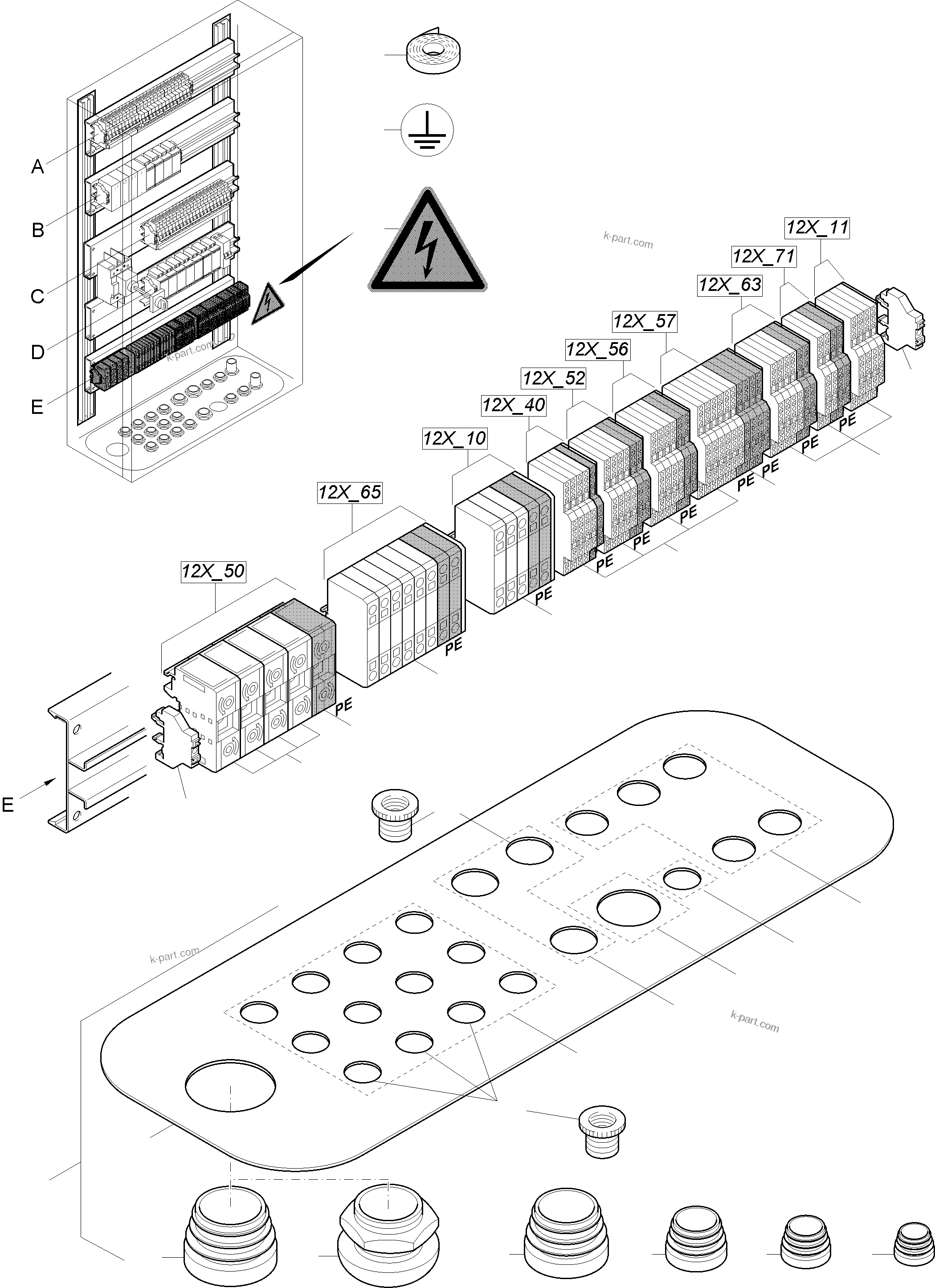

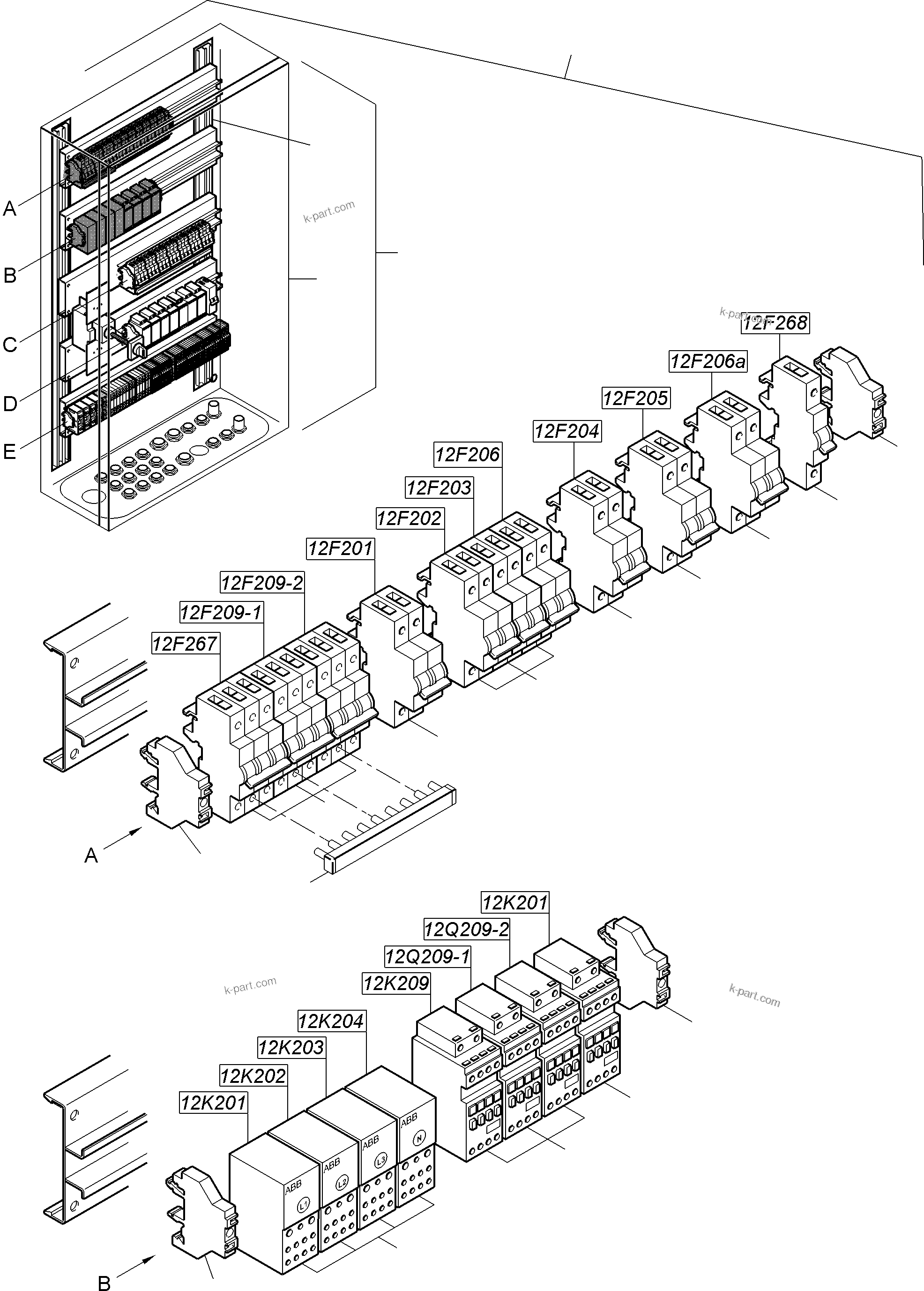

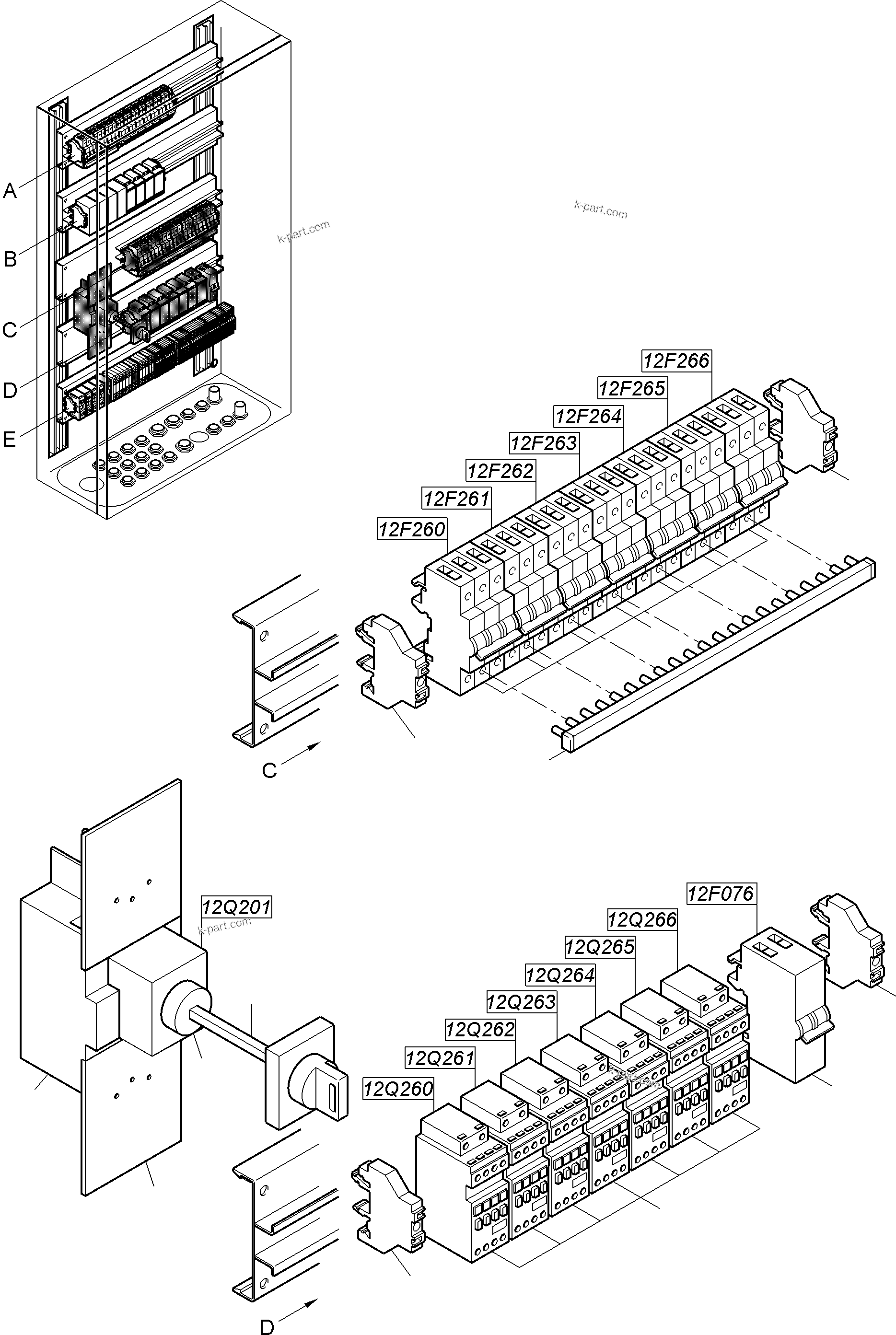

SWITCH FRAMING LOC:12 (113-2523a) in PC8000-11 S/N 12117. Diagram image and parts list.
