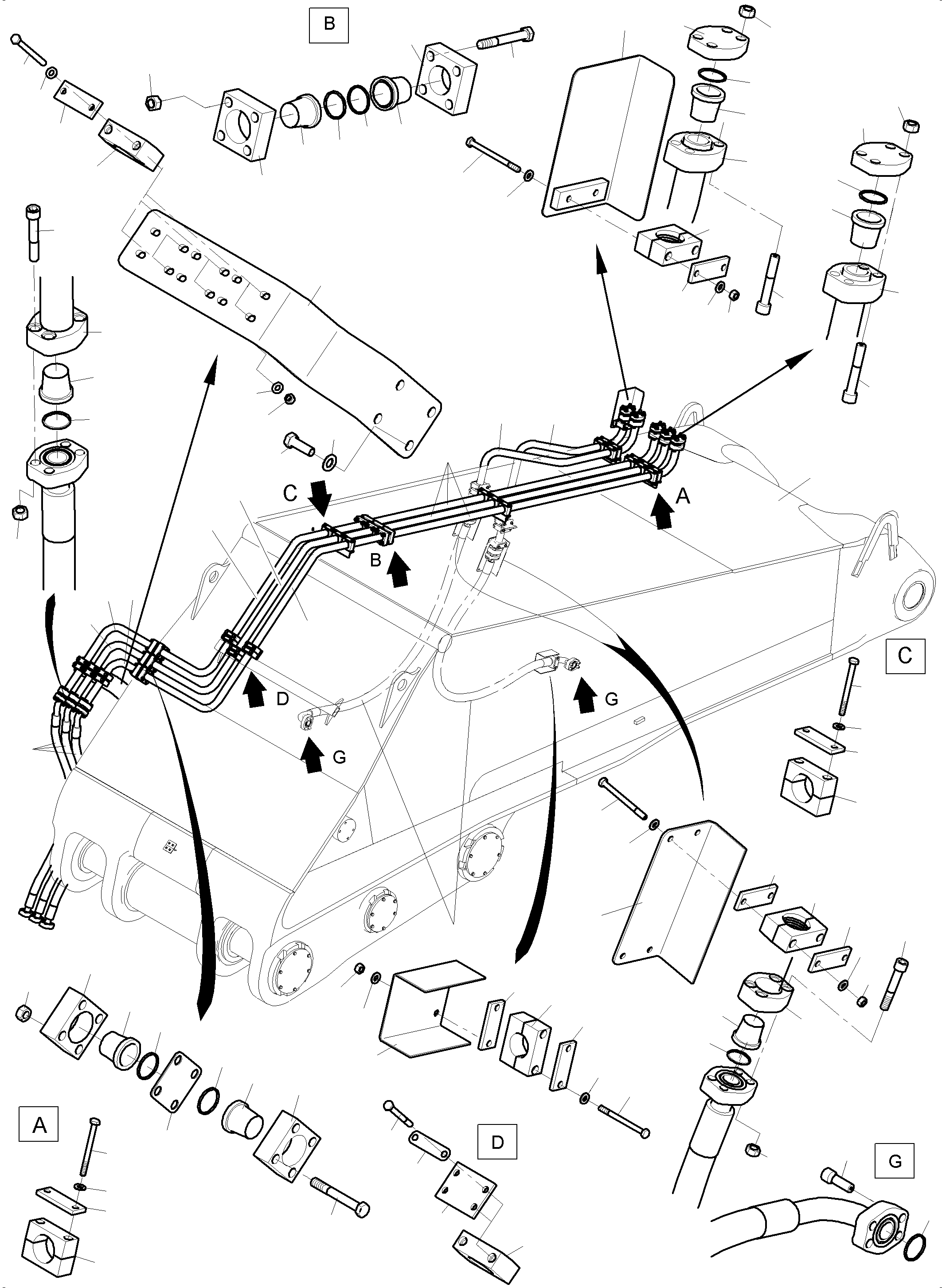

Diagram image 1 of 4

PC8000-11 S/N 12117

01 21 21 21 21 21 22 22 22 22 22 22 22 22 23 24 26 27 27 28 28 28 28 29 29 29 29 29 29 29 29 29 30 30 30 30 31 31 31 31 31 31 32 33 34 35 36 37 38 39 40 40 41 42 42 42 42 42 42 42 42 42 42 43 44 45 46 46 47 48 50 51 58 61 62 63 67 68 69 71 73 75 75 75 75 76 76 76 76 76 76 77 77 77 77 78 78

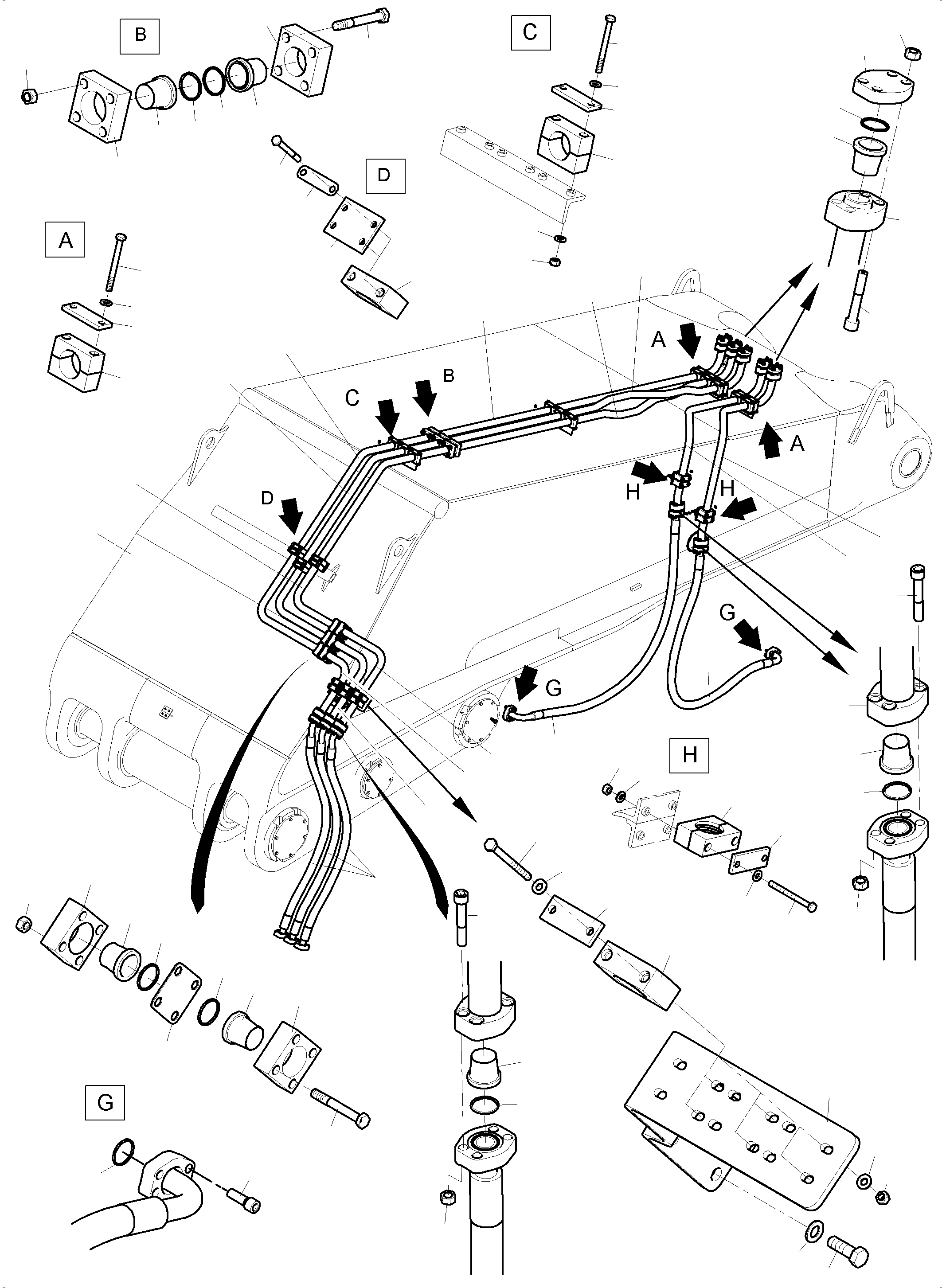

PC8000-11 S/N 12117

01 21 21 21 21 22 22 22 22 23 24 26 27 27 27 28 28 28 29 29 29 29 29 29 29 29 30 30 30 31 31 31 31 31 32 33 34 39 42 42 42 42 42 42 42 43 44 45 46 47 48 56 57 58 59 60 64 65 66 67 68 69 70 70 71 75 75 75 76 76 76 76 76 77 77 77 77 78 78

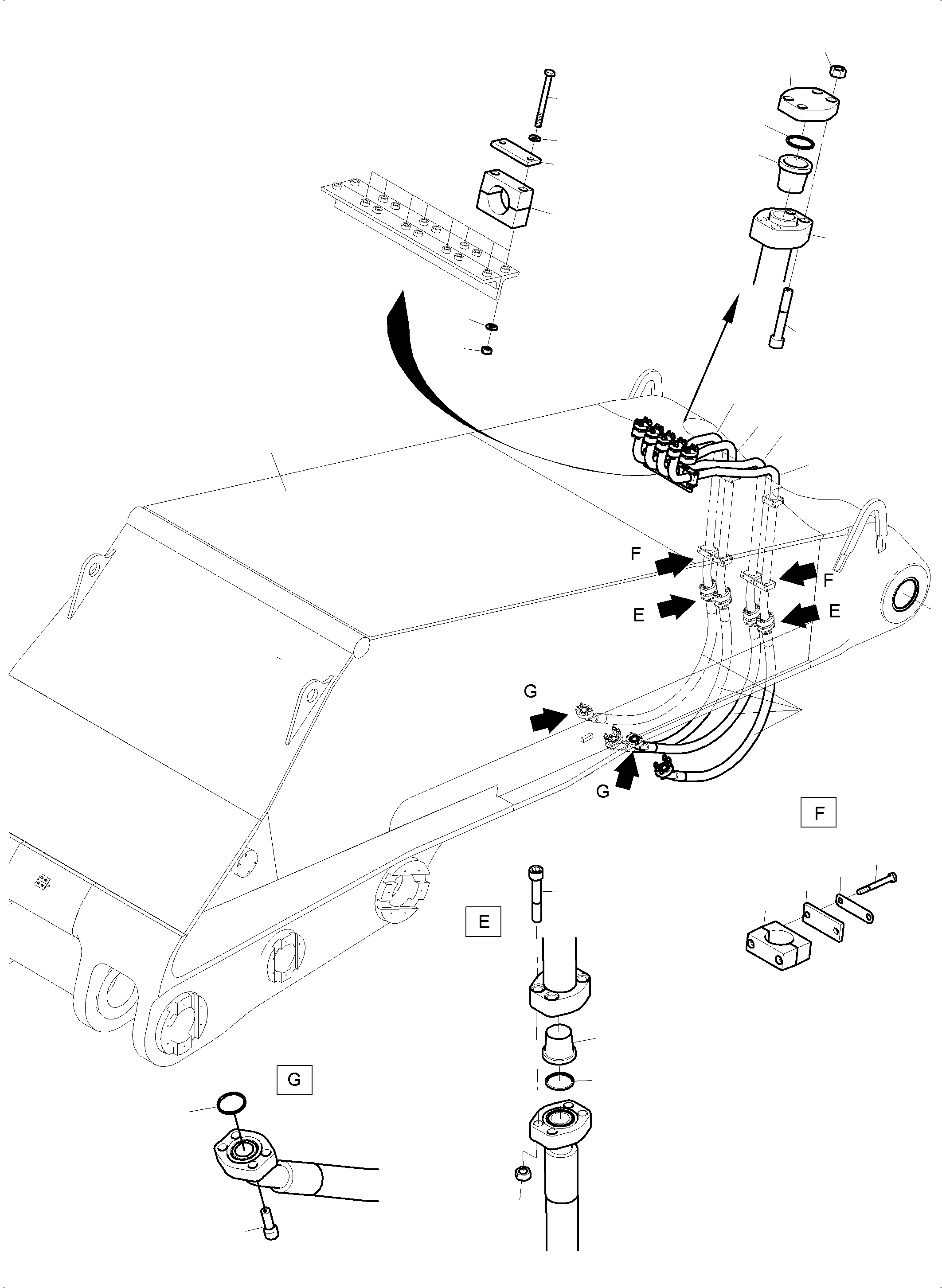

PC8000-11 S/N 12117

01 21 22 22 23 24 26 27 28 29 29 29 30 30 31 31 33 42 42 46 52 53 54 55 72 75 75 76 76

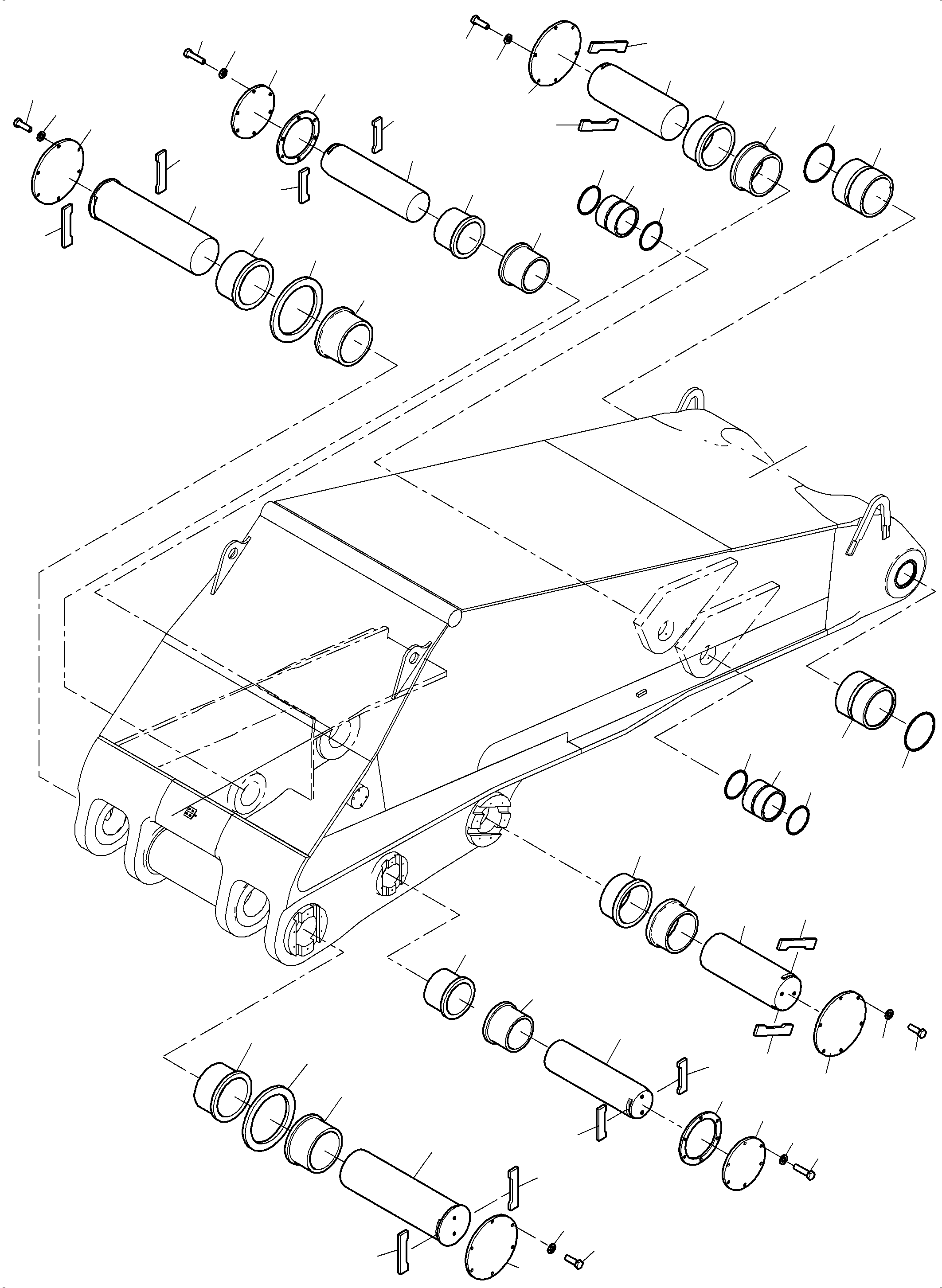

PC8000-11 S/N 12117

01 02 02 03 03 04 04 05 05 05 05 06 06 07 07 07 07 08 08 08 08 09 09 10 10 10 10 11 11 11 11 12 12 12 12 13 13 13 13 14 14 14 14 15 15 16 16 17 17 17 17 18 18 19 19 19 19 19 19 20 20 25 25

#	Part Number	Partname	Quantity
01	993 435 40	Boom MB	1
02	959 749 40	Pin	2
03	891 664 40	Pin	2
04	932 146 40	Pin	2
05	890 998 40	Flanged bush	4
06	970 731 40	Bushing	4
07	890 997 40	Flanged bush	4
08	932 145 40	Flanged bush	4
09	970 720 40	Bushing	2
10	907 023 40	Pin seal ring	4
11	973 856 40	Axle stirrup	4
12	890 992 40	Axle stirrup	4
13	932 147 40	Axle stirrup	4
14	970 999 40	Cover	4
15	890 988 40	Cover	2
16	890 987 40	Ring	2
17	307 826 99	Bolt	24
18	307 829 99	Bolt	12
19	517 123 98	Lock washer	36
20	907 028 40	Seal ring	4
21	504 445 98	Clamp-set	67
22	534 008 99	Cover plate	75
23	308 599 99	Bolt	40
24	509 310 98	Locking plate	20
25	919 363 40	Ring	2
26	504 446 98	Clamp-set	16
27	519 066 98	Bolt	96
28	332 334 99	Nut	128
29	519 454 98	Flange seal	43
30	320 035 99	Bolt	120
31	504 662 98	Nut	192
32	502 538 98	Bolt	48
33	518 502 98	Bolt	24
34	993 407 40	Retainer	2
35	936 467 40	Cover plate	1
36	935 546 40	Guard plate	2
37	518 386 98	Clamp-set	1
38	935 549 40	Guard plate	1
39	502 965 98	Cover plate	6
40	308 616 99	Bolt	6
41	308 617 99	Bolt	2
42	517 118 98	Lock washer	256
43	506 929 98	Bolt	24
44	517 124 98	Lock washer	8
45	307 615 99	Bolt	8
46	506 582 98	Plug	28
47	992 615 40	Plate	6
48	308 669 99	Bolt	24
50	958 499 40	Pipe assy. Ш 65	1
51	960 401 40	Pipe assy. Ш 65	1
52	960 436 40	Pipe assy. Ш 65	1
53	960 437 40	Pipe assy. Ш 65	1
54	960 438 40	Pipe assy. Ш 65	1
55	960 439 40	Pipe assy. Ш 65	1
56	960 400 40	Pipe assy. Ш 65	1
57	958 498 40	Pipe assy. Ш 65	1
58	958 493 40	Pipe assy. Ш 65	4
59	958 497 40	Pipe assy. Ш 65	1
60	958 496 40	Pipe assy. Ш 65	1
61	993 401 40	Pipe assy. Ш 65	1
62	993 402 40	Pipe assy. Ш 65	1
63	993 403 40	Pipe assy. Ш 65	1
64	993 404 40	Pipe assy. Ш 65	1
65	993 405 40	Pipe assy. Ш 65	1
66	993 406 40	Pipe assy. Ш 65	1
67	992 475 40	Pipe assy. Ш 65	2
68	992 477 40	Pipe assy. Ш 65	2
69	992 476 40	Pipe assy. Ш 65	2
70	520 237 98	Hose assy. DN 50x3100	2
71	940 421 40	Hose assy. DN 50x2400	6
72	940 420 40	Hose assy. DN 50x2200	4
73	520 238 98	Hose assy. DN 50x3100	2
75	504 448 98	Flange	24
76	504 449 98	Collar ring	36
77	504 898 40	Flange	24
78	504 461 98	Collar ring	11

Komatsu PC8000-11 S/N 12117 parts catalog PDF

BOOM 8.15 M (113-4004a) in PC8000-11 S/N 12117. Diagram image and parts list.
