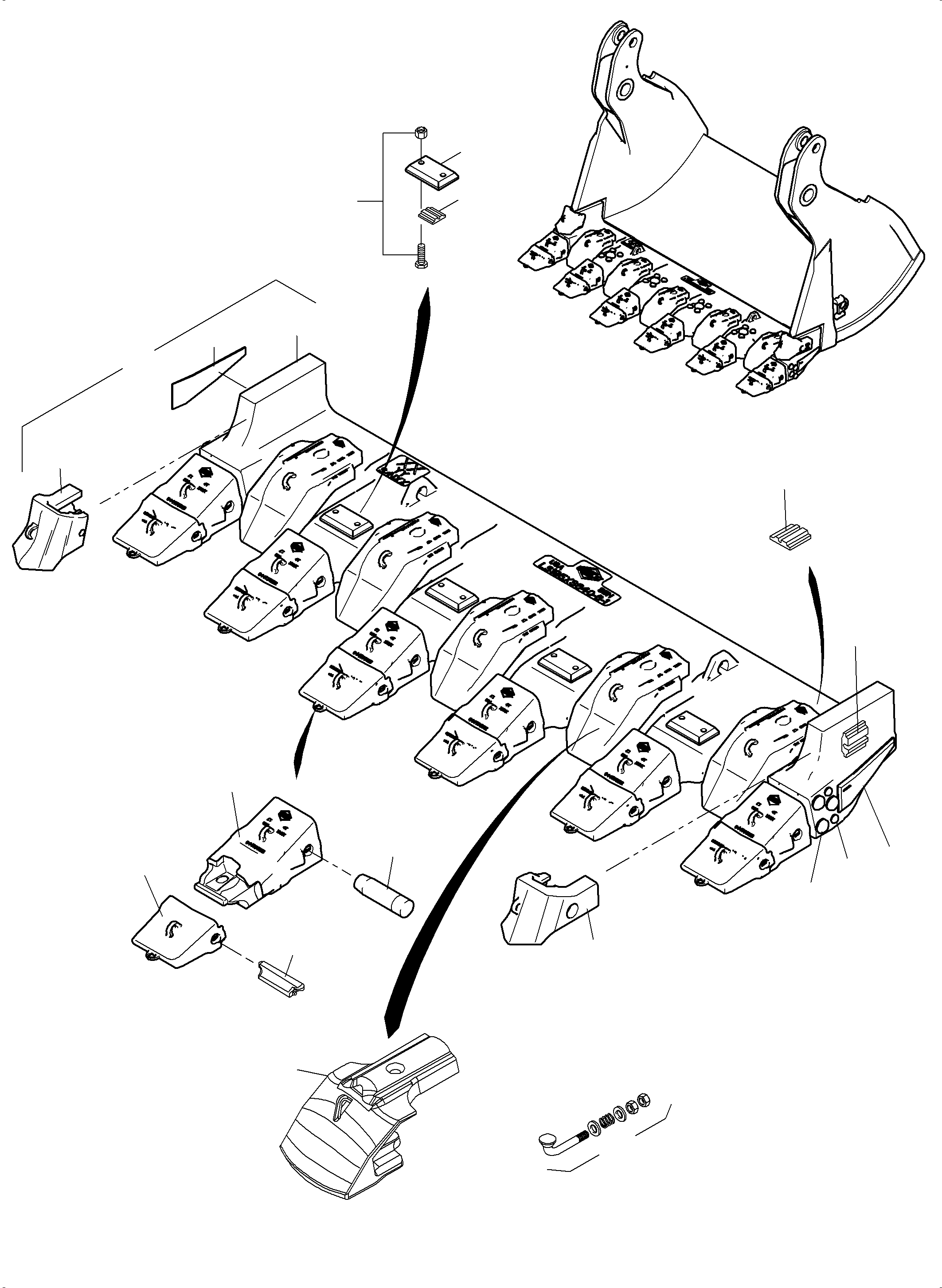

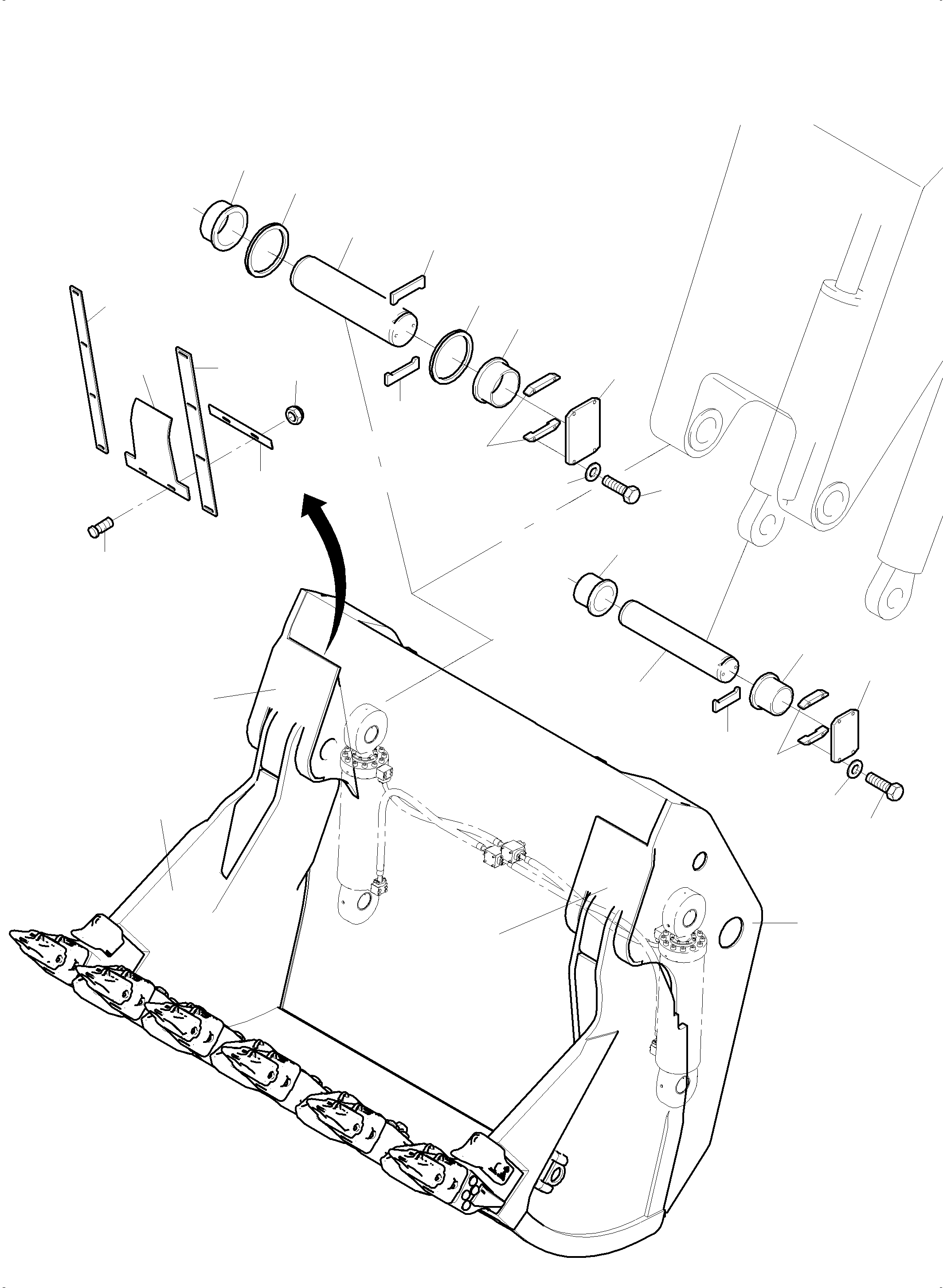

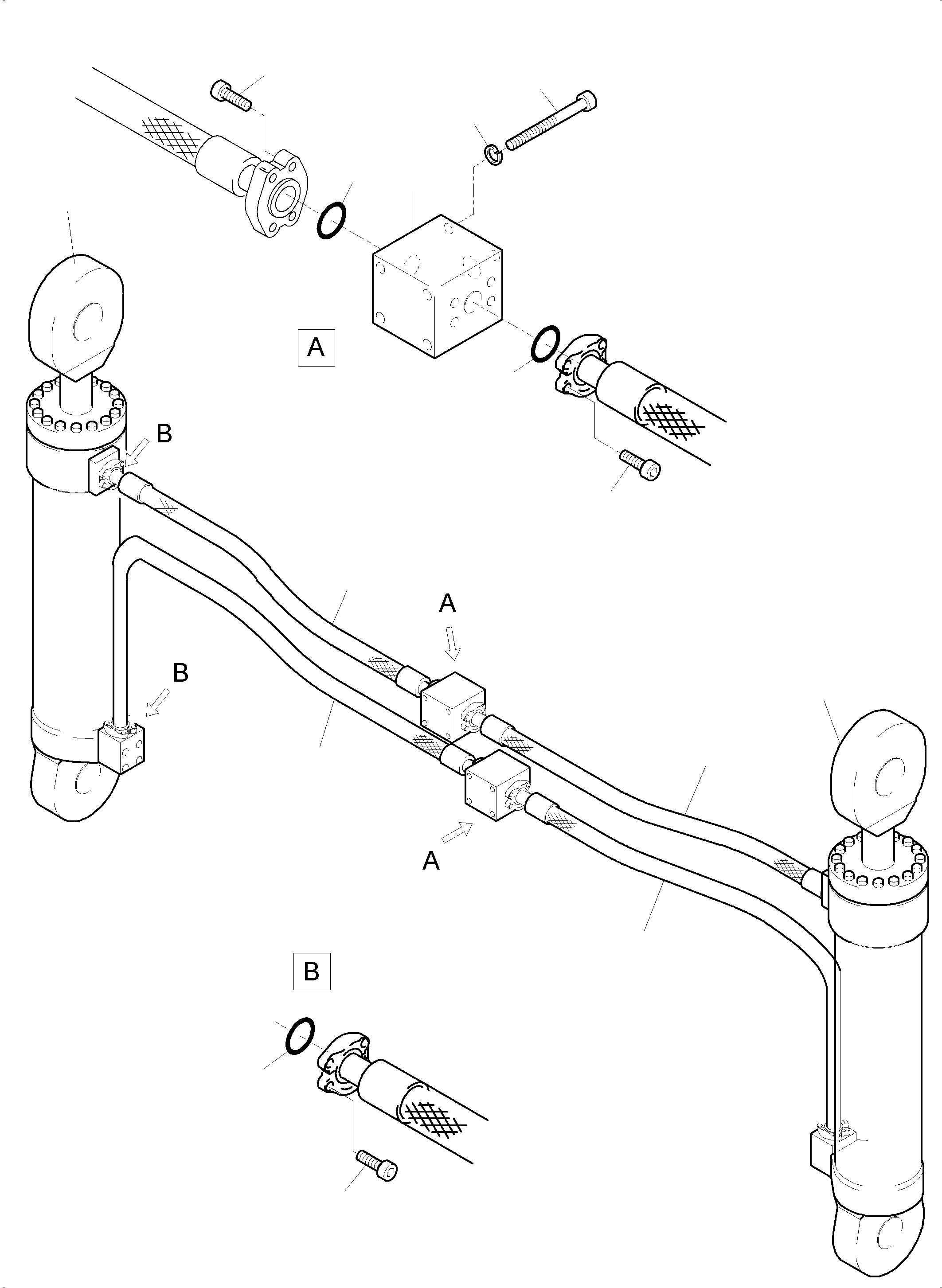

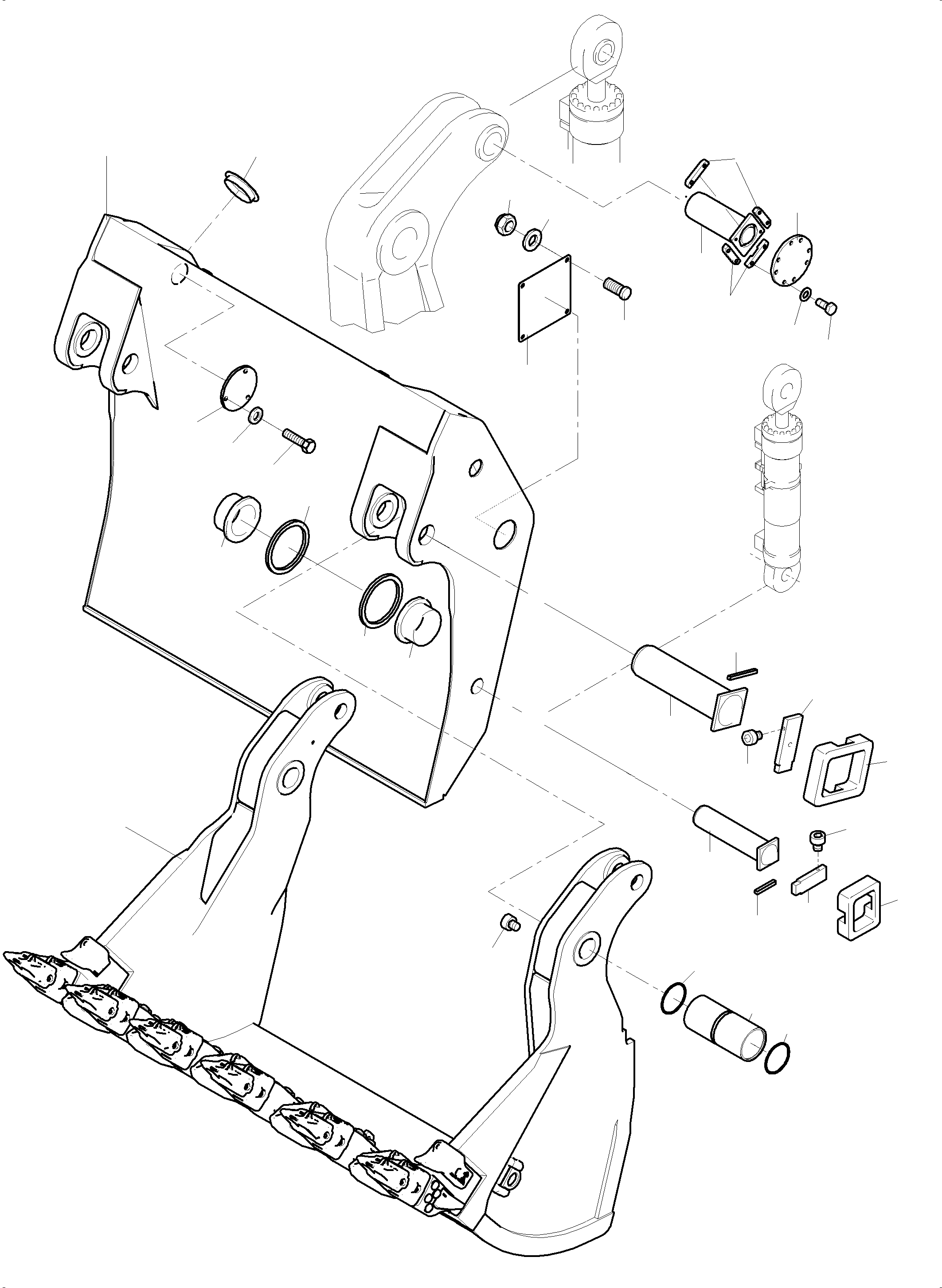

Diagram image 1 of 4

PC8000-11 S/N 12117

01 03 04 04 05 06 07 08 09 10 15 16 18 18 19 19 26 27 28 28 29 30 31 40 40 43 43 44 44

PC8000-11 S/N 12117

02 11 13 14 17 17 20 20 22 23 24 24 25 41 41 42 42 45 46 47 48 49 50 51 61 62 63 64 64 65 66 67 68 68 69

PC8000-11 S/N 12117

12 12 21 32 33 34 35 36 37 38 38 38 39 39 39

PC8000-11 S/N 12117

70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88

#	Part Number	Partname	Quantity
01	979 760 40	Bullclam bucket	1
02	962 823 40	Bullclam bucket wall assy.	1
03	979 761 40	Bucket clam without lip assy.	1
04	919 347 40	Plate	2
05	958 718 40	Strip	2
06	936 432 40	Strip	2
07	936 433 40	Protection rubber	2
08	511 263 98	Thread pin	20
09	507 037 98	Nut	20
10	961 911 40	Strip	2
11		Bullclam bucket wall welded structure	1
12		see page Cylinder with pipes	2
13	934 092 40	Pin with plate	2
14	934 095 40	Pin with plate	2
15	890 925 40	Pin	2
16	890 926 40	Pin	2
17	890 924 40	Flanged bush	4
18	890 922 40	Flanged bush	4
19	905 371 40	Flanged bush	4
20	890 921 40	Protective frame	4
21	319 444 99	Bolt	8
22	890 884 40	Catch	4
23	895 099 40	Square	4
24	890 916 40	Catch	4
25	334 600 99	Nut	8
26	890 919 40	Catch	4
27	890 920 40	Catch	4
28	890 993 40	Axle stirrup	4
29	890 992 40	Axle stirrup	4
30	890 917 40	Shackle	2
31	890 918 40	Shackle	2
32	395 158 40	Manifold	2
33	517 907 98	Hose assy. DN 40x1920	1
34	517 908 98	Hose assy. DN 40x2120	1
35	516 134 98	Hose assy. DN 40x2830	1
36	516 135 98	Hose assy. DN 40x2630	1
37	500 804 98	Lock washer	8
38	519 453 98	Flange seal	8
39	319 288 99	Bolt	32
40	908 663 40	Ring	4
41	934 094 40	Ring	4
42	320 374 99	Bolt	4
43	307 826 99	Bolt	16
44	517 123 98	Lock washer	16
45	978 964 40	Plate	2
46	896 665 40	Plug	4
47	510 213 98	Thread pin	8
48	506 129 98	Washer	8
49	934 091 40	Cover	2
50	517 122 98	Lock washer	6
51	307 775 99	Bolt	6
61		Bucket clam welded structure	1
62	936 427 40	Pin with plate	2
63	970 737 40	Freeze in bush	2
64	936 429 40	Catch	8
65	936 431 40	Cover	2
66	307 825 99	Bolt	16
67	517 123 98	Lock washer	16
68	907 023 40	Pin seal ring	4
69	313 430 99	Plug	2
70	951 150 40	Castlip with teeth and shroud	1
71	950 302 40	Castlip	1
72	951 145 40	Tooth adapter	6
73	951 144 40	Pin	6
74	951 210 40	Pin	6
75	950 306 40	Tooth tip	6
76	950 260 40	Wear runner	4
77	950 261 40	Wear runner base	4
78	907 765 40	Bolt and Nut	8
79	950 307 40	Shroud	5
80	045 844 40	Weld base	5
81	950 630 40	J-Bolt Assembly	7
82	950 254 40	Lower wing shroud l.h.	1
83	950 255 40	Lower wing shroud r.h.	1
84	950 256 40	Weld base	2
85	906 657 40	Wear button	4
86	906 988 40	Wear button	6
87	950 340 40	Side protection l.h	1
88	950 341 40	Side protection r.h	1

Komatsu PC8000-11 S/N 12117 parts catalog PDF

BULLCLAM BUCKET 42,0 CBM (113-5117) in PC8000-11 S/N 12117. Diagram image and parts list.
