AFP49-A thru E 530M S/N A30001-A30008 (DH627-0)

7 8 9 10 1 2 3 4 5 6 11 12 13 14 15 16 37 17 18 20 19 21 35 24 24 30 36 25 25 31 23 22 34 26 32 28 27 33 29 42 43 44 45 38 39 40 41

#	Part Number	Partname	Quantity
1	SM2045	CHANNEL, RUBBER	1
2	SM1094	GLASS, REAR	1
3	SM2307	INSULATION (ROOF REAR)	1
4	SM0543	INSULATION (R.H. REAR TOP)	1
5	SM2240	LIGHT, DOME	1
6	VZ1912	BULB, 24VOLT	1
7	SM2306	INSULATION (ROOF MAIN)	1
8	SM2308	INSULATION (DOME LIGHT)	1
9	SM2455	CARPET W/ TAC BOARD	1
10	PB8658	SCREW, PAN - M6 X 1.0	14
11	SM4401	GLASS, FRONT R.H. (CORNER)	1
12	SM4299	SEAL, WINDOW CORNER	36
13	SM2879	GLASS, FRONT - R.H.	1
14	SM2897	SPACER, GLASS - BLACK	10
15	SM2963	INSULATION (R.H. FRONT TOP)	1
16	SM4397	PLATE, R.H.	1
17	27705R1	SCREW, SELF TAP. - 1/4" - 14 X 1"	8
18	SM2304	INSULATION (R.H. FRONT LOWER)	1
19	SM2749	DOOR ASSM. - R.H. (SEE FIG 55240)	1
20	PB8734	WINDOW ASSM.	1
21	SM2265	GLASS	1
22	SM0546	INSULATION (R.H. REAR MIDDLE)	1
23	SM0547	INSULATION (R.H. REAR LOWER)	1
24		(NOT USED THIS APPLICATION)	1
25	MM0036	CAPSCREW - M10 X 1.50 X 20	12
26	MM0471	LOCKWASHER - M10	12
27	SM4248	CAB STR.	1
28	MM0074	CAPSCREW - M24 X 3.00 X 70	32
29	EC7592	FLATWASHER - M24 HARDENED	32
30	TR8279	GROMMET	8
31	EG2481	PLATE, MOUNT	2
32	MM0019	CAPSCREW - M6 X 1.00 X 16	8
33	MM0702	FLATWASHER - M6 HARDENED	8
34	SM2189	PLATE, ACCESS - L.H. FLOOR	1
35	SM0991	PLATE, FRONT ACCESS - BRK. & STEER.	1
36	SM0992	PLATE, REAR ACCESS - BRK. & STEER.	1
37	SM2305	INSULATION (BACK WALL)	1
38	MM0364	MACHINE SCREW - M8 X 1.75 X 20	8
39	SM2165	BRACKET	4
40	MM0470	LOCKWASHER - M8	14
41	MM0595	CAPSCREW - M8 X 1.25 X 30	14
42	SM2582	SEAL, INNER	2
43	SM2167	STRAP, DOOR CHECK	2
44	SM2168	BOLT, DRILLED	4
45	SM2322	CLIP, HAIR PIN	4
45		NS = NOT SHOWN	65535
45	EF9039	HARNESS, OPERATOR'S CAB	1

Komatsu AFP49-A thru E 530M S/N A30001-A30008 (DH627-0) parts catalog PDF

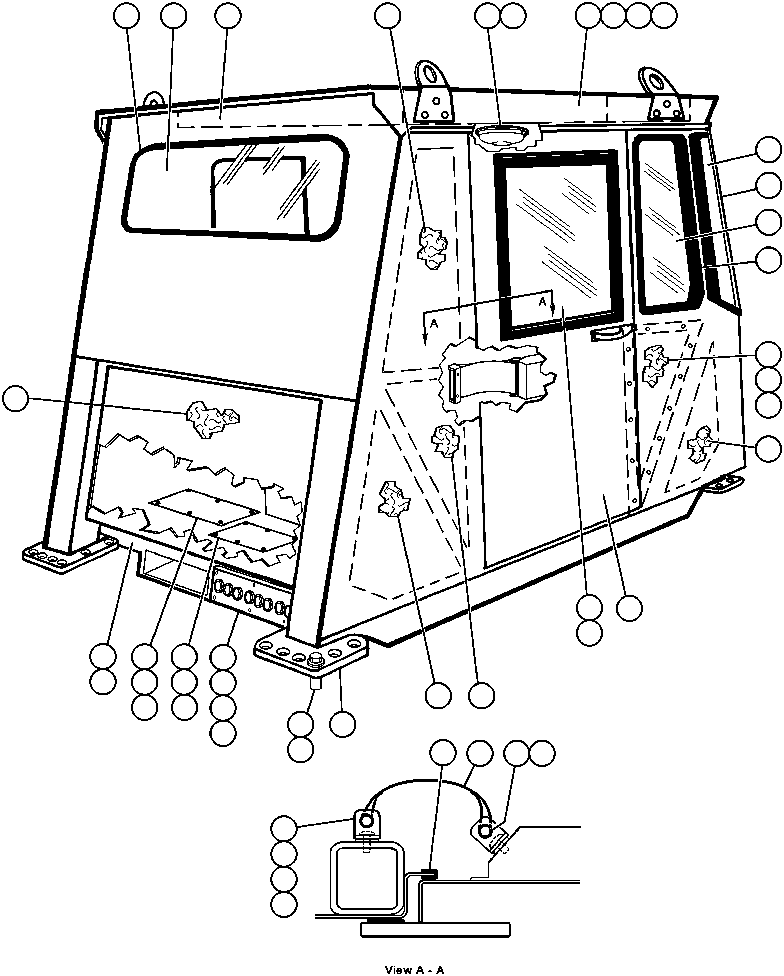

CAB ASSEMBLY - 2 (50191) in AFP49-A thru E 530M S/N A30001-A30008 (DH627-0). Diagram image and parts list.
