AFP49-A thru E 530M S/N A30001-A30008 (DH627-0)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	EG6676	PANEL, DASH	1
?	EG6679	PANEL, SUB-MODULE DASH (SEE INDEX)	1
?	SM0926	SCREW, PAN HD.	21
?	EG3912	POD MODULE, R.H.	1
?	EG3915	PLATE, PANEL R.H.	1
?	EG3914	DECAL, LEXAN PANEL	1
?	PB9724	SWITCH	2
?	SM2717	LOUVER	1
?	PB9797	SWITCH	1
?	WB2488	DECAL, AUX. BRAKE SWITCH	1
?	WB2490	DECAL, KEY SWITCH WARN.	1
?	DC9822	SCREW, DRIVE	16
?	WB2480	OVERLAY, LEXAN LIGHT SW.	1
?	SM2690	POD MODULE, L.H.	1
?	SM2693	PLATE, MOUNTING	1
?	SM2716	OVERLAY, LEXAN L.H. POD	1
?	PB8639	SWITCH	1
?	SM2772	LIGHT	1
?	SM2717	LOUVER	1
?	SM4443	FLASHER ASSM, WARNING	16
?	PB4847	LAMP, #313	16
?	SM5060	DECAL, ENGINE COOLANT LEVEL	1
?	SM5062	DECAL, ENGINE OIL TEMP	1
?	SM5061	DECAL, ENGINE OIL PRESSURE	1
?	SM5059	DECAL, CRANKCASE BLOWBY PRESSURE	1
?	SM5053	DECAL, ACCUM. PRE CHARGE PRESSURE	1
?	SM5065	DECAL, STRG. SYSTEM PRESSURE	1
?	SM5064	DECAL, LATERAL SLOPE WARN.	1
?	SM5057	DECAL, BRAKE OIL PRESSURE	1
?	SM4471	DECAL, CHECK ENGINE	1
?	SM5058	DECAL, BATTERY CHARGE AMP.	1
?	SM5067	DECAL, TRANS. OIL TEMP	1
?	EG4437	DECAL, TRANS. FILTER - RED	1
?	EG4434	DECAL, PARKING BRAKE - RED	1
?	EG4435	DECAL, BODY FLOAT - RED	1
?	SM5056	DECAL, BRAKE	1
?	EG4436	DECAL, MAINTENANCE - RED	1
?	SM2853	BRACKET	1
?	SM2709	SCREW, FLAT HEAD	4
?	569-06-61711	SWITCH	1
?	MM0711	FLATWASHER - M6, ZINC PLT. HARDENED	2
?	SM0926	SCREW, PAN HEAD	2
?	DC4979	CLAMP, WORM DRIVE #28	2
?		NS = NOT SHOWN	65535
?	EF9026	HARNESS STR., INSTRUMENT PANEL	1
?	EF9028	HARNESS STR., L.H. MODULE	1
?	EF9046	HARNESS STR., R.H. MODULE	1
?	08102-12403	LAMPS, INSTRUMENT PANEL	4
?	LW74290	MOLDING, TRIM	40

Komatsu AFP49-A thru E 530M S/N A30001-A30008 (DH627-0) parts catalog PDF

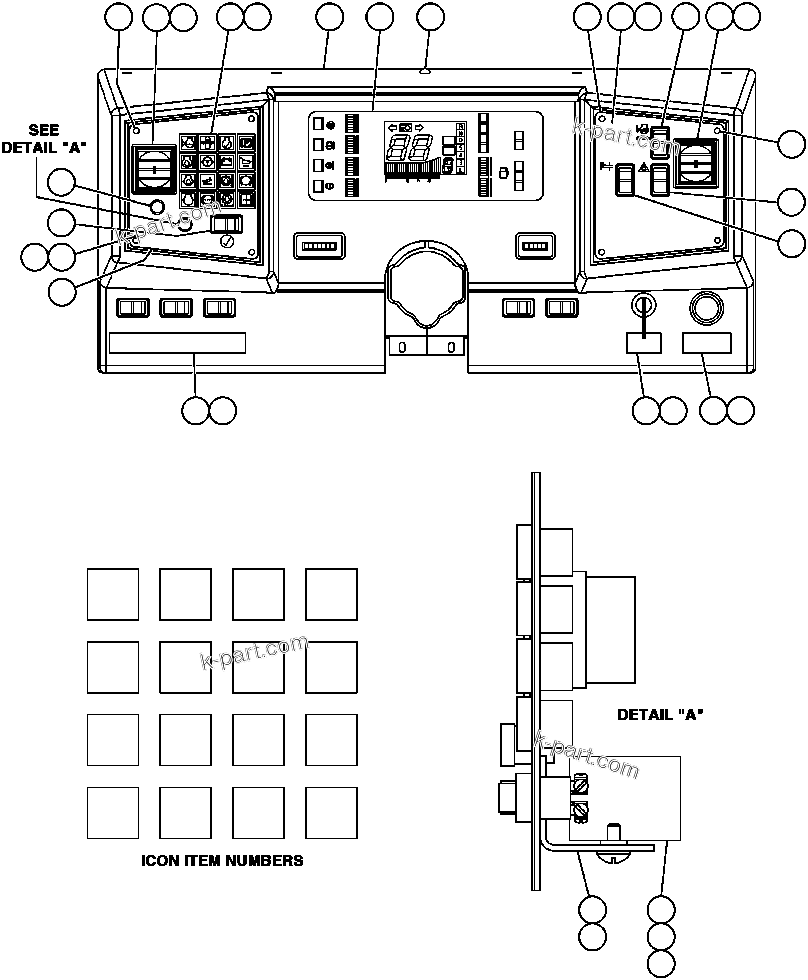

INSTRUMENT PANEL ASSEMBLY (50090) in AFP49-A thru E 530M S/N A30001-A30008 (DH627-0). Diagram image and parts list.
