AFP49-A thru E 530M S/N A30001-A30008 (DH627-0)

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	786-19-25100	SENSOR ASSM.	1
?	MM0019	CAPSCREW - M6 X 1.0 X 16	2
?	MM0459	FLATWASHER - M6	2
?	MM0469	LOCKWASHER - M6	14
?	SM2818	BRACKET	1
?	MM0022	CAPSCREW - M8 X 1.25 X 20	3
?	MM0460	FLATWASHER - M8	3
?	MM0470	LOCKWASHER - M8	3
?	SM1951	RELAY ASSM. PKG., STOP LIGHT	1
?	MM0206	LOCKWASHER - 5MM INT. TOOTH	20
?	MM0347	SCREW, MACHINE - M5 X .8 X 8 PAN HD.	16
?	SM1943	RELAY ASSM. PKG., TURN SIGNAL	1
?	SM1955	RELAY ASSM. PKG., PARKING BRAKE	1
?	SM3001	RELAY BOARD - RB6	2
?	SM1959	RELAY ASSM. PKG., HEAD LIGHTS	1
?	561-88-65440	SWITCH	1
?	SM4341	PLATE, TOP	1
?	SC3117	FLATWASHER - #10	8
?	H2643	LOCKWASHER - #10	8
?	VN7121	SCREW, MACHINE - #10NC X 1/2" RD. HD.	8
?	SM2867	BRACKET	2
?	SM2868	PLATE, CONNECTOR	1
?	MM0027	CAPSCREW, M6 X 1.00 X 25	12
?	EG3601	PLATE, CONNECTOR	1
?	SF9896	DISCONNECT KNIFE	1
?	DL4172	SLEEVE, INSULATING	1
?	VF2231	SCREW, MACHINE - #10NC X 3/8" RD. HD.	3
?	DC3101	LOCKWASHER - #10	3
?	VS0035	LIGHT, DOME	1
?	SR6747	LAMP, MINIATURE - #1683	1
?	MM0341	SCREW, MACHINE M4 X .7 X 10 PAN HD.	4
?	MM0205	LOCKWASHER, 4MM INT.TOOTH	4
?	PB0839	TIMER, 24 VOLT	1

Komatsu AFP49-A thru E 530M S/N A30001-A30008 (DH627-0) parts catalog PDF

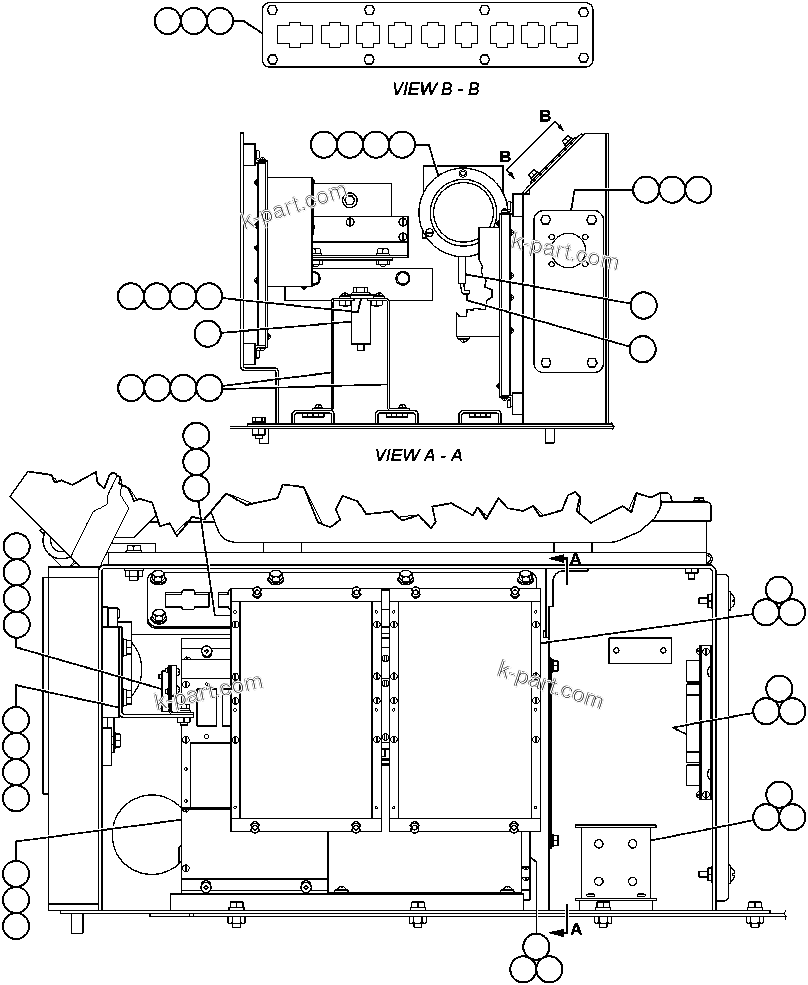

CAB - COMPONENTS BASE ASSEMBLY - 1 (50080) in AFP49-A thru E 530M S/N A30001-A30008 (DH627-0). Diagram image and parts list.
