PC70-8 S/N DBBT0001~-up

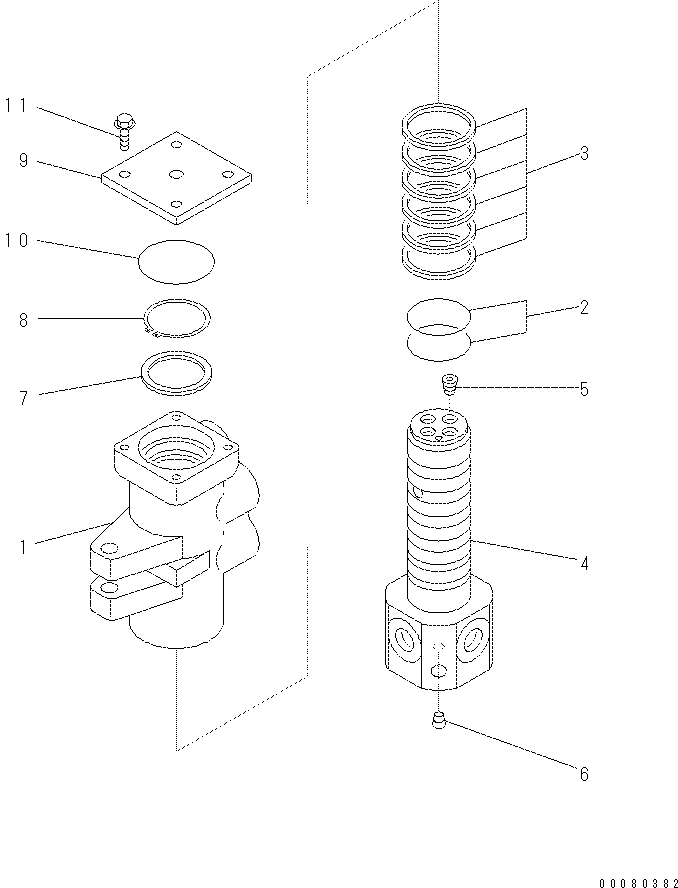

Komatsu parts book diagram for PC70-8 S/N DBBT0001~-up: SWIVEL JOINT (INNER PARTS)(#10011-10263)

	#	Part Number	Partname	Quantity	Options	Reference
	\|$2	703-06-00121	SWIVEL JOINT ASS'Y	1	Field_1: SWIVEL JOINT ASS'Y \| Field_2: DBBT0001~
	\|$3	.703-06-22281		-1
	1	703-06-91170	ROTOR	1	Field_1: ROTOR \| Field_2: DBBT0001~
	2	07000-15060	O-RING	2	Field_1: O-RING \| Field_2: DBBT0001~
	3	703-06-95122	SEAL, SLIPPER	6	Field_1: SEAL, SLIPPER \| Field_2: DBBT0001~
	4	703-06-92133	SHAFT	1	Field_1: SHAFT \| Field_2: DBBT0001~
	5	703-08-98110	PLUG	4	Field_1: PLUG \| Field_2: DBBT0001~
	\|$9	Ўх703-08-98010	PLUG	4	Field_1: PLUG \| Field_2: DBBT0001~
	\|$10	Ўх703-08-98210	PLUG	4	Field_1: PLUG \| Field_2: DBBT0001~
	6	703-13-98820	PLUG	2	Field_1: PLUG \| Field_2: DBBT0001~
	7	703-06-94110	RING	1	Field_1: RING \| Field_2: DBBT0001~
	8	04064-05520	RING, SNAP	1	Field_1: RING, SNAP \| Field_2: DBBT0001~
	9	703-06-93191	COVER	1	Field_1: COVER \| Field_2: DBBT0001~
	10	07000-12075	O-RING	1	Field_1: O-RING \| Field_2: DBBT0001~
	11	01435-00830	BOLT	4	Field_1: BOLT \| Field_2: DBBT0001~

Komatsu PC70-8 S/N DBBT0001~-up parts catalog PDF

SWIVEL JOINT (INNER PARTS)(#10011-10263) (|Y00216) in PC70-8 S/N DBBT0001~-up. Diagram image and parts list.
