PC70-8 S/N DBBT0001~-up

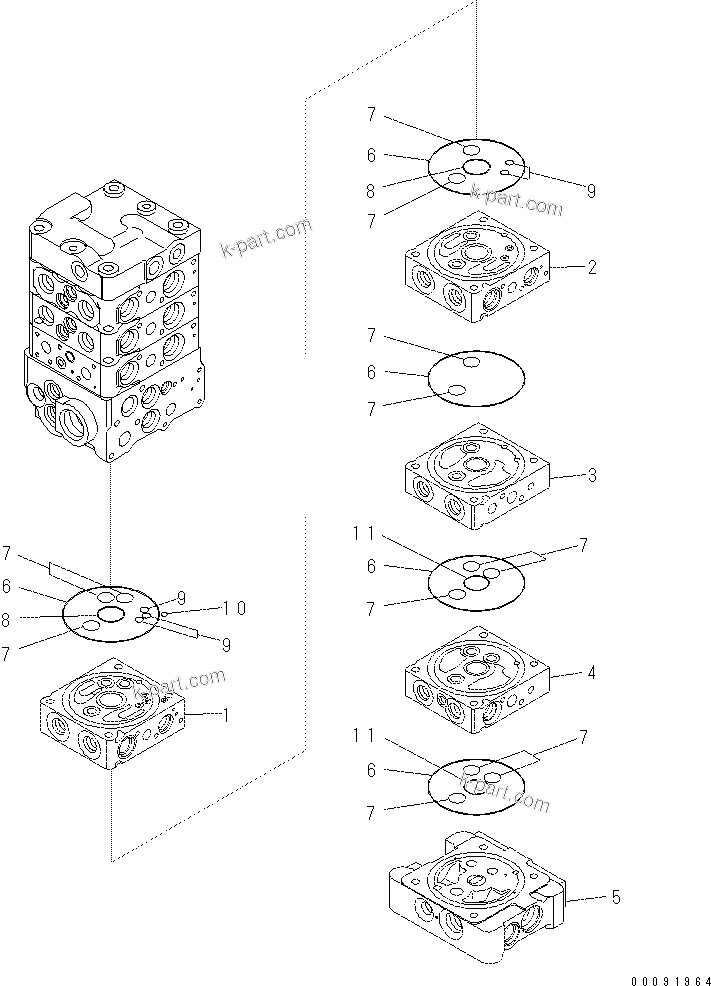

Komatsu parts book diagram for PC70-8 S/N DBBT0001~-up: MAIN VALVE (7-VALVE) (7/18) (WITH BLADE)

	#	Part Number	Partname	Quantity	Options	Reference
	?	723-27-51100	CONTROL VALVE	1	Field_1: CONTROL VALVE \| Field_2: DBBT0001~
	?		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-21A0 TO Y1662-38A0.	-1	Field_1: THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1662-21A0 TO
	?	Ўо	BODY GROUP	1	Field_1: BODY GROUP \| Field_2: DBBT0001~
	?	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DBBT0001~
	?	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DBBT0001~
	?	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DBBT0001~
	?	Ўо	BLOCK, VALVE	1	Field_1: BLOCK, VALVE \| Field_2: DBBT0001~
	?	Ўо	BLOCK	1	Field_1: BLOCK \| Field_2: DBBT0001~
	?	07000-12100	O-RING	5	Field_1: O-RING \| Field_2: DBBT0001~
	?	723-11-19130	O-RING	13	Field_1: O-RING \| Field_2: DBBT0001~
	?	723-11-19110	O-RING	2	Field_1: O-RING \| Field_2: DBBT0001~
	?	07000-11006	O-RING	5	Field_1: O-RING \| Field_2: DBBT0001~
	?	702-21-54260	O-RING	1	Field_1: O-RING \| Field_2: DBBT0001~
	?	700-80-61260	O-RING	2	Field_1: O-RING \| Field_2: DBBT0001~

Komatsu PC70-8 S/N DBBT0001~-up parts catalog PDF

MAIN VALVE (7-VALVE) (7/18) (WITH BLADE) (|Y00266) in PC70-8 S/N DBBT0001~-up. Diagram image and parts list.
