PC70-8 S/N DBBT0001~-up

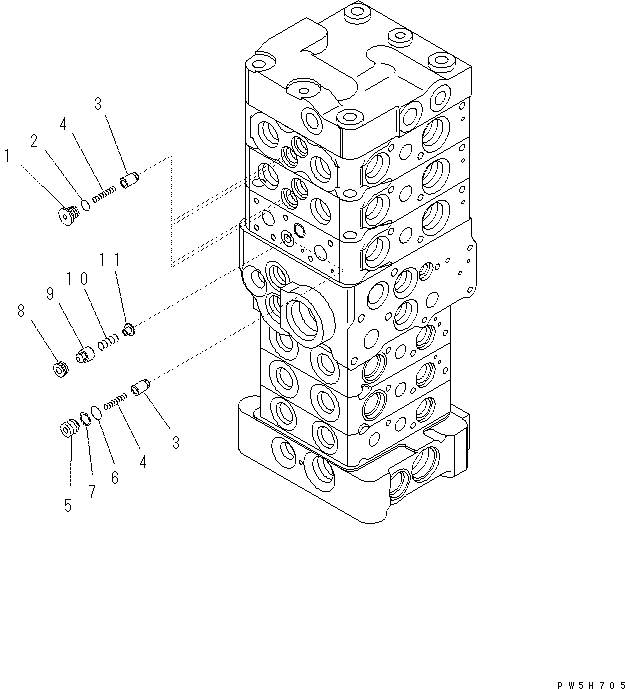

Komatsu parts book diagram for PC70-8 S/N DBBT0001~-up: MAIN VALVE (6-VALVE) (4/16) (WITHOUT BLADE)

	#	Part Number	Partname	Quantity	Options	Reference
	\|$1	723-27-50900	CONTROL VALVE	1	Field_1: CONTROL VALVE \| Field_2: DBBT0001~
	\|$2		THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 T0 Y1660-16A0.	-1	Field_1: THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1660-01A0 T0
	\|$3	Ўо	BODY GROUP	1	Field_1: BODY GROUP \| Field_2: DBBT0001~
	1	723-26-15220	PLUG	4	Field_1: PLUG \| Field_2: DBBT0001~
	2	07002-11223	O-RING	4	Field_1: O-RING \| Field_2: DBBT0001~
	3	Ўо	VALVE	5	Field_1: VALVE \| Field_2: DBBT0001~
	4	723-26-14150	SPRING	5	Field_1: SPRING \| Field_2: DBBT0001~
	5	723-26-16230	PLUG	1	Field_1: PLUG \| Field_2: DBBT0001~
	6	07000-11008	O-RING	1	Field_1: O-RING \| Field_2: DBBT0001~
	7	07001-01008	RING	1	Field_1: RING \| Field_2: DBBT0001~
	8	723-26-16240	SEAT	1	Field_1: SEAT \| Field_2: DBBT0001~
	9	Ўо	VALVE	1	Field_1: VALVE \| Field_2: DBBT0001~
	10	723-26-16260	SPRING	1	Field_1: SPRING \| Field_2: DBBT0001~
	11	723-26-16270	RETAINER	1	Field_1: RETAINER \| Field_2: DBBT0001~

Komatsu PC70-8 S/N DBBT0001~-up parts catalog PDF

MAIN VALVE (6-VALVE) (4/16) (WITHOUT BLADE) (|Y00227) in PC70-8 S/N DBBT0001~-up. Diagram image and parts list.
