AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	24
?	TR5445	LOCKWASHER - 1/2"	24
?	TF3231	CLAMP, SPLIT FLANGE - 2"	12
?	WA0187	O-RING	10
?	HA7908	HOSE	1
?	HA8311	HOSE	1
?	VM0319	PLUG	1
?	58F-09-00330	CAPSCREW - 1/2" - 13NC X 3 1/2"	4
?	PB8318	ELBOW	2
?	58F-60-00990	FILTER (1) (SEE FIG 68208)	2	68208
?	58F-60-10960	PLATE	1
?	VC1387	CAPSCREW - 1/2" - 13NC X 1"	4
?	TR6008	FLAT WASHER - 1/2"	12
?	VC6500	CAPSCREW - 1/2" - 13NC X 2"	4
?	HA7906	HOSE	1
?	58F-60-10950	HOSE	1
?	WA0471	CAPSCREW - 1/2" - 13NC X 2 1/4"	4
?	PC2057	WASHER, HEAD	4
?	WA2586	MOUNT, RUBBER	4
?	PC2058	WASHER, TAIL	4
?	TR6643	NUT - 1/2" - 13NC	4
?	EM7998	BLOCK, ADAPTER	1
?		NOTE: (1) NOT SERVICED AS AN ASSEMBLY. ORDER	-1
?		INDIVIDUAL COMPONENT PARTS.	-1

Komatsu AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD parts catalog PDF

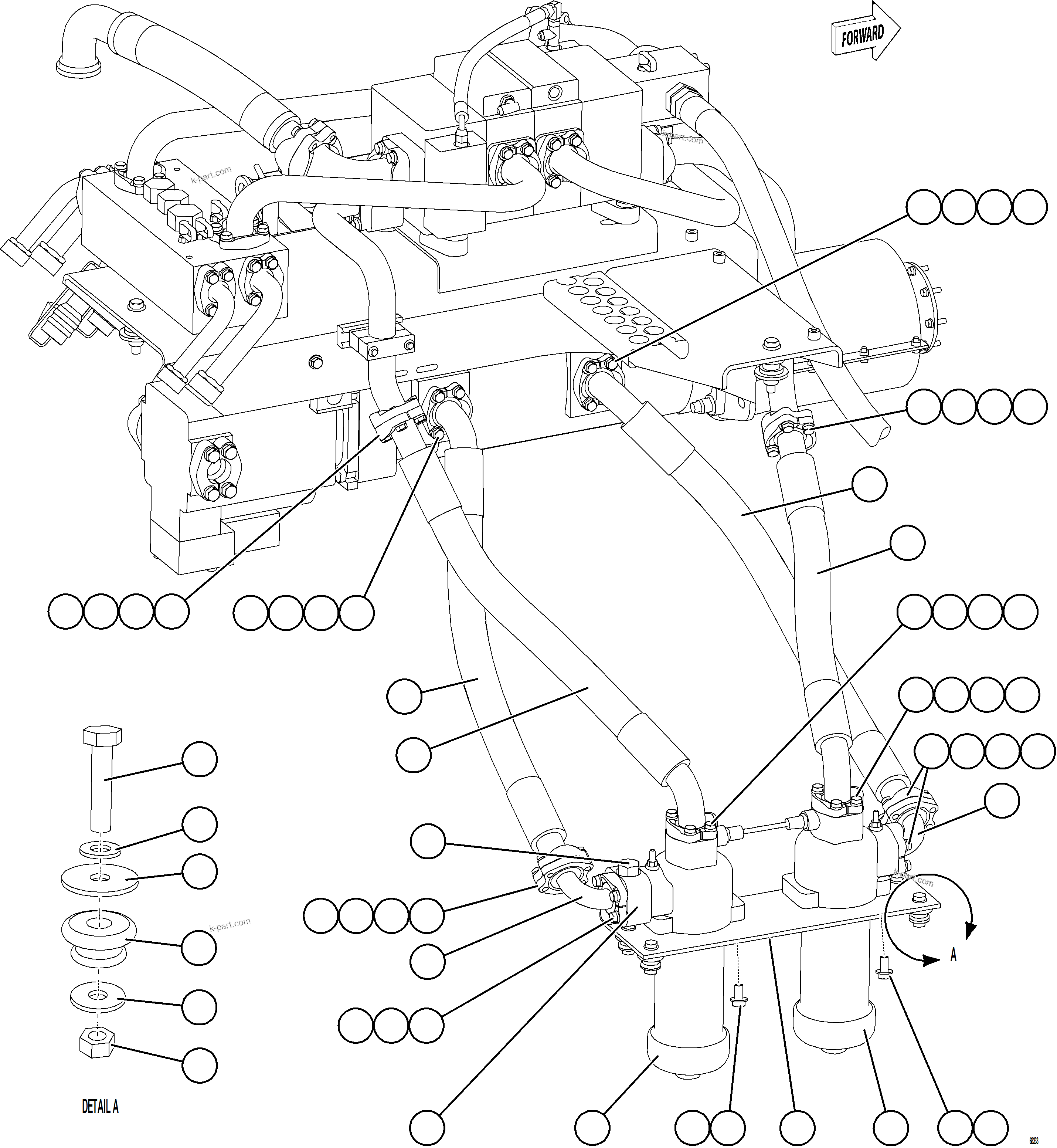

HOIST FILTER PIPING & INSTALLATION (68233) in AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD. Diagram image and parts list.
