AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	BF3045	TIE ROD	4
?	VE3807	WASHER, COMPRESSION	8
?	VE3804	LOCKNUT	8
?	BF3049	INLET SECTION ASSEMBLY	2
?	VJ2002	CAPSCREW	16
?	DF6928	CAPSCREW - 1/2" - 13NC X 1 3/4"	48
?	VJ0011	PLUG	2
?	VJ0435	O-RING (2)/(3)	2
?	VE3551	PLUG	2
?	VE3565	O-RING (2)/(3)	6
?	VE3563	CAP, FLANGE	2
?	VE3553	O-RING (2)/(3)	2
?	VE3559	FITTING	2
?	VE3564	TUBE	2
?	VE3561	FITTING	2
?	VE3803	CAPSCREW	4
?	VE3560	SLEEVE (2)	2
?	VE3554	RING, BACKUP (2)/(3)	4
?	VE3552	O-RING (2)/(3)	2
?	1133800C1	RING, BACKUP (2)/(3)	4
?	VE3526	O-RING (2)/(3)	2
?	VE3558	POPPET, RESTRICTION (2)	2
?	VE3562	COVER	2
?	58F-60-40400	SPRING	2
?	58F-60-40410	SPRING	1
?	VJ1989	SLEEVE	2
?	VE3609	RELIEF VALVE ASSEMBLY (2)	2
?	VE3533	O-RING (2)/(3)	8
?	BF3046	HOUSING, INLET (1)	2
?	VJ1988	POPPET	4
?	VJ1985	SPRING	4
?	VE3568	COVER, POPPET	2
?	VE3534	O-RING (2)/(3)	4
?	VE3528	O-RING (2)/(3)	8
?	VE3567	RELIEF VALVE ASSEMBLY (2) (SEE INDEX)	2	61152
?	VJ1990	SPRING	2
?	VE3557	SCREW, RESTRICTION	2
?	VE3810	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	68130
?	VE3806	PLATE, SPACER	1
?	BF3050	SPOOL SECTION ASSEMBLY (SEE INDEX)	1	60069
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	BF3047	(2) INCLUDED IN BF3047 MAJOR SERVICE KIT.	-1
?	BF3048	(3) INCLUDED IN BF3048 MINOR SERVICE KIT.	-1

Komatsu AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD parts catalog PDF

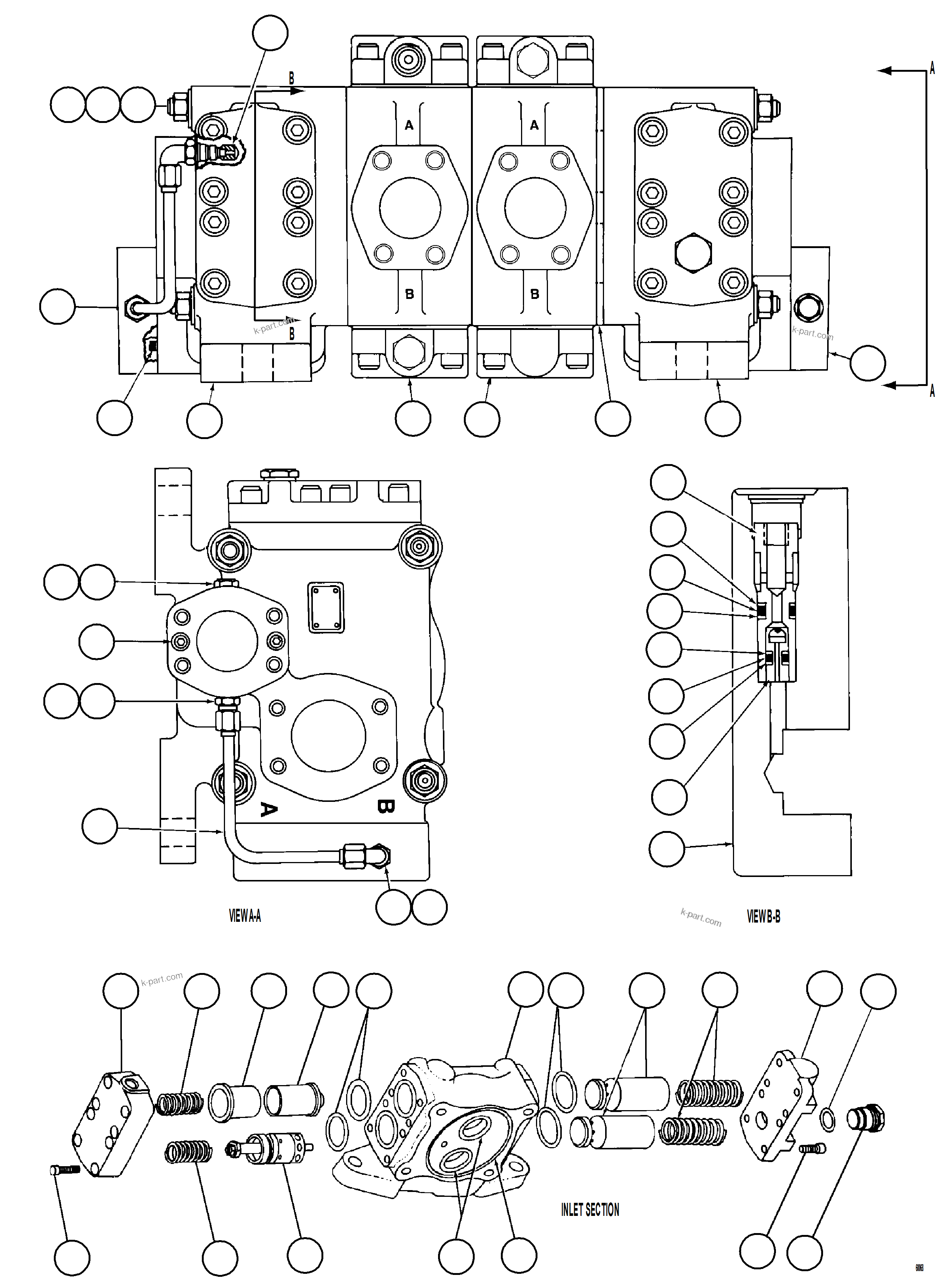

HOIST VALVE ASSEMBLY PC1482 (60068) in AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD. Diagram image and parts list.
