AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PC0522	OVERCENTER MANIFOLD VALVE (SEE INDEX)	1	55589
?	VC5162	CAPSCREW - 5/8" - 11NC X 1 1/4"	4
?	WA4729	FLAT WASHER, HARDENED - 5/8"	8
?	TR4229	CAPSCREW - 5/8" - 11NC X 1 3/4"	6
?	C1541	LOCKWASHER - 5/8"	10
?	VN9952	LOCKNUT - 5/8" - 11NC	2
?	EH8957	BRACKET	1
?	VN7716	CLAMP, SPLIT FLANGE - 4"	2
?	VC1388	CAPSCREW - 5/8" - 11NC X 2"	4
?	VL9963	CLAMP, SPLIT FLANGE - 3"	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	2
?	WA4728	FLAT WASHER, HARDENED - 1/2"	2
?	C1540	LOCKWASHER - 1/2"	2
?	TR6643	NUT - 1/2" - 13NC	2
?	WB0988	CLAMP, HEAVY DUTY	2
?	58B-60-50000	ANGLE	1
?	TC1231	LOCKWASHER - 3/8"	2
?	TR4434	CAPSCREW - 3/8" - 16NC X 2"	2
?	WA4726	FLAT WASHER, HARDENED - 3/8"	2
?	58F-60-00880	ANGLE	1
?	EM7741	SPACER	1

Komatsu AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD parts catalog PDF

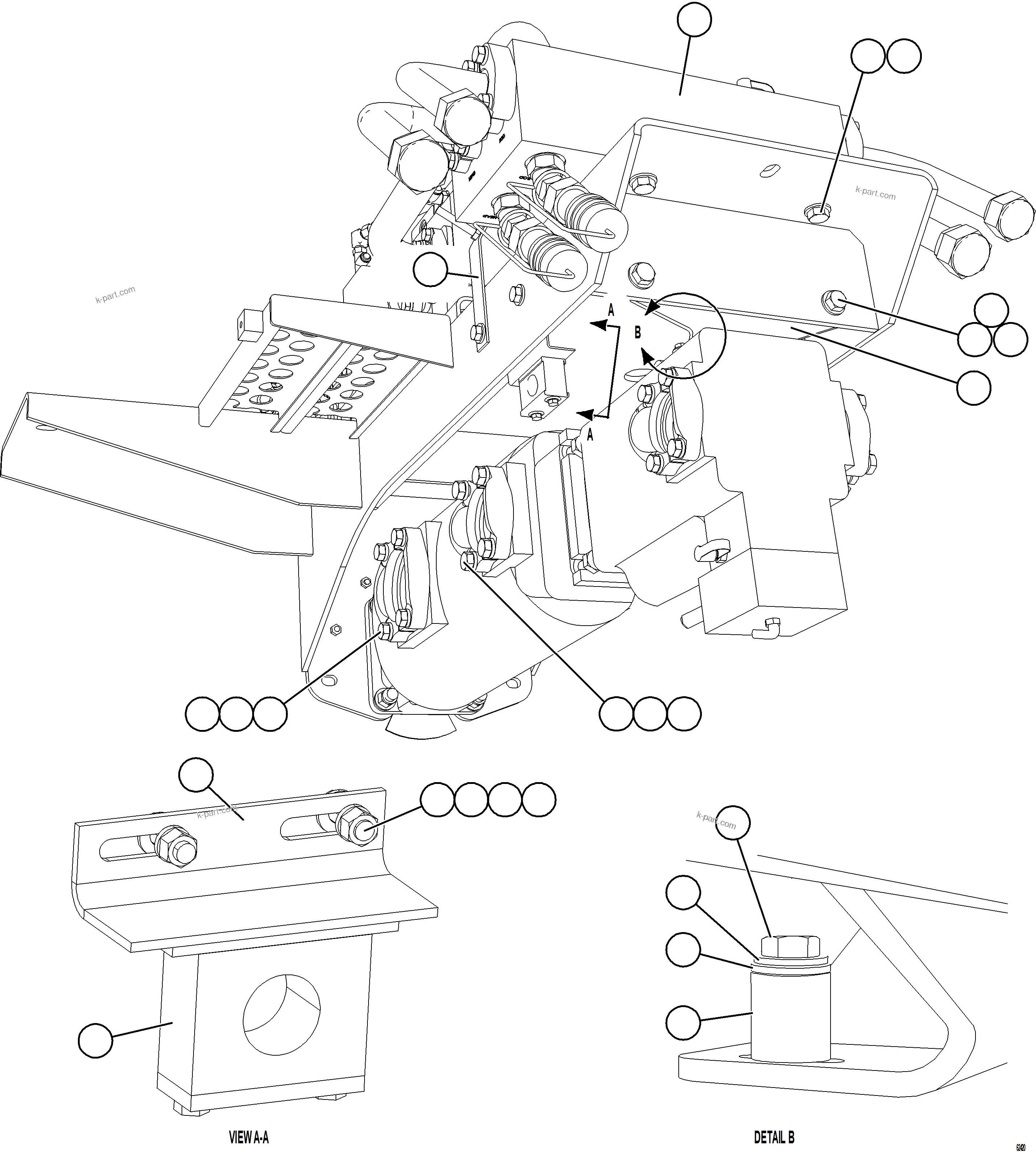

VALVE/PUMP MODULE PIPING 3/3 (62420) in AFE78-AJ 930E-5 S/N A40133 - A40134 MARIGOLD. Diagram image and parts list.
