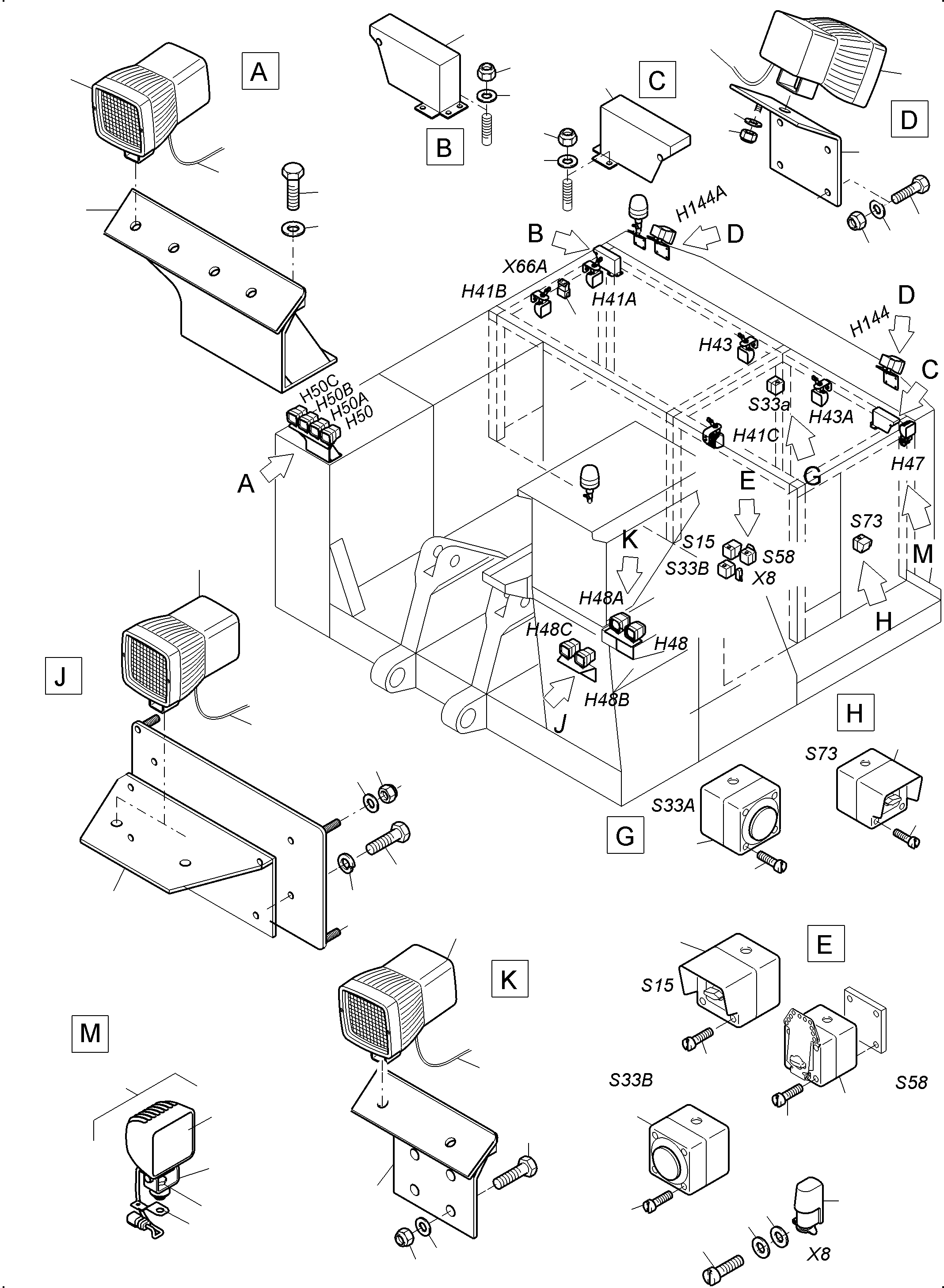

Diagram image 1 of 4

PC3000-6E S/N 06361

01 01 01 01 02 02 02 03 05 06 07 08 12 121 122 123 127 13 14 15 16 19 19 19 19 19 21 21 21 21 21 21 22 23 29 32 34 35 36 37 42 42 43 43 43 43 43 44 44 45 45 46 47 48 49 50

PC3000-6E S/N 06361

01 01 01 01 02 02 02 03 05 06 07 08 12 121 122 123 127 13 14 15 16 19 19 19 19 19 21 21 21 21 21 21 22 23 29 32 34 35 36 37 42 42 43 43 43 43 43 44 44 45 45 46 47 48 49 50

PC3000-6E S/N 06361

01 01 01 01 02 02 02 03 05 06 07 08 12 121 122 123 127 13 14 15 16 19 19 19 19 19 21 21 21 21 21 21 22 23 29 32 34 35 36 37 42 42 43 43 43 43 43 44 44 45 45 46 47 48 49 50

PC3000-6E S/N 06361

01 01 01 01 02 02 02 03 05 06 07 08 12 121 122 123 127 13 14 15 16 19 19 19 19 19 21 21 21 21 21 21 22 23 29 32 34 35 36 37 42 42 43 43 43 43 43 44 44 45 45 46 47 48 49 50

#	Part Number	Partname	Quantity
01	950 737 40	Head light assy.	12
02	979 415 40	Extension cable working light	10
03	977 572 40	Lamp retainer, Cab support	1
05	977 577 40	Extension cable working light	2
06	946 033 40	Lamp retainer, Counterweight	2
07	507 596 98	Washer	12
08	307 780 99	Bolt	8
12	957 957 40	Lamp retainer, Oil cooler	1
13	518 547 98	Lock washer	8
14	307 775 99	Bolt	7
15	517 121 98	Lock washer	12
16	307 754 99	Bolt	4
19	340 465 99	Washer	54
20	974 052 40	Harness Lighting Cab support	1
21	507 037 98	Nut	50
22	307 779 99	Bolt	8
23	979 047 40	Lamp retainer	1
25	102 146 42	Harness roof frame - engine housing	1
26	0443451210	Clamp Ш 12	11
27	0443452711	Clamp Ш 27	10
28	0443452110	Clamp Ш 21,5	28
29	943 697 40	Wire cover, left hand	1
32	943 696 40	Wire cover, right hand	1
33	510 744 98	Resilient sleeve	10
34	320 978 99	Screw	2
35	340 904 99	Washer	2
36	346 508 99	Lock washer	2
37	940 727 40	Ladder button	1
38	510 741 98	Resilient sleeve	32
39	517 122 98	Lock washer	3
40	0443451610	Clamp Ш 16	2
42	940 729 40	Emergency switch-off	2
43	321 010 99	Screw	20
44	950 726 40	Plug	3
45	950 899 40	Seal	5
46	940 726 40	Light switch	1
47	940 728 40	Safety switch	1
48	940 869 40	Socket	1
49	101 849 42	Headlight assy.	6
50	999 424 40	Socket	1
51	950 133 40	Plug	1
52	999 513 40	T-Distributor DN 10	2
53	655 634 40	Pipe adapter DN 23/17	2
54	907 971 40	Pipe adapter DN 23/12	1
55	999 515 40	T-Distributor DN 17	7
56	655 633 40	Pipe adapter DN 17/12	1
57	950 189 40	Plug	10
59	950 190 40	Rubber grommet	10
61	056 070 40	Cable sleeve 1,0-1,5	12
62	655 627 40	Distributor DN 23/17	1
63	056 054 40	Grommet	4
64	999 516 40	T-Distributor DN 23	2
65	950 131 40	Protection cap	1
66	907 704 40	Cable union	1
67	896 521 40	End pin	1
68	941 777 40	Plate	18
69	174 411 40	Cable strap	36
70	0819100770	Sealing plate	3
71	655 873 40	Cable 1.5	-2
72	940 471 40	Fitting	11
73	907 980 40	Fitting DN 23	1
74	515 213 40	Cable 1.0	-2
75	515 214 40	Cable 2.5	-2
76	940 452 40	Fitting	1
77	940 271 40	Cable union DN 10	1
78	907 709 40	Cable union PG 16	1
80	655 632 40	Pipe adapter DN 17/10	6
81	950 132 40	Protection cap	1
82	907 623 40	Cable union NW 12	3
83	907 478 40	Cable union DN 17	2
84	950 949 40	Plug	1
85	950 931 40	Protective cover	1
87	517 327 98	Reducing	1
88	896 558 40	Pipe adapter DN 29/23	1
89	655 625 40	Distributor DN 12/10	1
90	950 110 40	Plug	1
91	440 109 40	Sleeve	2
92	907 975 40	Fitting DN17	1
93	907 640 40	Wire end ferrule 2.5	3
94	0819105340	Pin contact	5
95	907 947 40	Connector distributor DN 29/23	1
96	0819105320	Pin contact	22
97	940 852 40	Plug	1
98	907 703 40	Cable union	12
99	896 520 40	End pin	19
100	517 322 98	Cable nut	4
101	102 148 42	Harness Lighting Cable duct	1
102	517 326 98	Reducing	1
103	907 476 40	Union	1
104	635 042 40	Wire end ferrule 1.5	3
111	950 189 40	Plug	4
112	999 514 40	T-Distributor	1
113	907 692 40	Fitting PG 9	1
114	655 809 40	Pipe adapter DN 29/10	1
115	941 240 40	Union	1
116	932 531 40	Fitting	1
117	655 810 40	Pipe adapter DN 29/12	1
118	950 190 40	Rubber grommet	5
120	101 850 42	Rotaflare light assy. Counterweight	1
121	951 359 40	Headlight	6
122	951 360 40	Retainer	6
123	307 752 99	Bolt	6
127	0819320010	Clip	7
131	970 526 40	Retainer	1
132	951 051 40	Rotaflare light 12/24V LED yellow	2
141	100 854 42	Retainer	1
142	103 589 42	Harness Rotaflare light	1
13	518 547 98	Lock washer	1
21	507 037 98	Nut	1
143	951 048 40	Cable sleeve	1
144	0443450810	Clamp Ш 8	1
07	507 596 98	Washer	1
145	999 686 40	Nut	1
146	340 508 99	Washer	2
147	999 687 40	Washer	1
148	950 443 40	Socket	1
149	0819212300	Wedge	1
150	621 698 40	Contact plug 1-2 qmm	2
151	940 462 40	Insulating tube	-2
152	932 518 40	Cable lug	1

Komatsu PC3000-6E S/N 06361 parts catalog PDF

LIGHTING EQUIPMENT (255-2106d) in PC3000-6E S/N 06361. Diagram image and parts list.
