Diagram image 1 of 7

PC3000-6E S/N 06361

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06361

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06361

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06361

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06361

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06361

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6E S/N 06361

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	951 897 40	Wiring Frame	1
?	946 324 40	Switch cabinet w/o. electr. parts	1
?	783 513 40 03	Monitor	1
?	896 716 40	Hour meter	1
?	974 064 40	Harness	1
?	898 680 40	Relay assy. (incl. 271-273)	28
?	100 031 42	Relay assy. (incl. 261-267)	1
?	950 600 40	Relay 75A	4
?	999 296 40	Breaker	1
?	999 298 40	Breaker	7
?	999 299 40	Breaker	19
?	999 300 40	Breaker	5
?	999 301 40	Breaker	2
?	999 302 40	Breaker	1
?	999 307 40	Breaker 50 A	2
?	941 562 40	Ferrite cor	2
?	999 393 40	Temp. Converter	6
?	951 901 40	Modul	1
?	906 493 40	Cable union	1
?	932 944 40	Cable union	1
?	907 477 40	Cable union DN 12	5
?	974 059 40	Cap	1
?	975 518 40	Rail collector 4	2
?	975 520 40	Rail collector 6	1
?	962 657 40	Rail collector 11	1
?	962 659 40	Rail collector 13	1
?	940 869 40	Socket	1
?	898 681 40	Relay assy. (incl. 33-35)	7
?	323 910 40	Socket	1
?	323 911 40	Spring	1
?	940 0021 40	Relay	1
?	906 612 40	Through clamp 2.5mm2	349
?	940 673 40	Clamp	43
?	906 613 40	Cover plate	17
?	906 614 40	Bridge 2-fold	47
?	906 615 40	Bridge 3-fold	22
?	906 616 40	Bridge 4-fold	20
?	906 617 40	Bridging comb 5-fold 2,5	10
?	950 339 40	Wire clip	2
?	906 773 40	Cover plate	4
?	906 618 40	Bridge 10-fold	1
?	906 771 40	Through clamp 35,0mm2	6
?	906 768 40	Through clamp 6.0mm2	9
?	906 769 40	Through clamp 16.0mm2	5
?	490 889 40	Series terminal with diode, red	2
?	906 796 40	Protective wire clamp 95.0 GN/GL	1
?	323 346 40	Touch contact	4
?	896 488 40	Camswitch	2
?	603 345 40	Resistor terminal	1
?	999 977 40	Time Relay	1
?	906 772 40	Cover plate	2
?	942 181 40	CAN bus	1
?	990 635 40	Harness MCM241 - X93	1
?	974 056 40	Harness CAB-BUS X2	1
?	999 974 40	Wiper relay	1
?	951 332 40	Time lag relay	3
?	999 973 40	Time Relay	5
?	518 311 98	Cable nut	1
?	950 185 40	Protective wire clip	62
?	270 288 40	Wiring channel 40x25	-2
?	896 747 40	Wiring channel 100	-2
?	323 234 40	Cover	5
?	515 214 40	Cable 2.5mm2	-2
?	907 553 40	Cable 16.0mm2	-2
?	322 378 40	Diode array	4
?	907 995 40	Cable union DN 48	1
?	515 215 40	Cable 25.0mm2, black	-2
?	907 479 40	Cable union DN 29	2
?	906 023 40	Cable 25.0mm2	-2
?	938 310 40	Resistor clamp	3
?	515 213 40	Cable 1.0mm2	-2
?	07821915340	Connector	1
?	07821915010	Contact	45
?	07821927340	Connector	1
?	07821927010	Contact	20
?	07821915330	Connector	1
?	974 058 40	Plug assy.	1
?	985 832 40	Mounting plate	1
?	950 140 40	Socket	1
?	950 146 40	Socket	6
?	950 120 40	Socket	2
?	950 122 40	Socket	2
?	950 124 40	Socket	2
?	950 125 40	Socket	9
?	940 852 40	Plug	160
?	0819110808	Nut	8
?	0819110809	Lock washer	8
?	0819150808	Nut	15
?	950 318 40	Panel lock washer	15
?	0819105420	Female contact	332
?	0819105440	Female contact	50
?	621 699 40	Female contact 1-2 qmm	38
?	950 982 40	Plug	4
?	950 728 40	Plug	3
?	940 061 40	Rivet	55
?	320 974 99	Screw	2
?	941 208 40	Time lag relay	4
?	940 640 40	Sammelschiene Endkappe	10
?	319 025 99	Screw	2
?	343 852 99	Lock washer	2
?	950 627 40	Pipe clamp	2
?	950 898 40	Seal ring	15
?	950 897 40	Seal ring	8
?	0819100770	Sealing plate	10
?	989 209 40	Retainer	1
?	343 106 99	Lock washer	3
?	319 129 99	Screw	3
?	307 734 99	Bolt	2
?	332 331 99	Nut	5
?	655 517 40	Cover 40 BN	3
?	951 896 40	Circular bearing	3
?	319 416 99	Screw	3
?	518 546 98	Lock washer	3
?	963 797 40	Seal	1
?	506 957 98	Bolt	30
?	340 463 99	Washer	60
?	507 025 98	Nut	30
?	951 259 40	Abrasion protection	4
?	951 262 40	Abrasion protection	1
?	951 263 40	Abrasion protection	1
?	951 264 40	Abrasion protection	1
?	951 895 40	Safety switch	2
?	951 284 40	Relay	6
?	990 641 40	Cable union	1
?	999 196 40	Safty cut off 24V	1
?	655 873 40	Cable 1,5	-2
?	103 811 42	Rework Wiring Frame (Option Cable drum)	1
?	103 813 42	Harness 10X093 - 11	1
?	103 815 42	CAN-BUS MTC	1
?	103 816 42	Harness 11K311 - 11X311	1
?	941 819 40	Power Cable	1
?	941 434 40	Lead cable	1
?	103 817 42	Angle	1
?	951 053 40	MTC Modul	1
?	941 430 40	Modul	1
?	941 412 40	Plug connector	9
?	603 345 40	Resistor terminal	1
?	999 298 40	Breaker	2
?	999 299 40	Breaker	1
?	975 518 40	Rail collector	1
?	940 640 40	Sammelschiene Endkappe	2
?	941 502 40	Potencial clamp	2
?	941 503 40	Cover plate	1
?	940 673 40	Clamp	5
?	0819320010	Clip	2
?	320 812 99	Screw	4
?	518 314 98	Lock washer	4
?	321 014 99	Screw	2
?	321 015 99	Bolt	2
?	517 120 98	Lock washer	4
?	307 445 99	Bolt	1
?	518 299 98	Washer	1
?	514 921 98	Nut	1
?	951 862 40	Semiconductor relay	1
?	951 888 40	Isolationplate	1
?	950 185 40	Protective wire clip	1
?	906 613 40	Cover plate	1
?	951 916 40	Semiconductor relay	1
?	941 760 40	Receptacle	1
?	950 171 40	Socket	1
?	950 177 40	Protection cap	1
?	635 896 40	Tube protection	1
?	907 641 40	Wire end ferrule	43
?	056 070 40	Cable sleeve 1,0-1,5	3
?	515 213 40	Cable 1.0mm2	-2
?	950 435 40	Cable CAN-BUS	-2
?	941 816 40	Cable	-2
?	958 955 40	Can-bushing	3
?	958 956 40	Can-bushing	2
?	978 193 40	Relay socket assy.	1
?	999 740 40	Relay	1
?	344 498 40	Supporting trestle	1
?	318 983 99	Screw	1
?	518 314 98	Lock Washer	1
?	519 164 98	Wire end ferrule	2
?	519 163 98	Wire end ferrule	2
?	940 020 40	Relay	32
?	592 338 40	Relay socket	32
?	414 369 40	Spring retainer	32
?	974 054 40	Harness CAN-BUS X35A-X35B	1
?	974 055 40	Harness CAN-BUS X35B-E62/CN3	1
?	906 647 40	T-Splitter	4
?	941 777 40	Plate	4
?	174 411 40	Cable strap	8
?	941 144 40	End resistor	3
?	307 445 99	Bolt	2
?	518 299 98	Washer	2
?	514 921 98	Nut	2
?	0819320010	Clip	2
?	799 932 73	Door	2
?	799 912 73	Turning Bolt	10
?	799 913 73	Turning Bolt	2
?			-2

Komatsu PC3000-6E S/N 06361 parts catalog PDF

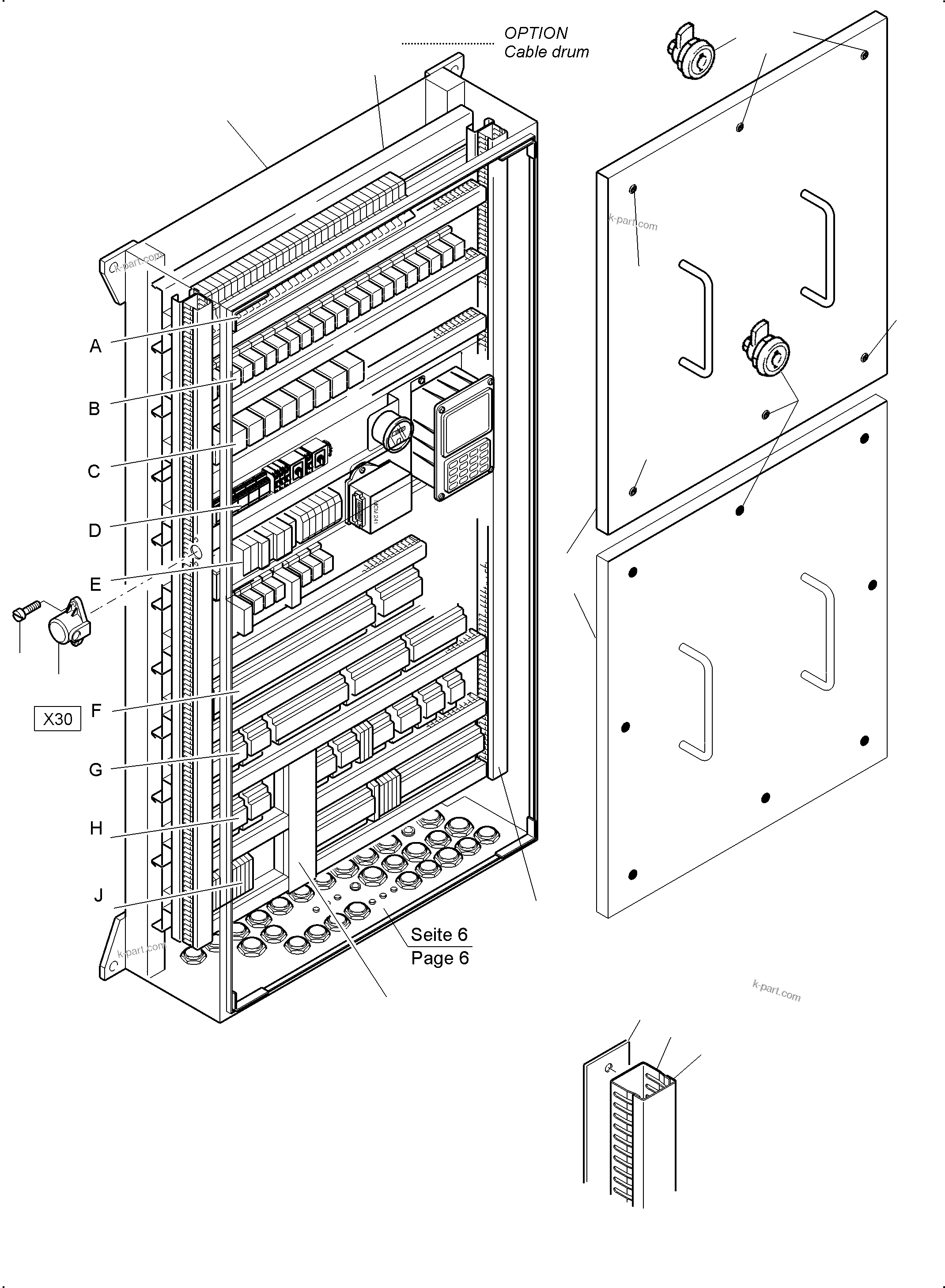

MAIN SWITCH BOX X2 IN CAB SUPPORT (255-2167g) in PC3000-6E S/N 06361. Diagram image and parts list.
