PC3000-6 S/N 06381

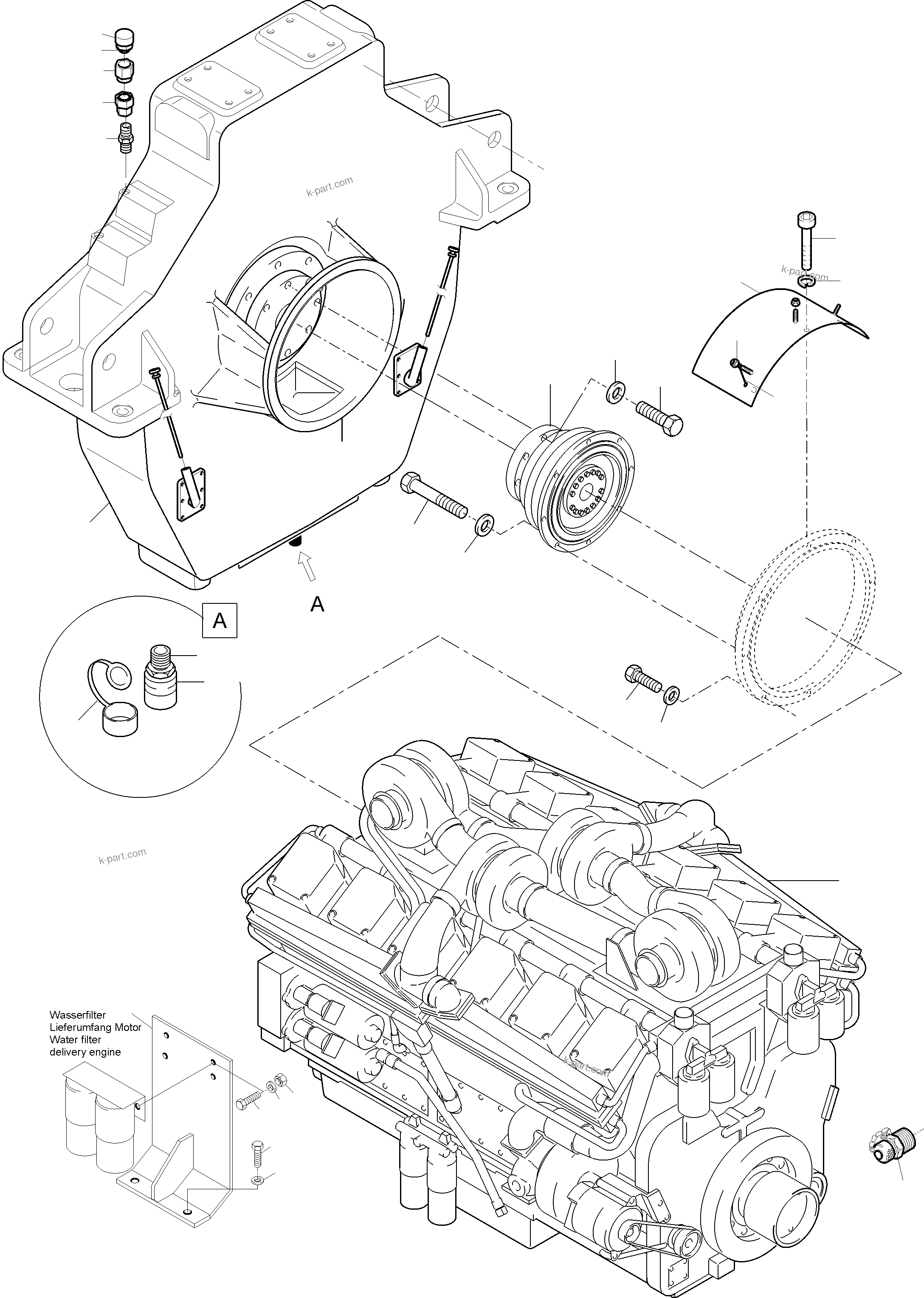

Komatsu parts book diagram for PC3000-6 S/N 06381: DRIVE ASSEMBLY

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	898 164 40	Diesel Engine	1
	?	316 216 99	Washer	16
	?	512 960 98	Bolt (standard)	16
	?	517 879 98	Bolt (cold weather)	16
	?	461 390 40	Oil drain valve	1
	?	490 586 40	Oil drain hose	1
	?		Cold Starting System	1		489-1212a
	?		Pump distributor gear (PDG)	1		991-1617
	?	081 496 40	Protection cap	1
	?	081 495 40	Quick disconnect coupling	1
	?	081 497 40	Counter part to fig-no. 13	1
	?	516 235 98	Socket	1
	?	951 098 40	Bleeding filter	1
	?	340 099 99	Ring	1
	?	519 284 98	Union	1
	?	515 867 98	Socket	1
	?	374 408 99	Socket	1
	?		Coupling	1		991-1457
	?	506 855 98	Bolt	12
	?	504 304 98	Bolt	10
	?	507 012 98	Washer	10
	?	340 410 99	Washer	12
	?	956 895 40	Cover	1
	?	956 896 40	Wire	3
	?	319 141 99	Screw	3
	?	950 202 40	Lock washer	3
	?	334 599 99	Nut	3
	?	953 258 40	Water filter bracket	1
	?	307 802 99	Bolt	2
	?	307 780 99	Bolt	4
	?	517 118 98	Lock washer	2
	?	514 921 98	Nut	4
	?	340 465 99	Washer	4
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2

Komatsu PC3000-6 S/N 06381 parts catalog PDF

DRIVE ASSEMBLY (489-1218c) in PC3000-6 S/N 06381. Diagram image and parts list.
