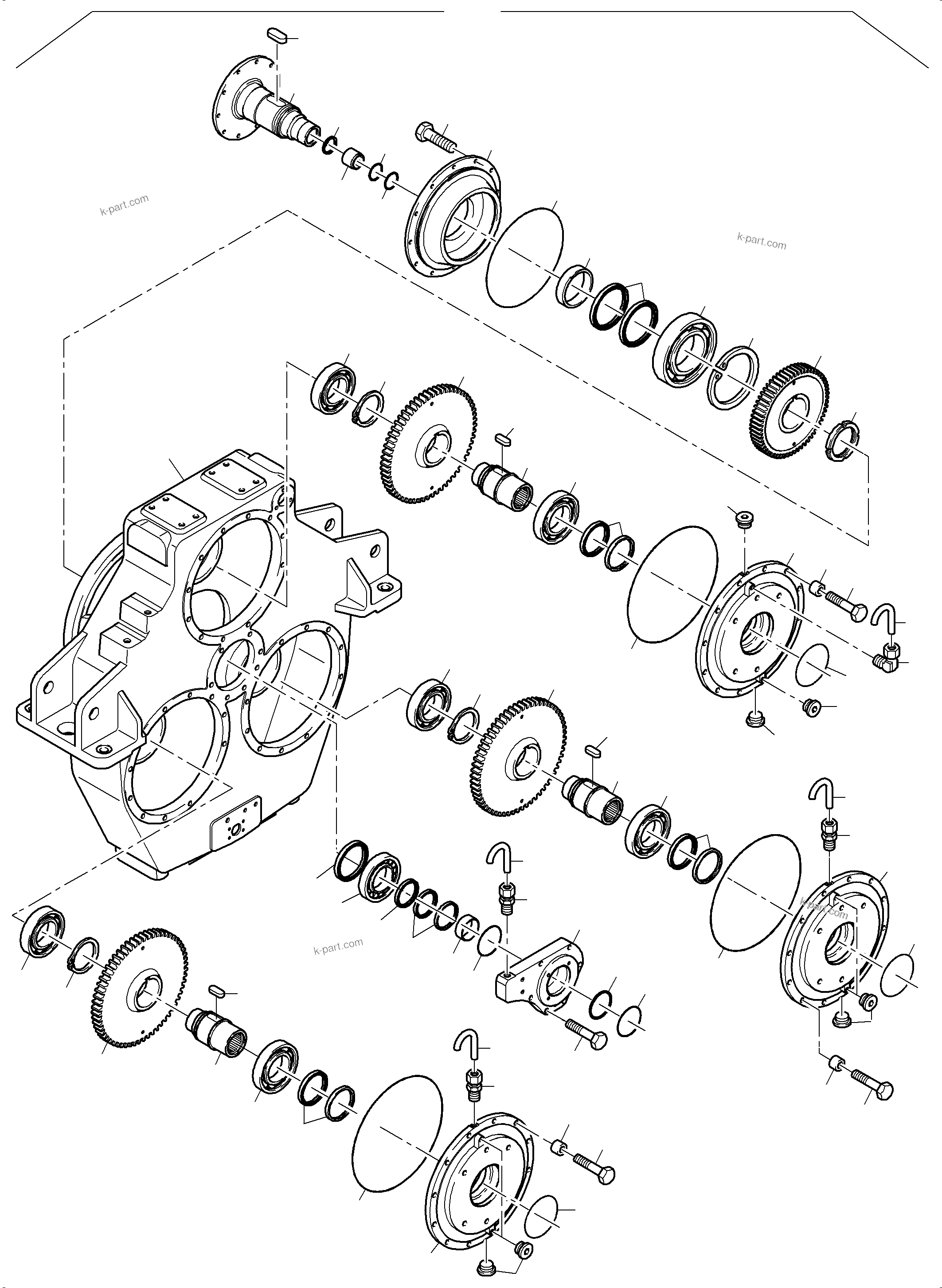

Diagram image 1 of 2

PC3000-6 S/N 06381

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06381

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	999 698 40	Pump distributor gear	1
?		Housing (not available)	1
?	796 319 73	Bearing carrier	1
?	790 811 73	Mounting flange	3
?	798 783 73	Mounting flange	1
?	798 784 73	Cover	1
?	798 785 73	Cover	1
?	798 786 73	Cylindrical gear	1
?	796 325 73	Cylindrical gear	3
?	796 460 73	Flange shaft	1
?	796 327 73	Thoothed shaft	3
?	796 328 73	Spacer	36
?	798 787 73	Slotter round nut	1
?	796 330 73	Sleeve	1
?	790 812 73	Sleeve	1
?	790 813 73	Tube	1
?	796 336 73	Shaft adapter	1
?	214 768 99	Tube	-2
?	796 338 73	Oil dipstick	2
?	501 954 98	Ball bearing	3
?	518 272 98	Ball bearing	3
?	518 273 98	Ball bearing	1
?	796 461 73	Cylindrical roller bearing	1
?	518 275 98	Radial oil seal	2
?	518 276 98	Radial oil seal	6
?	518 277 98	Radial oil seal	2
?	518 278 98	O-Ring	1
?	518 279 98	O-Ring	1
?	518 280 98	O-Ring	3
?	518 281 98	O-Ring	1
?	518 282 98	O-Ring	1
?	518 283 98	O-Ring	3
?	342 572 99	Circlip	1
?	342 575 99	Circlip	3
?	517 572 98	Circlip	1
?	342 690 99	Circlip	1
?	342 715 99	Circlip	1
?	796 341 73	Snap ring	1
?	796 342 73	Snap ring	1
?	518 284 98	Support disk	1
?	518 285 98	Feather key	3
?	518 286 98	Feather key	1
?	518 287 98	Bolt	3
?	518 288 98	Bolt	6
?	308 427 99	Bolt	36
?	307 447 99	Bolt	12
?	504 268 98	Bolt	12
?	180 113 40	Plug	19
?	505 126 98	Plug	3
?	255 968 40	Plug	1
?	360 873 40	Plug	2
?	173 494 40	Plug	2
?	173 495 40	Plug	1
?	518 289 98	Plug	1
?	796 343 73	Plug	3
?	370 312 99	Union	3
?	370 332 99	Union	1
?	796 345 73	Screw plug	1
?	790 917 73	Repair Kit - incl. Bearings,race rings,radial shaft seals	-2
?	799 386 73	Repair Kit - incl. all gear parts a. shafts	-2
?	790 918 73	Repair Kit - incl. the driveshaft complete	-2
?	799 336 73	Seal kit consist. of pos. 230,240,250,260,270,280,290,300,310	-2
?	799 337 73	Bearing kit consist. of pos. 190,200,210,220	-2

Komatsu PC3000-6 S/N 06381 parts catalog PDF

PUMP DISTRIBUTOR GEAR (991-1617) in PC3000-6 S/N 06381. Diagram image and parts list.
