FUEL TANK | PC3000-6 S/N 06381 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

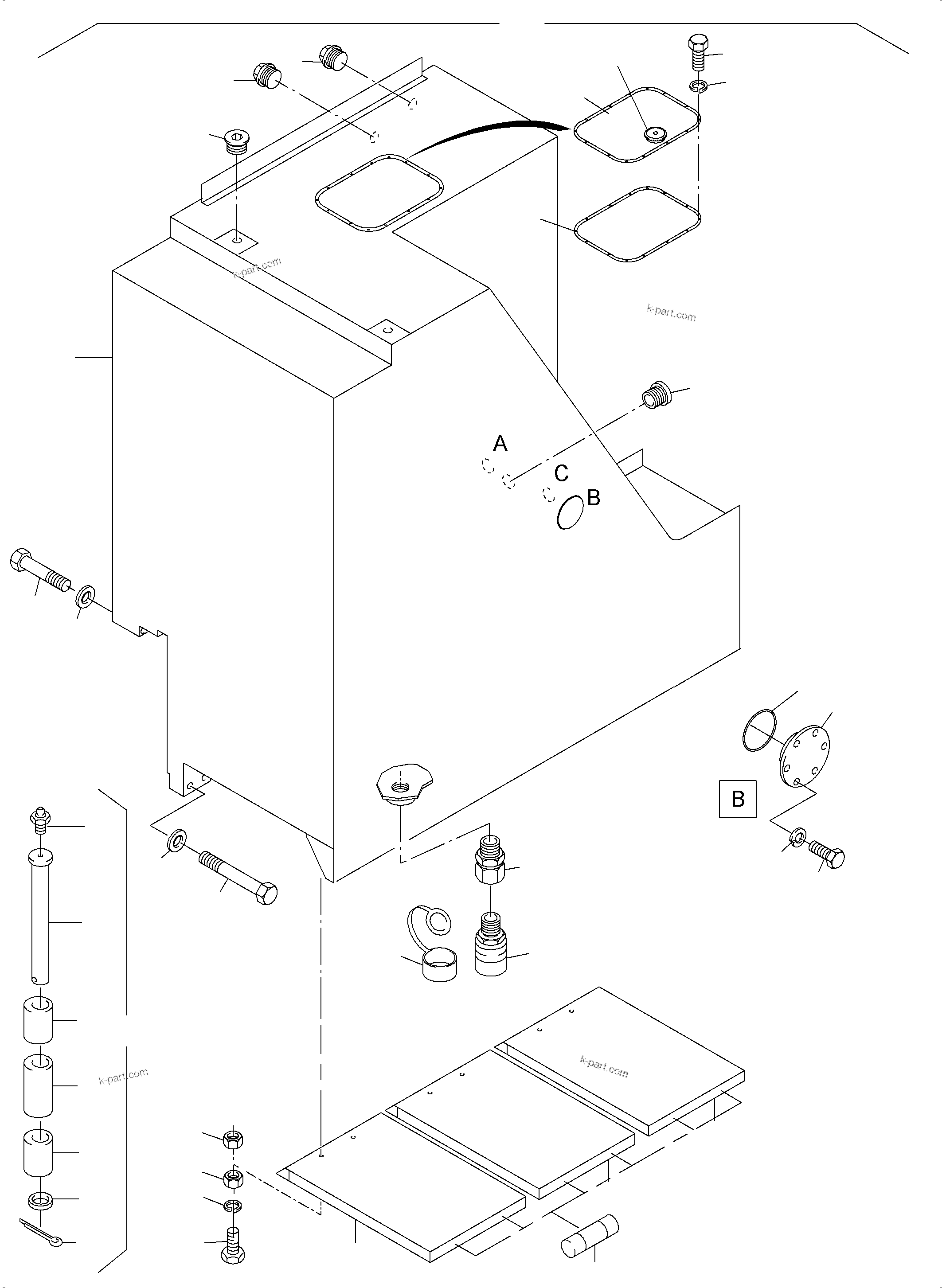

Diagram image 1 of 2

PC3000-6 S/N 06381

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 06381

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	953 255 40	Fuel tank	1
?	308 392 99	Bolt (standard)	8
?	517 876 98	Bolt (cold weather design)	8
?	255 057 40	Washer	116
?	953 254 40	Fuel tank	1
?	959 168 40	Plate	1
?	516 271 98	Socket	1
?	374 407 99	Socket	1
?	516 158 98	Socket	1
?	461 806 40	Ball cock	1
?	180 477 40	Plug	3
?	173 493 40	Plug	1
?	081 495 40	Quick disconnect coupling	1
?	081 497 40	Counter part to fig-no. 19	1
?	081 496 40	Protection cap	1
?	518 053 98	Clamp set	1
?	516 235 98	Socket	2
?	926 985 40	Gasket	1
?	377 750 99	Bolt	14
?	308 540 99	Bolt	2
?	346 510 99	Lock washer	14
?	324 741 40	Plug	3
?	517 120 98	Lock washer	2
?	511 857 98	Cover plate	1
?	621 125 40	Socket	1
?	372 875 99	Union	1
?	950 463 40	2/2-Way co-axial valve	1
?	374 439 99	Socket	3
?	305 991 99	Ball cock	1
?	516 187 98	Socket	1
?	516 189 98	Socket	1
?	516 161 98	Socket	1
?	307 754 99	Bolt	4
?	510 321 98	Washer	8
?	334 599 99	Nut	4
?	507 037 98	Nut	2
?	340 465 99	Washer	2
?	959 166 40	Flap	1
?	959 159 40	Flap	2
?	390 199 40	Hinge	6
?	500 873 98	Bolt	6
?	332 353 99	Nut	6
?	517 118 98	Lock washer	6
?	334 600 99	Nut	6
?	621 108 40	Pin	1
?	390 600 40	Bushing	2
?	390 601 40	Bushing	1
?	340 612 99	Washer	1
?	342 061 99	Cotter pin	1
?	350 562 99	Grease nipple	1
?		Option w./o. refueling equipment	-2
?	926 987 40	Cover consist of fig no 111	1
?	948 219 40	Cover plug	1
?	518 391 98	O-ring	1
?	324 550 40	Plug	1
?	307 734 99	Bolt	6
?	517 120 98	Lock washer	6
?	208 910 40	Filler cap	1
