PC170LC-11 S/N 37001-UP

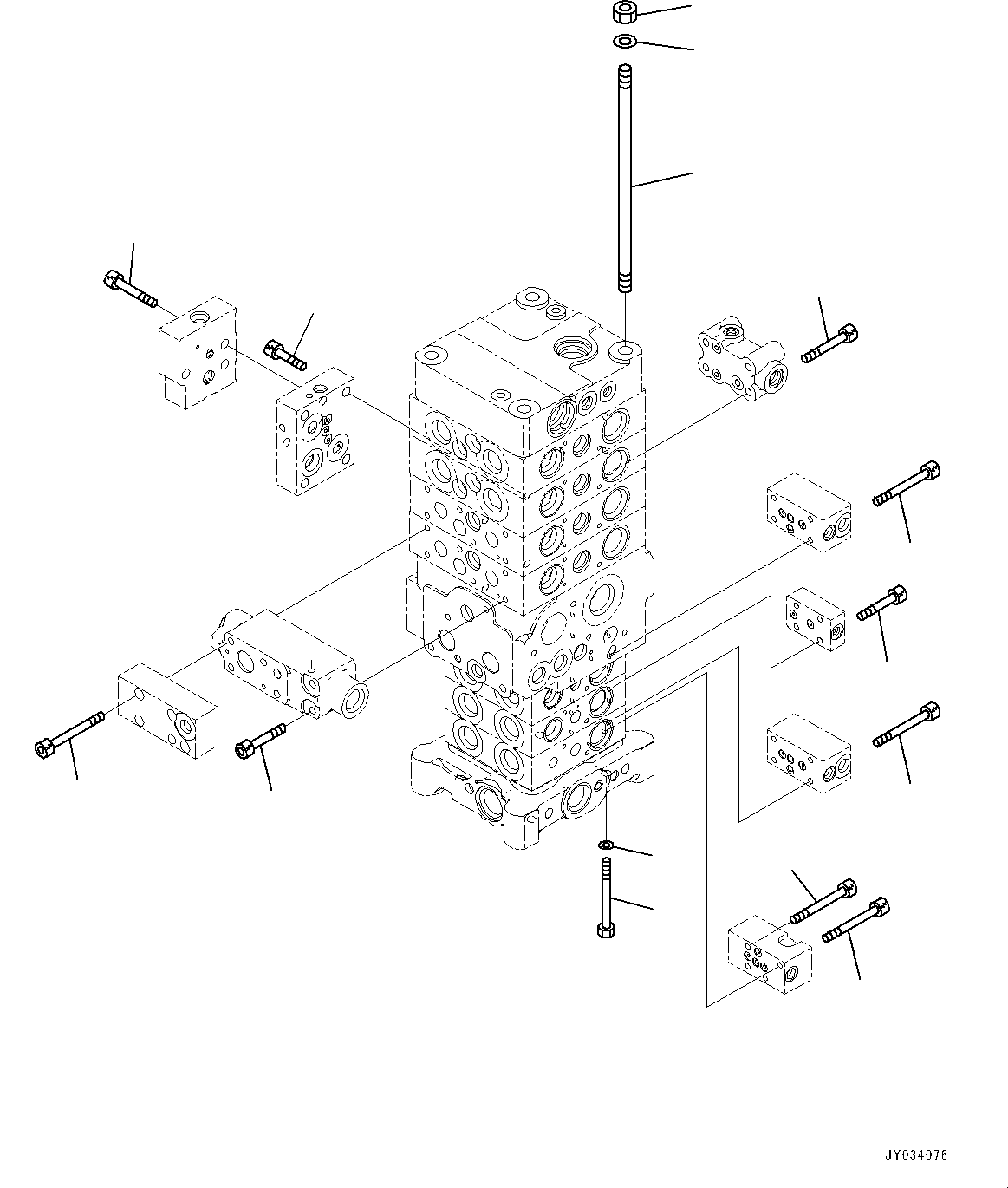

Komatsu parts book diagram for PC170LC-11 S/N 37001-UP: CONTROL VALVE, 7-VALVE (14/30)(#35724-)

1 2 3 4 6 7 8 9 10 12 5 11 13 14 12

	#	Part Number	Partname	Quantity	Options	Reference
	\|$0	723-57-21103	Valve Assembly, Control, With Arm Hydraulic Drift Prevention Valve,1-Additional Actuator Piping	1	SN: 35820-UP
	\|$1	723-57-21101	Valve Assembly, Control, With Arm Hydraulic Drift Prevention Valve,1-Additional Actuator Piping	1	SN: 35724-35819 \| SCC: A2
	1	723-50-11640	Stud	4	SN: 35724-UP
	2	01643-51445	Washer, Flat	4	SN: 35724-UP
	3	01580-11411	Nut	4	SN: 35724-UP
	4	01011-61085	Bolt	4	SN: 35724-UP
	5	01643-51032	Washer	4	SN: 35724-UP
	6	01252-60850	Bolt, Hexagon Socket Head	4	SN: 35724-UP
	7	01252-60865	Bolt, Hexagon Socket Head	4	SN: 35724-UP
	8	708-25-19160	Bolt, Hexagon Socket Head	8	SN: 35724-UP
	9	01252-61040	Bolt, Hexagon Socket Head	4	SN: 35724-UP
	10	01252-61045	Bolt, Hexagon Socket Head	3	SN: 35724-UP
	11	01252-60630	Bolt, Hexagon Socket Head	4	SN: 35724-UP
	12	01252-60650	Bolt, Hexagon Socket Head	8	SN: 35724-UP
	13	01252-60640	Bolt, Hexagon Socket Head	2	SN: 35724-UP
	14	01252-60645	Bolt, Hexagon Socket Head	2	SN: 35724-UP
	\|$16		[A2]-The part specified in the line above can be used instead of this part.	-1	SN: UP

Komatsu PC170LC-11 S/N 37001-UP parts catalog PDF

CONTROL VALVE, 7-VALVE (14/30)(#35724-) (H0120-005014) in PC170LC-11 S/N 37001-UP. Diagram image and parts list.
