MOVEMENT SIGNAL INSTALLATION - EMERGENCY STOP FROM FLOOR | PC3000-6 S/N 46230

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

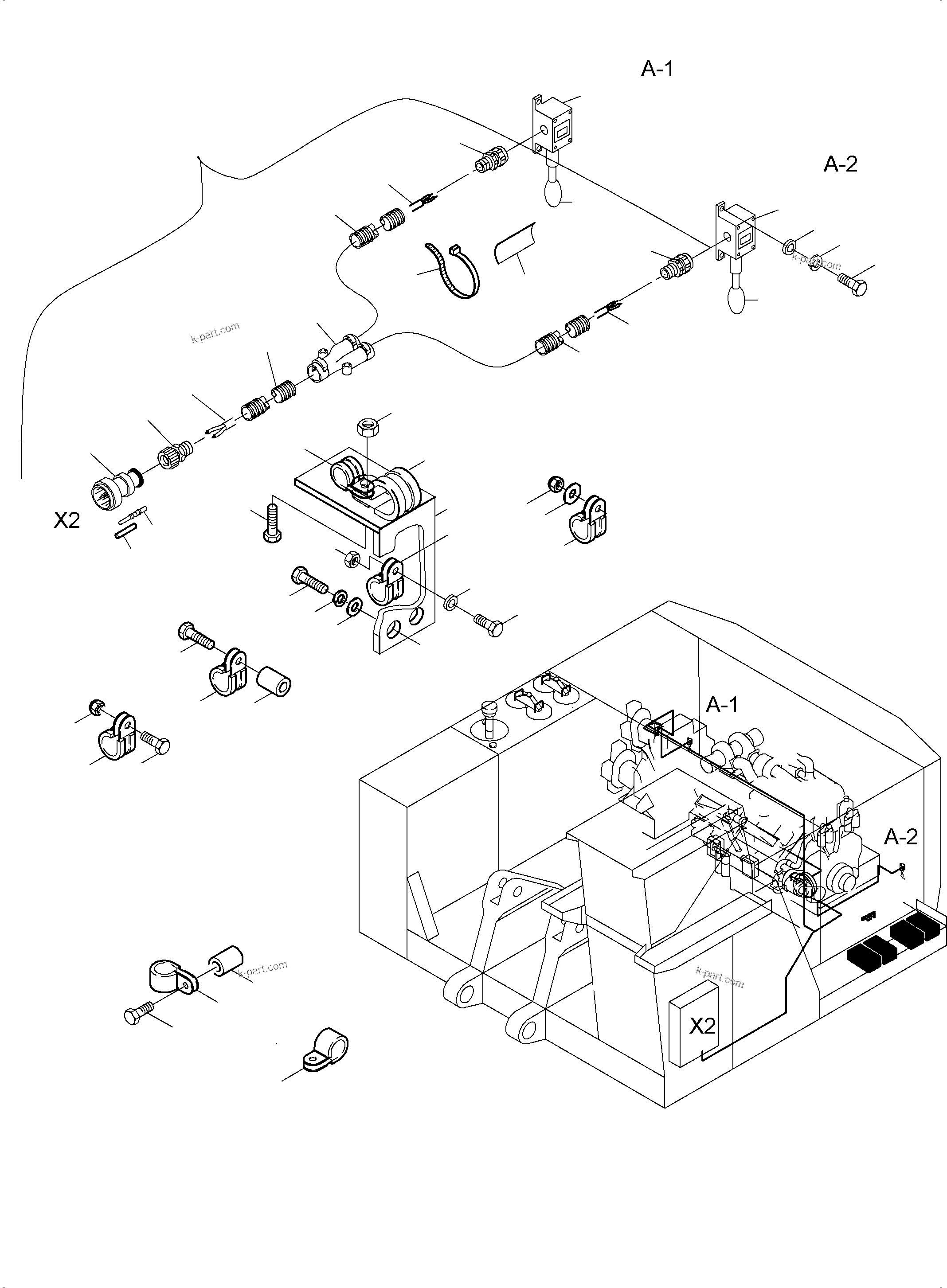

Diagram image 1 of 2

PC3000-6 S/N 46230

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46230

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	947 400 40	Pull switch assy.	2
?	907 477 40	Cable union DN 12	3
?	950 136 40	Plug	1
?	515 213 40	Cable 1,0mm2, blue	-2
?	655 650 40	Cable protection hose DN 12	-2
?	655 626 40	Distributor DN 17/12	1
?	655 651 40	Cable protection hose DN 17	-2
?	907 975 40	Fitting DN17	1
?	950 131 40	Protection cap	1
?	507 596 98	Washer	8
?	955 419 40	Harness drive switch off	1
?	318 053 99	Bolt	4
?	319 004 99	Screw	2
?	340 459 99	Washer	6
?	343 104 99	Lock washer	6
?	0443451610	Clip	44
?	0443452110	Clip	3
?	507 037 98	Nut	12
?	307 773 99	Bolt	6
?	507 596 98	Washer	8
?	931 329 40	Plate 8X40X100	2
?	307 842 99	Bolt	2
?	517 124 98	Lock washer	2
?	343 117 99	Spring washer	2
?	510 748 98	Resilient sleeve	4
?	307 782 99	Bolt	4
?	510 741 98	Resilient sleeve	2
?	307 789 99	Bolt	2
?	931 358 40	Harness movement signal	1
?	308 569 99	Bolt	2
?	507 037 98	Nut	10
?	896 746 40	Horn	1
?	907 974 40	Fitting DN 12	1
?	0443451510	Clip 15	12
?	933 359 40	Angle	1
?	507 596 98	Washer	7
?	340 465 99	Washer	10
?	340 464 99	Washer	2
?	941 777 40	Name plate	3
?	174 411 40	Cable strap	6
?	098 955 40	Ring	2
?	472 688 99	Chain	-2
?	055 107 40	Cable lug	2
?	950 136 40	Plug	1
?	0819105320	Pin	16
?	940 852 40	Plug	18
?	940 629 40	Warmth shrink hose	-2
?	334 599 99	Nut	2
?	517 122 98	Lock washer	1
?	307 773 99	Bolt	1
