PC3000-6 S/N 46230

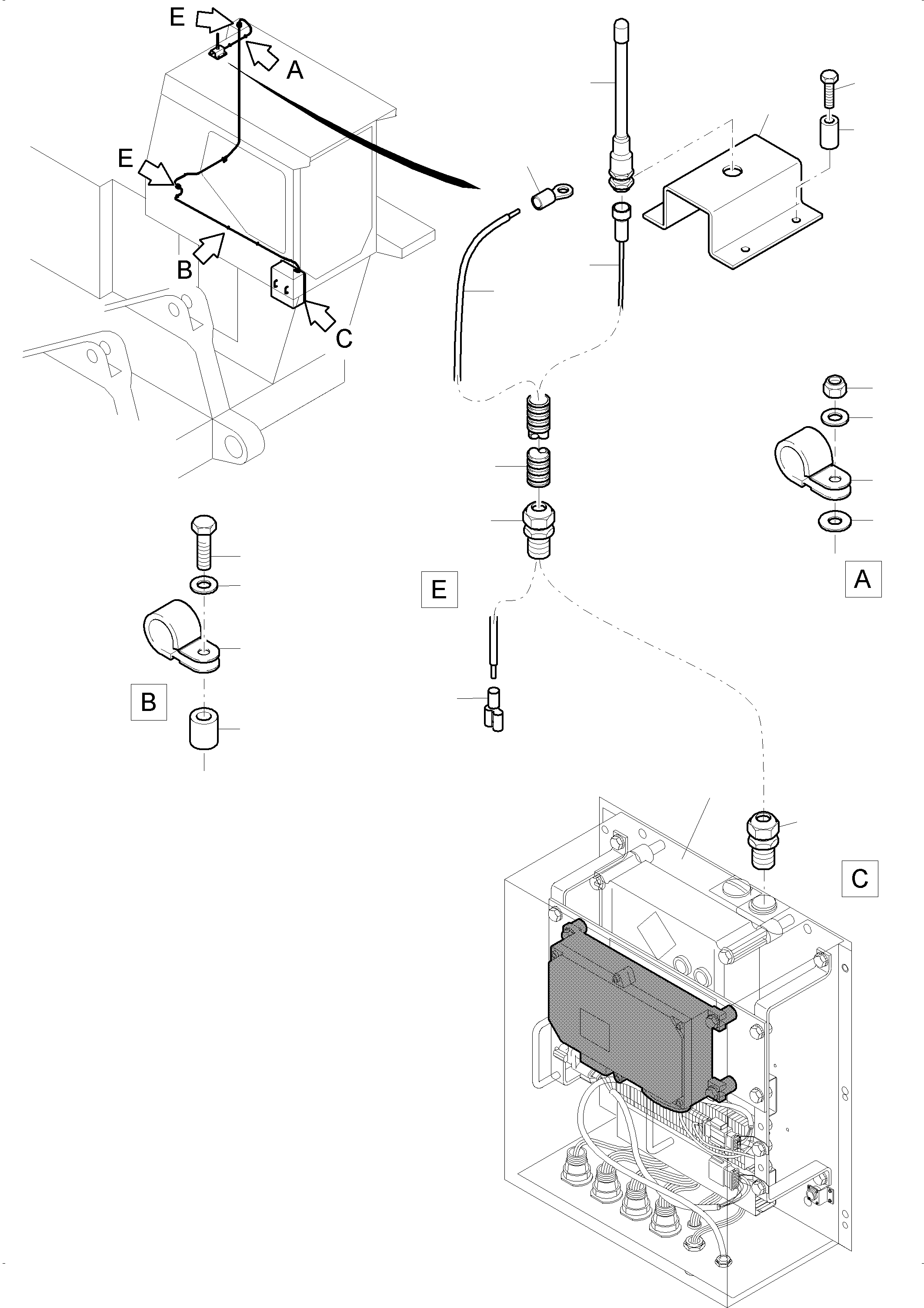

Komatsu parts book diagram for PC3000-6 S/N 46230: KOMTRAX - ARRANGEMENT

01 02 03 04 05 06 07 07 08 09 10 11 11 12 13 13 14 15 16 30

	#	Part Number	Partname	Quantity	Options	Reference
	01	8A13102100	Antenna	1	InternBDB: ANTENNE ORB COMM \| InternKon: 963 771 40 / 1
	02	939 418 40	Retainer	1	InternBDB: HALTER RST37-2 \| InternKon: 963 771 40 / 2
	03	7826209311	Antenna cable	1	InternBDB: ANTENNENKABEL 6,5 M * \| InternKon: 963 771 40 / 3
	04	511 262 98	Resilient sleeve	4	InternBDB: DEHNHUELSE 6,4/12X 25 42CRMO4-QT+T WN 34194840 \| InternKon: 963 771 40 / 4
	05	307 735 99	Bolt	4	InternBDB: 6KTSHR M 6 X 35 8.8 DIN 00933 \| InternKon: 963 771 40 / 5
	06	941 793 40	Protecting hose	-2	InternBDB: SCHUTZSHL TEILBAR PACOF-10B SCHWARZ PA6 * \| InternKon: 963 771 40 / 6
	07	941 792 40	Cable union	2	InternBDB: KBLVERSHR MEHRF M 25X1,5 22553DPM 2X 3,5/1X 5,5 \| InternKon: 963 771 40 / 7
	08	655 082 40	Cable 2,5mm2 green/yellow	-2	InternBDB: KENPUR-LITZE 2,5MM2 GRUEN/GELB 090250GG WN 65594740 \| InternKon: 963 771 40 / 8
	09	055 110 40	Cable lug	1	InternBDB: KABELSCHUH BLAU F M6 \| InternKon: 963 771 40 / 9
	10	056 071 40	Cable sleeve 2,5	1	InternBDB: KABELHUELSE 2,5 4KT 20312723 \| InternKon: 963 771 40 / 10
	11	0443451010	Clip D=10	6	InternBDB: SCHELLE D=10,0 BLZ=10 77 KES 04434 \| InternKon: 963 771 40 / 11
	12	507 596 98	Washer	3	InternBDB: SHB 10-C ST DIN 07989 \| InternKon: 963 771 40 / 12
	13	340 465 99	Washer	6	InternBDB: SHB B 10,5 140HV DIN 00125 \| InternKon: 963 771 40 / 13
	14	507 037 98	Nut	3	InternBDB: 6KTMU M10 8 DIN 00985 \| InternKon: 963 771 40 / 14
	15	516 143 98	Resilient sleeve	3	InternBDB: DEHNHUELSE 10,5/25X 25 42CRMO4-QT+T WN 34194840 \| InternKon: 963 771 40 / 15
	16	307 783 99	Bolt	3	InternBDB: 6KTSHR M10 X 50 8.8 DIN 00933 \| InternKon: 963 771 40 / 16
	30		Terminalbox KOMTRAX	-2		485-2171c

Komatsu PC3000-6 S/N 46230 parts catalog PDF

KOMTRAX - ARRANGEMENT (485-2190a) in PC3000-6 S/N 46230. Diagram image and parts list.
