PC5500-6E S/N 15134

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC5500-6E S/N 15134

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	963 676 40	Capacitor aasy.	2
?	969 198 40	Plate	2
?	896 741 40	Shock absorber	8
?	308 638 99	Bolt	8
?	510 733 98	Resilient sleeve	8
?	308 610 99	Bolt	32
?	510 744 98	Resilient sleeve	32
?	316 216 99	Washer	32
?	308 554 99	Bolt	16
?	334 599 99	Nut	16
?	340 464 99	Washer	32
?	332 334 99	Nut	32
?	976 617 40	Cable harness capacitor / movement signal	1
?	950 136 40	Plug	1
?	621 698 40	Pin contact	8
?	940 852 40	Plug	16
?	950 131 40	Protection cap	1
?	941 880 40	Plug	4
?	0819105420	Bushing contact	8
?	0819213400	Wedge	4
?	941 791 40	Rubber grommet	4
?	966 667 40	Plug assy. with rubber grommet 2 pole	1
?	940 461 40	Insulating tube B5x0,6	-2
?	907 703 40	Cable union 4x3,0	5
?	896 520 40	End pin 3,0x25	10
?	941 777 40	Plate	-2
?	174 411 40	Cable strap	-2
?	056 070 40	Cable sleeve 1,0-1,5	2
?		Connection side right	-1
?	958 561 40	Harness - winding temperature - motor 1 , right hand	1
?	958 564 40	Harness - heater - motor 1 , right hand	1
?	958 566 40	Harness - winding temperature - motor 2 , right hand	1
?	958 567 40	Harness - heater - motor 2 , right hand	1
?	950 110 40	Plug	2
?	0819105320	Pin contact	40
?	950 132 40	Protection cap	2
?	500 090 98	Wire end ferrule 0,75-6	40
?	950 207 40	End grommet	2
?	950 209 40	End grommet	4
?	655 621 40	Cable union DN 10	2
?	635 042 40	Wire end ferrule 1,5	2
?	950 207 40	End grommet	2
?	955 680 40	Ground cable Cover-Box M1	1
?	955 681 40	Ground cable Terminal-Base M1	1
?	955 682 40	Ground cable Terminal-Base-Motor M1	1
?	955 683 40	Ground cable Motor-Motorframe M1	1
?	955 684 40	Ground cable Capacitor-Base M1	1
?	955 685 40	Ground cable Capacitor-Frame-Base M1	1
?	955 687 40	Ground cable Cover-Box M2	1
?	955 688 40	Ground cable Terminal-Base M2	1
?	955 689 40	Ground cable Terminal-Base-Motor M2	1
?	955 690 40	Ground cable Motor-Motorframe M2	1
?	955 691 40	Ground cable Capacitor-Base M2	1
?	955 692 40	Ground cable Capacitor-Frame-Base M2	1
?	056 076 40	Protection cap	1
?	654 425 40	Cable lug 50/12	1
?	517 392 98	Cable 50,0	1
?	654 424 40	Cable lug 50/10	1
?	979 282 40	Ground cable Capacitor-Base box M1	1
?	979 283 40	Ground cable Capacitor-Base box M2	1
?	940 685 40	Cable lug 50/8	1
?	932 691 40	Cable 50,0 GN / YE	-2
?	950 506 40	Shrinkdown tubing	-2
?	951 368 40	Resin strip	-2

Komatsu PC5500-6E S/N 15134 parts catalog PDF

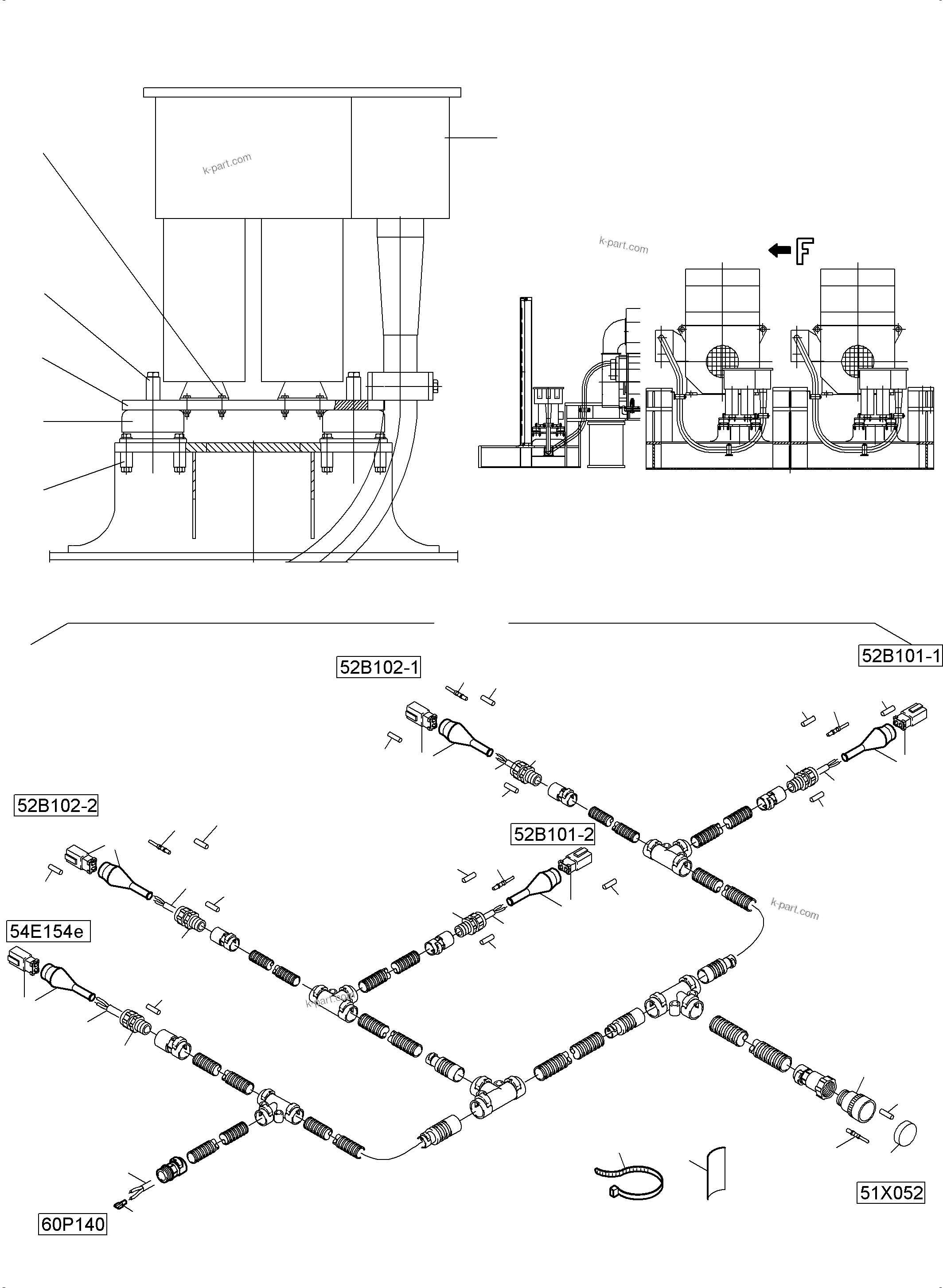

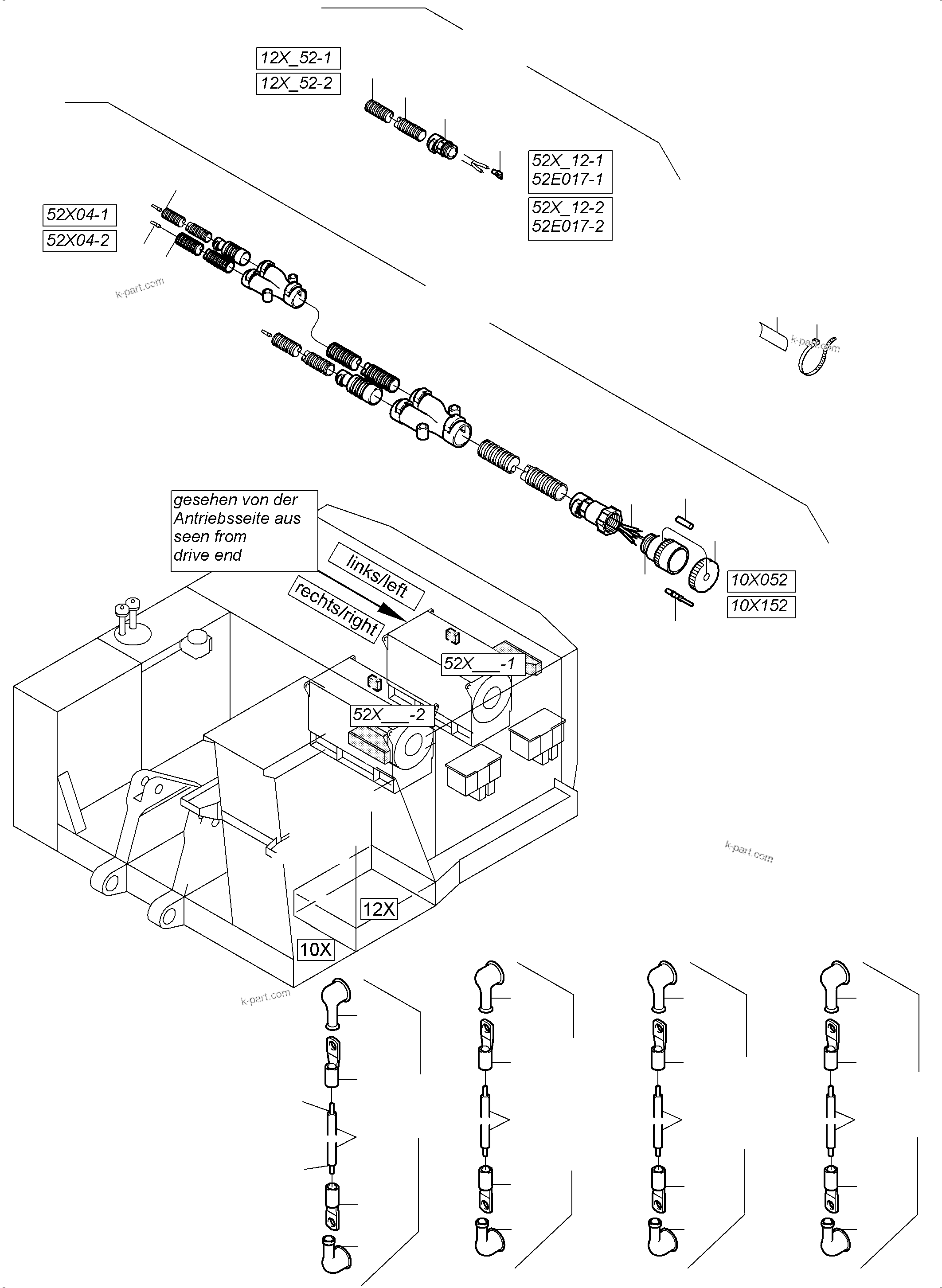

MACHINE HOUSE - CAPACITOR ARR. - MOTOR HARNESSES (715-2252h) in PC5500-6E S/N 15134. Diagram image and parts list.
