PC3000-6 S/N 46252

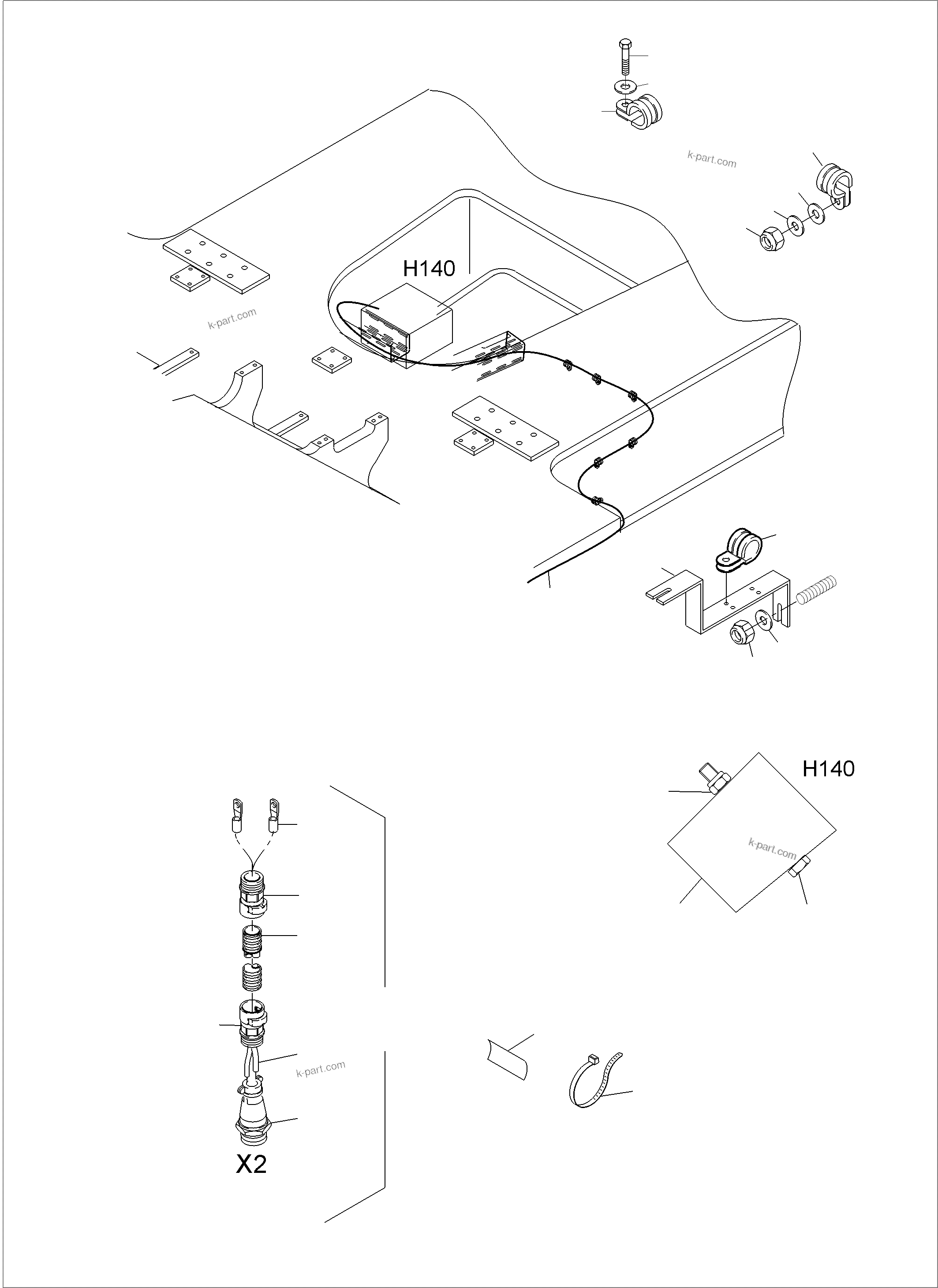

Komatsu parts book diagram for PC3000-6 S/N 46252: MOVEMENT SIGNAL ARR.

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

	#	Part Number	Partname	Quantity	Options	Reference
	?	931 358 40	Harness movement signal	1
	?	308 569 99	Bolt	2
	?	507 037 98	Nut	10
	?	896 746 40	Horn	1
	?	334 599 99	Nut	2
	?	907 477 40	Cable union DN 12	1
	?	655 650 40	Cable protection hose DN 12	-2
	?	515 213 40	Cable 1,0	-2
	?	907 974 40	Fitting DN 12	1
	?	933 359 40	Angle	1
	?	507 596 98	Washer	7
	?	0443451510	Clip 15	12
	?	340 465 99	Washer	10
	?	795 126 73	Plug	1
	?	795 123 73	Pin	2
	?	940 852 40	Plug	12
	?	940 629 40	Warmth shrink hose	-2
	?	055 107 40	Cable lug	2
	?	256 514 40	Plate	2
	?	056 292 40	Cable strap	2
	?	340 464 99	Washer	2
	?	517 122 98	Lock washer	1
	?	307 773 99	Bolt	1
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2
	?			-2

Komatsu PC3000-6 S/N 46252 parts catalog PDF

MOVEMENT SIGNAL ARR. (485-2154c) in PC3000-6 S/N 46252. Diagram image and parts list.
