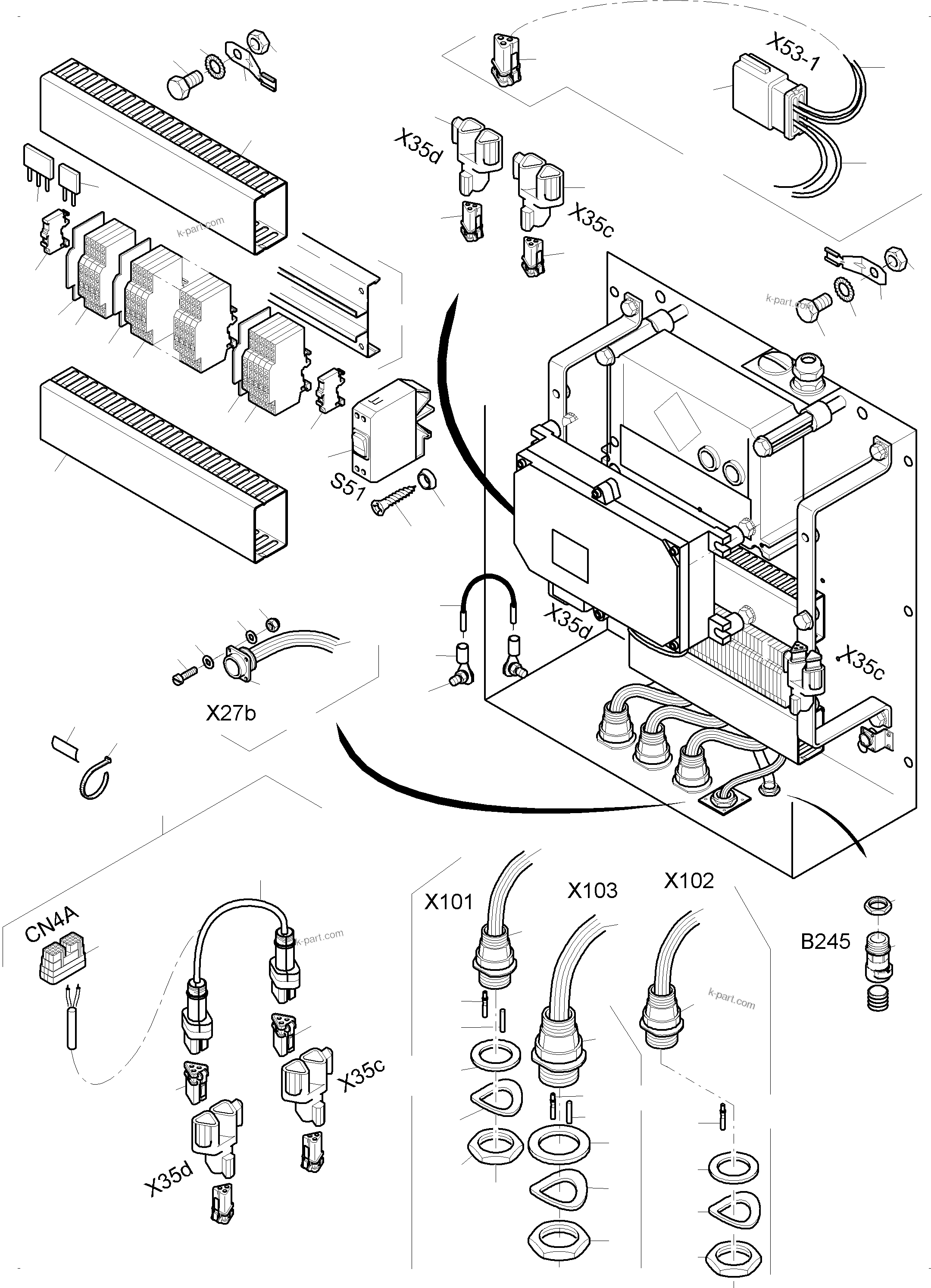

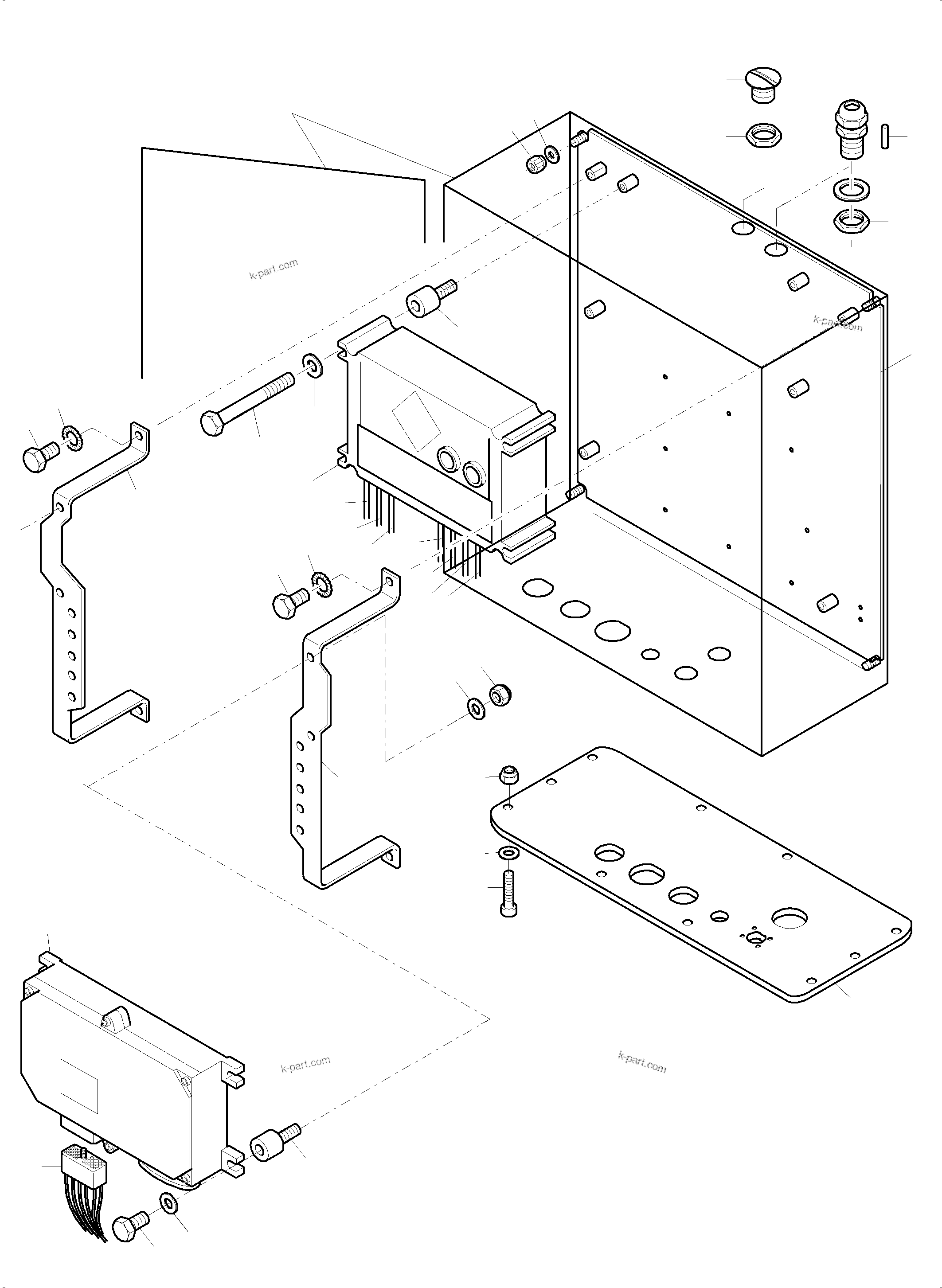

Diagram image 1 of 2

PC3000-6 S/N 46252

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

PC3000-6 S/N 46252

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	963 769 40	Terminal box (emty housing)	1
?	7826179502	VHMS-Controller	1
?	957 908 40	Retainer ORBCOM Controller	1
?	957 911 40	Retainer ORBCOM Controller	1
?	957 916 40	Mounting plate	1
?	308 562 99	Bolt	4
?	340 628 99	Washer	7
?	307 445 99	Bolt	7
?	518 547 98	Lock washer	4
?	518 299 98	Washer	3
?	461 029 40	Circular bearing	4
?	514 921 98	Nut	3
?	0819320010	Clip	3
?	517 322 98	Cable nut	1
?	906 647 40	T-Splitter	2
?	896 754 40	Switch modul	1
?	907 623 40	Cable union NW 12	1
?	941 792 40	Cable union	1
?	07826122502	Orbcomm Controller	1	485-2190b
?	963 772 40	Cable X37-X99	1
?	906 613 40	Cover plate	1
?	906 612 40	Through clamp 2.5	31
?	906 630 40	Protective wire clip	5
?	940 673 40	Clamp	2
?	145 743 40	Washer	8
?	952 060 40	Hat rail	1
?	906 614 40	Bridge 2-fold	3
?	906 615 40	Bridge 3-fold	8
?	501 670 98	Screw	8
?	655 518 40	Wiring channel 40x60	-2
?	950 727 40	Plug	1
?	517 323 98	Nut	2
?	940 662 40	Seal	1
?	939 035 40	Cable KOMTRAX-Controller CN3A	1
?	939 037 40	Cable KOMTRAX-Controller CN3B	1
?	340 507 99	Washer	4
?	939 025 40	Cable ORBCOMM-X99 CN4B	1
?	939 031 40	Cable KOMTRAX-Controller CN4A	1
?	939 033 40	Cable KOMTRAX-Controller CN2A	1
?	939 032 40	Cable KOMTRAX-Controller CN2B	1
?	939 034 40	Cable KOMTRAX-Controller CN1A	1
?	952 601 40	Cable X27B-X99	1
?	318 167 99	Bolt	4
?	955 482 40	Harness X101	1
?	955 484 40	Harness X103	1
?	955 483 40	Harness X102	1
?	963 735 40	Mounting plate	1
?	963 723 40	Seal	1
?	941 144 40	End resistor	2
?	506 957 98	Bolt	10
?	906 231 40	Circular bearing	4
?	896 520 40	End pin	1
?	334 599 99	Nut	3
?	340 463 99	Washer	24
?	509 869 98	Nut	14
?	346 507 99	Lock washer	4
?	939 026 40	Cable MMS-X99-CAN	1
?	509 870 98	Nut	2
?	963 731 40	Ground cable	1
?	340 458 99	Washer	4
?	518 594 98	Lock washer	2
?	343 608 99	Washer	2
?	332 441 99	Nut	4
?	907 643 40	Dust cap	1
?	055 109 40	Cable lug	2
?	0819219103	Socket	1
?	0819100770	Sealing plate	5
?	958 955 40	Can-bushing	1
?	515 213 40	Cable 1mm2	2
?	950 435 40	Cable CAN-BUS	1
?	907 865 40	Plug assy.	-2
?	950 124 40	Socket	1
?	950 130 40	Protective cap for socket	1
?	0819150808	Nut	1
?	950 318 40	Lock washer	1
?	950 793 40	Seal ring	1
?	340 463 99	Washer	4
?	307 730 99	Bolt	4
?	635 042 40	Wire end ferrule 1,5	1
?	907 877 40	Cable 2x0,75mm2	-2
?	907 642 40	Socket	1
?	906 632 40	Plug	1
?	958 956 40	CAN-Bushing	2
?	950 435 40	Cable	1
?	950 146 40	Socket	2
?	0819105420	Female contact	46
?	940 852 40	Plug	5
?	0819110808	Nut	2
?	0819110809	Lock washer	2
?	950 792 40	Seal ring	2
?	950 129 40	Protective cap for socket	2
?	056 070 40	Cable sleeve 1,0-1,5	46
?	515 213 40	Cable 1,0mm2 blue	-2
?	941 777 40	Designation sign	5
?	174 411 40	Cable strap	8
?			-2
?			-2
?			-2
?			-2
?			-2
