H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		see page Lube stations	2	InternKon: 872 260 40 / 1
?	208 893 40	Protective plug	2	InternBDB: 63-6591-620 056 \| InternKon: 872 260 40 / 48
?	509 857 98	Thread pin	12	InternBDB: PM 12x35 / 32500 \| InternKon: 872 260 40 / 11
?	340 467 99	Washer	12	InternBDB: B 13 /125 \| InternKon: 872 260 40 / 12
?	334 600 99	Nut	12	InternBDB: M 12 /985 \| InternKon: 872 260 40 / 13
?	653 698 40	Hose assy. DN 20x2000	1	InternBDB: DOS 25 /DOS 25-90 \| InternKon: 872 260 40 / 19
?	514 228 98	Hose assy. DN 20x1300	1	InternBDB: DOL 22 /22-90 \| InternKon: 872 260 40 / 18
?	640 429 40	Hose assy. DN 10x1460	1	InternBDB: DOL 12 /12-90 \| InternKon: 872 260 40 / 16
?	512 716 98	Hose assy. DN 8x1600	1	InternBDB: DOL 10 /10-90 \| InternKon: 872 260 40 / 17
?	323 064 40	Coupler plug	2	InternBDB: 62-6511-308-022 \| InternKon: 872 260 40 / 49
?	368 236 40	Protective plug	2	InternBDB: 63-6591-310-05 \| InternKon: 872 260 40 / 40
?	627 121 40	Hose assy. DN 12x1700	1	InternBDB: DOL 15 /DOL 15-90 \| InternKon: 872 260 40 / 21
?	371 952 99	Union	1	InternBDB: FFL 10 /2353 \| InternKon: 872 260 40 / 33
?	372 710 99	Union	1	InternBDB: KL 12 /2353 \| InternKon: 872 260 40 / 28
?	515 599 98	Hose assy. DN 20x1100	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 872 260 40 / 39
?	372 589 99	Union	1	InternBDB: RL 12 / 2353 \| InternKon: 872 260 40 / 27
?	208 894 40	Coupler plug	2	InternBDB: 62A-6511-4130-22 \| InternKon: 872 260 40 / 41
?	208 897 40	Protective plug	2	InternBDB: 63-6591-41-30 \| InternKon: 872 260 40 / 42
?	373 732 99	Union	1	InternBDB: TR 15/22/15-PL \| InternKon: 872 260 40 / 37
?	372 603 99	Union	2	InternBDB: RS 25 / 2353 \| InternKon: 872 260 40 / 31
?	514 450 98	Hose assy. DN 20x1800	1	InternBDB: DOS 25 /DOS 25-90 \| InternKon: 872 260 40 / 35
?	515 713 40	Union	1	InternBDB: GV 15-LR \| InternKon: 872 260 40 / 36
?	372 592 99	Union	3	InternBDB: RL 22 / 2353 \| InternKon: 872 260 40 / 29
?	512 685 98	Hose assy. DN 10x11100	1	InternBDB: DOL 12 /12-90 \| InternKon: 872 258 40 / 1
?	514 130 98	Hose assy. DN 20x13300	1	InternBDB: DOL 22 /22-90 \| InternKon: 872 258 40 / 2
?	372 173 99	Union	2	InternBDB: DDL 15 /2353 \| InternKon: 872 260 40 / 22
?		Lube filter	2	InternBDB: 634 602 40 \| InternKon: 872 260 40 / 2	090-3139
?	872 259 40	Retainer	1	InternKon: 872 260 40 / 6
?	308 608 99	Bolt	4	InternBDB: M12x70 /931 \| InternKon: 872 260 40 / 7
?	510 741 98	Resilient sleeve 13/25x50	4	InternKon: 872 260 40 / 8
?	307 775 99	Bolt	8	InternBDB: M10x20 /933 \| InternKon: 872 260 40 / 9
?	346 500 99	Lock washer	8	InternBDB: 10 /128 \| InternKon: 872 260 40 / 10
?	372 883 99	Socket	2	InternBDB: RI 1 x 3/4 \| InternKon: 872 260 40 / 25
?	374 438 99	Socket	2	InternBDB: L 22 E-G 3/4 \| InternKon: 872 260 40 / 26
?	372 884 99	Socket	4	InternBDB: RI 1 1/4 x 3/4 \| InternKon: 872 260 40 / 39
?	502 682 98	Half clamp	8	InternBDB: S-2-G-28 /3015 \| InternKon: 872 260 40 / 43
?	514 159 98	Hose DN 20x460	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 872 260 40 / 20
?	514 114 98	Hose assy. DN 20x1700	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 872 260 40 / 15
?	515 584 40	Hose assy. DN 20x1900	1	InternBDB: DOL 22 /DOL 22-90 \| InternKon: 872 260 40 / 14
?	534 002 99	Weld on plate	4	InternBDB: S-AP-A-2 /3015 \| InternKon: 872 260 40 / 44
?	007 143 98	Union	4	InternBDB: Voss 22-LR \| InternKon: 872 260 40 / 23
?	534 001 99	Cover plate	4	InternBDB: S-DP-A-2 /3015 \| InternKon: 872 260 40 / 45
?	308 579 99	Bolt	8	InternBDB: M10x60 /931 \| InternKon: 872 260 40 / 46
?	343 005 99	Washer	8	InternBDB: 10,5 /93 \| InternKon: 872 260 40 / 47
?	007 135 98	Union	1	InternBDB: Voss28-LM \| InternKon: 872 258 40 / 18
?	514 482 98	Union	1	InternBDB: RED 28/22 \| InternKon: 872 258 40 / 19
?	515 765 98	Union	1	InternBDB: Red 12/10-PL \| InternKon: 872 260 40 / 34
?	372 171 99	Union	1	InternBDB: DDL 10 /2353
?	372 175 99	Union	2	InternBDB: DDL 22 /2353
?	372 185 99	Union	4	InternBDB: DDS 20 /2353
?	371 977 99	Union	2	InternBDB: FFS 20 /2353
?	372 981 99	Union	1	InternBDB: KOR 25/20

Komatsu H455-SD S/N 15009 parts catalog PDF

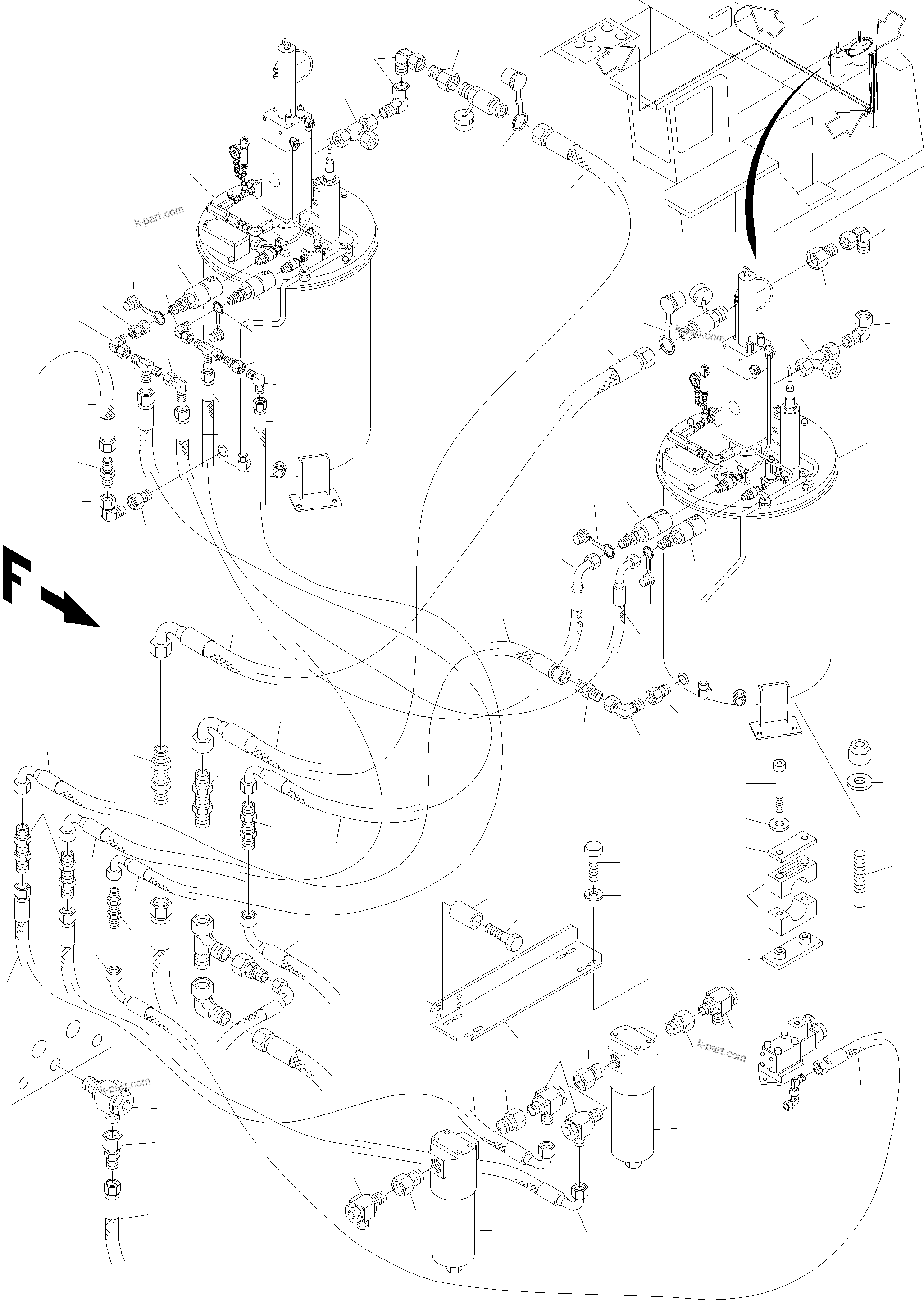

LUBE STATIONS ARRANGEMENT (515-2310c1) in H455-SD S/N 15009. Diagram image and parts list.
