Diagram image 1 of 3

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options
?	883 778 40	Operator's cab fig-nos. 01-133	1	InternBDB: Fa. Matek
?	883 777 40	Operator's cab w/o mounting parts	1
?	651 850 40	Door w/o mounting parts	1
?	882 210 40	Seat frame	1
?	489 160 40	Door	1
?	385 708 40	Lever assy.	1
?	385 709 40	Border cleat	2	InternBDB: Fa. Happich
?	489 165 40	Border cleat	2
?	489 166 40	Border cleat	3
?	898 544 40	Border cleat	2
?	489 170 40	Border cleat	1
?	489 171 40	Border cleat	1
?	489 172 40	Border cleat	1
?	627 601 40	Border cleat	2
?	489 174 40	Border cleat	4
?	627 602 40	Border cleat	2
?	623 999 40	Border cleat	2
?	489 176 40	Border cleat	2
?	627 603 40	Border cleat	2
?	491 022 40	Border cleat	1
?	491 023 40	Border cleat	1
?	491 024 40	Border cleat	1
?	385 729 40	Border cleat	1
?	385 730 40	Border cleat	1
?	385 731 40	Border cleat	1
?	489 178 40	Border cleat	2
?	489 179 40	Border cleat	2
?	898 541 40	Perforated plate	1
?	489 181 40	Covering	1
?	627 604 40	Perforated plate	1	InternBDB: 1,5x145x1371
?	627 605 40	Perforated plate	1	InternBDB: 1,5x856x1371 Almet
?	651 866 40	Covering	1	InternBDB: Almet
?	489 185 40	Insulation board	1	InternBDB: Grw + Hartm.
?	627 606 40	Insulation board	2	InternBDB: Grw + Hartm. 50x109x692
?	489 187 40	Door sheet	1
?	489 188 40	Door sheet	1
?	623 996 40	Border cleat	2
?	896 542 40	Dressing hook	1	InternBDB: Happich 621 0057
?	356 533 40	Catch	1
?	374 222 40	Detent	1
?	368 431 40	Washer	1
?	356 535 40	Compression spring	1
?	356 536 40	Threaded rod	1
?	236 098 40	Draw spring	1
?	489 190 40	Perforated plate	1	InternBDB: 1,5x451x887
?	489 191 40	Perforated plate	1	InternBDB: 1,5x451x1126
?	627 607 40	Perforated plate	1	InternBDB: 1,5x678x741
?	489 193 40	Insulation board	1	InternBDB: 80x463x849
?	489 194 40	Insulation board	1	InternBDB: 80x463x1088
?	489 195 40	Insulation board	1	InternBDB: 80x518x463
?	489 196 40	Insulation board	2	InternBDB: 80x518x690
?	627 608 40	Insulation board	1	InternBDB: Grw + Hartm. 50x820x1435
?	489 198 40	Insulation board	1	InternBDB: Grw + Hartm. 50x435x545
?	627 609 40	Insulation board	1	InternBDB: Grw + Hartm. 50x692x755
?	386 444 40	Insulation board	1	InternBDB: 513x637
?	345 178 99	Dowel pin	1	InternBDB: 6x30 /1481
?	500 489 98	Tapping screw	265	InternBDB: 3,5x13 C /7973
?	385 203 40	Shim	13	InternBDB: Fa. Happich 336 0001
?	507 037 98	Nut	2	InternBDB: M 10 /985
?	308 581 99	Bolt	1	InternBDB: M10x70 /931 8.8
?	307 756 99	Bolt	1	InternBDB: M8x30 /933 8.8
?	307 728 99	Bolt	2	InternBDB: M6x16 /933 8.8
?	635 261 40	Handle with lock	1	InternBDB: Kason 0056 CH 5020
?	308 536 99	Bolt	4	InternBDB: M6x40 /931 8.8
?	319 421 99	Screw	2	InternBDB: M8x35 /912 8.8
?	332 110 99	Nut	2	InternBDB: M 6 /934
?	320 974 99	Screw	20	InternBDB: M4x10 /84 4.8 B2E
?	346 508 99	Lock washer	12	InternBDB: B 4 /128
?	627 611 40	Perforated plate	1	InternBDB: 1,5x194x679
?	500 937 98	Tapping screw	12	InternBDB: ST 3,9x9,5 C /7971
?	320 977 99	Screw	4	InternBDB: M4x25 /84 4.8 B2E
?	635 262 40	Stop	1	InternBDB: Kason 0056 00 5002
?	356 130 40	Silent bloc	1	InternBDB: Phoenix 781053
?	350 748 99	Fork end	2	InternBDB: G 6x12 /71752
?	350 742 99	Fork end	1	InternBDB: G 10x20 /71752 9SMN28
?	002 827 98	Pin	1	InternBDB: 10x20 ESN 01 WN 010 869 99 9SMN28K
?	002 823 98	Pin	2	InternBDB: 6x12 ESN 01 WN 010 869 99 9SMN28K
?	551 289 40	Seat upholstery	1	InternBDB: 016901 Grammer 400 breit Integral schwarz
?	058 380 40	Dome light	2	InternBDB: 2 JA 003232-001
?	057 295 40	Socket	2	InternBDB: 0 352 030 002 Bosch
?	627 612 40	Perforated plate	1	InternBDB: 1,5x421x533
?	635 495 40	Handle	1	InternBDB: Kason 0481 A 00600
?	651 865 40	Spacer block	1
?	490 060 40	Handle	1	InternBDB: Happich GHE-Nr. 581 A 388
?	385 232 40	Catch	2	InternBDB: Happich 580 A 837
?	385 233 40	Catch	2	InternBDB: Happich 580 A 838
?	167 694 40	Profiled joint 4400 lg. Bulk ware, state length required	-2	InternBDB: GHE 461 0046, 4,4 m
?	166 575 40	Profiled joint 620 lg. Bulk ware, state length required	-2	InternBDB: GHE 461 0048, 0,62 m
?	623 997 40	Border cleat	2
?	196 488 40	Connection hose Bulk ware, state length required	-2	InternBDB: 6x1 SWF 902.916, 6,3 m
?	057 278 40	Socket	1	InternBDB: 0 352 221 001 Bosch
?	636 395 40	Door	1
?	896 705 40	Speaker	1	InternBDB: AL 100 BLAUPUNKT 7 606 100 001 PAARWEISE
?	655 112 40	Push switch	1	InternBDB: SWF 511 019
?	623 998 40	Border cleat	2
?	627 610 40	Insulation board	1	InternBDB: 50x157x692 Grw + Hartm.
?	491 026 40	Sheet metal	1
?	318 383 99	Countersunk screw	6	InternBDB: M6x30 /963
?	385 727 40	Border cleat	1
?	340 506 99	Disc	4	InternBDB: A 6,4 / 125
?	507 025 98	Nut	4	InternBDB: M6 / 985
?	575 042 40	Rubber cord	2	InternBDB: Happich 10x3x260
?	575 043 40	Rubber cord 460 Bulk ware, state length required	1	InternBDB: Happich 10x3x460
?	575 044 40	Rubber cord 500 Bulk ware, state length required	1	InternBDB: Happich 10x3x500
?	636 385 40	Filter box assy.	1
?	318 382 99	Screw	4	InternBDB: M6 x 22 / 963
?	269 055 40	Air filter	1	InternBDB: 30 000.218
?	510 747 98	Resilient sleeve	3	InternBDB: 8,4 /15x35 WN 341 948 40
?	307 760 99	Bolt	3	InternBDB: M8x50 /933
?	319 127 99	Screw	3	InternBDB: M5 x 50 / 912
?	307 735 99	Bolt	3	InternBDB: M6x35 /933
?	324 390 40	Rubber cord Bulk ware, state length required	-2	InternBDB: Happich 423 0002, 1,0 m
?	490 061 40	Rivet	2	InternBDB: Happich GHE-Nr. 335 0 415
?	457 241 40	Border cleat	1
?	457 242 40	Border cleat	1
?	896 543 40	Cap	1	InternBDB: Happich 621 0058
?	506 825 98	Ball handle	1
?	440 556 40	Band roller	2
?	058 208 40	Bulb	4	InternBDB: 24 V 10 W
?	501 026 40	Bulb	2	InternBDB: 24 V 18 W
?	324 391 40	H.P. blower	1	InternBDB: Hornkohl + Wolf 33-0158-/24V
?	511 262 98	Resilient sleeve	3	InternBDB: 6,4 / 12x25 WN 341 948 40
?	515 213 40	Cable 1,0 qmm for interior lighting and speaker Bulk ware, state length required	-2	InternBDB: 32 meter KIW Essen hellblau \| InternKon: 255-1905 / 17
?	515 214 40	Cable 2,5 qmm for wipers and electrical outlets Bulk ware, state length required	-2	InternBDB: 13 meter KIW Essen hellblau \| InternKon: 255-1905 / 18
?	655 675 40	Cable 6,0 qmm for air conditioning equipment Bulk ware, state length required	-2	InternBDB: 8 meter KIW Essen blau \| InternKon: 255-1905 / 100
?	270 873 40	Cable channel 1,8 m lenght Bulk ware, state length required	-2	InternBDB: Sievert Tehalit 40 x 40 BA 640040 \| InternKon: 255-1905 / 102

Komatsu H455-SD S/N 15009 parts catalog PDF

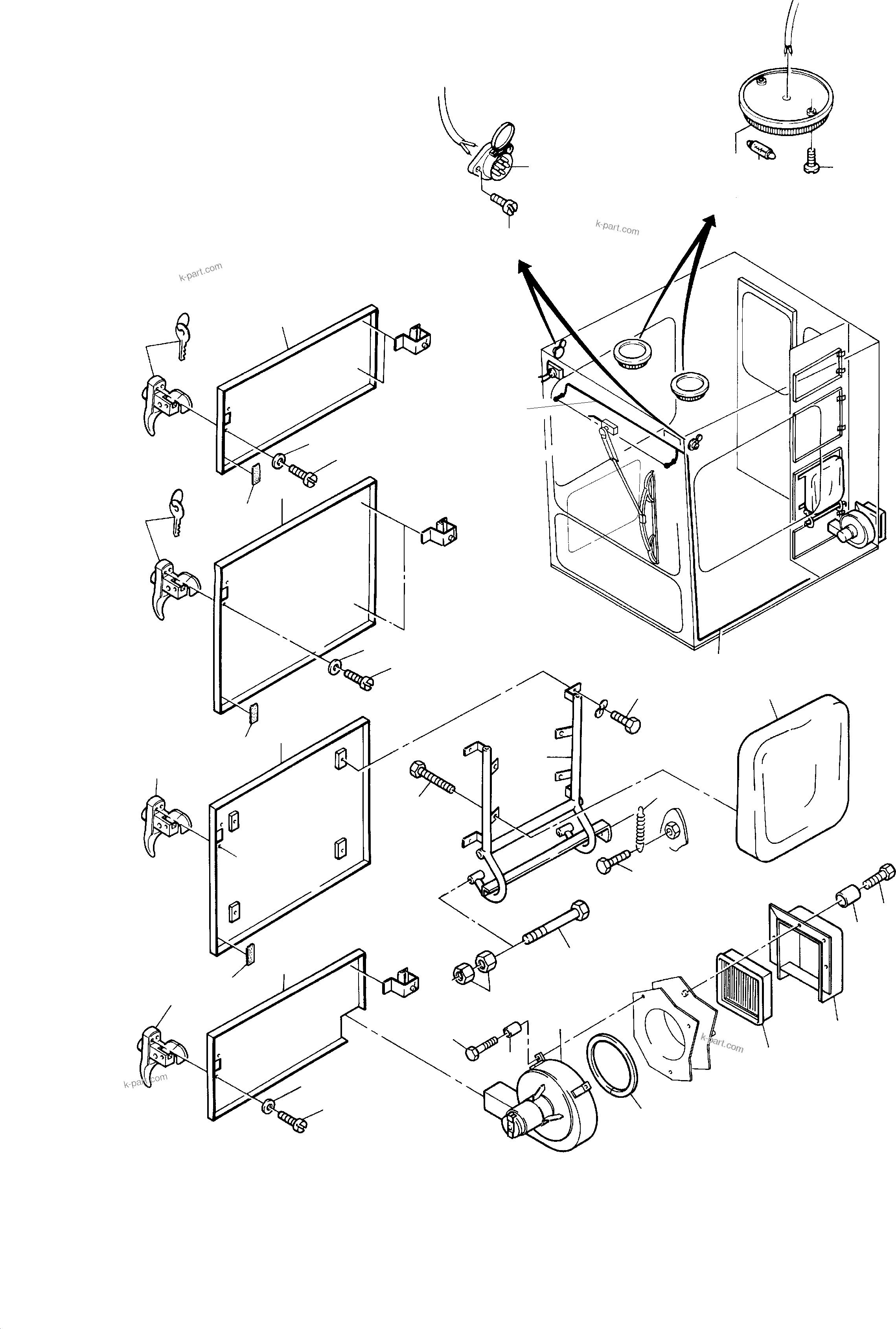

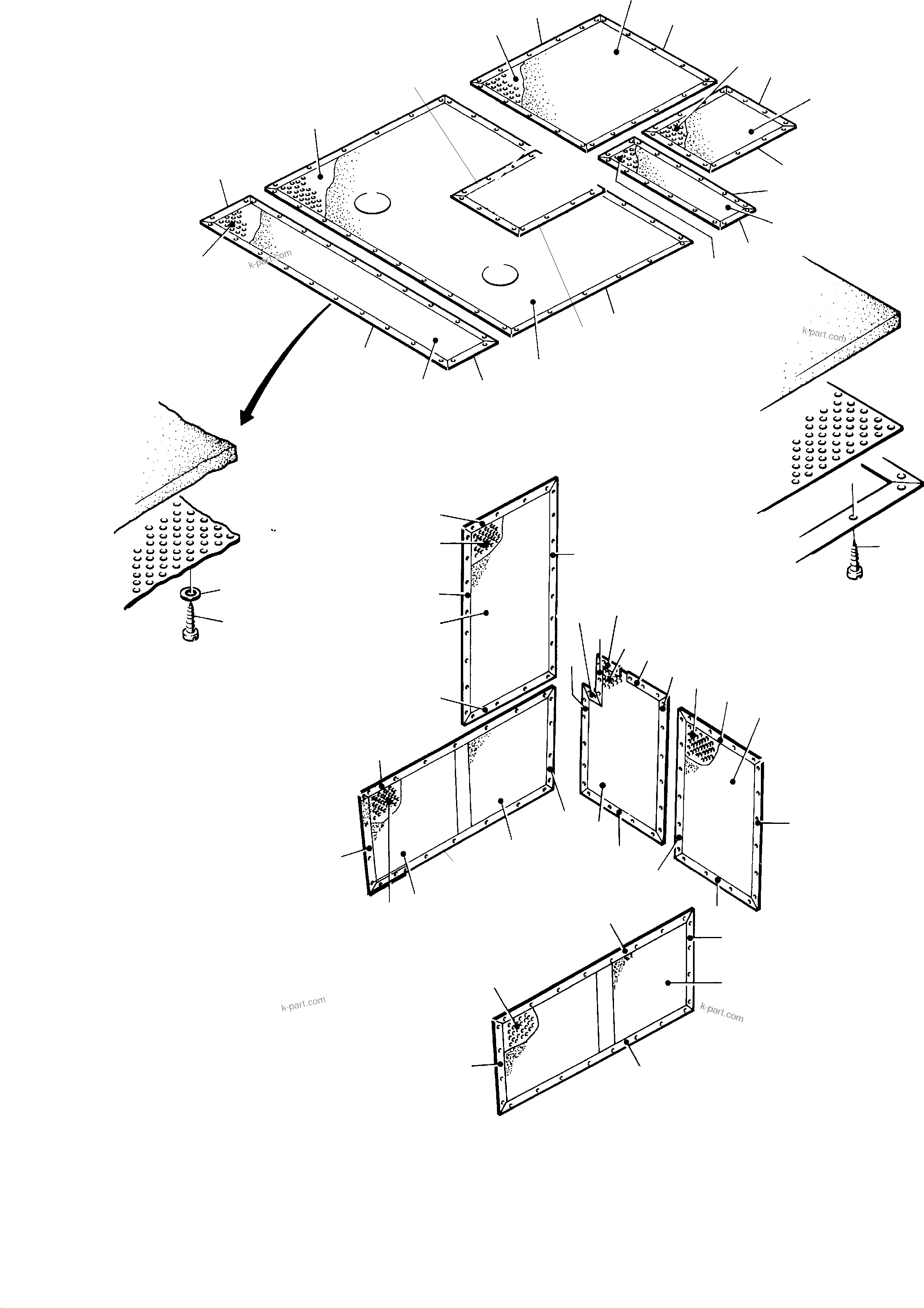

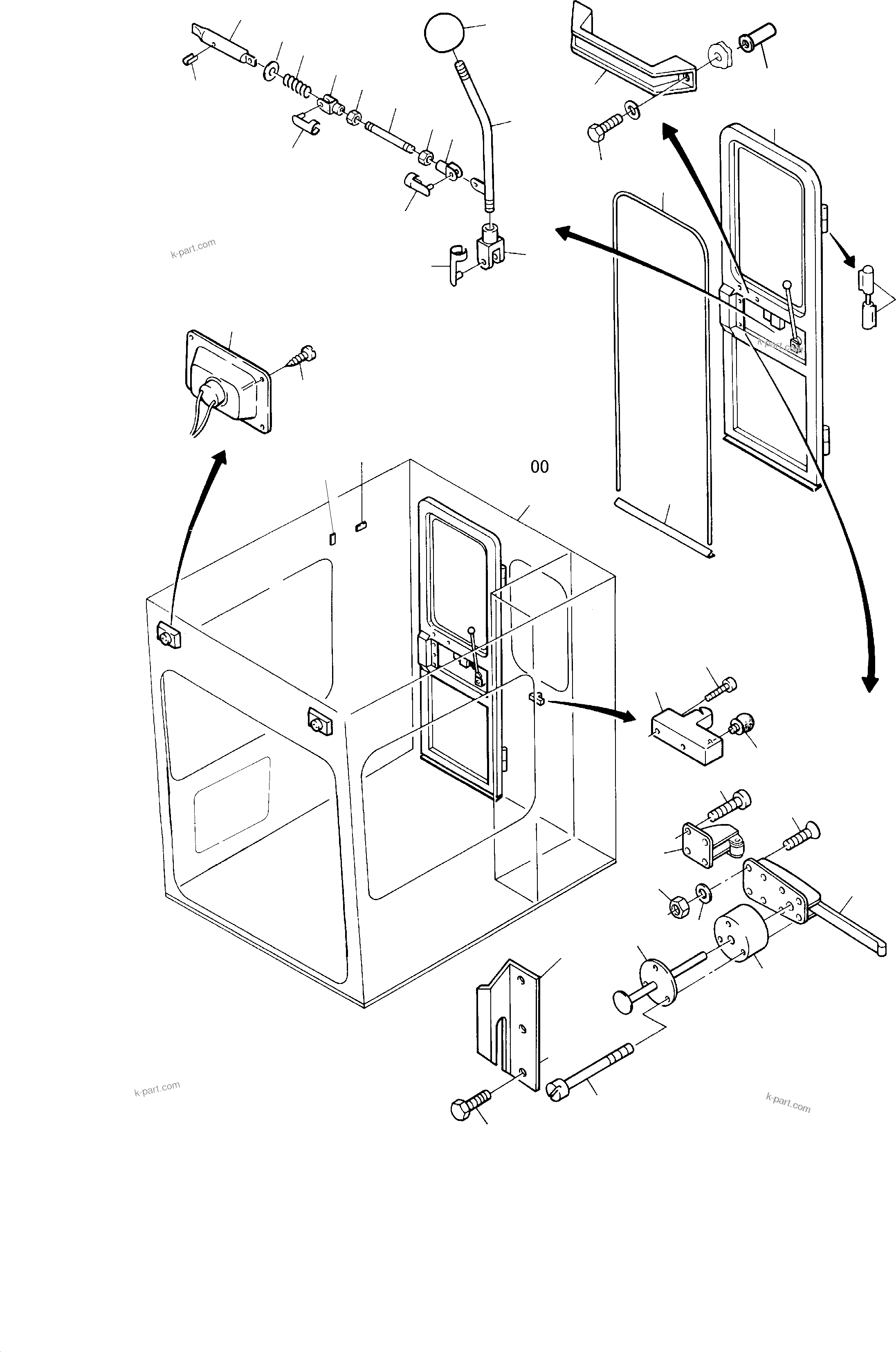

OPERATOR'S CAB (991-0163a) in H455-SD S/N 15009. Diagram image and parts list.
