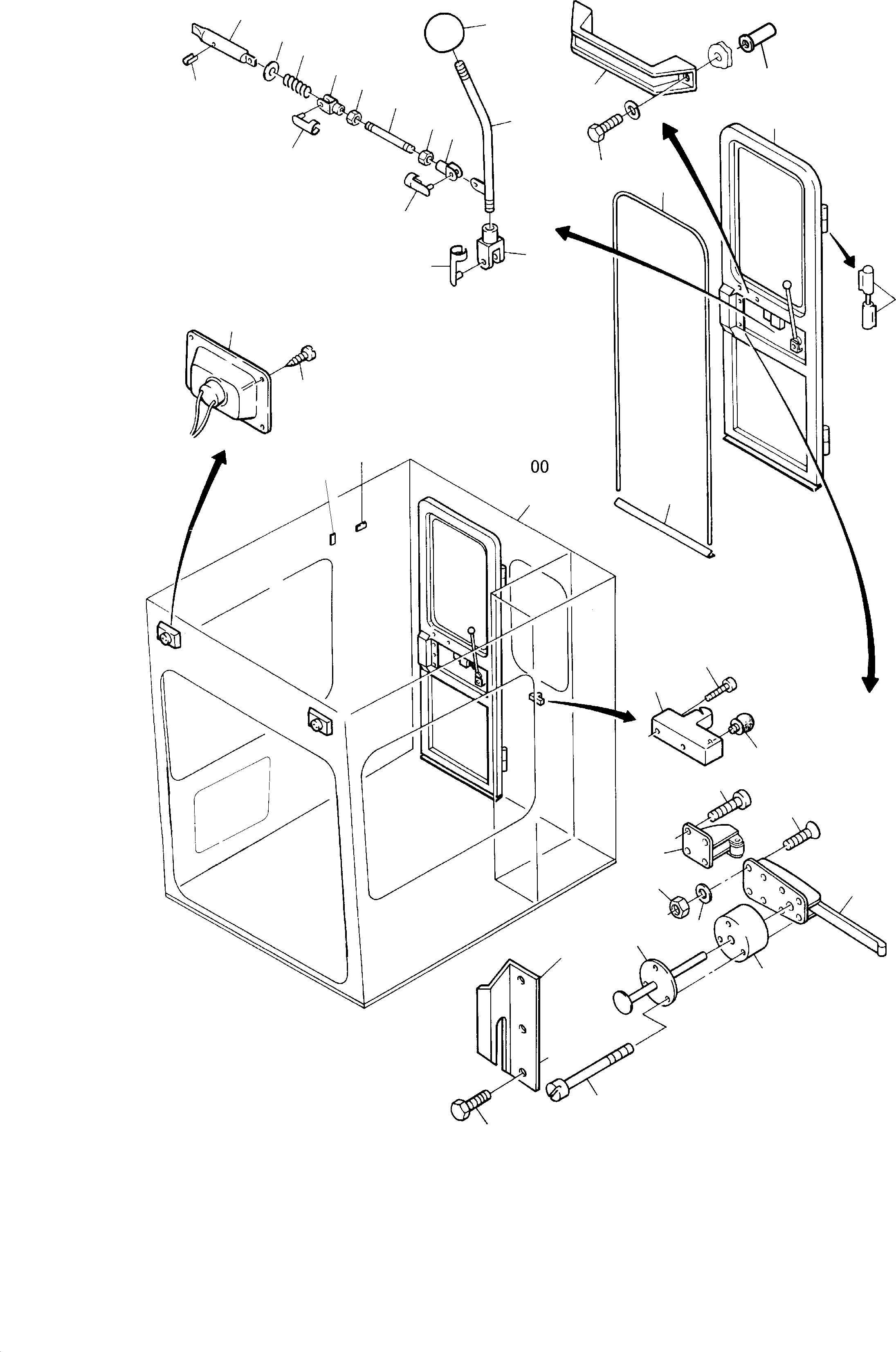

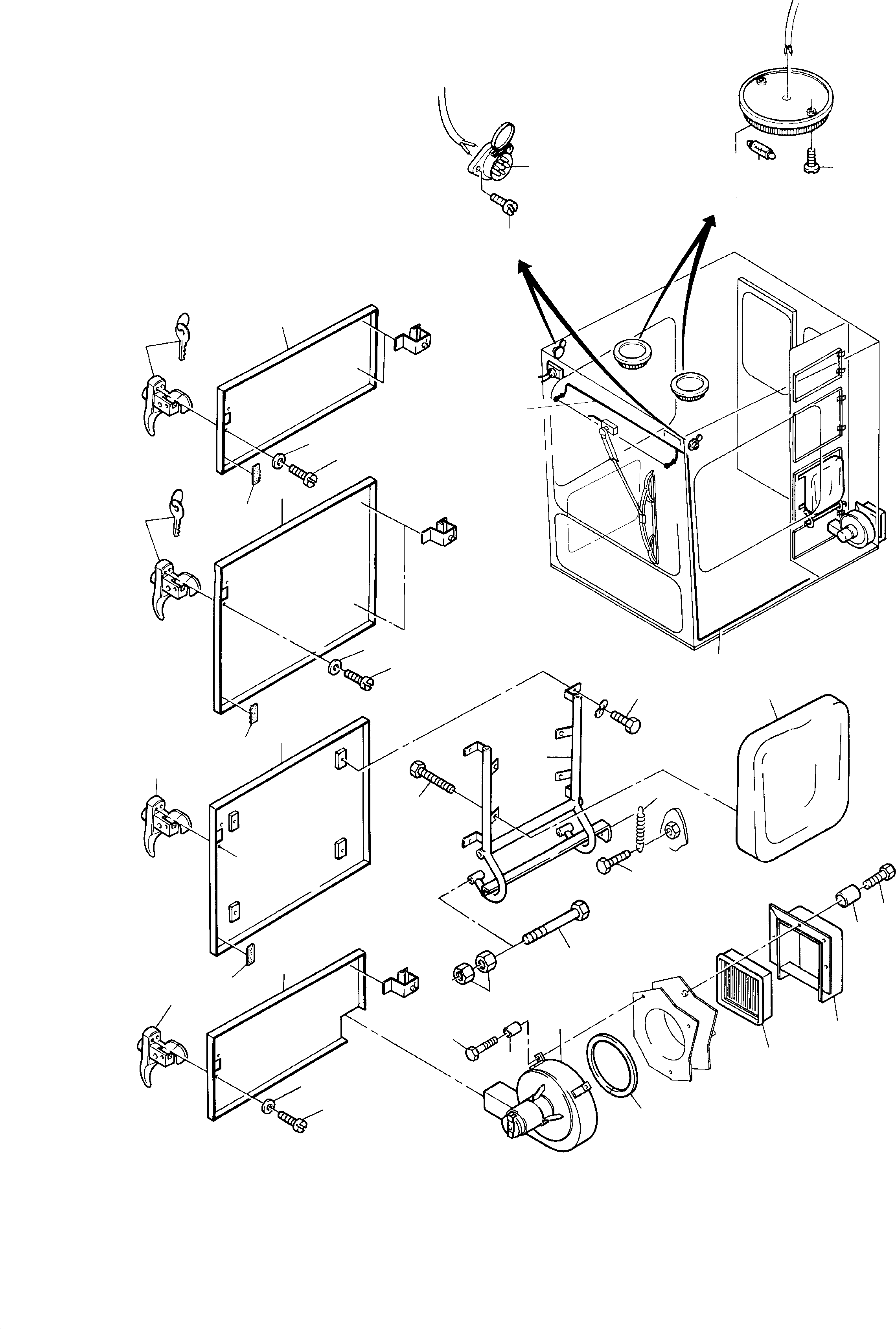

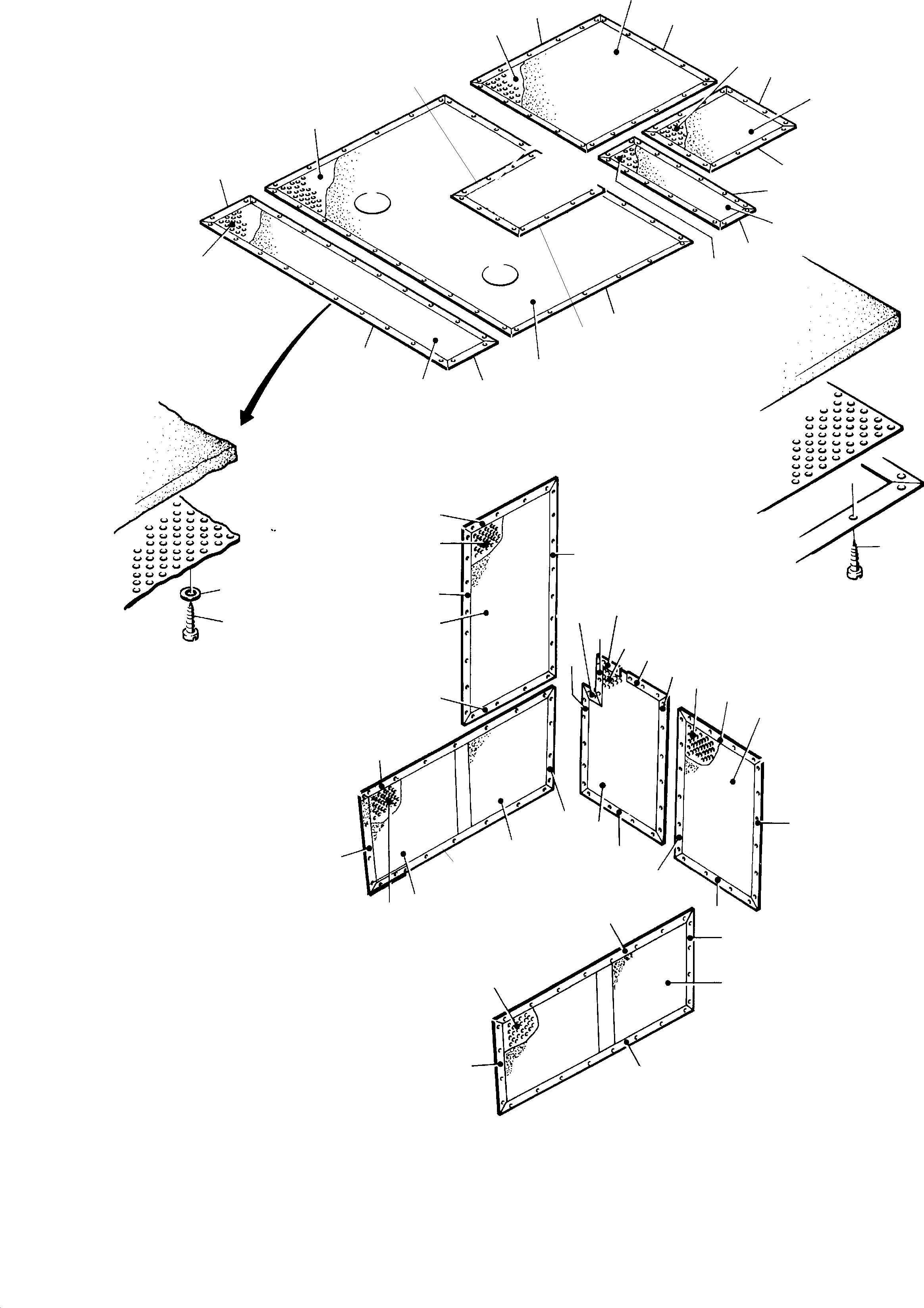

Diagram image 1 of 3

H455-SD S/N 15009

01 02 05 108 109 113 114 116 118 123 127 130 133 150 151 42 44 45 46 47 48 61 67 67 68 70 72 72 76 76 78 79 80 80 81 82 83 83 89 90 91 96 97

H455-SD S/N 15009

03 04 101 106 119 120 121 122 124 125 126 128 129 152 153 154 155 39 40 49 64 65 66 67 69 73 73 73 73 74 74 74 77 84 85 86 92 92 93 93 99 99

H455-SD S/N 15009

06 06 07 07 08 08 08 09 09 110 111 115 12 13 131 132 14 15 15 16 19 20 21 22 23 24 25 26 27 28 29 29 30 30 31 32 33 34 35 37 38 41 50 51 52 53 54 55 56 57 58 59 60 62 62 63 75 87 98

#	Part Number	Partname	Quantity	Options
\|$$1	883 778 40	Operator's cab fig-nos. 01-133	1	InternBDB: Fa. Matek
01	883 777 40	Operator's cab w/o mounting parts	1
02	651 850 40	Door w/o mounting parts	1
03	882 210 40	Seat frame	1
04	489 160 40	Door	1
05	385 708 40	Lever assy.	1
06	385 709 40	Border cleat	2	InternBDB: Fa. Happich
07	489 165 40	Border cleat	2
08	489 166 40	Border cleat	3
09	898 544 40	Border cleat	2
12	489 170 40	Border cleat	1
13	489 171 40	Border cleat	1
14	489 172 40	Border cleat	1
15	627 601 40	Border cleat	2
16	489 174 40	Border cleat	4
19	627 602 40	Border cleat	2
20	623 999 40	Border cleat	2
21	489 176 40	Border cleat	2
22	627 603 40	Border cleat	2
23	491 022 40	Border cleat	1
24	491 023 40	Border cleat	1
25	491 024 40	Border cleat	1
26	385 729 40	Border cleat	1
27	385 730 40	Border cleat	1
28	385 731 40	Border cleat	1
29	489 178 40	Border cleat	2
30	489 179 40	Border cleat	2
31	898 541 40	Perforated plate	1
32	489 181 40	Covering	1
33	627 604 40	Perforated plate	1	InternBDB: 1,5x145x1371
34	627 605 40	Perforated plate	1	InternBDB: 1,5x856x1371 Almet
35	651 866 40	Covering	1	InternBDB: Almet
37	489 185 40	Insulation board	1	InternBDB: Grw + Hartm.
38	627 606 40	Insulation board	2	InternBDB: Grw + Hartm. 50x109x692
39	489 187 40	Door sheet	1
40	489 188 40	Door sheet	1
41	623 996 40	Border cleat	2
42	896 542 40	Dressing hook	1	InternBDB: Happich 621 0057
44	356 533 40	Catch	1
45	374 222 40	Detent	1
46	368 431 40	Washer	1
47	356 535 40	Compression spring	1
48	356 536 40	Threaded rod	1
49	236 098 40	Draw spring	1
50	489 190 40	Perforated plate	1	InternBDB: 1,5x451x887
51	489 191 40	Perforated plate	1	InternBDB: 1,5x451x1126
52	627 607 40	Perforated plate	1	InternBDB: 1,5x678x741
53	489 193 40	Insulation board	1	InternBDB: 80x463x849
54	489 194 40	Insulation board	1	InternBDB: 80x463x1088
55	489 195 40	Insulation board	1	InternBDB: 80x518x463
56	489 196 40	Insulation board	2	InternBDB: 80x518x690
57	627 608 40	Insulation board	1	InternBDB: Grw + Hartm. 50x820x1435
58	489 198 40	Insulation board	1	InternBDB: Grw + Hartm. 50x435x545
59	627 609 40	Insulation board	1	InternBDB: Grw + Hartm. 50x692x755
60	386 444 40	Insulation board	1	InternBDB: 513x637
61	345 178 99	Dowel pin	1	InternBDB: 6x30 /1481
62	500 489 98	Tapping screw	265	InternBDB: 3,5x13 C /7973
63	385 203 40	Shim	13	InternBDB: Fa. Happich 336 0001
64	507 037 98	Nut	2	InternBDB: M 10 /985
65	308 581 99	Bolt	1	InternBDB: M10x70 /931 8.8
66	307 756 99	Bolt	1	InternBDB: M8x30 /933 8.8
67	307 728 99	Bolt	2	InternBDB: M6x16 /933 8.8
68	635 261 40	Handle with lock	1	InternBDB: Kason 0056 CH 5020
69	308 536 99	Bolt	4	InternBDB: M6x40 /931 8.8
70	319 421 99	Screw	2	InternBDB: M8x35 /912 8.8
72	332 110 99	Nut	2	InternBDB: M 6 /934
73	320 974 99	Screw	20	InternBDB: M4x10 /84 4.8 B2E
74	346 508 99	Lock washer	12	InternBDB: B 4 /128
75	627 611 40	Perforated plate	1	InternBDB: 1,5x194x679
76	500 937 98	Tapping screw	12	InternBDB: ST 3,9x9,5 C /7971
77	320 977 99	Screw	4	InternBDB: M4x25 /84 4.8 B2E
78	635 262 40	Stop	1	InternBDB: Kason 0056 00 5002
79	356 130 40	Silent bloc	1	InternBDB: Phoenix 781053
80	350 748 99	Fork end	2	InternBDB: G 6x12 /71752
81	350 742 99	Fork end	1	InternBDB: G 10x20 /71752 9SMN28
82	002 827 98	Pin	1	InternBDB: 10x20 ESN 01 WN 010 869 99 9SMN28K
83	002 823 98	Pin	2	InternBDB: 6x12 ESN 01 WN 010 869 99 9SMN28K
84	551 289 40	Seat upholstery	1	InternBDB: 016901 Grammer 400 breit Integral schwarz
85	058 380 40	Dome light	2	InternBDB: 2 JA 003232-001
86	057 295 40	Socket	2	InternBDB: 0 352 030 002 Bosch
87	627 612 40	Perforated plate	1	InternBDB: 1,5x421x533
89	635 495 40	Handle	1	InternBDB: Kason 0481 A 00600
90	651 865 40	Spacer block	1
91	490 060 40	Handle	1	InternBDB: Happich GHE-Nr. 581 A 388
92	385 232 40	Catch	2	InternBDB: Happich 580 A 837
93	385 233 40	Catch	2	InternBDB: Happich 580 A 838
96	167 694 40	Profiled joint 4400 lg. Bulk ware, state length required	-2	InternBDB: GHE 461 0046, 4,4 m
97	166 575 40	Profiled joint 620 lg. Bulk ware, state length required	-2	InternBDB: GHE 461 0048, 0,62 m
98	623 997 40	Border cleat	2
99	196 488 40	Connection hose Bulk ware, state length required	-2	InternBDB: 6x1 SWF 902.916, 6,3 m
101	057 278 40	Socket	1	InternBDB: 0 352 221 001 Bosch
106	636 395 40	Door	1
108	896 705 40	Speaker	1	InternBDB: AL 100 BLAUPUNKT 7 606 100 001 PAARWEISE
109	655 112 40	Push switch	1	InternBDB: SWF 511 019
110	623 998 40	Border cleat	2
111	627 610 40	Insulation board	1	InternBDB: 50x157x692 Grw + Hartm.
113	491 026 40	Sheet metal	1
114	318 383 99	Countersunk screw	6	InternBDB: M6x30 /963
115	385 727 40	Border cleat	1
116	340 506 99	Disc	4	InternBDB: A 6,4 / 125
118	507 025 98	Nut	4	InternBDB: M6 / 985
119	575 042 40	Rubber cord	2	InternBDB: Happich 10x3x260
120	575 043 40	Rubber cord 460 Bulk ware, state length required	1	InternBDB: Happich 10x3x460
121	575 044 40	Rubber cord 500 Bulk ware, state length required	1	InternBDB: Happich 10x3x500
122	636 385 40	Filter box assy.	1
123	318 382 99	Screw	4	InternBDB: M6 x 22 / 963
124	269 055 40	Air filter	1	InternBDB: 30 000.218
125	510 747 98	Resilient sleeve	3	InternBDB: 8,4 /15x35 WN 341 948 40
126	307 760 99	Bolt	3	InternBDB: M8x50 /933
127	319 127 99	Screw	3	InternBDB: M5 x 50 / 912
128	307 735 99	Bolt	3	InternBDB: M6x35 /933
129	324 390 40	Rubber cord Bulk ware, state length required	-2	InternBDB: Happich 423 0002, 1,0 m
130	490 061 40	Rivet	2	InternBDB: Happich GHE-Nr. 335 0 415
131	457 241 40	Border cleat	1
132	457 242 40	Border cleat	1
133	896 543 40	Cap	1	InternBDB: Happich 621 0058
150	506 825 98	Ball handle	1
151	440 556 40	Band roller	2
152	058 208 40	Bulb	4	InternBDB: 24 V 10 W
153	501 026 40	Bulb	2	InternBDB: 24 V 18 W
154	324 391 40	H.P. blower	1	InternBDB: Hornkohl + Wolf 33-0158-/24V
155	511 262 98	Resilient sleeve	3	InternBDB: 6,4 / 12x25 WN 341 948 40
\|$$123	515 213 40	Cable 1,0 qmm for interior lighting and speaker Bulk ware, state length required	-2	InternBDB: 32 meter KIW Essen hellblau \| InternKon: 255-1905 / 17
\|$$124	515 214 40	Cable 2,5 qmm for wipers and electrical outlets Bulk ware, state length required	-2	InternBDB: 13 meter KIW Essen hellblau \| InternKon: 255-1905 / 18
\|$$125	655 675 40	Cable 6,0 qmm for air conditioning equipment Bulk ware, state length required	-2	InternBDB: 8 meter KIW Essen blau \| InternKon: 255-1905 / 100
\|$$126	270 873 40	Cable channel 1,8 m lenght Bulk ware, state length required	-2	InternBDB: Sievert Tehalit 40 x 40 BA 640040 \| InternKon: 255-1905 / 102
