898 100 40
|

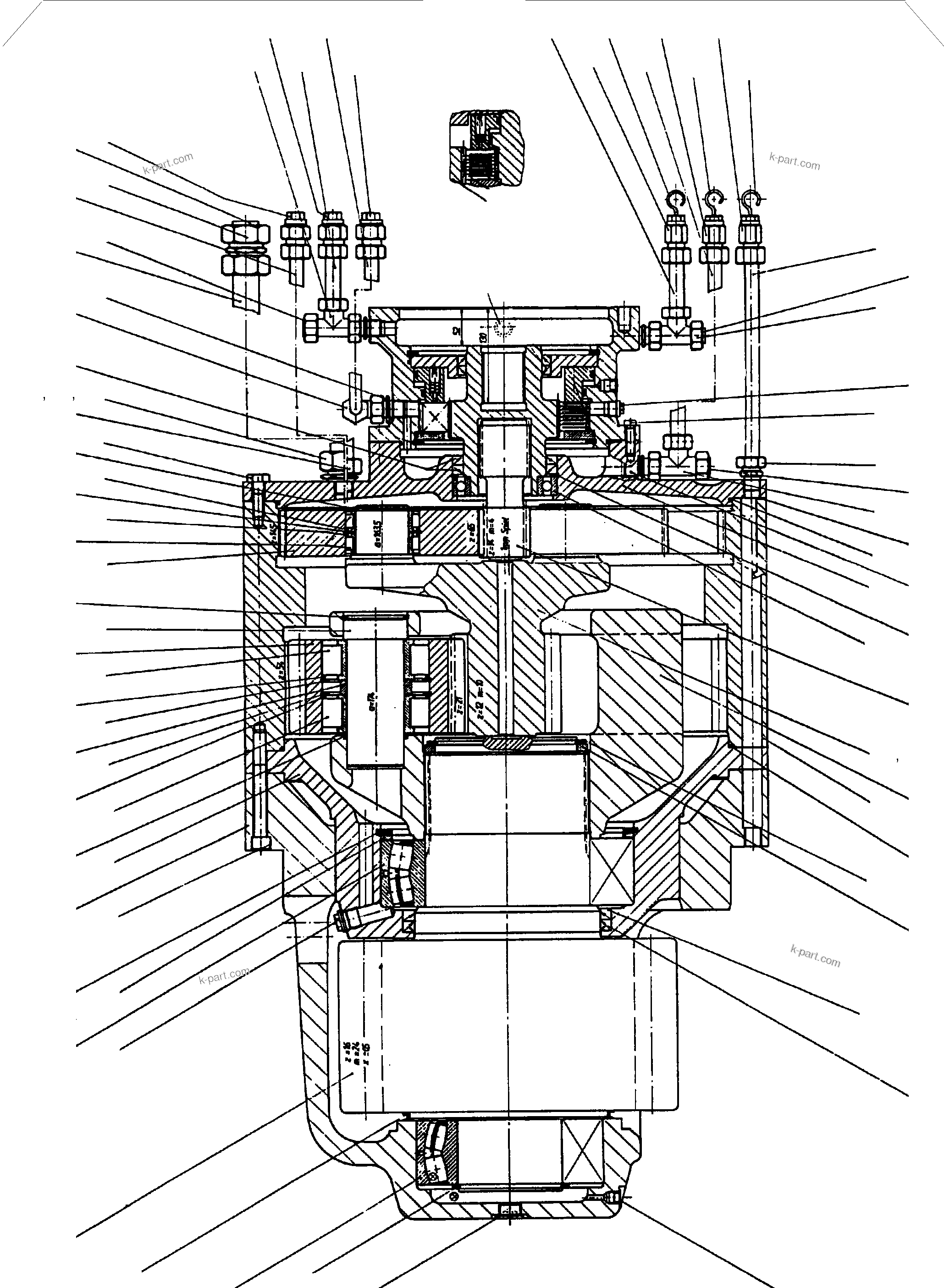

Slew gearbox assy. |
1 |
InternBDB: Lohmann u. Stolterfoht GFB 174 E 1015 AT-Nr. 710 903 73
|
|
|
|
? |
|
Brake |
1 |
InternBDB: GFY 300 A 1041 / 768 459 73
|
991-0256 |
|
|
? |
767 766 73
|
Ring gear |
1 |
InternBDB: 1/0334/9721/0 GFB 174
|
|
|
|
? |
767 765 73
|
Cartridge |
1 |
InternBDB: 0/0020/9364/3 GFB 174 E
|
|
|
|
? |
767 767 73
|
Output pinion |
1 |
InternBDB: 1/0252/9522/1
|
|
|
|
? |
763 729 73
|
Planet carrier |
1 |
InternBDB: 938455 0/0385/9005/0
|
|
|
|
? |
757 238 73
|
Planet bolt |
3 |
InternBDB: 931653 3/0220/9385/1
|
|
|
|
? |
757 241 73
|
Planet gear |
3 |
InternBDB: 931644 2/0305/9898/0
|
|
|
|
? |
768 155 73
|
Planetary Carrier assy
consist of fig. no. 08,09,11,17,
19,32,35,37,52,53 |
1 |
InternBDB: 216836
|
|
|
|
? |
763 730 73
|
Disk |
1 |
InternBDB: 4/0409/7343/0
|
|
|
|
? |
757 360 73
|
Sun gear shaft |
1 |
InternBDB: 938181 2/0252/9261/1
|
|
|
|
? |
768 454 73
|
Disk |
1 |
InternBDB: 938561 4/0409/9898/0
|
|
|
|
? |
507 751 98
|
Cylindrical roller bearing |
6 |
InternBDB: 411650 RSL 182315 DIN 5412
|
|
|
|
? |
507 746 98
|
Spherical roller bearing |
1 |
InternBDB: 412548 23228 JS/C3 DIN 635
|
|
|
|
? |
513 531 98
|
Spherical roller bearing |
1 |
InternBDB: 412110 23044 MS DIN 635
|
|
|
|
? |
501 933 98
|
Circlip |
1 |
InternBDB: 452369 340x6 DIN 472
|
|
|
|
? |
763 735 73
|
Clamp collar |
1 |
InternBDB: 462109 V 275 L
|
|
|
|
? |
504 544 98
|
Radial shaft seal ring |
2 |
InternBDB: 461319 250x280x15 C DIN 3760
|
|
|
|
? |
507 748 98
|
O-ring |
2 |
InternBDB: 463378 595x4 DIN 3771
|
|
|
|
? |
342 666 99
|
Circlip |
3 |
InternBDB: 452257 85x3 DIN 472
|
|
|
|
? |
342 679 99
|
Circlip |
6 |
InternBDB: 452287 145x4 DIN 472
|
|
|
|
? |
342 497 99
|
Circlip |
1 |
InternBDB: 452111 190x4 DIN 471
|
|
|
|
? |
592 242 40
|
Locating ring |
6 |
InternBDB: 462525 F 92069
|
|
|
|
? |
349 989 99
|
Screw plug |
1 |
InternBDB: 444134 M26x1,5 A DIN 7604
|
|
|
|
? |
340 084 99
|
Seal ring |
1 |
InternBDB: 462049 A 26x31x2 DIN 7603
|
|
|
|
? |
313 386 99
|
Screw plug |
1 |
InternBDB: 444178 M30x1,5 DIN 908
|
|
|
|
? |
339 932 99
|
Seal ring |
1 |
InternBDB: 462055 A 30x36x2 DIN 7603
|
|
|
|
? |
319 196 99
|
Socket head cap screw |
4 |
InternBDB: 445157 M16x140 DIN 912
|
|
|
|
? |
757 240 73
|
Spacer ring |
3 |
InternBDB: 4/0406/9538/0 GFA 174
|
|
|
|
? |
763 731 73
|
Spacer ring |
3 |
InternBDB: 4/0400/9791/0
|
|
|
|
? |
342 578 99
|
Circlip |
1 |
InternBDB: 452086 140x4 DIN 471
|
|
|
|
? |
510 511 98
|
Radial shaft seal ring |
2 |
InternBDB: 461252 110x140x12 A DIN 3760
|
|
|
|
? |
360 518 99
|
Ball bearing |
1 |
InternBDB: 410288 6018 J DIN 625
|
|
|
|
? |
342 678 99
|
Circlip |
1 |
InternBDB: 452285 140x4 DIN 472
|
|
|
|
? |
767 763 73
|
Planet carrier |
1 |
InternBDB: 938458 0/0385/9221/0 GFB 174
|
|
|
|
? |
767 764 73
|
Planet gear |
3 |
InternBDB: 938459 1/0303/9568/0 GFB 174
|
|
|
|
? |
506 448 98
|
Cylindrical roller bearing |
6 |
InternBDB: 411624 RSL 183014 DIN 5412
|
|
|
|
? |
806 076 73
|
Locating ring |
6 |
InternBDB: 462077 F 88831
|
|
|
|
? |
342 560 99
|
Circlip |
3 |
InternBDB: 452051 70x2,5 DIN 471
|
|
|
|
? |
342 670 99
|
Circlip |
3 |
InternBDB: 452265 100x3 DIN 472
|
|
|
|
? |
768 156 73
|
Planetary carrier assy
consist of fig. no. 89,90,91
94,95,96 |
1 |
InternBDB: 216837
|
|
|
|
? |
768 458 73
|
Adapter flange |
1 |
InternBDB: 938584 1/0469/9503/3
|
|
|
|
? |
319 288 99
|
Socket head cap screw |
4 |
InternBDB: 441278 M16x50 DIN 912
|
|
|
|
? |
319 158 99
|
Hex head bolt |
12 |
InternBDB: 445095 M12x40 /933
|
|
|
|
? |
507 748 98
|
O-ring |
1 |
InternBDB: 463378 595x4 DIN 3771
|
|
|
|
? |
313 178 99
|
Screw plug |
1 |
InternBDB: 444210 G1/2" DIN 910
|
|
|
|
? |
339 950 99
|
Seal ring |
1 |
InternBDB: 462057 A 42x49x2 DIN 7603
|
|
|
|
? |
313 314 99
|
Screw plug |
3 |
InternBDB: 444186 M22x1,5 DIN 910
|
|
|
|
? |
340 294 99
|
Seal ring |
3 |
InternBDB: 462045 A22x27x1,5 DIN 7603
|
|
|
|
? |
763 843 73
|
Drive Shaft |
1 |
InternBDB: 2/0252/9842/0
|
|
|
|
? |
768 464 73
|
Plug |
1 |
InternBDB: 469001 GPN 710 R 1/4"
|
|
|
|
? |
768 843 73
|
Dipstick |
1 |
InternBDB: 811315 G1/2" x425
|
|
|
|
? |
512 004 98
|
O-ring |
1 |
InternBDB: 463097 22,2x3 DIN 3771
|
|
|
|
? |
339 998 99
|
Seal ring |
1 |
InternBDB: 462053 A 21x26x1,5 DIN 7603
|
|
|
|
? |
763 736 73
|
Bearing ring |
1 |
InternBDB: 1/0406/9672/1
|
|
|
|
? |
215 812 99
|
Precision tubing 18x1,5
Bulk ware, state length
required |
-2 |
InternBDB: 062063 DIN 2391/C 0,71 m
|
|
|
|
? |
372 035 99
|
Union |
1 |
InternBDB: 437321 EVL 18-PLR
|
|
|
|
? |
371 856 99
|
Union |
5 |
InternBDB: 437402 BUZ 18-L
|
|
|
|
? |
763 841 73
|
Union |
2 |
InternBDB: 309014 EVL 18-PLM
|
|
|
|
? |
215 812 99
|
Precision tubing 18x1,5
Bulk ware, state length
required |
-2 |
InternBDB: 062063 DIN 2391/C 0,08 m
062063 DIN 2391/C
|
|
|
|
? |
372 824 99
|
Union |
2 |
InternBDB: 437345 GAI 18-PLM
|
|
|
|
? |
215 812 99
|
Precision tubing 18x1,5
Bulk ware, state length
required |
-2 |
InternBDB: 062063 DIN 2391/C 0,3 m
062063 DIN 2391/C
|
|
|
|
? |
501 774 98
|
Union |
1 |
InternBDB: 437218 GE 18-PLM-ED
|
|
|
|
? |
763 786 73
|
Union |
1 |
InternBDB: 437530 EVW 18-PLR
|
|
|
|
? |
372 451 99
|
Union |
1 |
InternBDB: 437530 GE 18-PLR DIN DL 18
|
|
|
|
? |
372 834 99
|
Union |
1 |
InternBDB: 437437 GAI 18-PLR
|
|
|
|
? |
768 382 73
|
Dipstick |
1 |
InternBDB: 811318 G1/2" x320
|
|
|
|
? |
768 381 73
|
Dipstick |
1 |
InternBDB: 811319 G1/2" x150
|
|
|
|
? |
215 812 99
|
Precision tubing 18x1,5
Bulk ware, state length
required |
-2 |
InternBDB: 062063 DIN 2391/C 0,3 m
062063 DIN 2391/C
|
|
|
|
? |
215 812 99
|
Precision tubing 18x1,5
Bulk ware, state length
required |
-2 |
InternBDB: 062063 DIN 2391/C 0,13 m
062063 DIN 2391/C
|
|
|
|
? |
215 812 99
|
Precision tubing 18x1,5
Bulk ware, state length
required |
-2 |
InternBDB: 062063 DIN 2391/C 0,32 m
062063 DIN 2391/C
|
|
|
|
? |
372 454 99
|
Union |
1 |
InternBDB: 437223 GE 35-PLR Fitting DIN DL35
|
|
|
|
? |
215 820 99
|
Precision tubing 35x2
Bulk ware, state length
required |
-2 |
InternBDB: 062142 DIN 2391/C 0,32 m
06142 DIN 2391/C
|
|
|
|
? |
768 462 73
|
Union |
1 |
InternBDB: 437523 G35 -PL Fitting
|
|
|
|
? |
768 463 73
|
Union |
1 |
InternBDB: 434304 BUZ 35-L Fitting
|
|
|
|
? |
509 992 98
|
Plug |
1 |
InternBDB: 444203 G1/2 DIN 910
|
|
|
|
? |
339 998 99
|
Seal ring |
1 |
InternBDB: 462053 A 21x26x1,5 DIN 7603
|
|
|
|
? |
313 267 99
|
Plug |
5 |
InternBDB: 444186 M22x1,5 DIN 910
|
|
|
|
? |
340 294 99
|
Seal ring |
5 |
InternBDB: 462045 A 21x27x1,5 DIN 7603
|
|
|
|
? |
768 461 73
|
Seal Kit Slew Gearbox
consist of fig. no. 24,25,26
27,61,125 |
1 |
InternBDB: 217727 E-ST
|
|
