SLEW GEAR ARR. | H455-SD S/N 15009 | Komatsu parts book catalogue

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

Diagram image 1 of 2

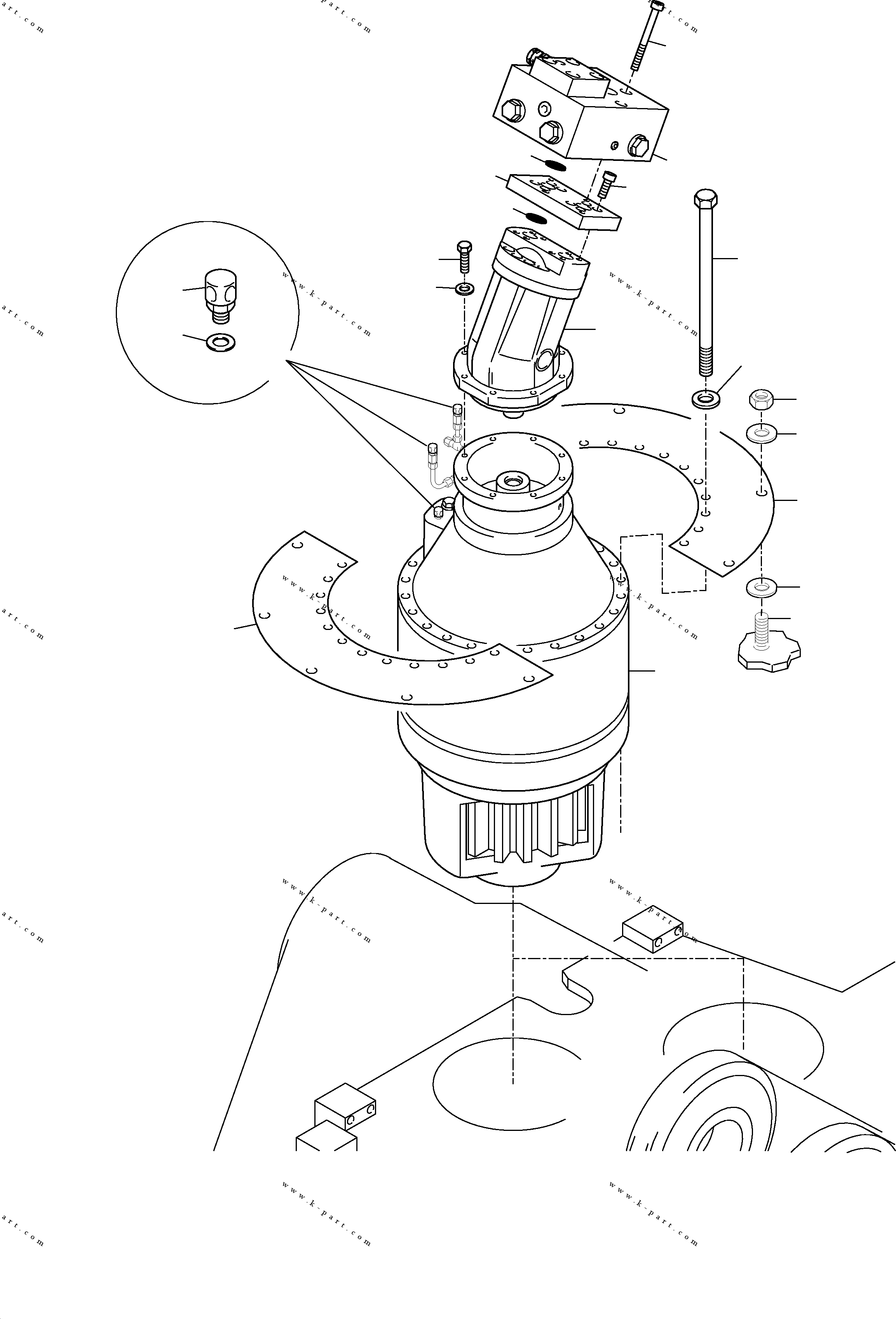

H455-SD S/N 15009

01 02 03 04 05 05 06 07 08 09 10 11 12 13 14 15 16 17 18 20

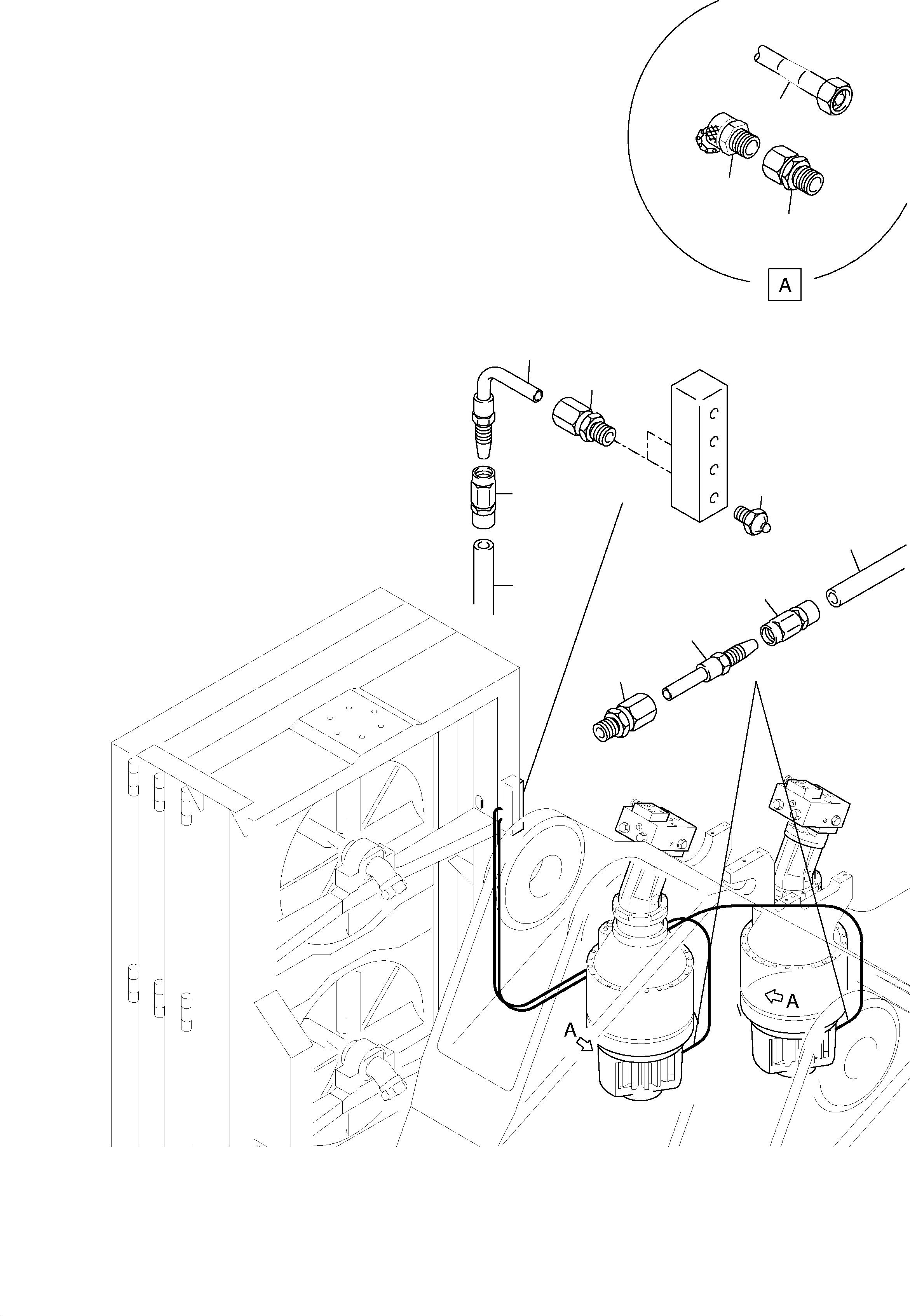

H455-SD S/N 15009

35 37 38 39 40 40 41 41 42 43 44 50

#	Part Number	Partname	Quantity	Options	Reference
01		Slew gearbox	2	InternBDB: 898 100 40 \| InternKon: 653 660 40 / 10	991-0240a
02		Slew gear motor	2	InternBDB: 896 590 40 \| InternKon: 653 660 40 / 18	090-0996a
03		Slew-brake valve	2	InternBDB: 655 855 40 \| InternKon: 653 660 40 / 36	991-0181
04	514 693 40	Intermediate plate	2	InternKon: 653 660 40 / 37
05	356 209 40	O-ring	4	InternBDB: 1 1/2 \| InternKon: 653 660 40 / 59
06	319 286 99	Bolt	16	InternBDB: M16x35 /912 \| InternKon: 653 660 40 / 39
07	501 784 98	Bolt	8	InternBDB: M20x190 /912 \| InternKon: 653 660 40 / 38
08	307 454 99	Bolt	16	InternBDB: M16x50 /933 \| InternKon: 653 660 40 / 28
09	316 211 99	Washer	16	InternBDB: Ш 17 \| InternKon: 653 660 40 / 29
10	323 460 40	Bleeder valve	6	InternKon: 653 660 40 / 30
11	515 791 98	Bolt	48	InternBDB: M24x540 / 12.9 \| InternKon: 653 660 40 / 27
12	316 213 99	Washer	48	InternBDB: Ш 25 \| InternKon: 653 660 40 / 26
13	901 619 40	Cover plate	2	InternKon: 653 660 40 / 46
14	901 620 40	Cover plate	2	InternKon: 653 660 40 / 47
15	507 037 98	Nut	16	InternBDB: M 10 / DIN 985 \| InternKon: 653 660 40 / 48
16	340 465 99	Washer	16	InternBDB: Ш 10.5 / DIN 125 \| InternKon: 653 660 40 / 49
17	507 488 98	Thread Pin	16	InternBDB: PM 10x20 /933 \| InternKon: 653 660 40 / 51
18	506 129 98	Washer	16	InternBDB: Ш 13,5 / DIN 440 \| InternKon: 653 660 40 / 50
20	339 907 99	Seal ring	6	InternBDB: 22x27x1,5 / CU /7603
35	515 362 40	Oil drain coupling	2	InternBDB: EV 1019 \| InternKon: 653 660 40 / 31
37	872 200 40	Union	2	InternBDB: DKG \| InternKon: 653 660 40 / 52
38	372 456 99	Union	2	InternBDB: DS 6
39	515 027 40	Hose connection	2	InternKon: 574 500 40 / 46
40	515 028 40	Hose fittings	4	InternKon: 574 500 40 / 44
41	576 160 40	Hose DN 4 Bulk ware, state length required	-2	InternKon: 574 500 40 / 45
42	515 029 40	Hose connection	2	InternKon: 574 500 40 / 43
43	372 456 99	Union	2	InternBDB: D S6 / 2353 \| InternKon: 574 500 40 / 48
44	004 860 98	Grease nipple	2	InternBDB: AR 1/4 \| InternKon: 574 500 40 / 47
50	490 586 40	Hose 2500	1	InternKon: 653 559 40 / 66
