Diagram image 1 of 2

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

H455-SD S/N 15009

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Options	Reference
?		Graphic 1	-1
?		Pressure relief valve	1	InternBDB: 576 342 40 \| InternKon: 598 307 40 / 2	090-0416a
?	386 698 40	Valve block	1	InternKon: 598 307 40 / 1
?	594 260 40	Oil tank	1	InternKon: 598 300 40 / 1
?	389 472 40	Seal	1	InternKon: 598 300 40 / 12
?	316 213 99	Washer	4	InternKon: 598 300 40 / 38
?	304 327 99	Bolt	4	InternBDB: M24x330 /931 \| InternKon: 598 300 40 / 27
?	389 473 40	Seal	1	InternKon: 598 300 40 / 36
?	574 564 40	Standpipe	1	InternKon: 598 300 40 / 29
?	316 212 99	Washer	8	InternKon: 598 300 40 / 58
?	500 333 98	Bolt	8	InternBDB: M20x50 /933 \| InternKon: 598 300 40 / 57
?	890 013 40	Angle	1	InternKon: 598 300 40 / 51
?	414 480 40	Grating	1	InternKon: 598 300 40 / 61
?	317 319 40	Threaded block	4	InternKon: 598 300 40 / 62
?	317 318 40	Wing nut, plastic	4	InternKon: 598 300 40 / 63
?	502 354 98	Bolt	4	InternKon: 598 300 40 / 64
?	592 810 40	Clamp	1	InternKon: 598 300 40 / 54
?	598 311 40	Angle	1	InternKon: 598 300 40 / 53
?	334 599 99	Nut	5	InternBDB: M 8 \| InternKon: 598 300 40 / 56
?	081 495 40	Oil drain coupling	2	InternKon: 598 300 40 / 16
?	081 496 40	Protection cap	2	InternKon: 598 300 40 / 17
?	006 739 98	O-ring	6	InternBDB: 89,2x5,7 \| InternKon: 598 300 40 / 24
?	251 787 40	Cover	6	InternKon: 598 300 40 / 10
?	346 510 99	Lock washer	44	InternKon: 598 300 40 / 41
?	180 477 40	Plug	1	InternBDB: Vsti 1/2 \| InternKon: 598 300 40 / 52
?	324 550 40	Plug	1	InternBDB: 3/4 - NPT \| InternKon: 598 300 40 / 50
?	007 107 98	Union	2	InternBDB: 10-LM \| InternKon: 598 300 40 / 45
?	211 255 99	Plastic pipe Ш 10 Bulk ware, state length required	-2	InternKon: 598 300 40 / 46
?	501 539 98	Sleeve	2	InternKon: 598 300 40 / 47
?	904 478 40	Butterfly valve DN 200	1	InternKon: 909 074 40 / 15
?	500 716 40	Flange	1	InternKon: 598 300 40 / 43
?	440 723 40	Compensator DN 200	1	InternKon: 598 300 40 / 25
?	308 670 99	Bolt	4	InternBDB: M20x100 /931 \| InternKon: 598 300 40 / 35
?	340 470 99	Washer	12	InternBDB: Ш 21 \| InternKon: 598 300 40 / 44
?	308 675 99	Bolt	6	InternBDB: M20x150 /931 \| InternKon: 598 300 40 / 39
?	307 845 99	Bolt	2	InternBDB: M20x50 8.8 /933 \| InternKon: 598 300 40 / 28
?	334 686 99	Nut	6	InternBDB: M 20x985 \| InternKon: 598 300 40 / 31
?	769 653 73	Limit switch	1
?	515 812 98	Test coupling	1	InternKon: 598 300 40 / 22
?		Graphic 2	-1
?		Filter	2	InternBDB: 440 479 40 \| InternKon: 598 300 40 / 14	090-5586
?		Return oil filter	4	InternBDB: 655 234 40 \| InternKon: 598 300 40 / 13	991-0099
?	308 588 99	Bolt	5	InternBDB: M10x130 /931 \| InternKon: 598 300 40 / 34
?	355 097 40	Filter cover	5	InternKon: 598 300 40 / 4
?	621 587 40	Bushing	5	InternKon: 598 300 40 / 9
?	366 504 40	Compression spring	5	InternKon: 598 300 40 / 8
?	502 119 98	O-ring	5	InternBDB: 269,3x5,70 / NB 70 \| InternKon: 598 300 40 / 23
?	899 108 40	Cover	5	InternKon: 598 300 40 / 5
?	332 113 99	Nut	5	InternBDB: M 10 \| InternKon: 598 300 40 / 37
?	436 040 40	U-bolt	1	InternKon: 598 300 40 / 7
?	630 086 40	U-bolt	1	InternKon: 598 300 40 / 21
?	304 309 99	Bolt	2	InternBDB: M30x200 /931 \| InternKon: 598 300 40 / 26
?	512 324 98	Hose DN 12 x 530	1	InternBDB: DOL 15 / DOL 15 - 90 \| InternKon: 598 300 40 / 77
?	650 327 40	Cover	1	InternKon: 598 300 40 / 3
?	561 892 40	Seal	1	InternKon: 598 300 40 / 18
?	307 752 99	Bolt	49	InternBDB: M8x20 /933 \| InternKon: 598 300 40 / 32
?	313 274 99	Plug	1	InternBDB: M64x2 / 5.8 /910 \| InternKon: 598 300 40 / 48
?	340 129 99	Seal ring	1	InternBDB: A 64x72 / CU / 7603 \| InternKon: 598 300 40 / 49
?	674 874 40	Float switch	1	InternKon: 598 300 40 / 6
?	320 816 40	Bolt	4	InternBDB: M5x10 / 4.8 B2E / 84 \| InternKon: 598 300 40 / 30
?	343 852 99	Lock washer	4	InternBDB: A5 / 7980 \| InternKon: 598 300 40 / 40
?	180 037 40	Plug	1	InternBDB: 3/8" / NPTF \| InternKon: 598 300 40 / 66
?	340 086 99	Seal ring	1	InternBDB: A 30x38 / 7603 \| InternKon: 598 300 40 / 65
?	516 235 98	Socket	1	InternBDB: L 22-L / 3945 \| InternKon: 598 300 40 / 68
?	516 160 98	Socket	1	InternBDB: L 22 / 3942 \| InternKon: 598 300 40 / 67
?	603 344 40	Maintenance switch	1	InternKon: 903 344 40 / 20
?	513 102 98	Hose DN 10 x 700	2	InternBDB: DOL 12 / DOL 12 \| InternKon: 508 300 40 / 69
?	516 175 98	Socket	1	InternBDB: L 15 / 3944 \| InternKon: 508 300 40 / 70
?	513 545 98	Socket	2	InternBDB: RED 15/12-PL ST-A3C / WN34199440 \| InternKon: 508 300 40 / 71
?	371 459 99	Socket	2	InternBDB: L 12E-G 3/8 / 3901 \| InternKon: 508 300 40 / 72
?	516 157 98	Socket	2	InternBDB: L 12 / 3942 \| InternKon: 508 300 40 / 73
?	374 436 99	Socket	2	InternBDB: L 15E-G 1/2 / 3901 \| InternKon: 508 300 40 / 74
?	255 694 99	Plug	2	InternBDB: VSTI R 3/8 ED / WN 34193140 \| InternKon: 508 300 40 / 75
?		Return oil filter	1	InternBDB: 896 731 40 \| InternKon: 508 300 40 / 76	991-0292
?	500 333 99	Bolt	8	InternBDB: M20x50 10.9 /933 \| InternKon: 508 300 40 / 11
?	256 425 40	4/2 way directional spool valve	1	InternBDB: Rexroth 4 WE-06 / C 50 AG24NZ4 \| InternKon: 508 300 40 / 20
?	180 325 40	Base plate	1	InternBDB: G 342/1 \| InternKon: 508 300 40 / 65
?	902 535 40	Retainer	1	InternKon: 508 300 40 / 55
?	319 174 99	Screw	4	InternBDB: M5x50 /912 10.9 \| InternKon: 508 300 40 / 42
?	319 132 99	Screw	2	InternBDB: M6x25 /912 \| InternKon: 508 300 40 / 59
?	507 025 98	Nut	2	InternBDB: M 6 /985 \| InternKon: 508 300 40 / 60
?	346 648 40	Seal	1	InternBDB: GDM 3-17
?	604 286 40	Cube plug	1	InternBDB: Murr 543
?	909 073 40	Bush	1	InternKon: 909 074 40 / 2
?	909 075 40	Retainer	1	InternBDB: 40x240 \| InternKon: 909 074 40 / 3
?	909 072 40	Rod	1	InternKon: 909 074 40 / 4
?	350 562 99	Grease nipple	1	InternKon: 909 074 40 / 5
?	345 052 99	Dowel pin	3	InternBDB: 6x36 / 1481 \| InternKon: 909 074 40 / 6

Komatsu H455-SD S/N 15009 parts catalog PDF

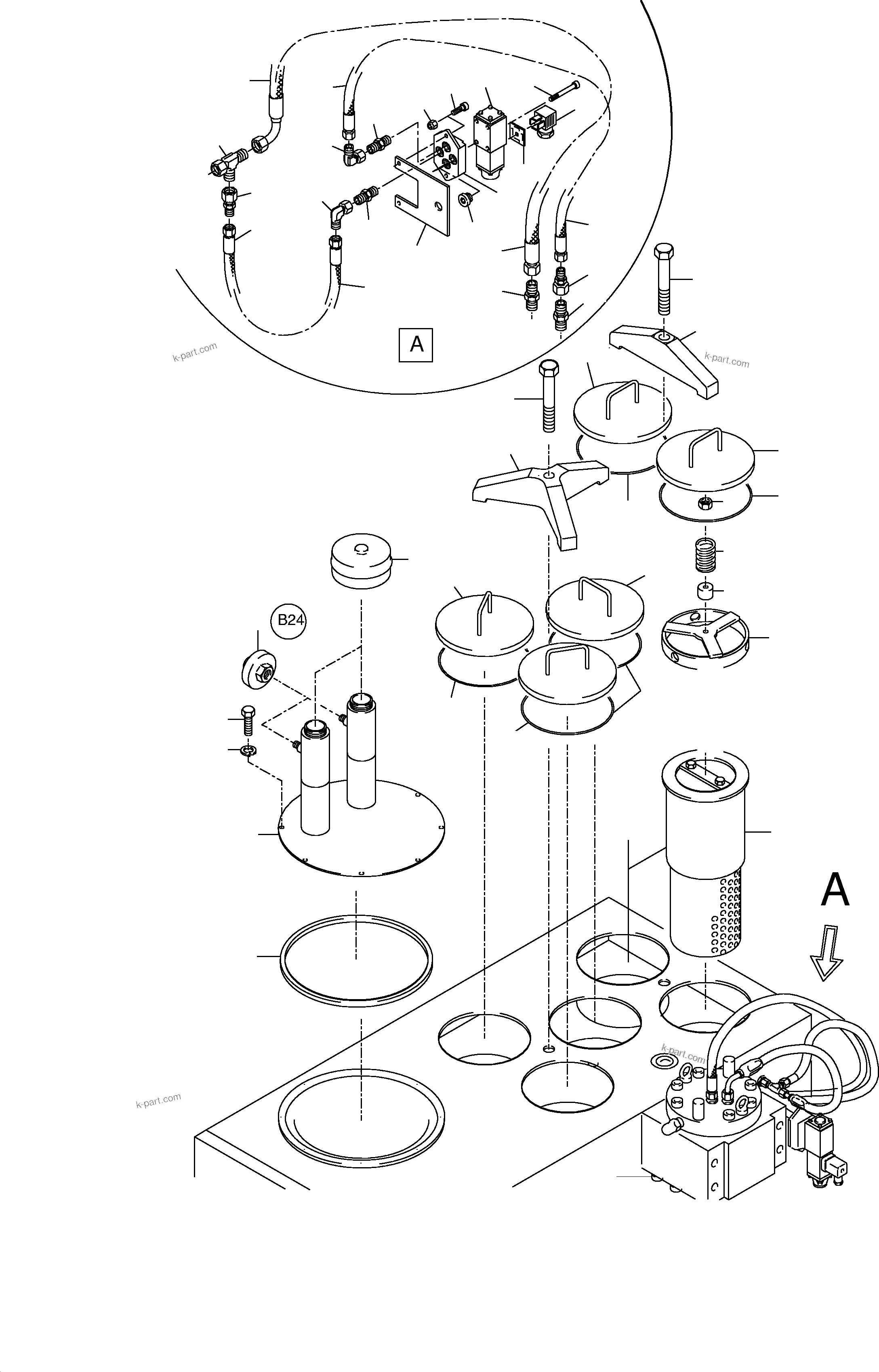

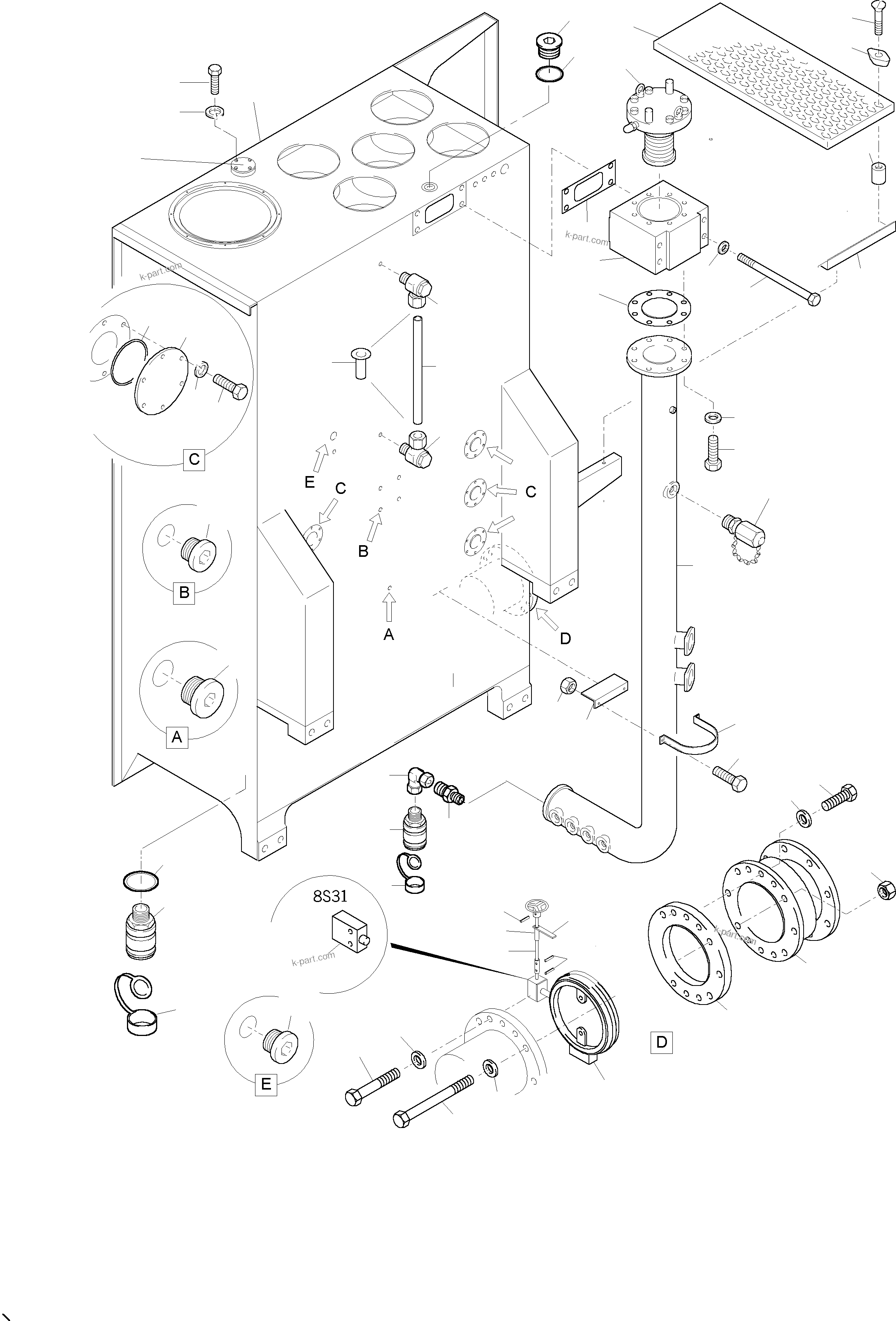

MAIN OIL TANK (515-1801e) in H455-SD S/N 15009. Diagram image and parts list.
