LINES - FAN MOTORS, FAN PUMP (OIL COOLER) | PC4000-6E S/N 08286

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

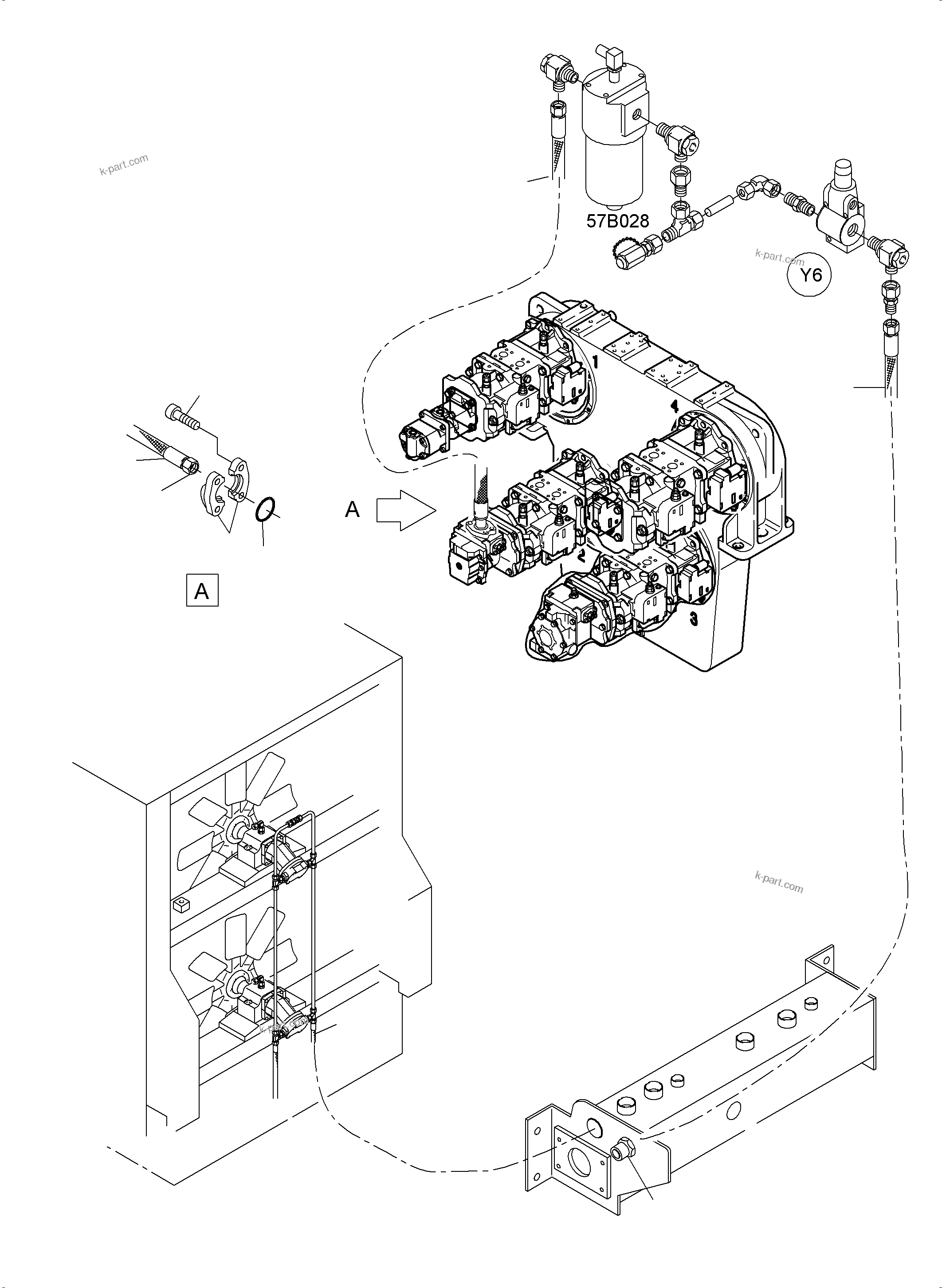

Diagram image 1 of 2

PC4000-6E S/N 08286

? ? ? ? ? ? ? ? ? ?

PC4000-6E S/N 08286

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	906 938 40	Valve	1
?	516 853 40	Pipe ш 25	2
?	516 822 98	Socket	2
?	516 742 98	Socket	2
?	576 407 40	Reducing union	2
?	516 740 98	Socket	2
?	374 414 99	Socket	2
?	954 659 40	Pipe ш 25	2
?	374 407 99	Socket	3
?	641 557 40	Hose assy. DN 12x1600	1
?	516 168 98	Socket	1
?	519 410 98	Hose assy. DN 25x3450	1
?	374 412 99	Socket	1
?	906 868 40	Olive	8
?	371 264 99	Union nut	8
?	509 057 98	Clamp Set	4
?	502 206 98	Bolt	4
?	507 025 98	Nut	4
?	511 856 98	Cover plate	8
?	516 158 98	Socket	2
?	510 180 98	Clamp Set	2
?	307 736 99	Bolt	4
?	519 409 98	Hose assy. DN 25x5250	1
?	512 388 98	Hose assy. DN 12x6300	1
?	519 451 98	Flange seal	1
?	006 632 98	Half flange	2
?	319 148 99	Bolt	4
?	518 770 98	Hose assy. DN 32x1705	1
?	907 735 40	Flange connetion	1
?	518 855 98	Hose assy. DN 25x3400	1
?	518 683 98	Union	1
?	509 273 98	Nut	1
