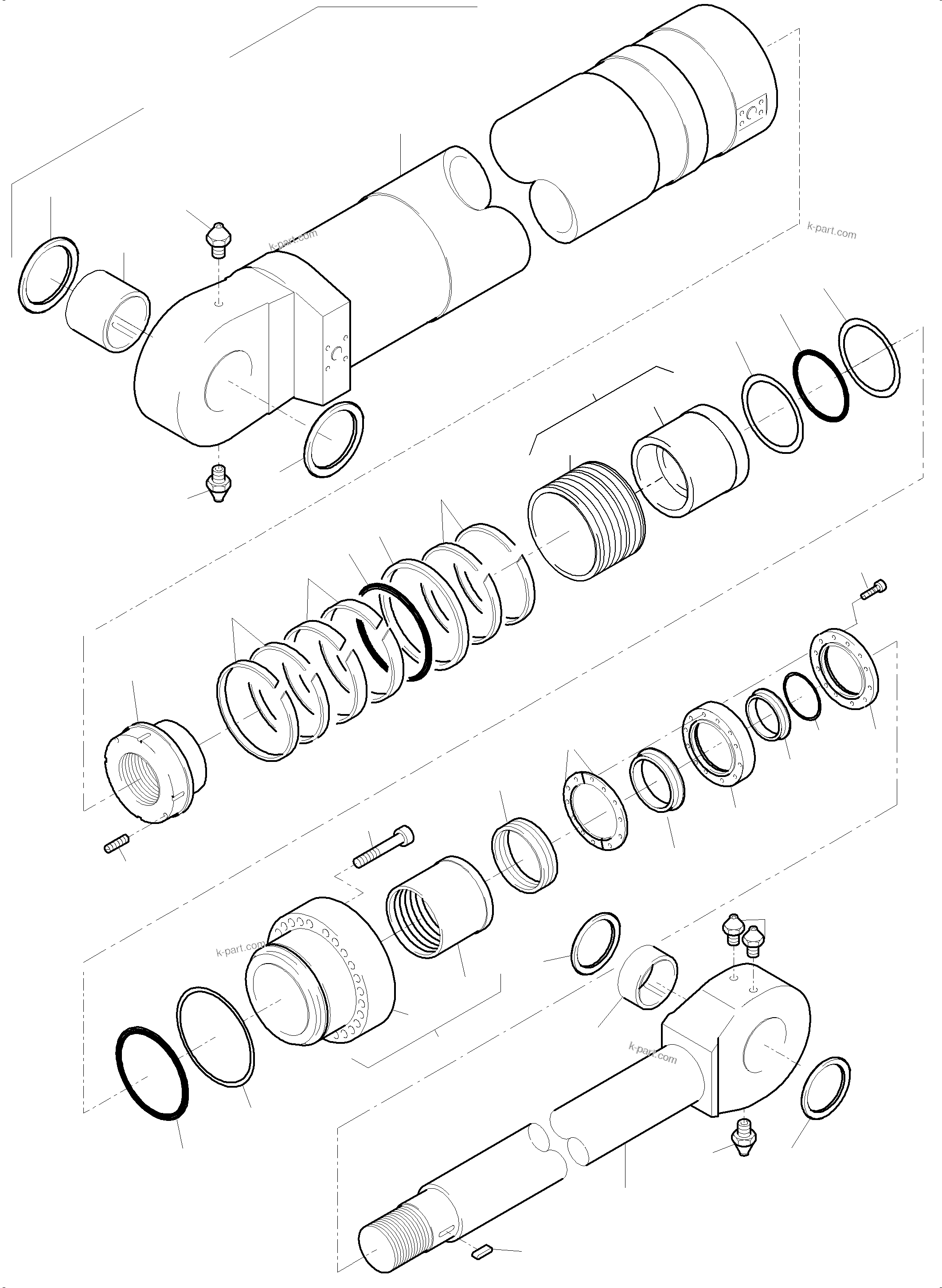

HYDRAULIC CYLINDER COLD WEATHER DESIGN | PC 7000-6E 35 003 11.06.2019

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

PC 7000-6E 35 003 11.06.2019

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	988 900 40	Hydraulic cylinder assy.	1
?		Cylinder barrel	1
?		Piston rod	1
?	798 861 73	Piston rod assy. fig-nos:04,11,13,26,30	1
?	964 946 40	Sealing flange fig-nos:40 u. 41 (finishing after bush is installed)	1
?	964 960 40	Piston assy. consist. of fig nos. 45+46 (finishing after bush is installed)	1
?	948 408 40	Groove nut	1
?	909 519 40	Cover	1
?	909 521 40	Cover ring	1
?	981 705 40	Freeze-in bush	1
?	964 900 40	Freeze in bushing	1
?	907 029 40	Pin seal ring	2
?	907 027 40	Pin seal ring	2
?	461 292 40	Seal	1
?	519 498 98	O-ring	1
?	461 419 40	Piston guide strap	2
?	896 737 40	Piston guide ring	6
?	461 288 40	Seal kit	1
?	906 594 40	Support ring	1
?	906 545 40	Stripper	1
?	519 499 98	O-ring	1
?	461 294 40	Support ring	1
?	950 953 40	O-ring	1
?	461 295 40	Support ring	2
?	354 333 99	Feather key	1
?	506 014 98	Screw cold weather design	24
?	500 565 98	Screw cold weather design	12
?	947 188 40	Thread pin	1
?	004 860 98	Nipple	6
?	906 733 40	Support ring fig. no. 21	1
?	430 737 40	Half shim	12
?		Bush	1
?	969 003 40	Bush (Only for work shop repair)	1
?		Piston	1
?	970 703 40	Piston bush (only for work shop repair)	1
?	799 765 73	Seal kit for piston fig-nos.15-18,24,25	1
?	798 860 73	Seal kit for piston, fig-nos:19-23,31	1
