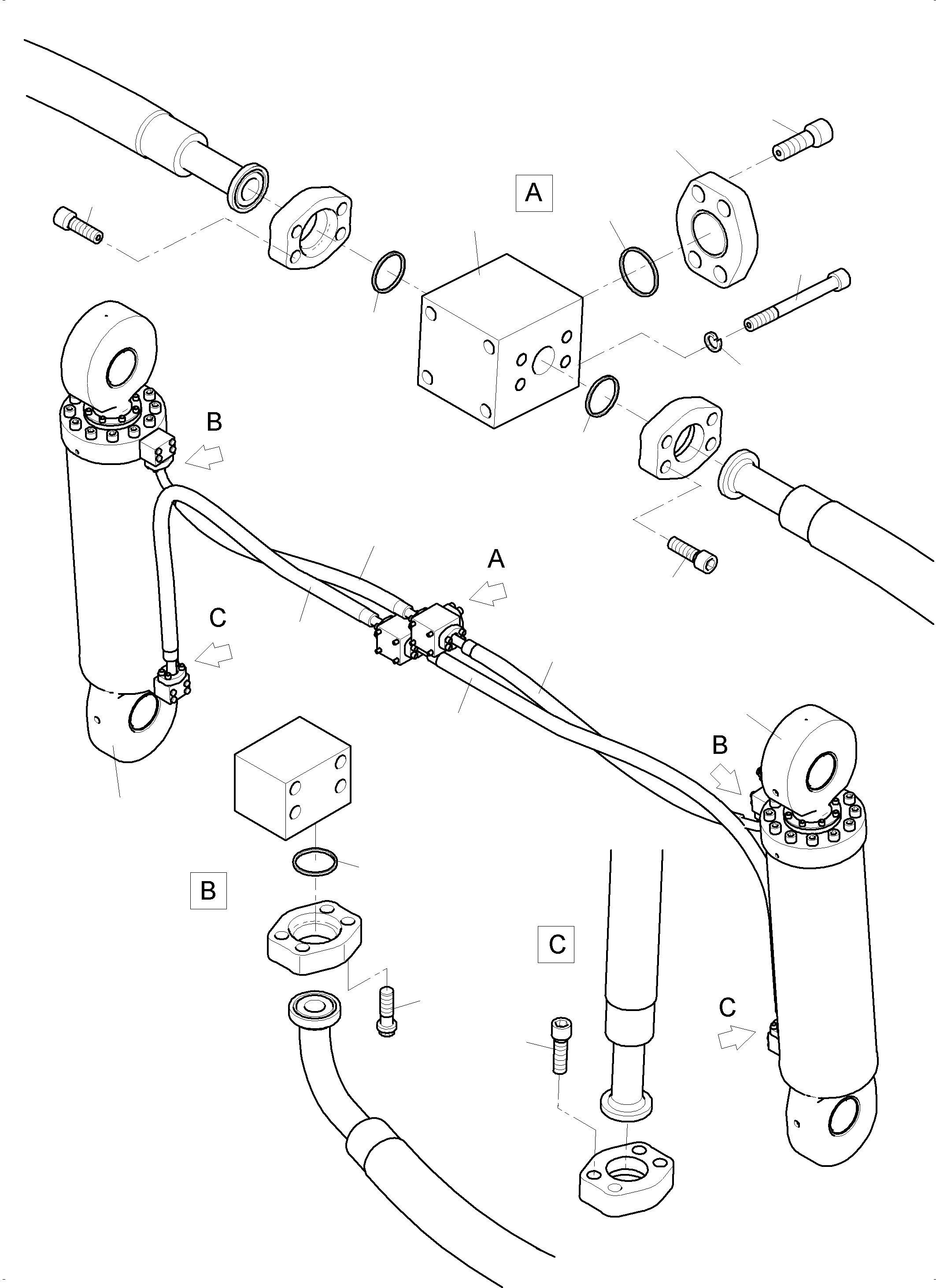

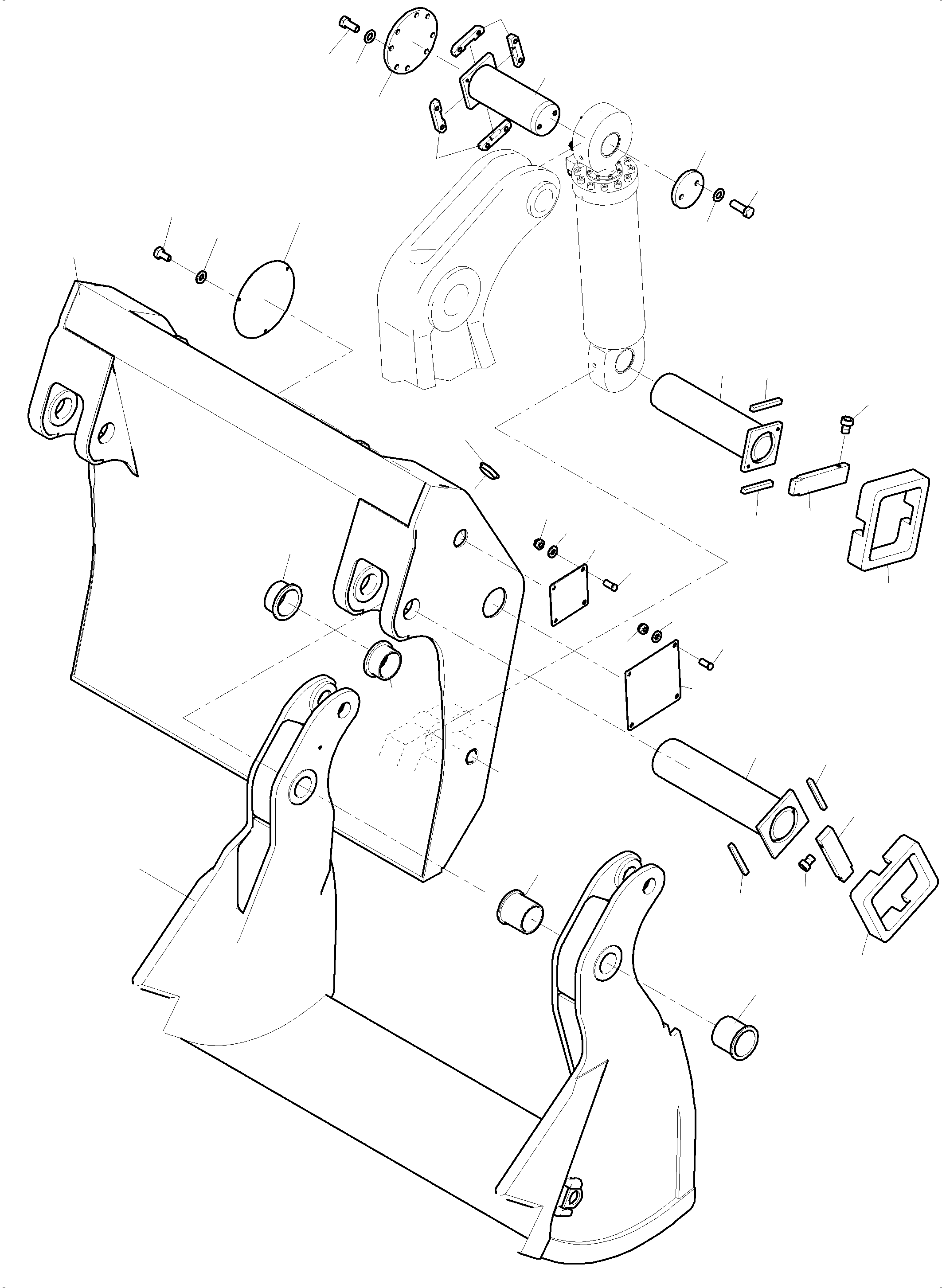

Diagram image 1 of 3

PC 7000-6E 35 003 11.06.2019

01 04 04 05 06 07 08 09 09 10 10 15 16 18 18 19 19 26 26 27 27 28 28 29 29 30 31 34 34 36 36 36 37 37 37

PC 7000-6E 35 003 11.06.2019

02 03 11 13 14 17 17 20 20 22 22 23 23 24 24 25 25 35 35 38 39 39 40 40 41 42 43 44 47 60 61 62 62 63 63 64 65 65 66 67 68

PC 7000-6E 35 003 11.06.2019

12 12 21 32 33 45 45 45 46 46 46 48 49 50 51 55 56 57 58

#	Part Number	Partname	Quantity
01	969 720 40	Bullclam bucket	1
02	969 721 40	Bullclam bucket wall assy.	1
03	969 722 40	Bucket clam assy.	1
04	919 347 40	Plate	2
05	976 321 40	Strip	2
06	976 309 40	Strip	2
07	976 322 40	Strip	2
08	976 323 40	Protection rubber	2
09	511 263 98	Thread pin	20
10	507 037 98	Nut	20
11		Bullclam bucket wall SK	1
12		see page Cylinder with pipes	2
13	934 092 40	Pin with plate	2
14	934 095 40	Pin with plate	2
15	890 925 40	Pin	2
16	972 510 40	Pin	2
17	890 924 40	Flanged bush	4
18	890 922 40	Flanged bush	4
19	900 747 40	Flanged bush	4
20	890 921 40	Protective frame	4
21	319 444 99	Bolt	8
22	890 884 40	Catch	4
23	895 099 40	Square	4
24	890 916 40	Catch	4
25	334 600 99	Nut	16
26	890 919 40	Catch	4
27	900 749 40	Catch	4
28	890 993 40	Axle stirrup	4
29	900 750 40	Axle stirrup	4
30	890 917 40	Shackle	2
31	900 751 40	Shackle	2
32	395 158 40	Manifold	2
33	517 192 98	Lock washer	8
34	908 663 40	Ring	4
35	320 374 99	Bolt	4
36	307 826 99	Bolt	16
37	517 123 98	Lock washer	16
38	978 964 40	Plate	2
39	510 213 98	Thread pin	16
40	517 118 98	Lock washer	16
41	934 091 40	Cover	2
42	517 122 98	Lock washer	6
43	307 775 99	Bolt	6
44	908 744 40	Plate	2
45	519 453 98	Flange seal	8
46	319 288 99	Bolt	24
47	896 665 40	Plug	2
48	519 454 98	Flange seal	2
49	506 582 98	Plug	2
50	518 502 98	Bolt	8
51	519 595 40	Bolt	8
55	519 886 98	Hose assy. DN 40X2600	1
56	517 195 98	Hose assy. DN 40X2400	1
57	519 195 98	Hose assy. DN 40X1700	1
58	592 330 40	Hose assy. DN 40X1900	1
60		Bucket clam SK	1
61	936 427 40	Pin with plate	2
62	969 986 40	Flanged bush	4
63	972 552 40	Catch	8
64	972 553 40	Cover	2
65	517 124 98	Lock washer	20
66	307 844 99	Bolt	16
67	972 554 40	Cover	2
68	307 847 99	Bolt	4
