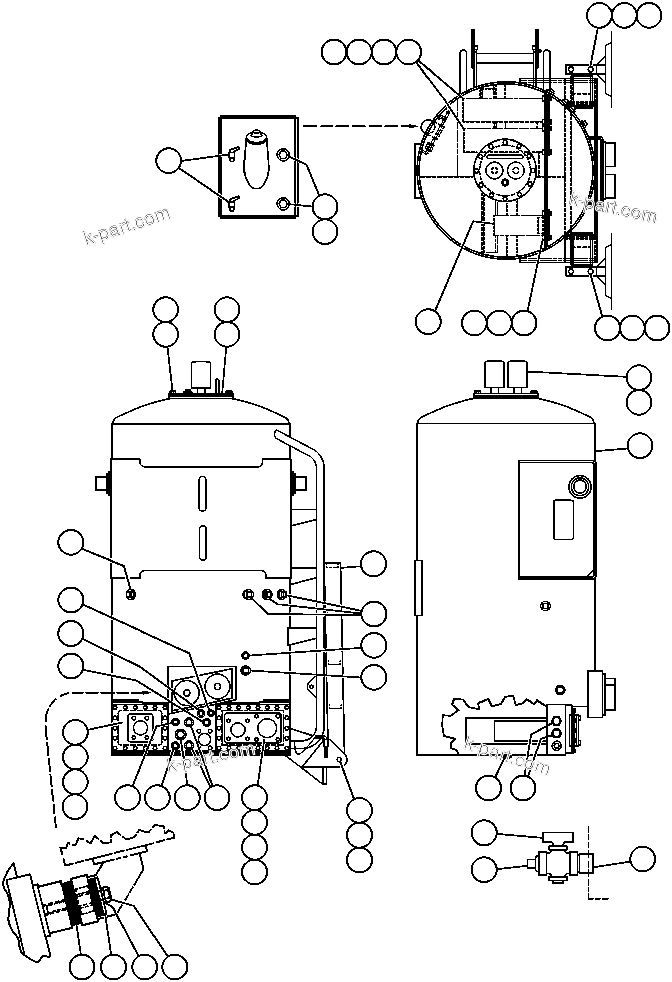

HYD TANK ASSM INSTL | AFE32-BA 830E ARCH MINERAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-BA 830E ARCH MINERAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	WA4409	COCK, PET	2
?	DA5893	GAUGE, SIGHT	2
?	TH5604	O-RING	2
?	TY4907	CAP, MOUNTING	2
?	C1669	CAPSCREW - 1" - 8NC X 3 1/2"	4
?	C1544	LOCKWASHER - 1"	4
?	TY7922	FLANGE	1
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	4
?	C1540	LOCKWASHER - 1/2"	12
?	PB8070	DIFFUSER	1
?	PB5526	STRAINER	2
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	8
?	DD5640	FLAT WASHER - 1/2"	8
?	PB5556	FILTER, SPIN-ON	2
?	PB5557	ADAPTOR, FILTER	2
?	TZ7750	TANK, HYD	1
?	VM0319	PLUG, O-RING	2
?	R2491	PLUG, MAGNETIC PIPE	1
?	TF6957	COCK, DRAIN	1
?	E2579	NIPPLE, CLOSE	1
?	C1602	CAPSCREW - 3/8" - 16NC X 1"	52
?	C0312	LOCKWASHER - 3/8"	52
?	TZ9092	COVER	1
?	PB0699	GASKET	1
?	C5772	PLUG, PIPE	4
?	R2028	PLUG, PIPE	3
?	C5771	PLUG, PIPE	2
?	VM0319	PLUG, O-RING	2
?	WB0601	ADAPTOR, STRAIGHT (1)	1
?	VM0317	PLUG, O-RING (1)	2
?	WB0582	ADAPTOR, STRAIGHT (1)	1
?	VM0315	PLUG, O-RING (1)	1
?	TZ8528	LADDER	1
?	VM0314	PLUG, O-RING (1)	1
?	C1544	LOCKWASHER - 1" (1)	2
?	H0592	CAPSCREW - 1" - 8NC X 6" (1)	2
?	VW6877	FLAT WASHER - 1" (1)	2
?	VL7792	DAMPENER, RUBBER (1)	2
?	TY8115	COVER, RETURN	1
?	TY8119	GASKET	1
?	TY7946	COVER	1
?	TY8118	GASKET	1
?	TV1748	CAPSCREW - 5/8" - 11NC X 1 1/2"	2
?	WA4863	FLAT WASHER - 5/8"	4
?	VN9952	LOCKNUT - 5/8" - 11NC	2
?		NOTE: (1) NOT INCLUDED IN ASSM	65535
