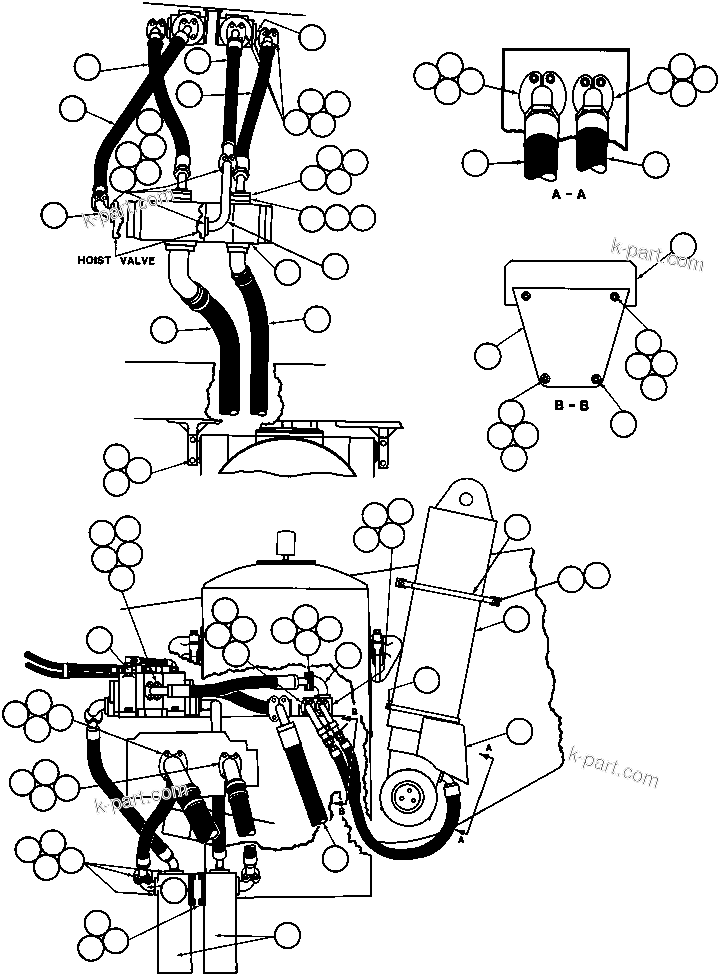

HOIST SYSTEM PIPING | AFE32-BA 830E ARCH MINERAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-BA 830E ARCH MINERAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	PB8318	ELBOW - 90 DEG	4
?	TF3231	FLANGE, SPLIT	32
?	WA0187	SEAL, O-RING	18
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	64
?	C1540	LOCKWASHER - 1/2"	82
?	HA6250	HOSE	1
?	HA6253	HOSE	2
?	C1619	CAPSCREW - 1/2" - 13NC X 2 3/4"	8
?	TY8358	ADAPTOR, FLANGE	2
?	PB6528	COUPLING, DIAGNOSTIC	2
?	TY9635	TUBE	1
?	TY8367	HOSE	1
?	TY8365	HOSE	1
?	PB7943	HOIST PUMP ASSM (SEE INDEX)	1
?	HA6248	HOSE	1
?	TF8090	FLANGE, SPLIT	4
?	VG9095	SEAL, O-RING	2
?	WB0557	FITTING, O-RING TEE	1
?	VN7716	FLANGE, HALF	2
?	WA0245	SEAL, O-RING	1
?	C1630	CAPSCREW - 5/8" - 11NC X 2"	4
?	C1541	LOCKWASHER - 5/8"	8
?	VL9963	FLANGE, SPLIT	2
?	WA0237	SEAL, O-RING	2
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	C1613	CAPSCREW - 1/2" - 13NC X 1 1/4"	8
?	TY8357	BRACKET	1
?	TY5936	HOIST CYLINDER & BUSHING ASSM (SEE INDEX)	2
?	TF3237	CLAMP, SPLIT FLANGE	4
?	VG9096	SEAL, O-RING	2
?	C1609	CAPSCREW - 7/16" - 14NC X 1 1/2"	8
?	C5775	LOCKWASHER - 7/16"	8
?	HA6228	HOSE	1
?	HA6330	HOSE	2
?	HA6340	HOSE	2
?	WA0720	FLAT WASHER - 3/8"	4
?	C1669	CAPSCREW - 1" - 8NC X 3 1/2"	4
?	C1544	LOCKWASHER - 1"	4
?	PB6999	HOIST HIGH-PRESSURE FILTER ASSM	2
?	VE4208	HEAD ASSM	2
?	PB7023	FILTER, 7 MICRON	2
?	VE4209	TUBE	2
?	VE3433	CAP, END	2
?	VE3429	KIT, O-RING	2
?	VE4206	INDICATOR - 24V DC	2
?	VE3431	KIT, INDICATOR REPAIR	2
?	VE3432	SET SCREW	2
?	VE3434	PLUG	2
?	VE3435	O-RING	2
?	PB6041	CAP, DUST	2
?	TY4907	CAP	2
?	TY8859	PLATE	1
?	C1523	NUT - 1/2" - 13NC	2
?	WA0360	FLAT WASHER - 1/2"	2
?	C1622	CAPSCREW - 1/2" - 13NC X 3 1/2"	2
?	YA2181	BRACKET, PUMP-VALVE	1
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	2
?	WA0361	FLAT WASHER - 5/8"	4
?	VN9952	LOCKNUT	2
?	TY9626	SPACER	2
?	C1542	LOCKWASHER - 3/4" (1)	4
?	C1643	CAPSCREW - 3/4" - 10NC X 1 3/4" (1)	4
?	TY9627	CLAMP (1)	2
?	TZ2549	COVER, HOIST CYLINDER	2
?	TZ3107	CLAMP, T-BOLT	2
?	PB7980	VALVE, ORIFICE CHECK	1
?	C1614	CAPSCREW - 1/2" - 13NC X 1 1/2"	4
?		NOTE: (1) USED FOR SHIPPING & HANDLING ONLY.	65535
