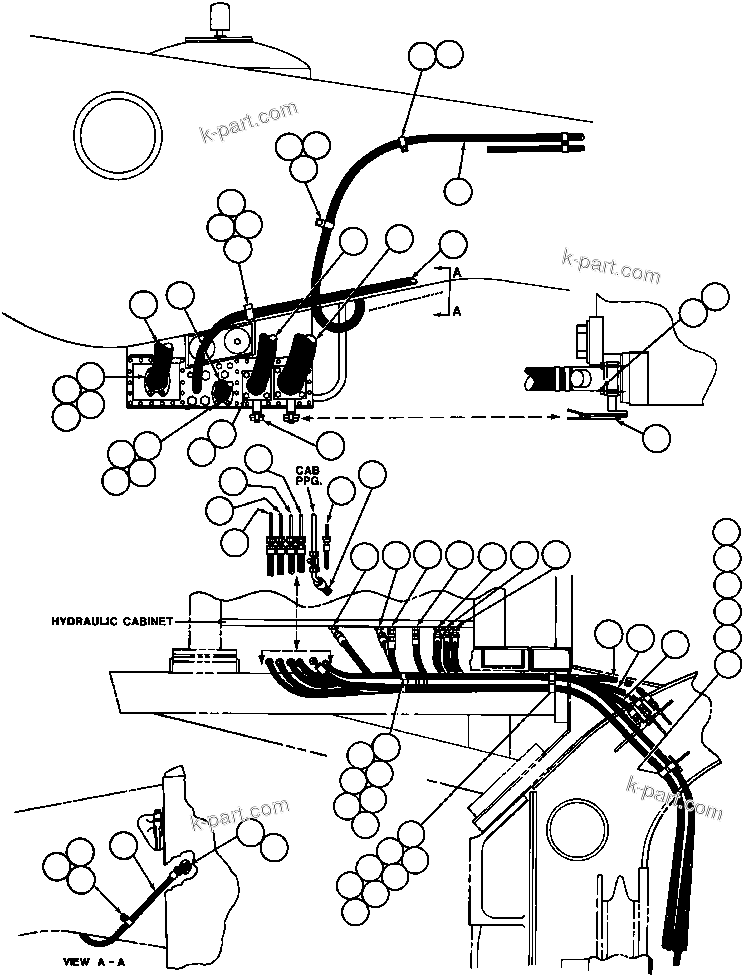

HYD TANK/CABINET PIPING | AFE32-BA 830E ARCH MINERAL

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-BA 830E ARCH MINERAL

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	HA6228	HOSE	1
?	TF6924	CLAMP	2
?	TR9441	CLAMP	4
?	HE5611	LOCKNUT - 3/8" - 16NC	20
?	WA0720	FLAT WASHER - 3/8"	20
?	HA6229	HOSE	1
?	TY8375	SPACER	14
?	HA6254	HOSE	1
?	HA6227	HOSE (SEE #29, STEERING SYSTEM PIPING PG)	1
?	TY8365	HOSE	1
?	TY8367	HOSE	1
?	TK8285	VALVE, BUTTERFLY	1
?	EC3591	BRACKET	1
?	C1622	CAPSCREW - 1/2" - 13NC X 3 1/2"	4
?	TZ5136	VALVE, BUTTERFLY	1
?	C1540	LOCKWASHER - 1/2"	8
?	C1620	CAPSCREW - 1/2" - 13NC X 3"	4
?	VH6718	FLANGE, SPLIT	2
?	WA0232	SEAL, O-RING	1
?	C1615	CAPSCREW - 1/2" - 13NC X 1 3/4"	4
?	VL9963	FLANGE, SPLIT	2
?	WA0237	SEAL, O-RING	1
?	C1629	CAPSCREW - 5/8" - 11NC X 1 3/4"	4
?	C1541	LOCKWASHER - 5/8"	4
?	HA6238	HOSE	1
?	HA6235	HOSE	2
?	HA6236	HOSE	1
?	HA6225	HOSE	1
?	HA6255	HOSE	1
?	HA6232	HOSE	1
?	HA6233	HOSE	1
?	HA6234	HOSE	1
?	HA5753	HOSE	1
?	HA5568	HOSE	1
?	HA6220	HOSE	1
?	HA6295	HOSE	1
?	C1606	CAPSCREW - 3/8" - 16NC X 2"	1
?	C1521	NUT - 3/8" - 16NC	1
?	VN9908	CLAMP	20
?	HD8019	BUSHING, PIPE	1
?	TG9238	FITTING, TUBE	1
?	C0312	LOCKWASHER 3/8"	20
?	C1602	CAPSCREW 3/8" - 16NC X 1"	6
?	EC3589	BRACKET	1
?	TG2960	CLAMP, VINYL	3
