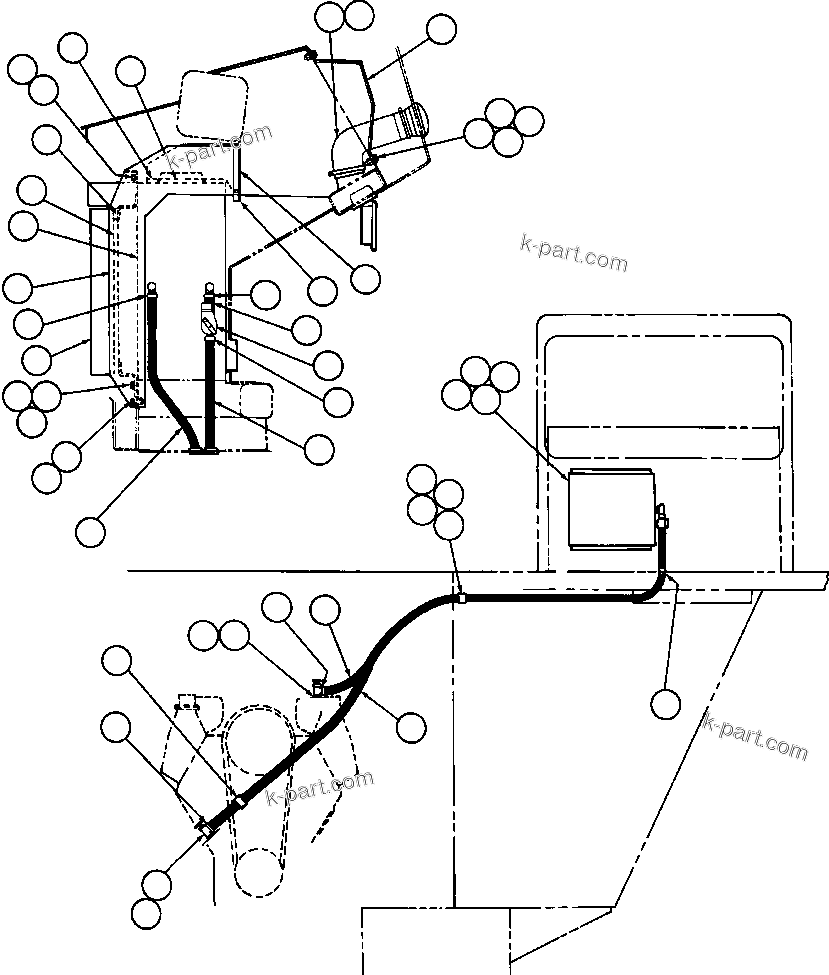

HEATER PIPING & INSTALLATION | AFE32-FA 830E COLLAHUASI

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE32-FA 830E COLLAHUASI

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	TY8733	MOUNT, HEATER CONTROL	1
?	TR1306	CAPSCREW - 1/4" - 20NC X 1"	4
?	TR1307	FLAT WASHER - 1/4"	4
?	DC3584	LOCKWASHER - 1/4"	4
?	TD1549	NUT - 1/4" - 20NC	4
?	TY8681	SEAL, NEOPRENE SPONGE	3
?	TY8687	SEAL, NEOPRENE SPONGE	6
?	HC0908	CLAMP	2
?	TN9903	HOSE (SEE FIG 40246)	1
?	PB4978	VALVE, HEATER (SEE FIG 40246)	1
?	TZ1466	HOSE, INLET	1
?	TZ1467	HOSE, OUTLET	1
?	PB7001	FILTER, AIR	1
?	YA1844	MOUNT, HEATER	1
?	TY8683	SEAL, NEOPRENE SPONGE	2
?	TY8685	SEAL, NEOPRENE SPONGE	2
?	PB8386	HEATER ASSEMBLY	1
?	TY8738	ANGLE	1
?	TY8684	SEAL, NEOPRENE SPONGE	2
?	TY8680	SEAL, NEOPRENE SPONGE	6
?	TR8279	GROMMET	2
?	TC1565	CLAMP	4
?	VC2195	WELD STUD - 3/8" - 16NC X 1"	4
?	C0312	LOCKWASHER - 3/8"	4
?	C1521	NUT - 3/8" - 16NC	4
?	HC0908	CLAMP	2
?	VN6280	VALVE, SHUT-OFF	2
?	H3018	BUSHING, REDUCING	1
?	SD5209	BUSHING, PIPE	1
?	DF5391	CLAMP	4
?	EB2432	DUCT, HOSE - AIR CONDITIONER	2
?	SC4174	LOCKWASHER - 5/16"	10
?	VC9049	CAPSCREW - 5/16" - 18NC X 5/8"	4
?	TR4731	CAPSCREW - 5/16" - 18NC X 1"	6
?	TD1684	NUT - 5/16" - 18NC	2
?	WA4725	FLAT WASHER - 5/16"	10
