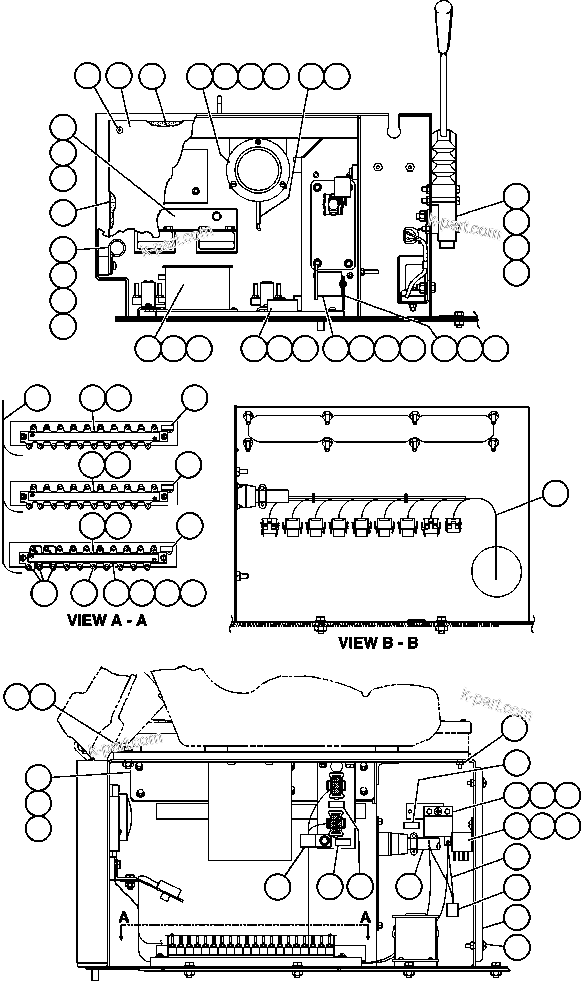

CAB INTERFACE COMPARTMENT - 1 | AFE47-FH 730E S/N A30524 NITTETSU

Search in All Books

Find books across the catalog from one place.

This page is prepared as the search workspace. The search behavior itself can be connected in the next step.

Search whole Komatsu part number in all books. Example: 6212611203.

AFE47-FH 730E S/N A30524 NITTETSU

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	MM0595	CAPSCREW - M8 X 1.25 X 30	2
?	MM0470	LOCKWASHER - M8	2
?	MM0581	CAPSCREW - M6 X 1.00 X 16	3
?	TF1207	BUZZER - 24 VOLT	1
?	MM0355	MACHINE SCREW - M6 X 1.00 X 8	3
?	MM0206	LOCKWASHER - M5	2
?	TZ7324	PLATE, NAME - BWB	1
?	PB4767	RELAY	1
?	MM0347	MACHINE SCREW - M5 X .8 X 8	1
?	SM2174	COVER, FRONT	1
?	PB8658	SCREW, PAN - M6 X 1.00	6
?	WB2322	PLATE, NAME - R/P 230	1
?		(NOT USED THIS APPLICATION)	-1
?	WB2323	PLATE, NAME - R/P 231	1
?	TR9441	CLAMP, VINYL - 1 1/4"	2
?	EH7497	HARNESS, BUDDY SEAT AREA	1
?	VZ3250	DIODE	1
?	WB2326	STRIP, CIRCUIT I.D.	1
?	VM2951	SCREW, SELF-TAPPING - #6 - 32NC X 5/16"	6
?	WB2321	PLATE, NAME - TB13	1
?	TZ7317	PLATE, NAME - TB12	1
?	TZ7316	PLATE, NAME - TB11	1
?	WB2325	STRIP, CIRCUIT I.D.	1
?	WB2324	STRIP, CIRCUIT I.D.	1
?	VS8193	BOARD, TERMINAL (SEE FIG 64070)	3	64070
?	TG1929	MACHINE SCREW - #10 X 1/2"	6
?	DC3101	LOCKWASHER - #10	11
?	VC5344	FLAT WASHER - #10	6
?	WA3367	NUT ASSEMBLY	60
?	EB7418	BAR, BUS	3
?	MM0027	CAPSCREW - M6 X 1.00 X 25	8
?	MM0469	LOCKWASHER - M6	8
?	MM0207	LOCKWASHER - M6	3
?	DL6702	CONTACTOR	1
?	DF0017	NUT - #10 - 24NC	2
?	TX3086	HOUSING	1
?	TK0253	VARISTOR	1
?	TR9441	CLAMP, VINYL - 1 1/4"	2
?	MM0349	MACHINE SCREW - M5 X .8 X 12	2
?	DC3584	LOCKWASHER - 1/4"	2
?	SP8417	FLAT WASHER - 1/4"	2
?	SM4374	PLATE, CONNECTOR	1
?	MM0002	CAPSCREW - M8 X 1.25 X 12	2
?	MM0208	LOCKWASHER - M8	2
?	FB5170	TAIL LIGHT RESISTOR DIODE ASSEMBLY	1
?	AK7557	RESISTOR/DIODE UNIT - 24 VOLT	2
?	C5747	CAPSCREW - 5/16" - 18NC X 3/4"	4
?	C1538	LOCKWASHER - 5/16"	4
?	C1520	NUT - 5/16" - 18NC	4
?	TS0753	BRACKET	1
?	SM2219	STRIP, SEAL	2
?	PC0337	TIMER - 24 VOLT	1
?	MM0341	MACHINE SCREW - M4 X .7 X 10	4
?	MM0205	LOCKWASHER - M4	4
?	PB6963	TIMER	1
?	MM0352	MACHINE SCREW - M5 X .8 X 25	1
?	SM2220	STRIP, SEAL	2
?	VS0035	LIGHT, DOME	1
?	SR6747	BULB, LIGHT	1
?	VF2231	MACHINE SCREW - #10 - 24NC X 3/8"	5
?	DL4172	SLEEVE, INSULATING	1
?	SF9896	DISCONNECT, KNIFE - 14-16 AWG	1
?	PB6893	VALVE, CONTROL REMOTE	1
?	SC4174	LOCKWASHER - 5/16"	2
?	WA3597	CAPSCREW - 5/16" - 18NC X 2 1/4"	2
?	TD1684	NUT - 5/16" - 18NC	2
?	TY7202	BRACKET, RELAY	1
?		NOTE: NS = NOT SHOWN	-1
?	TS0299	RESISTOR	2
?	TY7846	HOUSING, RESISTOR	1
?	TZ0951	HOUSING, RESISTOR (LEVEL)	1
