AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity
?	VJ1987	CAPSCREW	16
?	VE3534	O-RING (2)/(3)	1
?	VE3528	O-RING	1
?	VE3543	COVER, SPOOL	1
?	VE3535	BALL (2)/(3)	1
?	VE3536	POPPET (2)	1
?	VE3527	O-RING (2)/(3)	1
?	VE3548	SEAT, SPRING	4
?	VE3541	SPRING	2
?	VE3545	PLUG	3
?	VE3538	POPPET (2)	2
?	VE3546	END, SPOOL	4
?		SPOOL (1)	2
?	VE3542	SPRING	2
?	VE5472	POPPET (2)	1
?		HOUSING, SPOOL (1)	1
?	VE3533	O-RING (2)/(3)	4
?	VE3603	POPPET (2)	1
?	VJ2946	O-RING (2)/(3)	2
?	VJ1983	PLUG	1
?	VE3549	O-RING (2)/(3)	1
?	VE3544	COVER, SPOOL	1
?	VE7616	POPPET (2)	1
?		NOTE: (1) NOT SERVICED SEPARATELY.	-1
?	VE7622	(2) INCLUDED IN VE7622 MAJOR SERVICE KIT.	-1
?	VE7621	(3) INCLUDED IN VE7621 MINOR SERVICE KIT.	-1

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

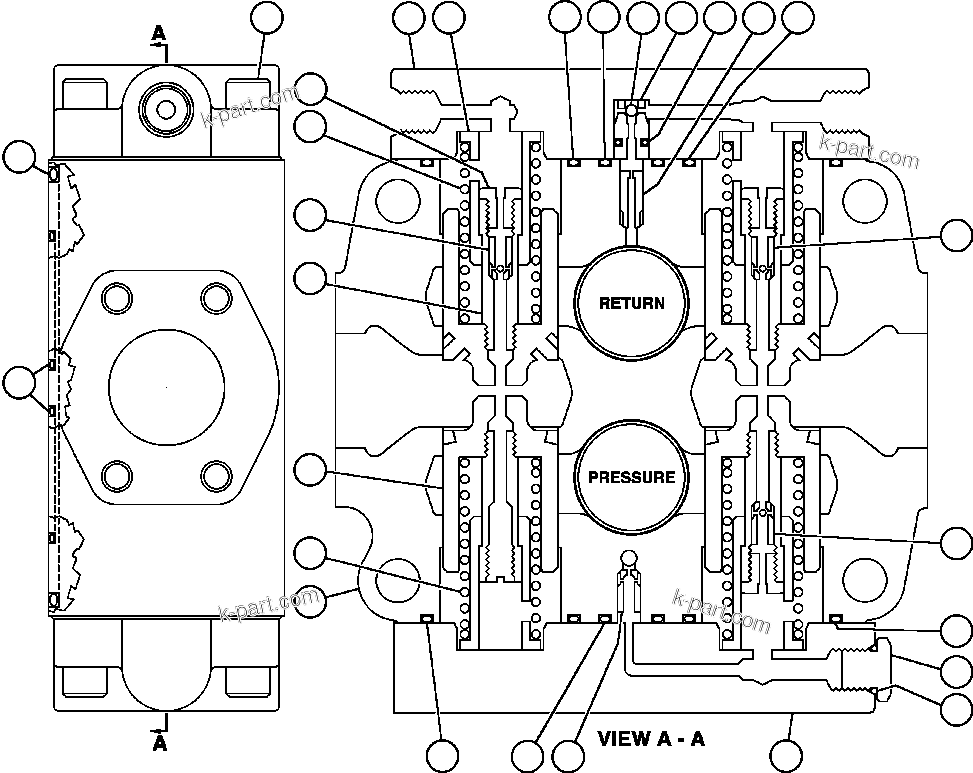

SPOOL INLET SECTION (VE7624) (55009) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
