AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	EG0272	BAR, BUS	1
?	CH3155	CABLE - 7J30	1
?	TD0789	CAPSCREW - 3/8" - 16NC X 1 3/4"	8
?	TR4436	FLAT WASHER - 3/8"	94
?	TC1231	LOCKWASHER - 3/8"	85
?	TC1233	NUT - 3/8" - 16NC	85
?	TD0791	CAPSCREW - 3/8" - 16NC X 1 1/4"	31
?	EG0271	BAR, BUS	6
?	EG0273	BAR, BUS	1
?	CH3171	CABLE - 7J2	1
?	EG0275	BAR, BUS	10
?	CH3172	CABLE - 7J8	1
?	EG1878	ANGLE BRACKET, INSULATING	2
?	TV0177	FLAT WASHER - 5/16"	6
?	SC4174	LOCKWASHER - 5/16"	6
?	VC9049	CAPSCREW - 5/16" - 18NC X 5/8"	4
?	EC2012	BRACKET, INSULATED	2
?	TD1684	NUT - 5/16" - 18NC	6
?	EG1876	BARRIER, ARC	2
?	EG1877	BARRIER, ARC	1
?	PB5593	CONTACTOR ASSEMBLY (G.F. & M.F.)	2
?	TV3419	CONTACTOR (SEE INDEX) (1)/(2)	2	64097
?	VE3530	INTERLOCK, POSITION SENSOR (SEE INDEX)	2	64035
?	VW6069	CAPSCREW, INSULATED	4
?	VW6070	SHIELD	4
?	TR3782	CAPSCREW - 5/16" - 18NC X 1 1/4"	2
?	CH2572	CABLE - 7J4	1
?	CH2564	CABLE - 74	1
?	PB9229	REVERSER ASSEMBLY (SEE INDEX)	1	55196
?	MM0462	FLAT WASHER - M12	4
?	MM0472	LOCKWASHER - M12	4
?	MM0179	NUT - M12 X 1.75	4
?	CH2516	CABLE - 74A/FDT	1
?	CH2578	CABLE - 7J14 (MFSE PANEL TO REVERSER)	1
?	CH2579	CABLE - 7J13 (REVERSER TO MFSE PANEL)	1
?	CH2580	CABLE - 7J3	1
?	CH3175	CABLE - 7TR9	1
?	CH3184	CABLE - 7TR9	1
?	EG0890	BAR, BUS	1
?	VC6561	CAPSCREW - 1/2" - 13NC X 1 1/2"	2
?	TR6008	FLAT WASHER - 1/2"	2
?	TR5445	LOCKWASHER - 1/2"	2
?	TR6643	NUT - 1/2" - 13NC	2
?	CH3173	CABLE - 7GA1	1
?	CH3155	CABLE - 7J30	1
?	CH3154	CABLE - 7TR3A	1
?	CH3152	CABLE - 7J1LS	1
?	CH3172	CABLE - 7J8	1
?	CH3174	CABLE - 7J1L	1
?	CH3185	CABLE - 7TR10	1
?	CH3169	CABLE - 7TR10	1
?	CH3150	CABLE - 7J1RS	1
?	CH3170	CABLE - 7J1R	1
?	EF9940	CABINET STRUCTURE	1
?	CH2581	CABLE - 7J5 (REVERSER TO S3 SHUNT)	1
?	PB9230	CONTACTOR, AIRLESS (SEE INDEX)	12	64126
?	EG0877	BAR, BUS	1
?	EG0888	BAR, BUS	2
?	EG0876	BAR, BUS	1
?	EG0274	BAR, BUS	1
?	EG1879	SPACER	2
?	AK0941	NOTE: (1) CONTACTOR TIP KIT (STANDARD).	-1
?	AK0942	(2) CONTACTOR TIP KIT (SILVER-TIP).	-1

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

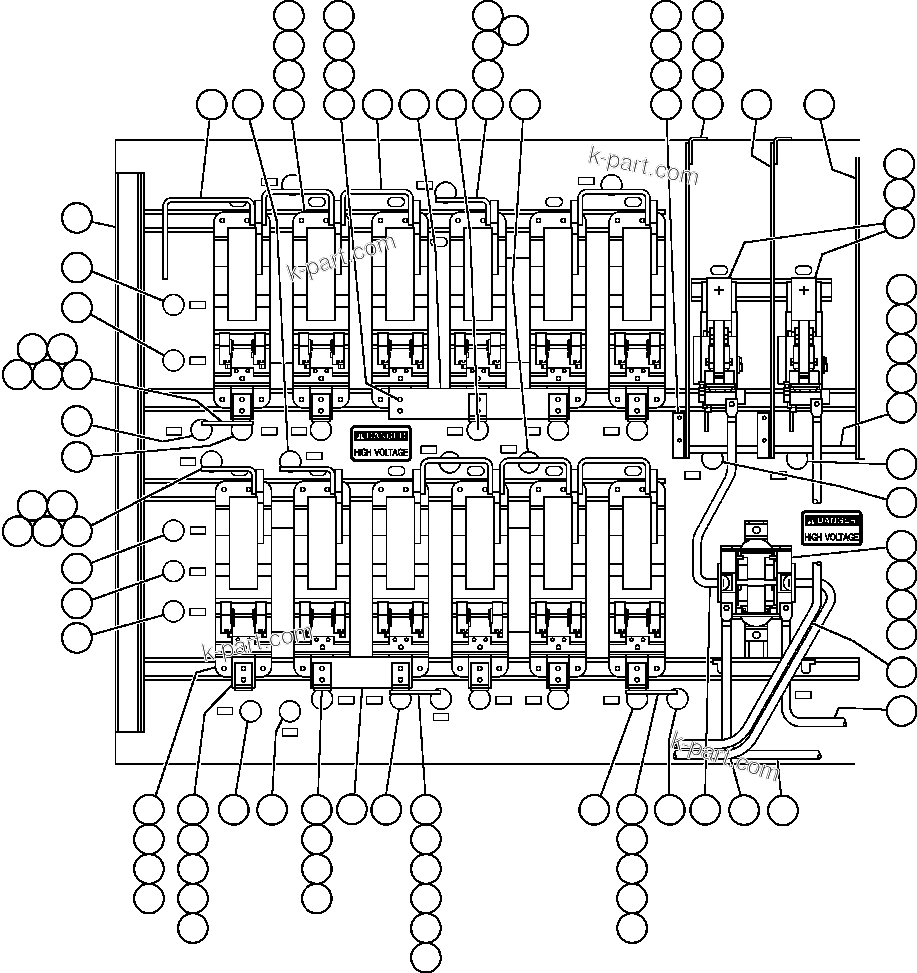

CONTROL CABINET ASSEMBLY - FRONT (55546) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
