AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	VE5127	PANEL BOX	1
?	VE5128	HEAT SINK	2
?	DC3584	LOCKWASHER - 1/4"	-1
?	VE4902	NUT - 1/4" - 20NC	16
?	C5746	CAPSCREW - 1/4" - 20NC X 3/4"	5
?	VE0299	BUS BAR - 4.73" DEVELOPED LENGTH	2
?	VE5098	SUPPORT	2
?	VE4382	RECEPTACLE, LATCHING, STN STL	2
?	VE4383	MACHINE SCREW - #4 - 40NC X 1/2"	4
?	VE4907	FLAT WASHER - #4	4
?	VE4908	LOCKWASHER - #4	4
?	VE4909	NUT - #4 - 40NC	4
?	VE5132	PANEL ASSEMBLY (SEE INDEX)	1	64038
?	VE4911	HINGE	1
?	VE4912	MACHINE SCREW - #8 X 5/8"	5
?	VE4913	MACHINE SCREW - #8 X 3/4"	5
?	VE4389	SHIELD, INSULATION	1
?	VE4915	MACHINE SCREW - #8 X 1/2"	9
?	VE2604	BUS BAR	1
?	VE3217	BUS BAR	1
?	VE4604	FLAT WASHER - #8	15
?	VE6320	CAPSCREW - 1/4" - 20NC X 1 1/8"	2
?	VE7202	FLAT WASHER - 1/4"	-1
?	TR1306	CAPSCREW - 1/4" - 20NC X 1"	6
?	VE0297	BUS BAR WITH SCREWS	2
?	VE5310	BUS BAR WITH SCREW	1
?	VE0302	BUS BAR	2
?	VE0301	BUS BAR	2

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

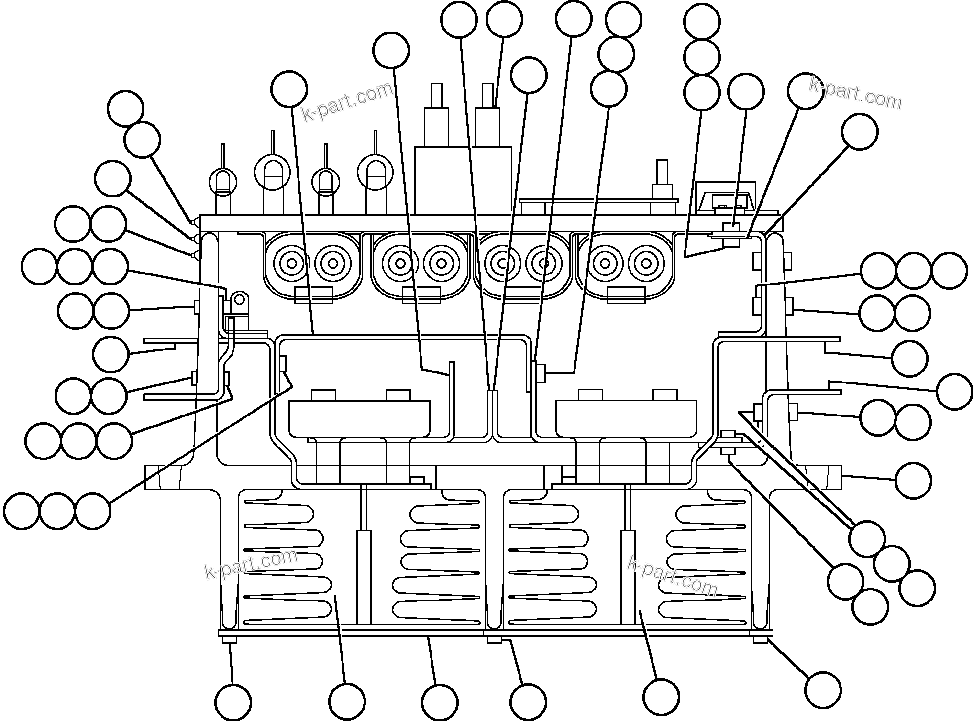

PANEL - AFSE - 1 (PB8838) (64071B) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
