AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

#	Part Number	Partname	Quantity	Reference
?	PB8838	STATIC EXCITER PANEL, ALTERNATOR FIELD (SEE INDEX)	1	64071A
?	TR4436	FLAT WASHER - 3/8"	20
?	TC1231	LOCKWASHER - 3/8"	20
?	TC1233	NUT - 3/8" - 16NC	20
?	ED6878	GASKET	4
?	PB4255	MODULE, SUPPRESSION	2
?	TG1929	MACHINE SCREW - #10 - 24NC X 1/2"	4
?	SD4245	LOCKWASHER - #10 (EXTERNAL TOOTH)	4
?	VC5344	FLAT WASHER - #10	22
?	DF0017	NUT - #10 - 24NC	8
?	VG7043	RELAY (SEE INDEX)	2	64037
?	DL9148	BAR, BUS	4
?	MM0469	LOCKWASHER - M6	22
?	MM0459	FLAT WASHER - M6	32
?	MM0176	NUT - M6 X 1.00	20
?	PB5587	MODULAR	2
?	DC3101	LOCKWASHER - #10	16
?	SD5369	MACHINE SCREW	4
?	PB5754	SPACER	4
?	PB9512	CONTACTOR ASSEMBLY	1
?	VS8196	CONTACTOR (SEE INDEX)	1	64127
?	VE3530	INTERLOCK, POSITION SENSOR (SEE INDEX)	1	64035
?	VW6069	CAPSCREW, INSULATED	2
?	VE2263	BASE	2
?	VE2264	SHIELD, INSULATOR	2
?	PB4262	TRANSFORMER, CURRENT	1
?	MM0027	CAPSCREW - M6 X 1.00 X 25	2
?	EC2026	HOUSING, CT RESISTOR	1
?	TK7659	RESISTOR	1
?	CH2562	CABLE - 71J (ALTERNATOR TO AFSE)	1
?	CH2550	CABLE - 74AA (ALTERNATOR TO AFSE)	1
?	PB7591	BLOCK, TERMINAL	1
?	VG6991	MACHINE SCREW - #8 - 32NC X 1"	2
?	VM9910	LOCKWASHER - #8	2
?	TF6248	FLAT WASHER - #8	2
?	TV2179	NUT - #8 - 32NC	2
?	TZ7543	PLATE, NAME - R1	1
?	VE6119	PANEL, RESISTOR (SEE INDEX)	1	64096
?	MM0470	LOCKWASHER - M8	2
?	MM0460	FLAT WASHER - M8	2
?	MM0177	NUT - M8 X 1.25	2
?	PB5249	TRANSFORMER	2
?	PB4252	PANEL, IS0 AMP (SEE INDEX)	1	64066
?	MM0378	LOCKWASHER - M4 (EXTERNAL TOOTH)	8
?	MM0372	NUT - M4	8
?	VE6118	PANEL (SEE INDEX)	1	64067
?	VS6359	PANEL	1
?	EB7418	BAR, BUS	1
?	WB2343	STRIP, CIRCUIT ID	1
?	PB5732	BOARD, TERMINAL	4
?	MM0206	LOCKWASHER - M5	8
?	MM0373	NUT - M5	8
?	WB2342	STRIP, CIRCUIT ID	1
?	WB2905	STRIP, CIRCUIT ID	1
?	WB2340	STRIP, CIRCUIT ID	1
?	CH2577	CABLE - 71K (MFSE PANEL TO S7 SHUNT)	1
?	CH2579	CABLE - 7J13 (MFSE PANEL TO REVERSER)	1
?	CH2561	CABLE - 75X (MFSE PANEL TO ALTERNATOR)	1
?	CH2578	CABLE - 7J14 (MFSE PANEL TO REVERSER)	1
?	CH2576	CABLE - 74F (AFSE PANEL TO S4 SHUNT)	1
?	PB8837	STATIC EXCITER PANEL, MOTOR FIELD (SEE INDEX)	1	64073
?	CH2575	CABLE - 74E (AFSE PANEL TO S6 SHUNT)	1
?	PB4267	PANEL, RESISTOR	3
?	F0043	SCREW, MACHINE - #10 - 24NC X 1 3/4"	6
?	WB2359	PLATE, NAME - DRP	1
?	TZ7520	PLATE, NAME - GFIP	1
?	EG1880	PLATE, NAME - VDR3	1
?		NOTE: NS = NOT SHOWN	-1
?	VF6697	INDICATOR, HIGH BEAM	1
?	VL6234	BULB	1

Komatsu AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM parts catalog PDF

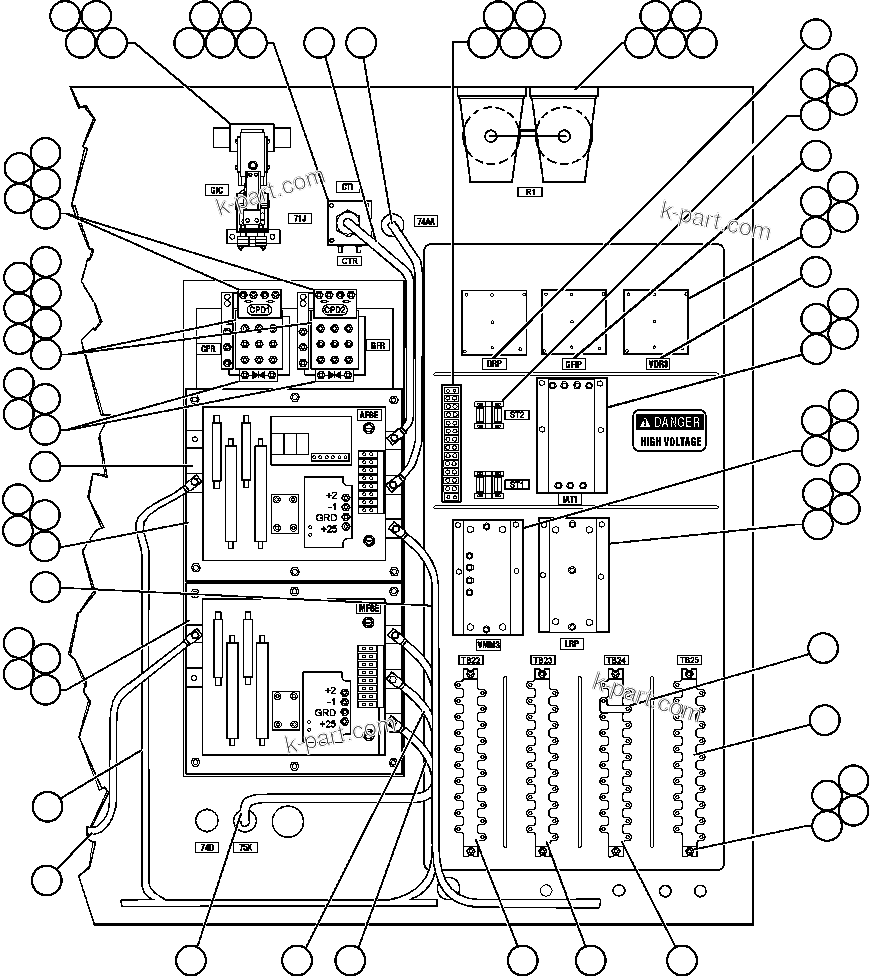

CONTROL CABINET ASSEMBLY (55544) in AFE47-FE 730E S/N A30512 - A30517 ROSSING URANIUM. Diagram image and parts list.
